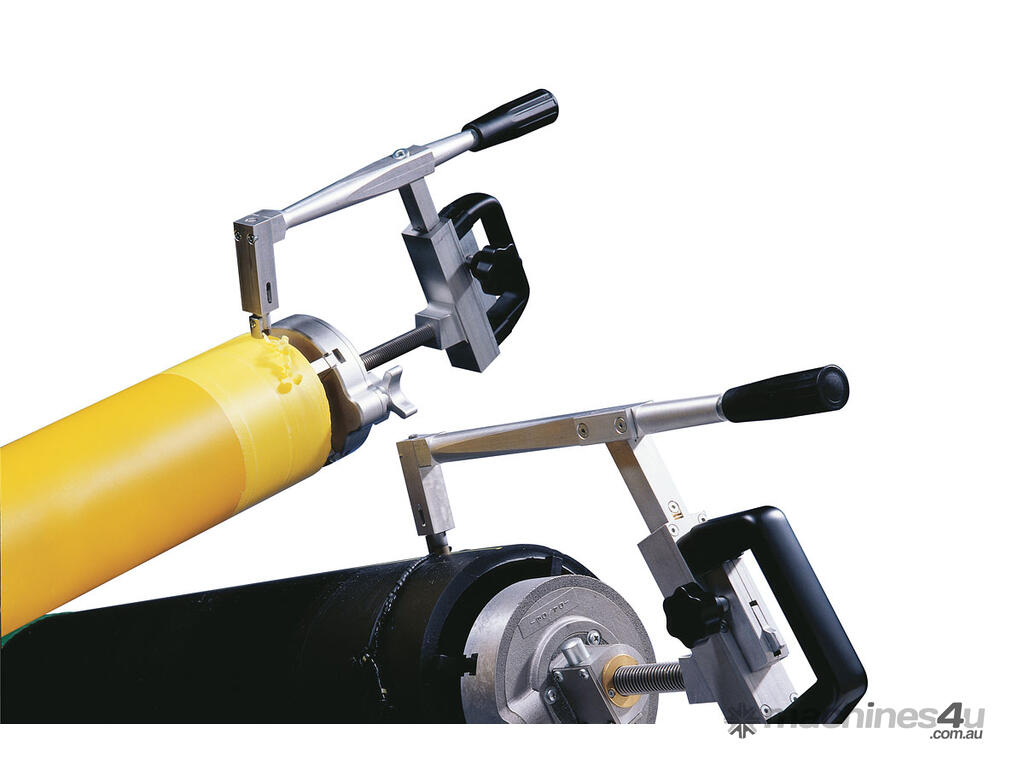

Pipe Scrapers RTC Electrofusion (50mm-710mm)

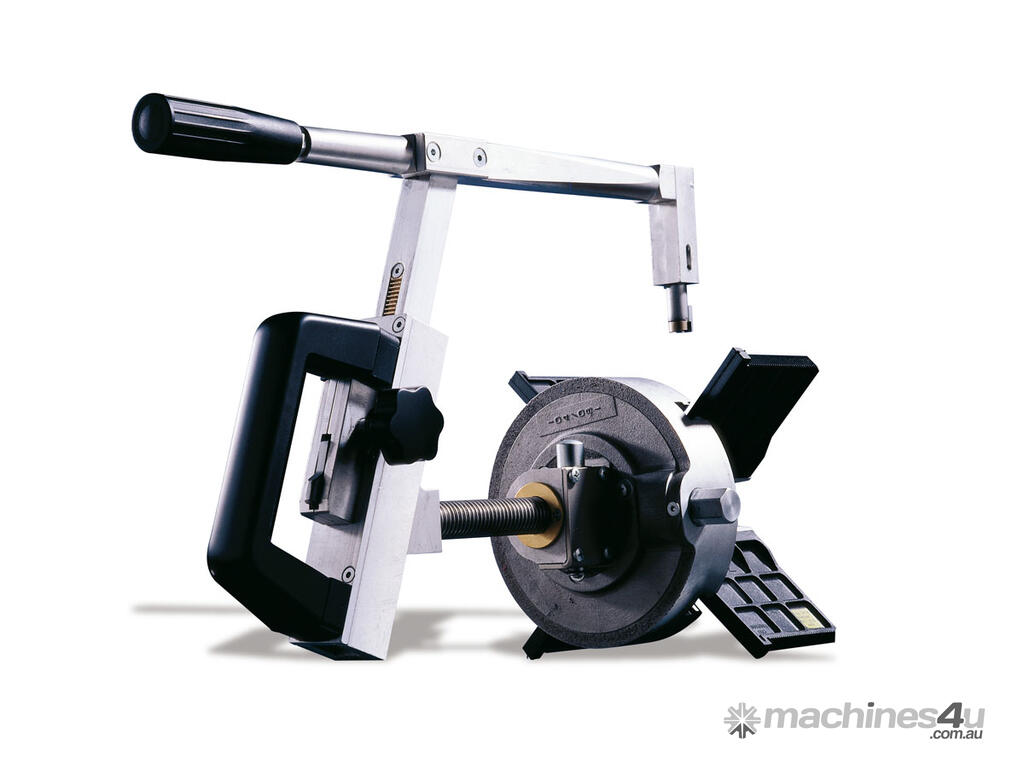

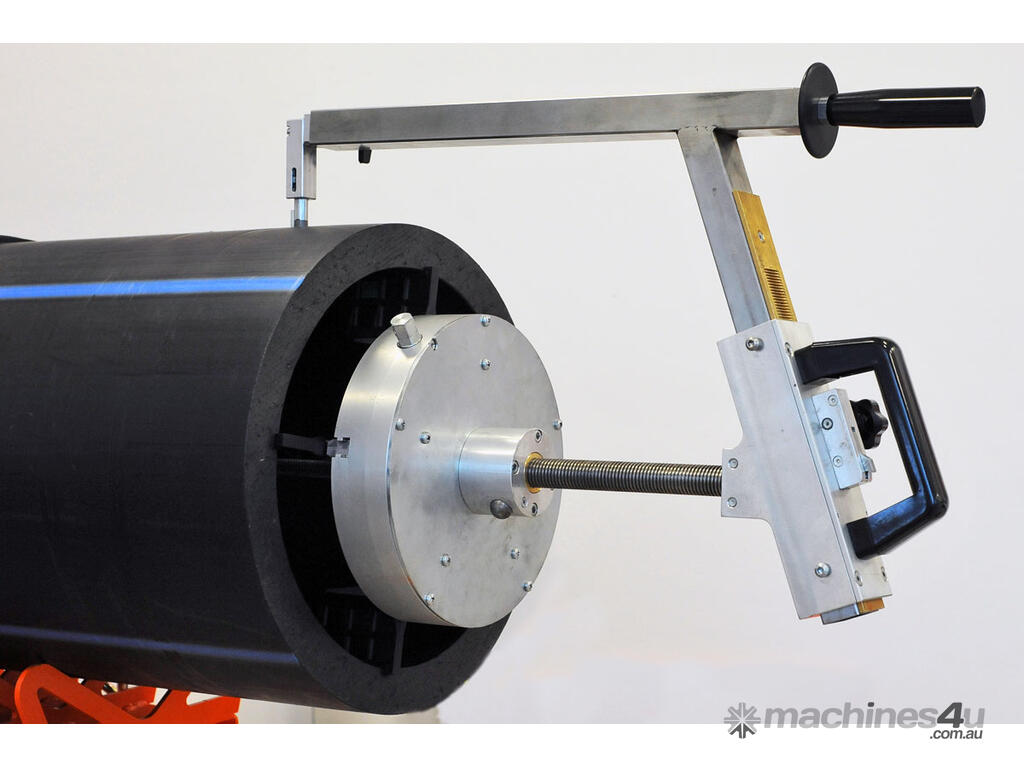

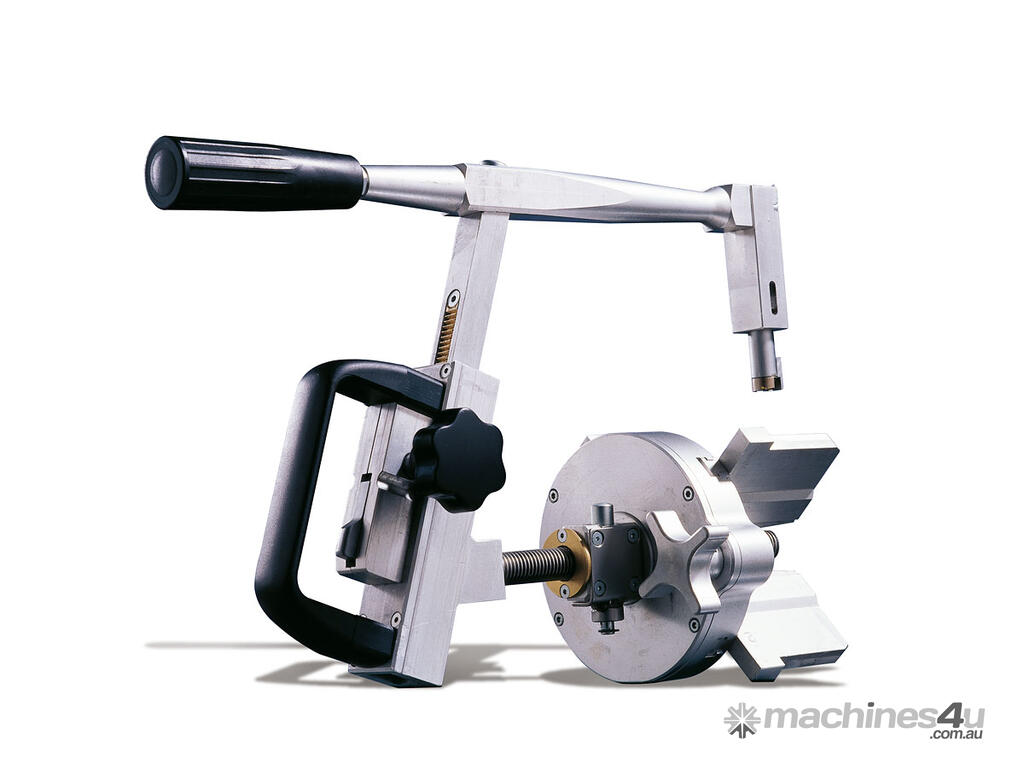

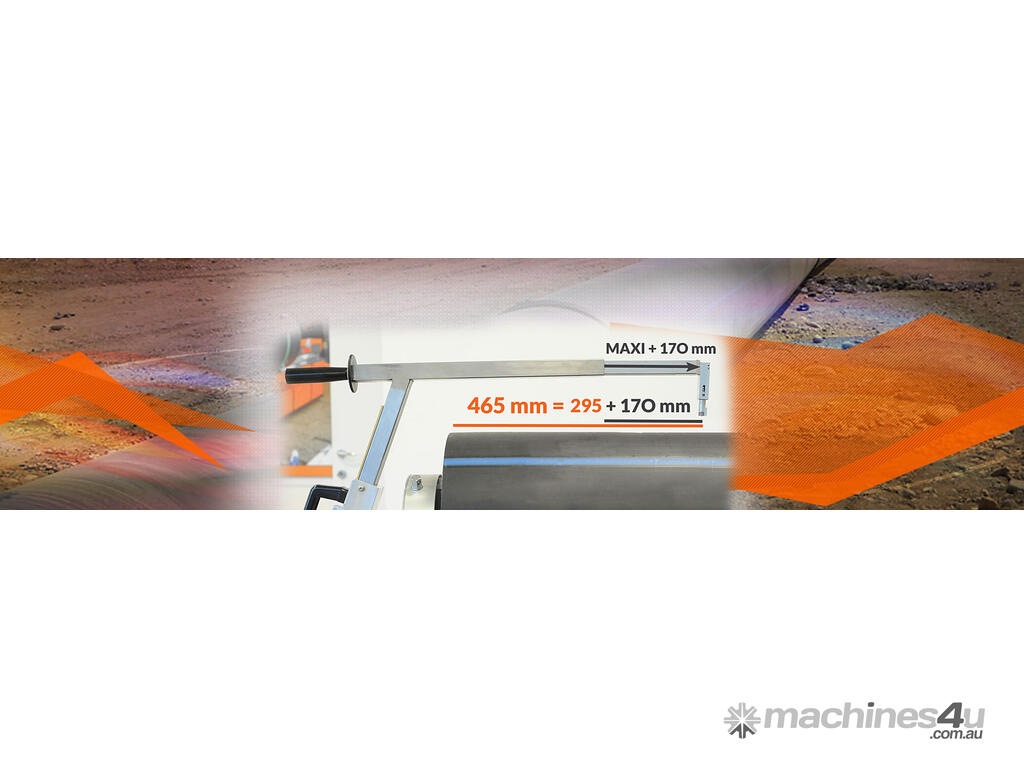

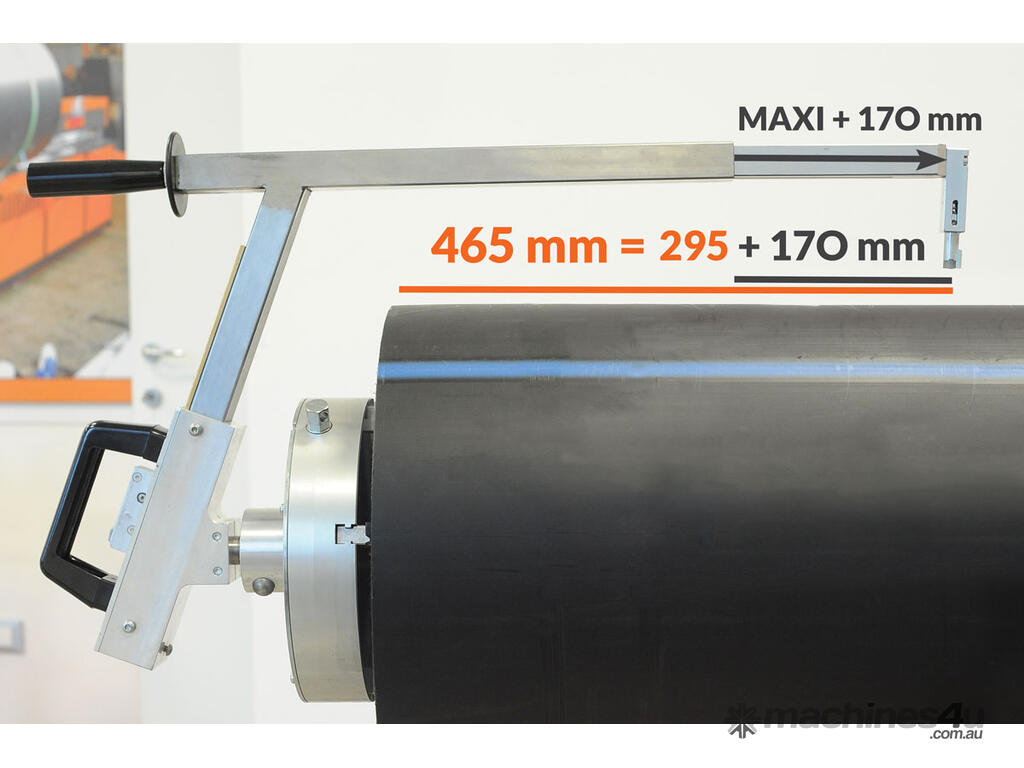

RTC 500 and RTC 710 features an extendable arm to scrape the exact length of the electrical coupler, which is an advantage when having to perform maintenance/repair jobs in the building site. The main chuck has four extendable arms that clamps the inside diameter of the pipe.

Materials
PE/PP/PP-R/other


RTC 160


Working range EXTERNAL

Ø 50 ÷ 160 mm

2” IPS ÷ 6” IPS


Working range INTERNAL
Ø 38 ÷ 154 mm

1.5” x 6”


Max scraping lenght
114 mm 4.5"


Weight
2,50 Kg - 5.5 lb


Weight with accessories
5,65 Kg - 12.5 lb


Dimensions
380 x 120 x 250 mm

14.9” x 4.7” x 9.8”


Dimensions - Transport
390 x 210 x 135 mm

15.3” x 8,3” x 5.3”



RTC 315



Working range EXTERNAL
Ø 75 ÷ 315 mm

3” IPS ÷ 12” IPS


Working range INTERNAL
Ø 58 ÷ 300 mm

2.2” x 11.8”)


Max scraping lenght
137 mm 5.4"


Weight
4,50 Kg - 9.9 lb


Weight with accessories
7,50 Kg - 16.5 lb


Dimensions
510 x 310 x 410 mm

20” x 12.2” x 16.1”


Dimensions - Transport
230 x 500 x 270 mm

9” x 19.7” x 16.1”






RTC 500



Working range EXTERNAL
ØØ 180 ÷ 500 mm

8" IPS ÷ 20" IPS


Working range INTERNAL
Ø 110 ÷ 485 mm

4.3” ÷ 19.1”


Max scraping lenght
465 mm 18.3"


Weight RTC 500 with accessories
14 Kg - 31 lb


Weight Transport case
10 Kg - 22 lb


Dimensions max
780 x 500 x 250 mm

31” x 20” x 10”

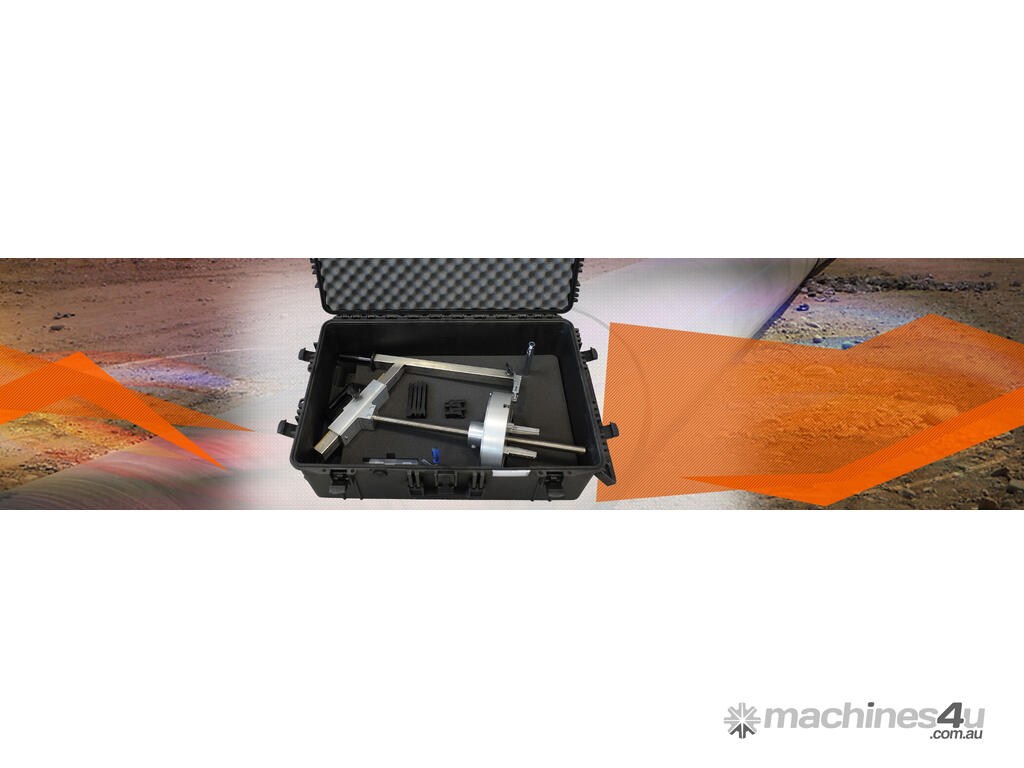

Dimensions - Transport case

480 x 280 x 750 mm

19” x 11” x 30”






RTC 710



Working range EXTERNAL
Ø 355 ÷ 710 mm

14” IPS ÷ 28” IPS


Working range INTERNAL
Ø 290 ÷ 675 mm

11.4” x 26.5”


Max scraping lenght
530 mm 28.7"


Weight
16 Kg -  35.8 lb


Weight with accessories
28 Kg - 61.7 lb


Dimensions
825 x 805 x 695 mm

32.5” x 31.7” x 27,3”


Dimensions - Transport
800 x 580 x 350 mm

31.5” x 22.8” x 13.8”
