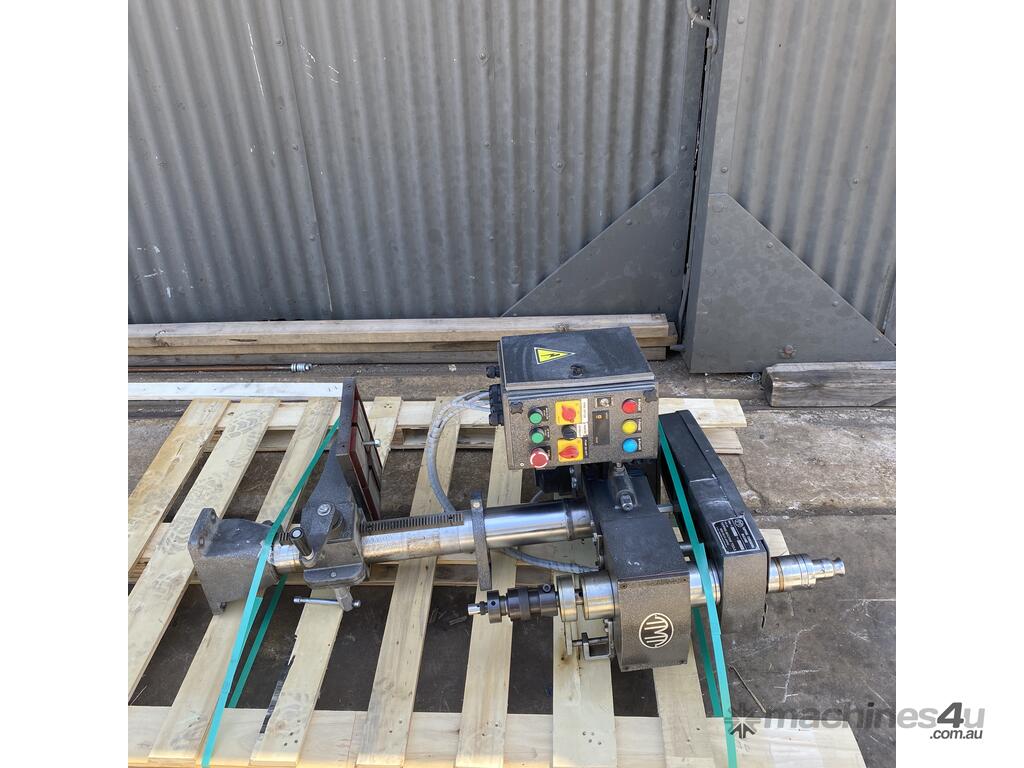

Pitch Control Tapping Machine - Single Spindle MODEL TR-20/40 (LEAD SCREW TYPE)
There are 3 of these available, price is for 1.

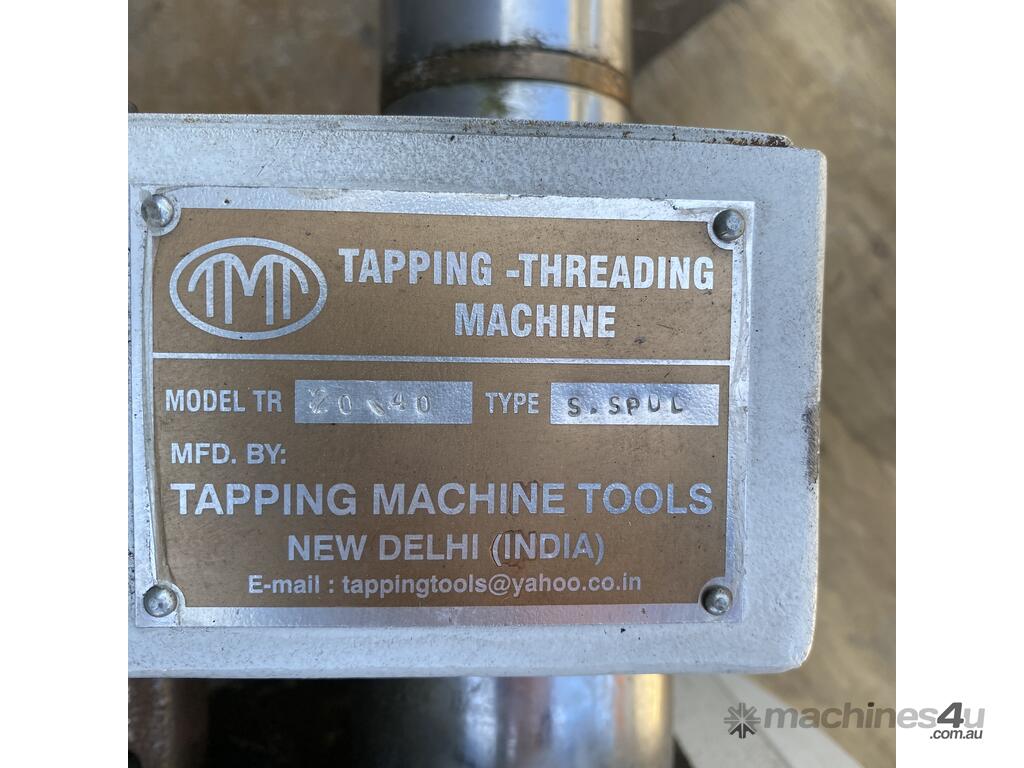

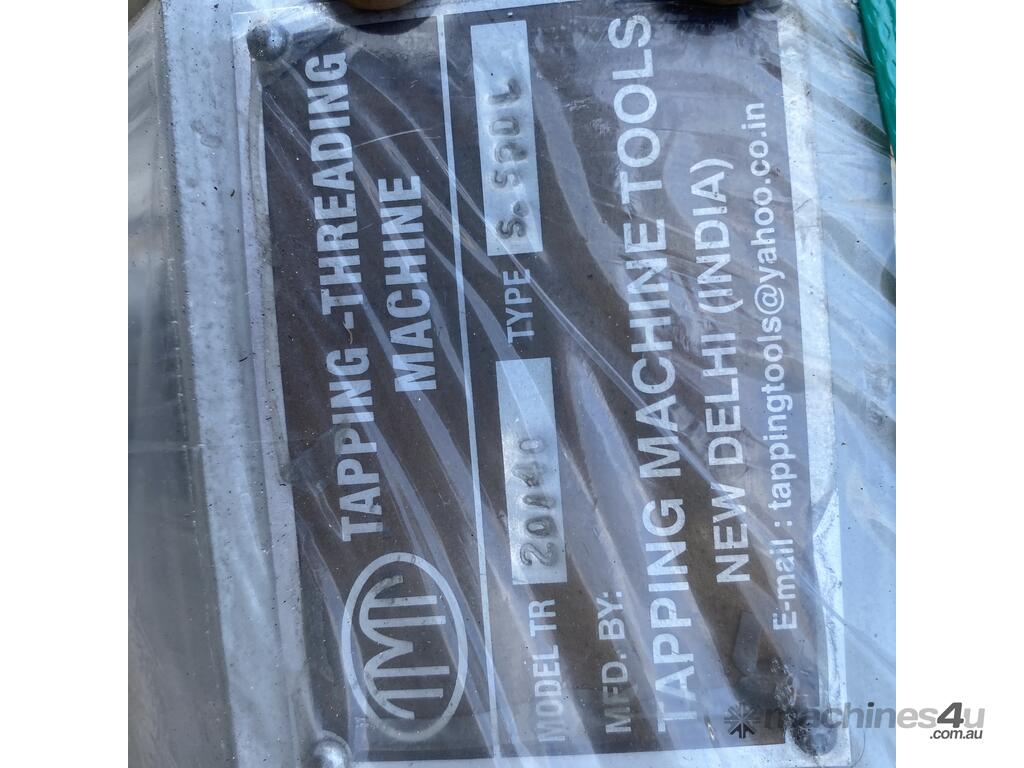

2 are definitely TR-20/40, the other is most likely a TR-20/40.
Salient Features
All moving parts are hardened and ground for long life.
Safety Limit switch provided with stop machine mechanism. This is designed to stop a accident to occur and minimize tap breakage.
Hardened & Grounded Lead Screw controls the pitch, which gives precise and rapid production with high accuracy. This reduces the set time and increase production.

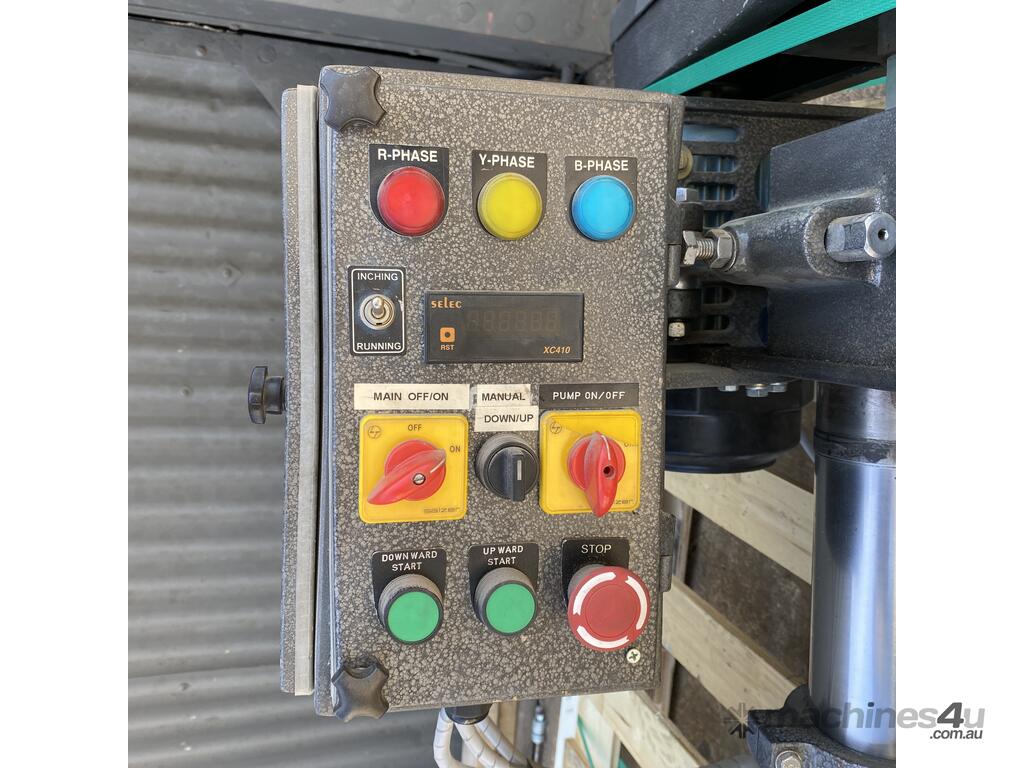

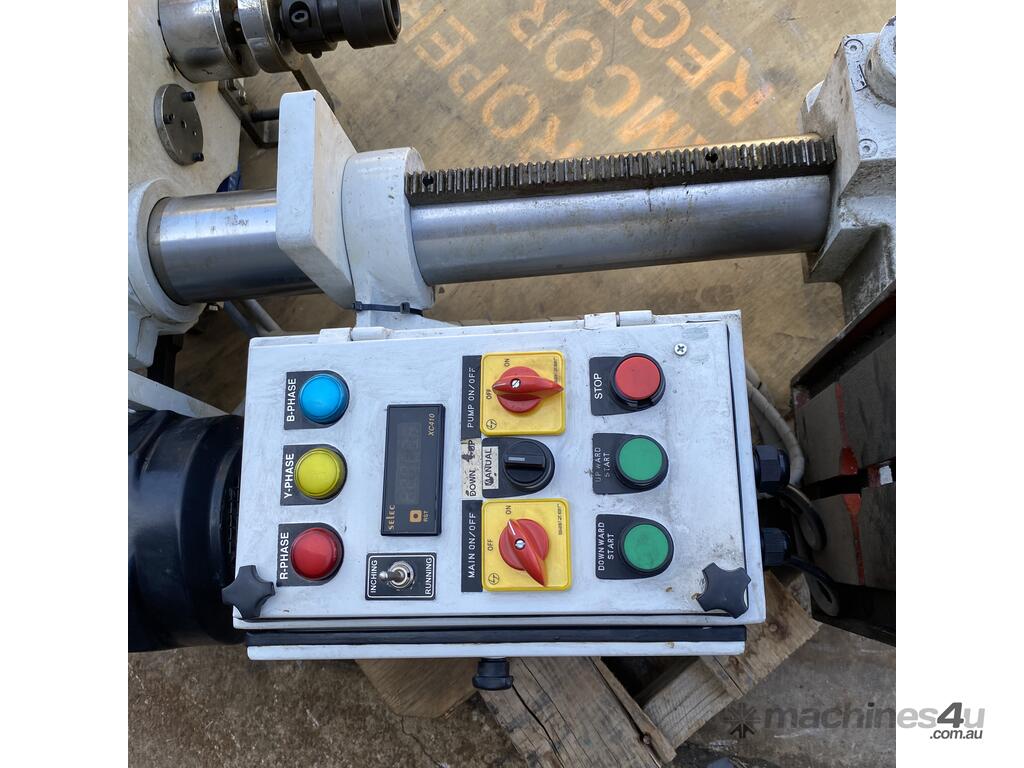

Main spindle mounted with manually adjustable safety limit switch.
Threads are never fractured or over cut due to elimination of excessive thrust force of feeding spindle with the help of Lead Screw.
Tapping strokes are adjustable for high accuracy automatic reversing which is specially important for blind hole tapping applications.
TR-20/40 (LEAD SCREW TYPE)- Single Spindle
Tapping capacity In Steel: UPTO 20mm(Course Pitch), 40mm(Fine pitch)
Spindle travel
110mm
Distance b/w Center to column
216mm
Distance b/w nose to table max.
350mm
Spindle Nose to Base max.
600mm
Column Diameter
90mm
Table Shape
rectangular
Table Size
350 x 225mm
Working Area
275 x 150mm
Base
535 x 460mm
No. Of Speeds
2

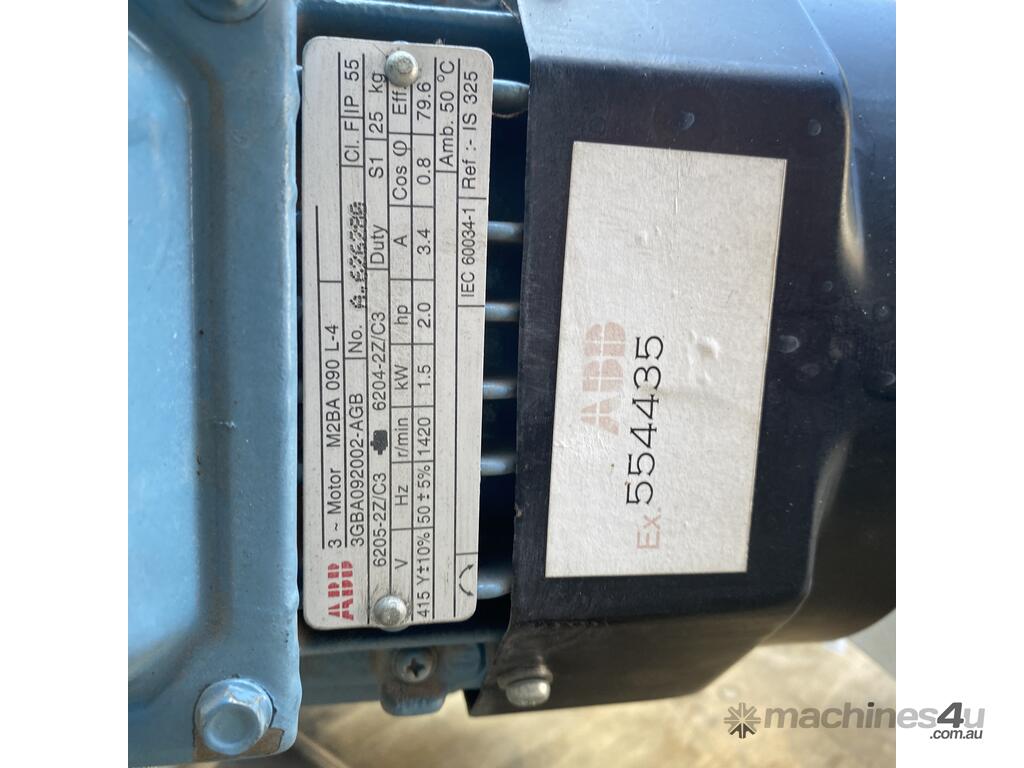

Motor Required
2 HP/1440 rpm or 2 HP/900 rpm (Acc. To requirement)
Total Height
1900mm (approx.)
Standard Equipment

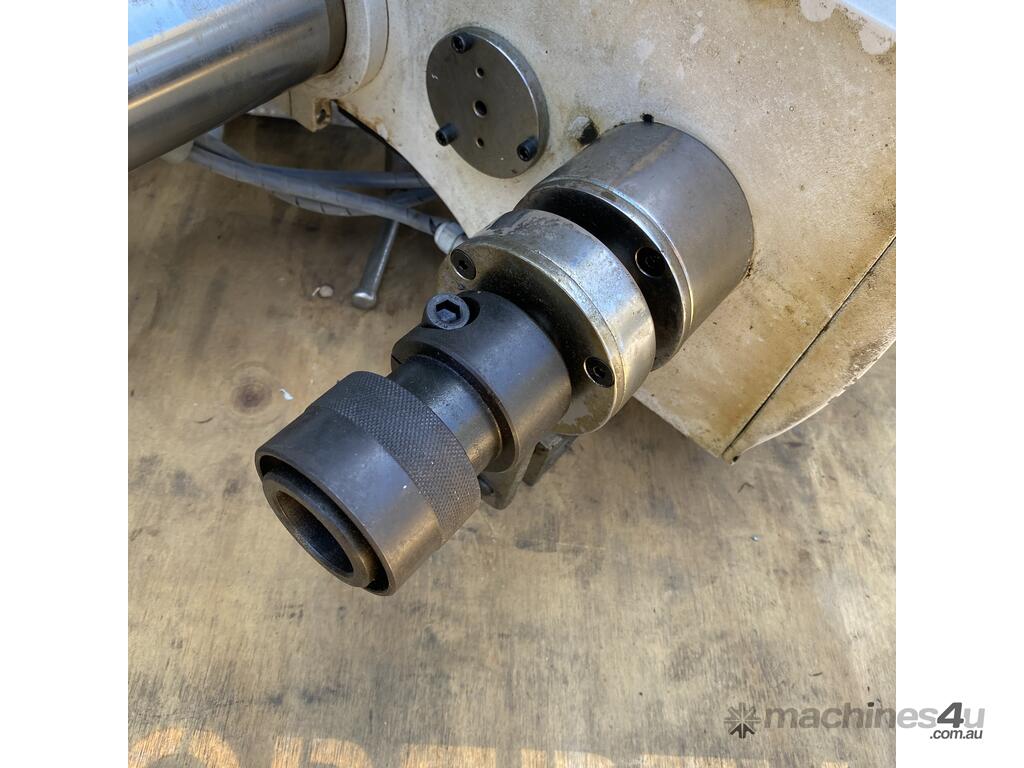

Tap Holder, 1no. Tap Collet of Any Size, 1no. Lead Screw of any pitch size (fitted), Spanner, and Coolant System.

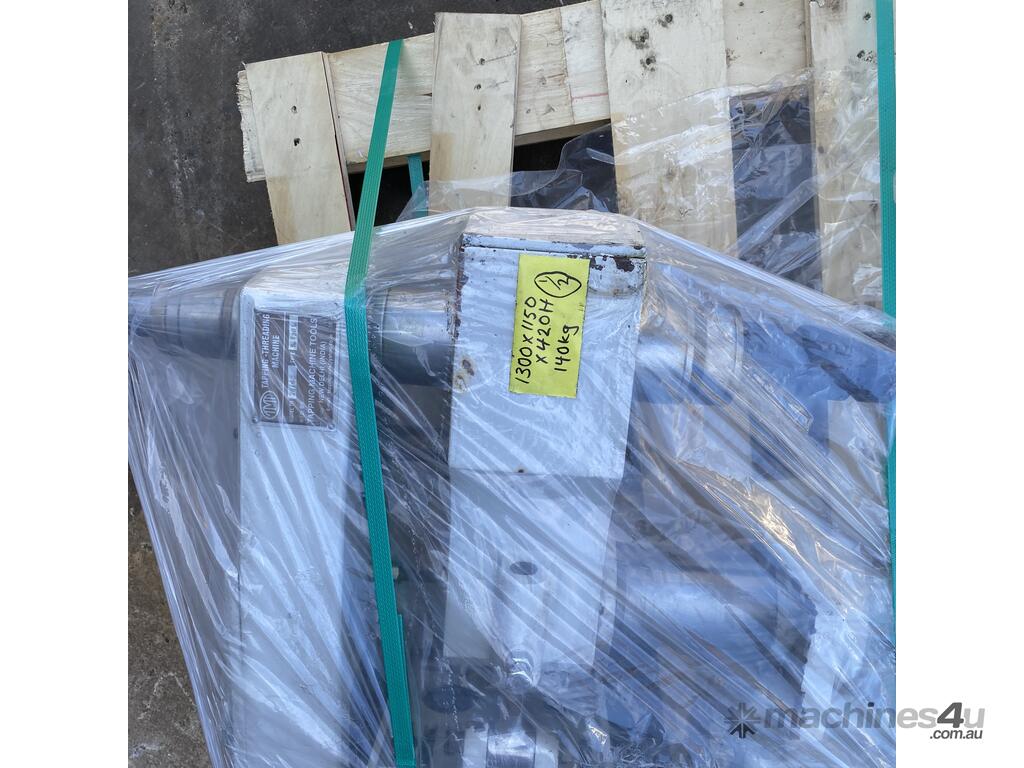

140kg
1150 x 1660 x 610mm
Please check our online store for many and various other items in stock, large selection available.
Contact and inspection of goods
Please contact Tim Marshman with any questions. This item may be inspected by appointment at 9 Vernon Smith Court, Ottoway, South Australia
