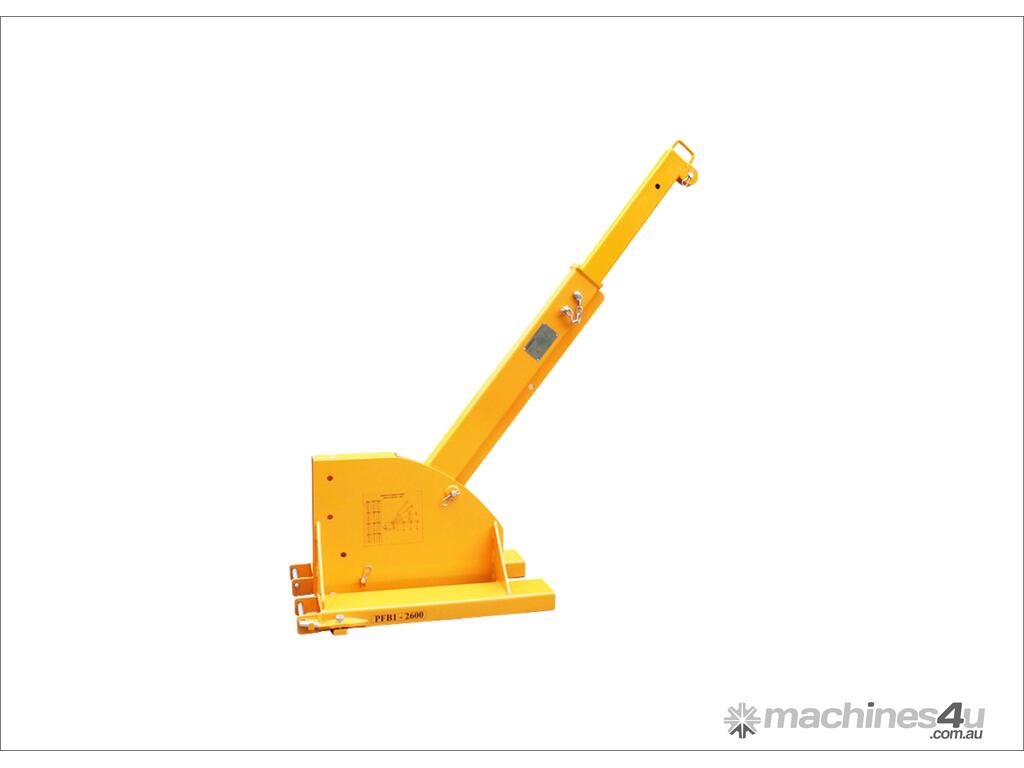

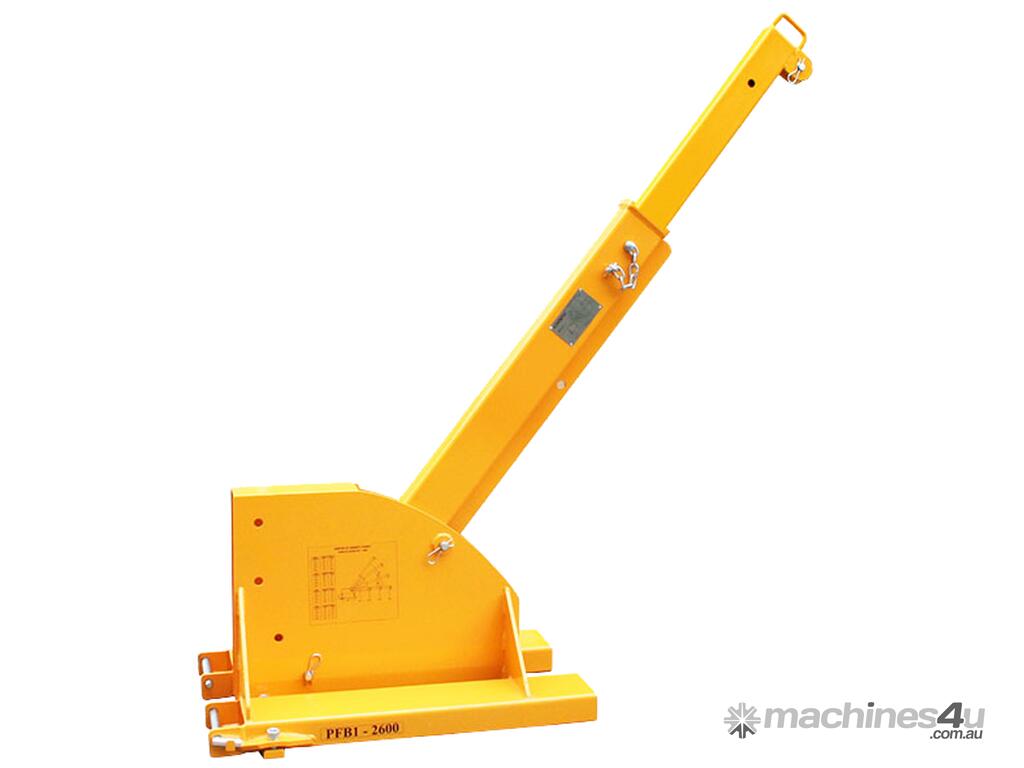

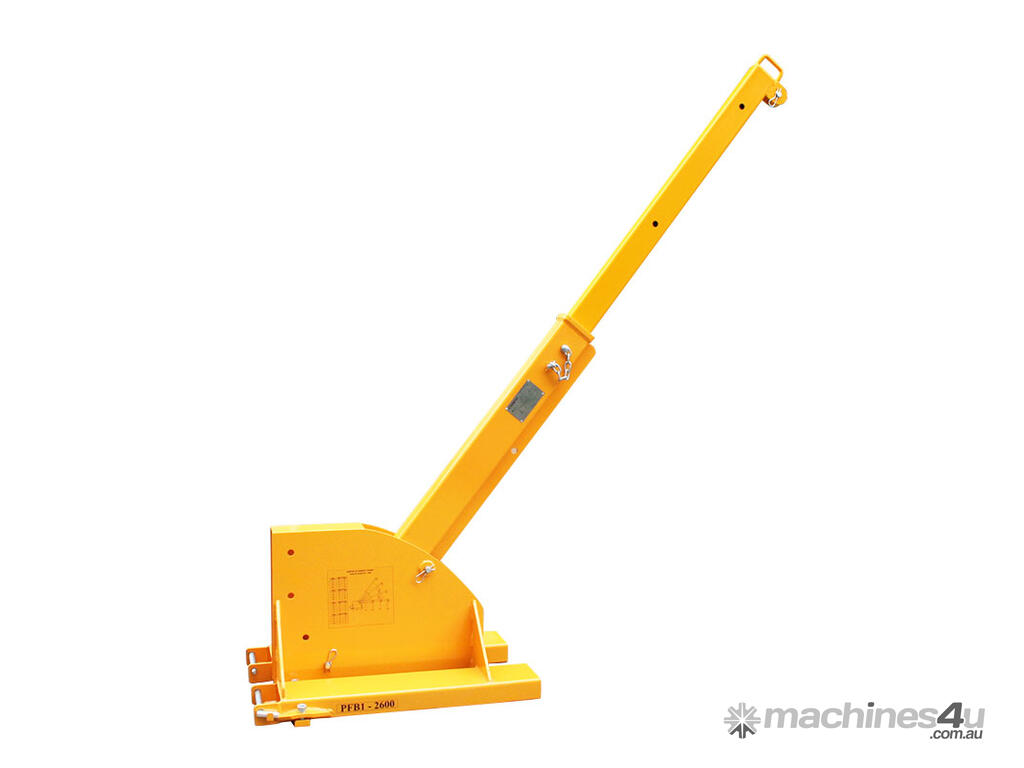

Pivot Forklift Boom Lifting Attachment

The Pivot Boom model PFB1-2600 is adjustable for height and length. The tilt facility allows extra height to compensate for the hook and sling length lost when lifting with a jib attachment.

Features
The boom extension is designed so that it cannot be pulled all the way out
The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins

Note: Boom lift capacities depend completely on the capacity of the forklift being used

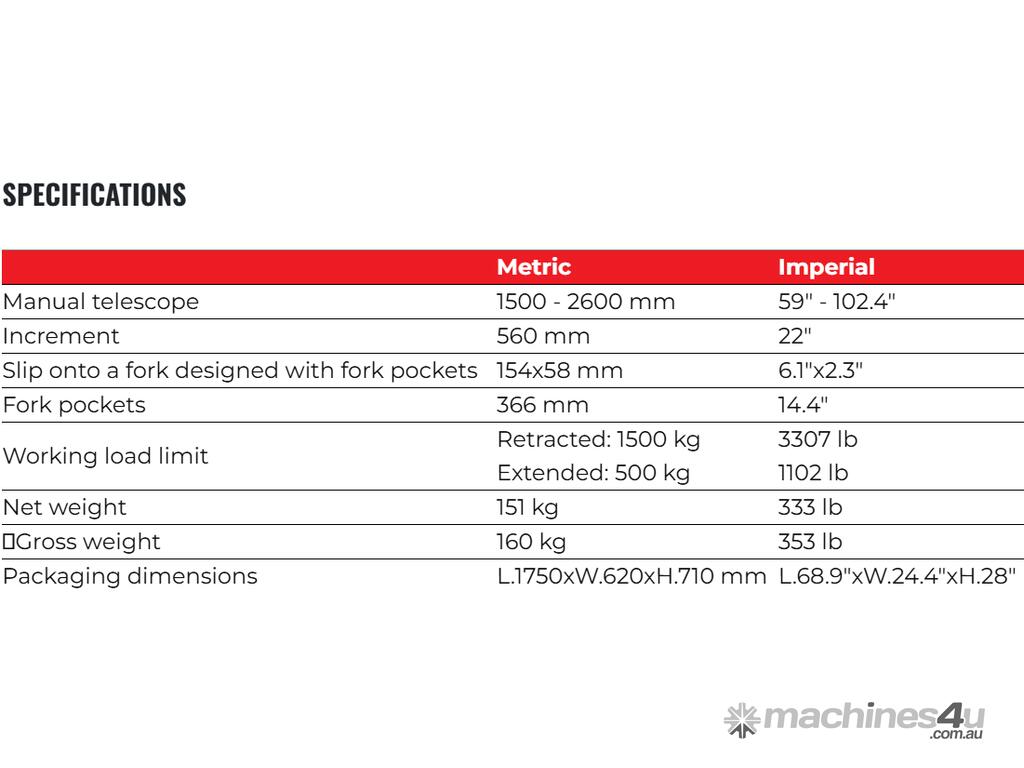

Specifications

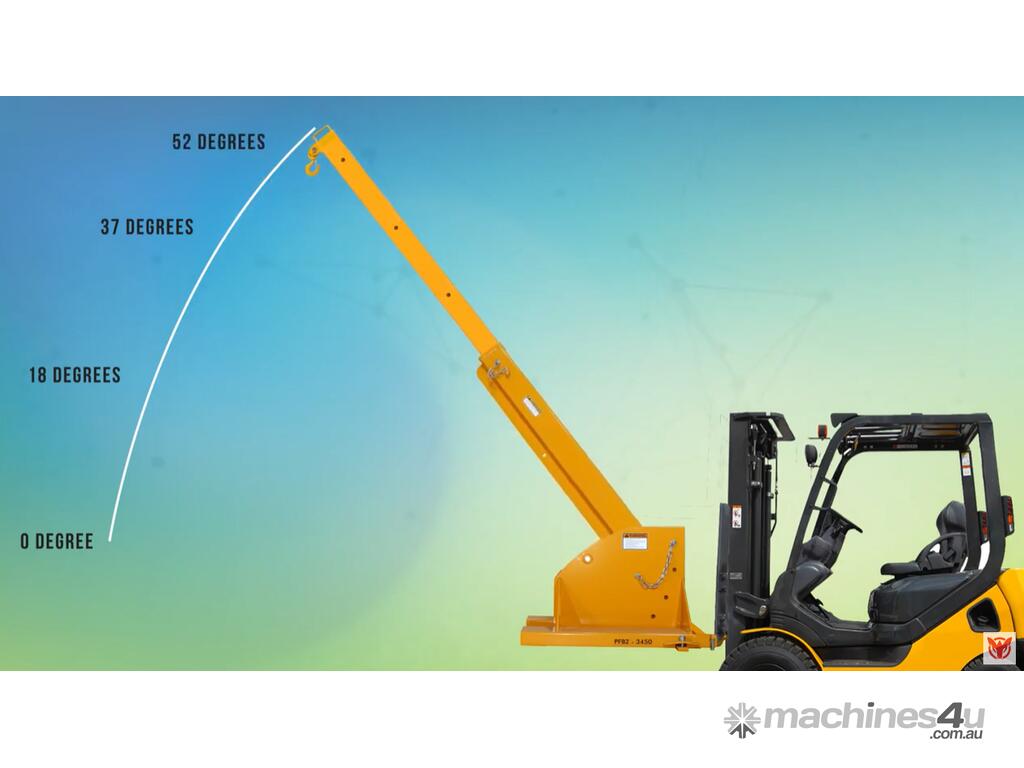

Tilt Range: 0 - 52°

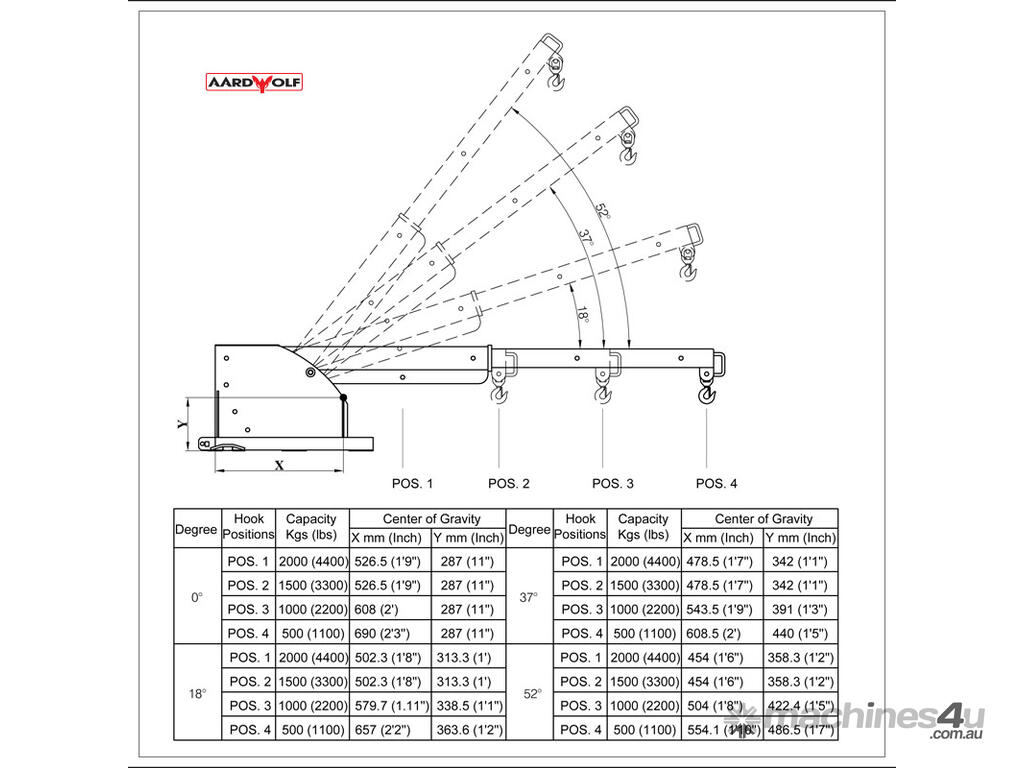

Capacity: Fully retracted - 1,500kg, fully extended - 500kg

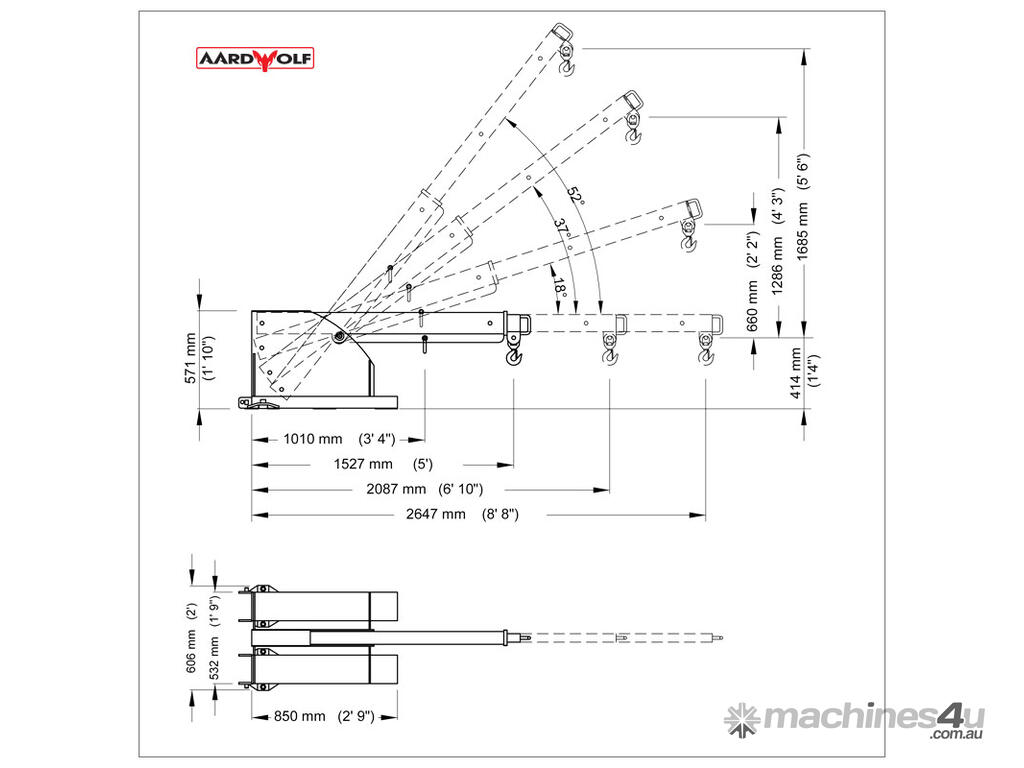

Manually Telescopes From: 1.5 to 2.6m in 2 increments of 550mm
Fits Onto Forks: 154mm wide x 58mm high
Fork Pockets From Centre To Centre: 366mm
Packaging Dimensions: L1750 x W620 x H710mm
Weight Of Unit: 150.5kg
