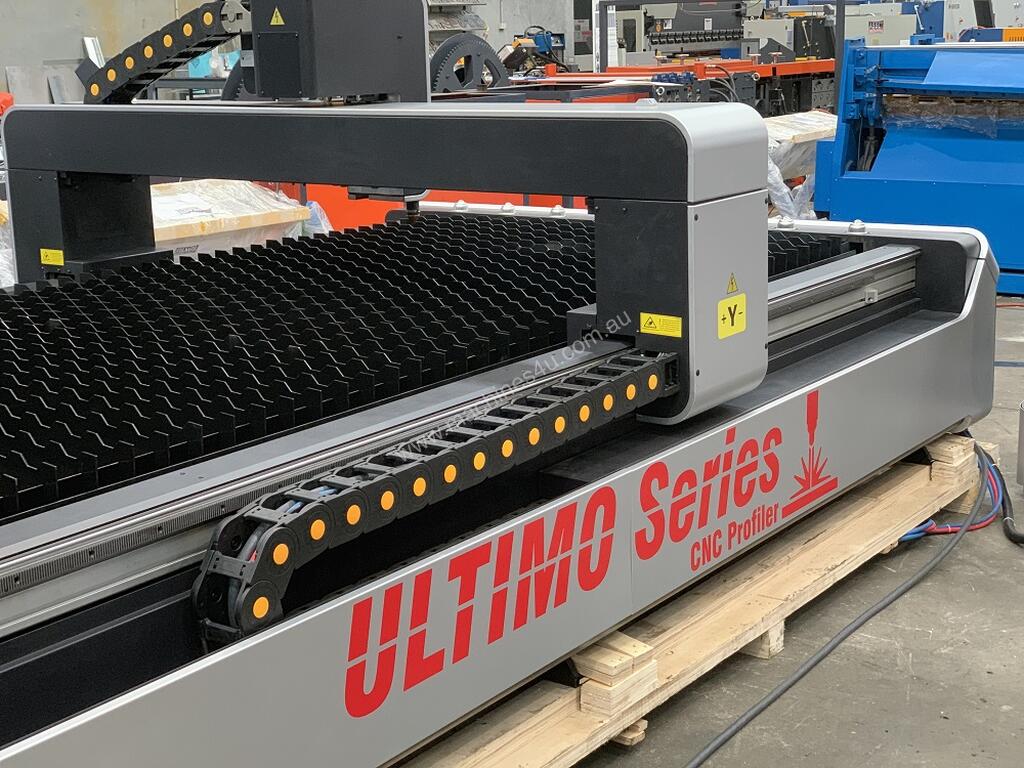

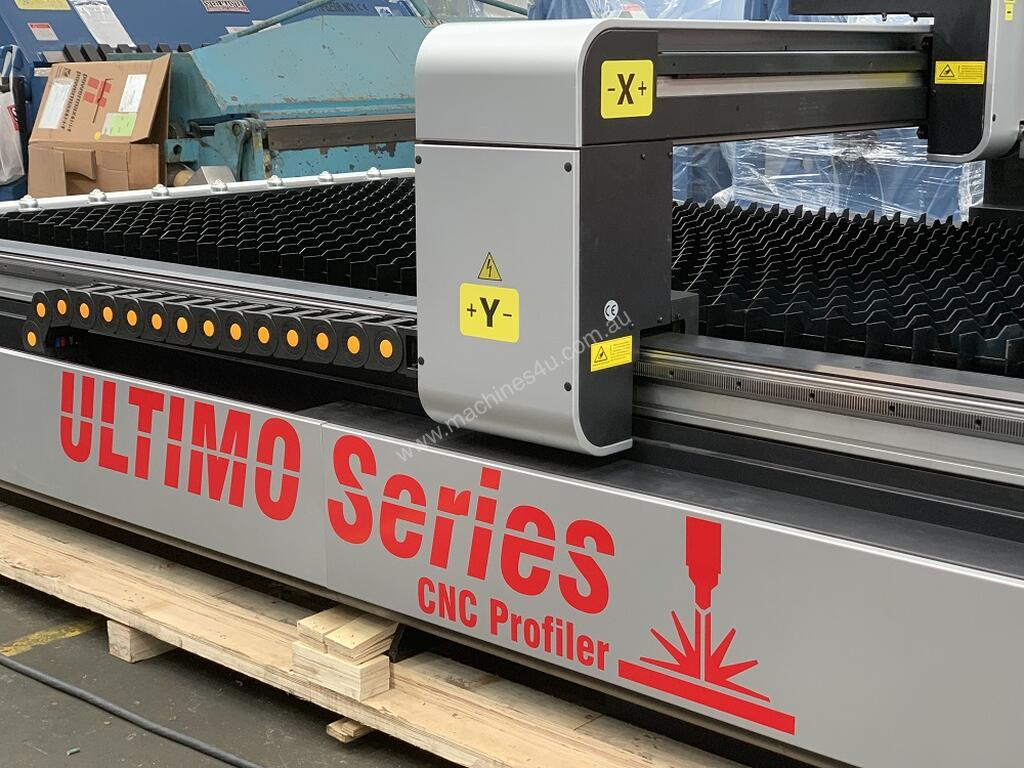

Plasma / Flame Combo CNC

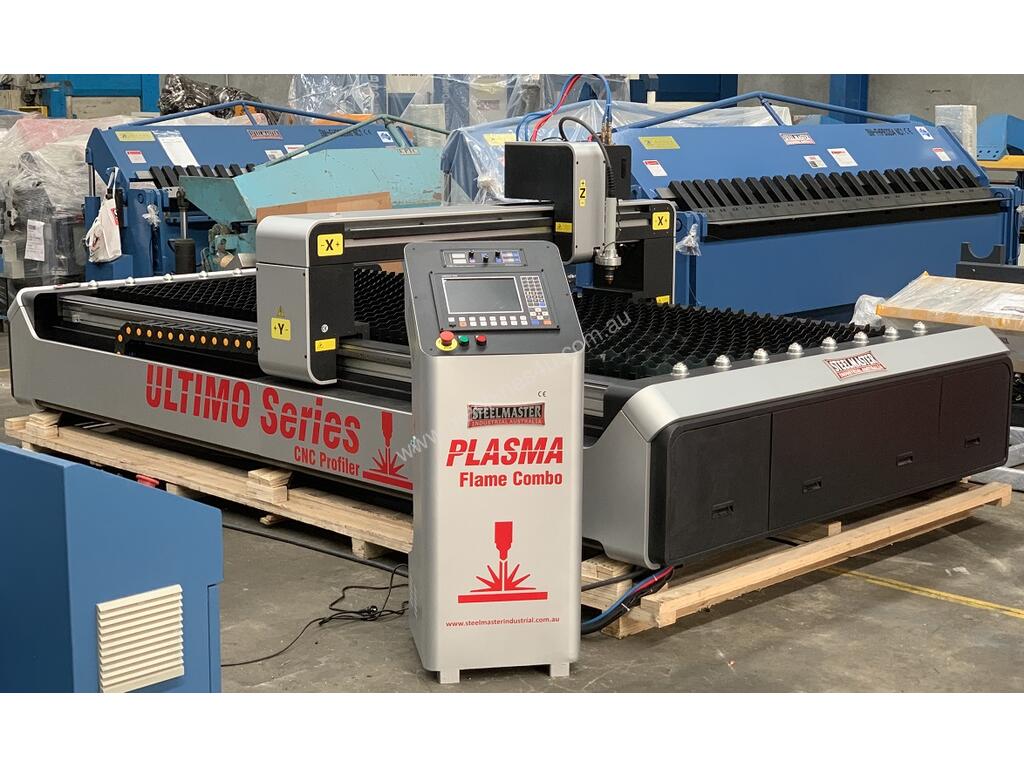

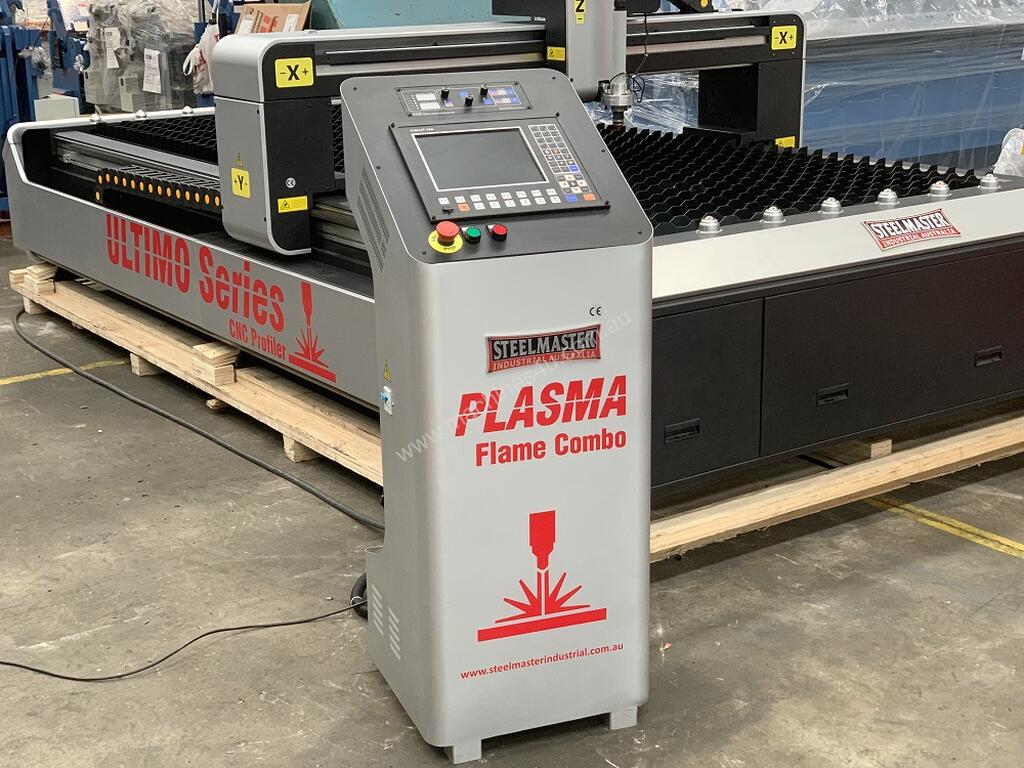

Plasma / Flame Combo CNC – STEELMASTER ULTIMO Plus - CNC Plasma & Oxy Flame Profiler. 1500mm x 3000mm
Heavy Duty Table, Fastcam CNC Software System, Torch Height Control. Plasma Power Source To Be added

Give yourself the competitive edge from all the other cnc plasma owners with you new Steelmaster Industrial ULTIMO Plus Plasma / Flame Combo!

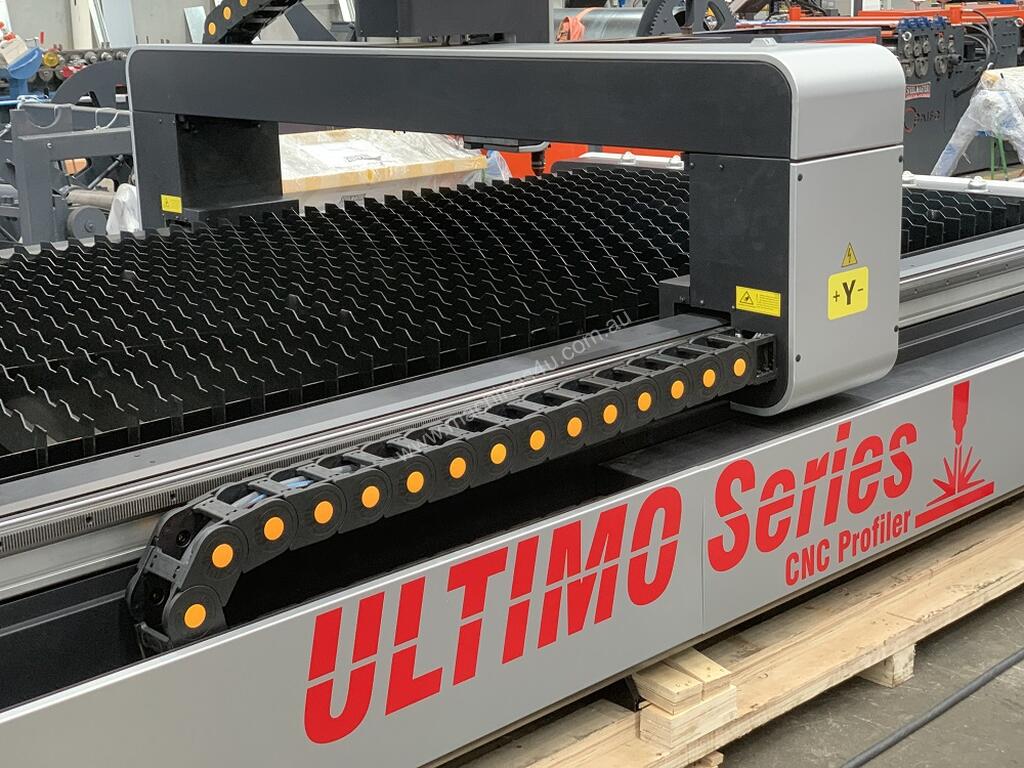

This heavy duty Industrial designed Gantry Type CNC Plasma Oxy Combo ticks all the boxes.
Attractive price, robust heavy duty industrial build design, Fastcam CNC operating system with drawing package and full nesting, backed up with second to none service.
Simply select your Plasma Power Source to be added and away you go!

Description
Heavy duty industrial build quality - combining cnc plasma cutting & heavy duty thick oxy cutting -
The New ULTIMO Plus – Your first choice in Thick Plate Cutting.
Its heavy weight table is designed for convenient loading and unloading of steel plate. The High Power THC makes the ULTIMO Plus our thickest!

Features

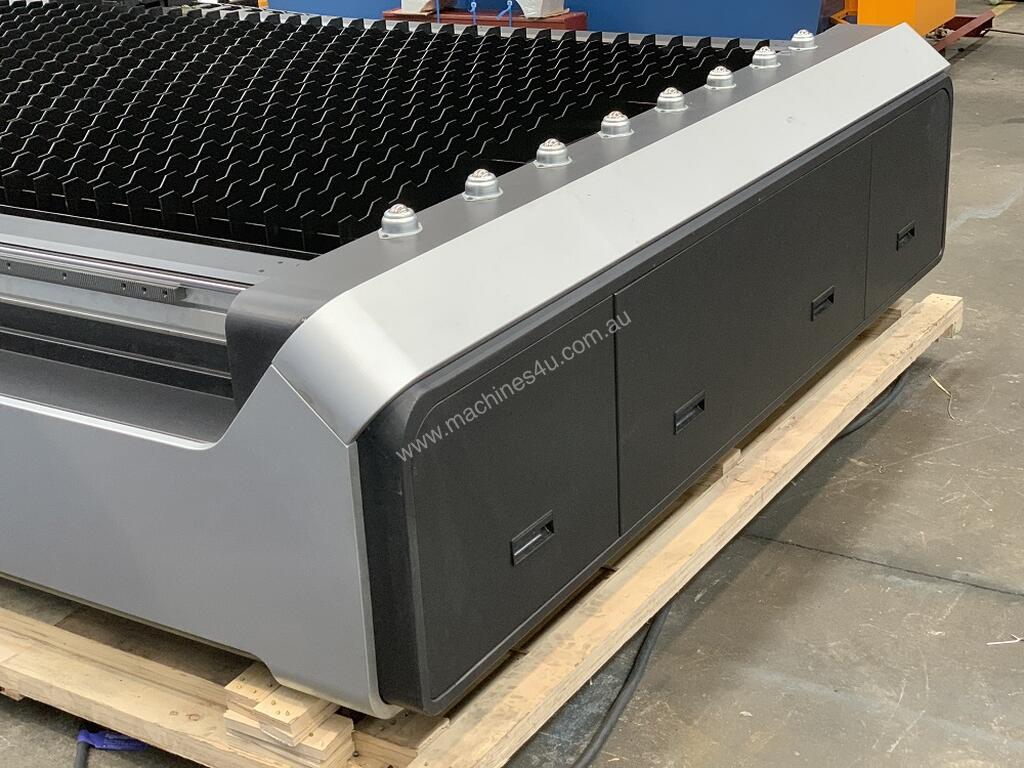

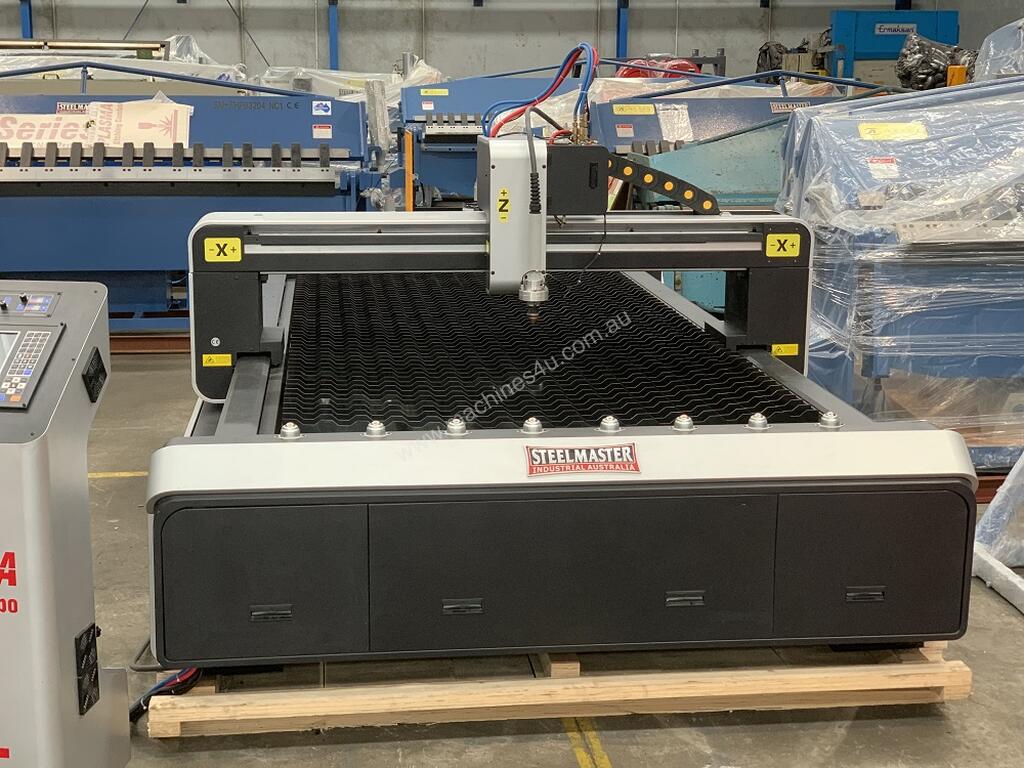

? Heavy Duty Industrial Build 1500mm x 3000mm downdraft cutting table

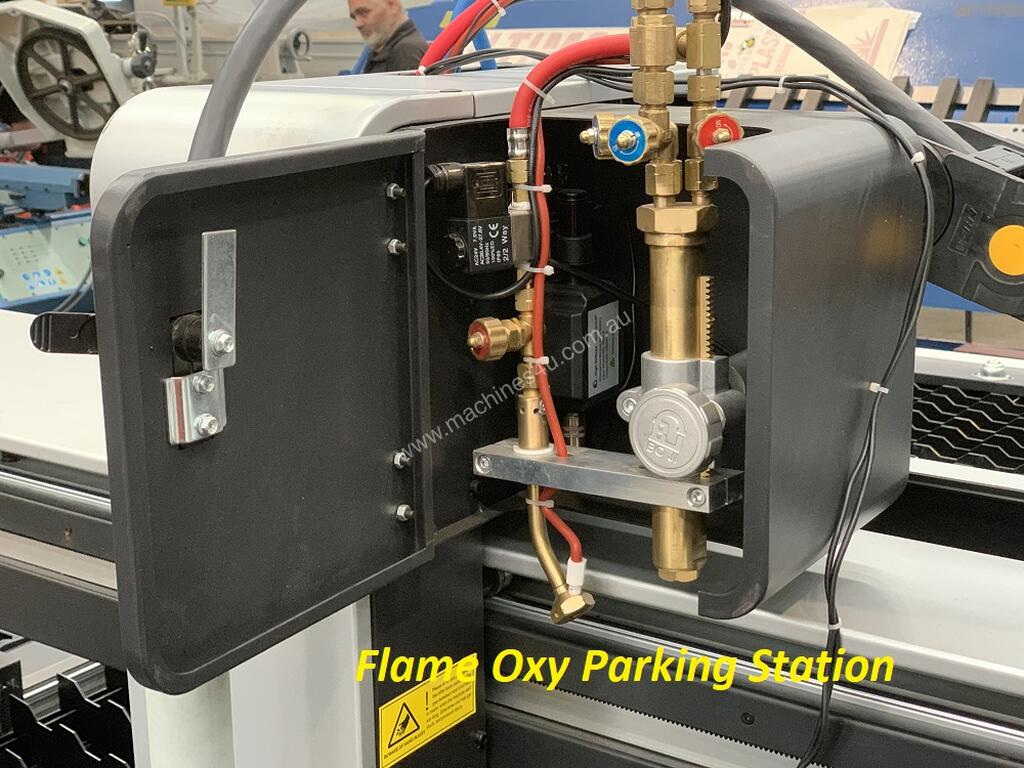

? Dual head machine with Plasma & Oxy fitted.

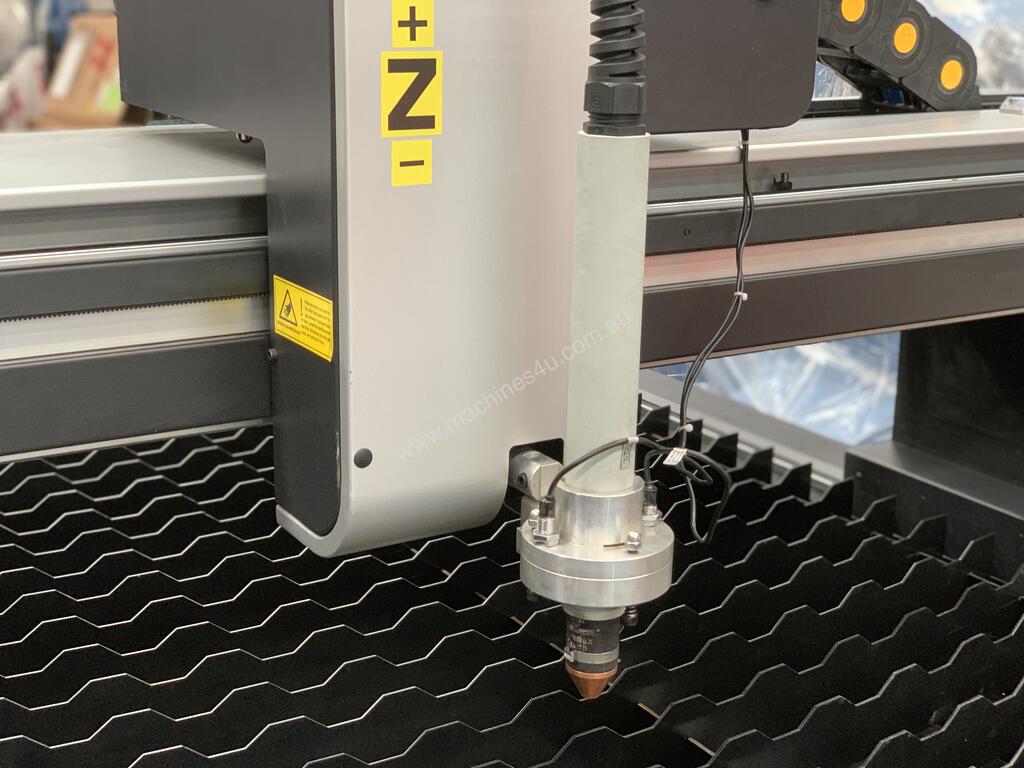

? THC torch height control fitted
? superior cut speed, quality and stability
? optimum track speed. even for fine contours and tight radii
? Huge LCD display
? Fast Cam base module supplied standard
? Roller balls to assist with material loading and unloading
? high quality cnc controller options offering options, accepting G & M codes.
? Plasma Power Source, Lead & Torch need to be added to suit customers cutting requirements.

Technical data
? cutting area – 1500mm x 3000mm
? Z travel - 100mm
? Oxy cutting capacity approx 100mm
? cutting speed - 0 ~ 8000mm / min
? MAX cutting speed – 12,000mm / min
? accuracy – 0.2mm
? plasma torch diameter – 35mm
? work mode of plasma – non contact ignition
? dimensions - 3800mm x 2200mm
? crate dimensions - 3900mm x 2300mm x 1750mm (H) x 1600Kg
? weight – 1500Kg
? power source – volt
? 12 month warranty

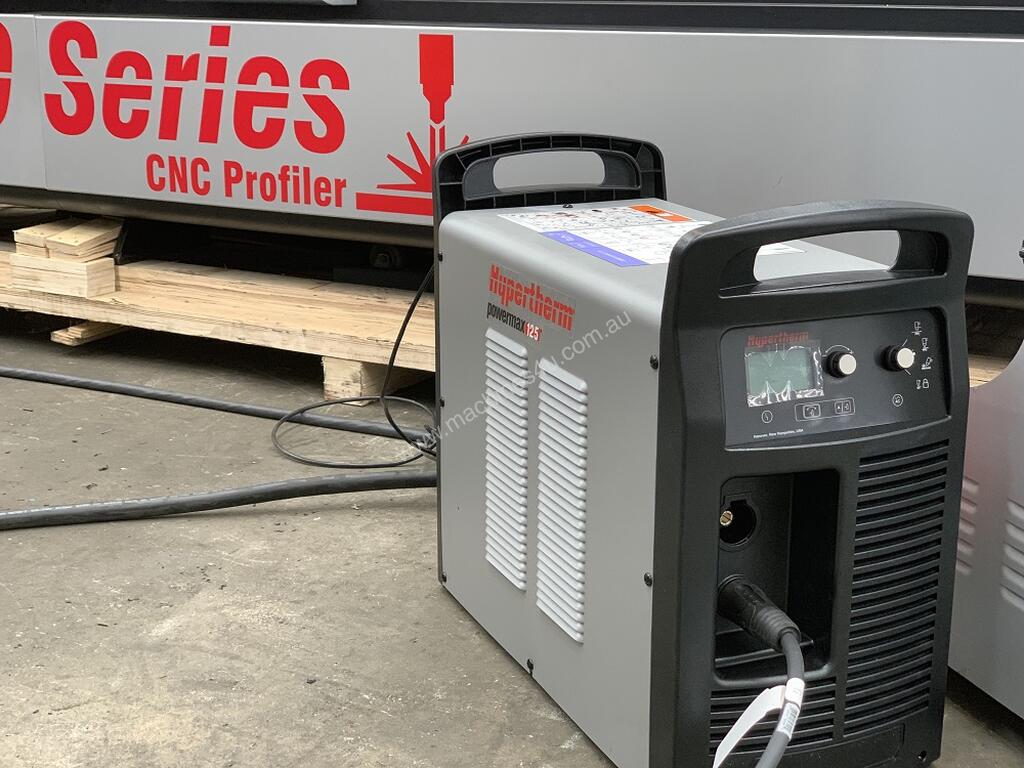

Suggested Power Sources
? Hypertherm PMX45 ~ PMX125

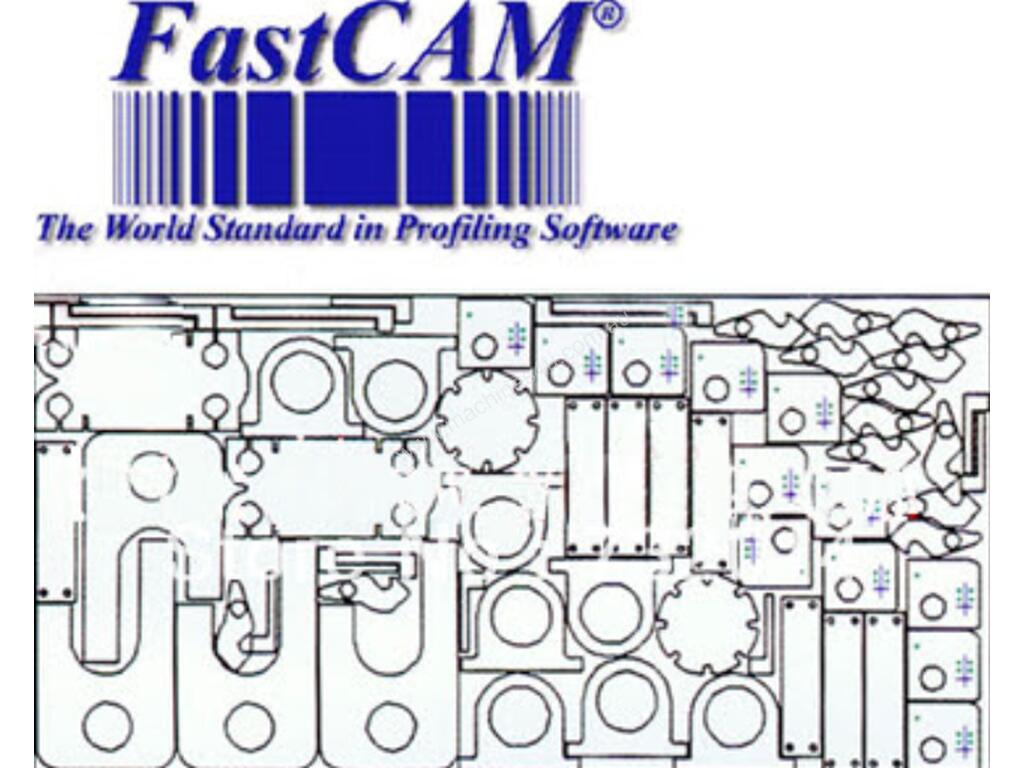

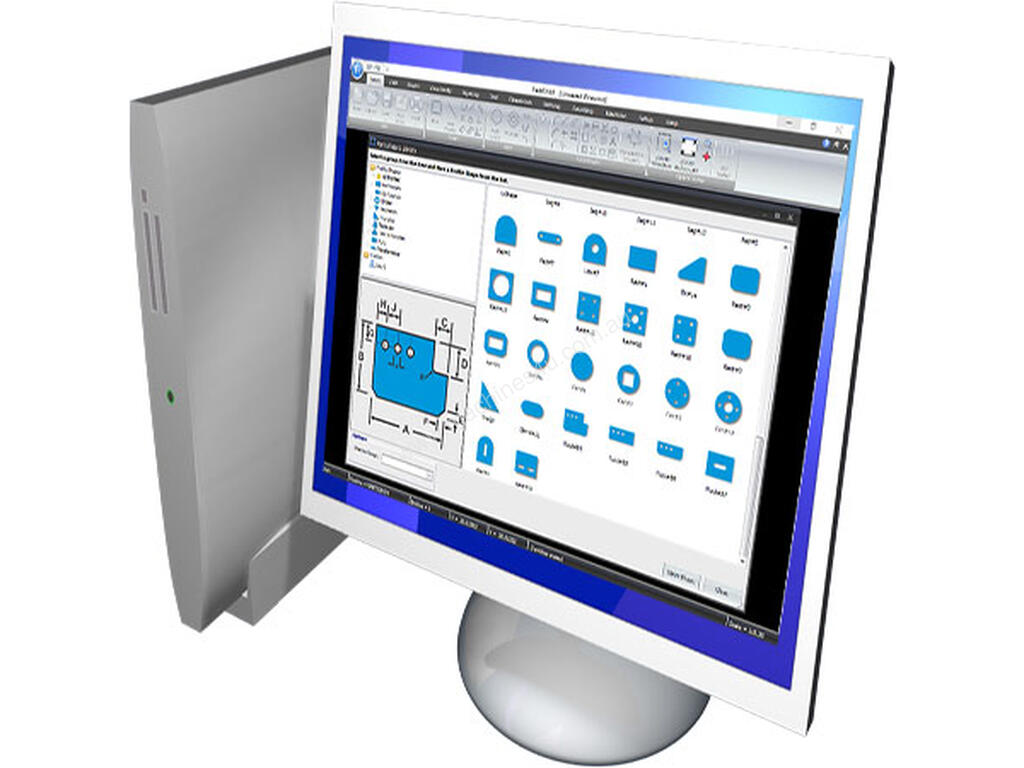

CNC Software
? Fastcam Professional (Auto-Nesting)
? Save drawings to USB
? All popular DXF and DWG files supported

Webpage:
.fastcam/fastcam.html

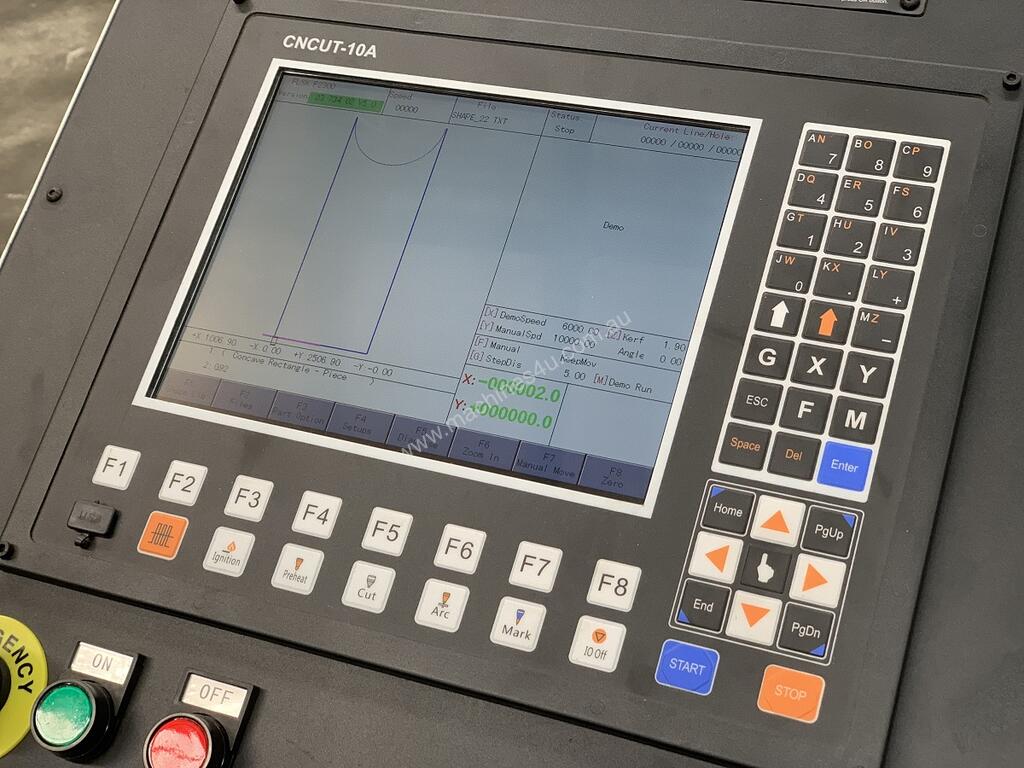

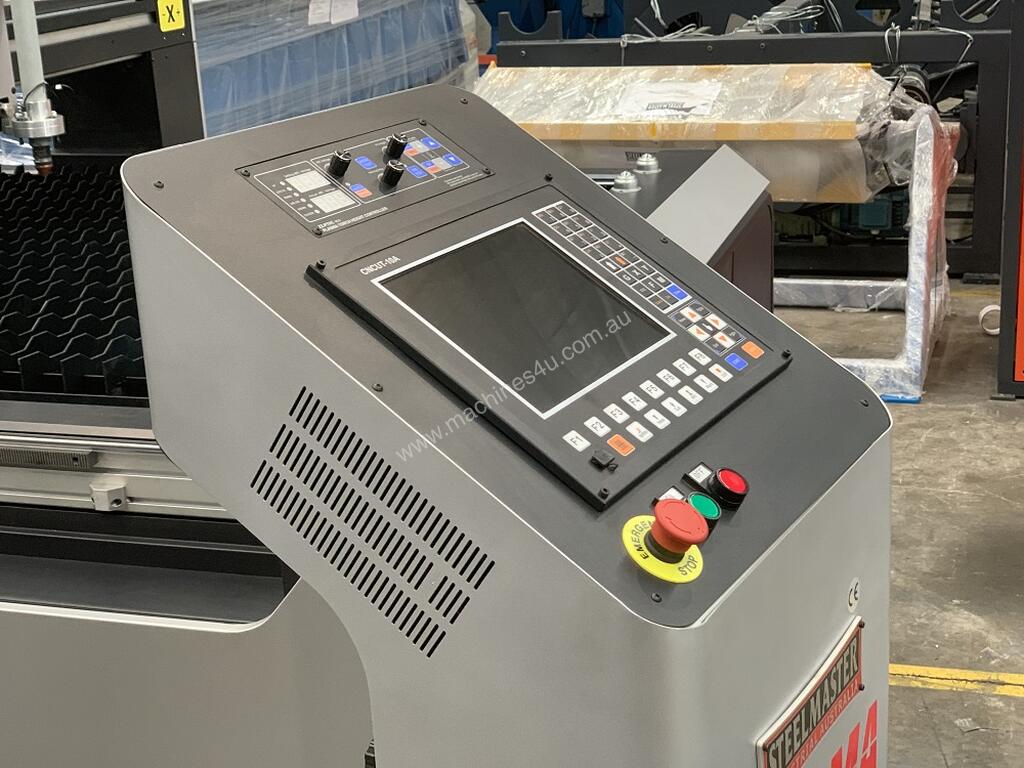

CNC Control
? FLSK CNC
? Huge LCD colour display
? USB input
? Mobile console
? Template library for quick and easy cutting of standard shapes and angles
? Real-time cutting path

Services required to be provided by customer
? electrical connection.
? compressed air.
? fume extraction provisions.
? Asset can offer you the above additional items on request.

Other options available if not already noted above
? water table available (note - aluminium cannot be cut on water table systems due to safety issues)
? servo drives
? Network Technology - Windows 10 upgrade.

We guarantee the best service & technical advice
*** BUY DIRECT FROM THE IMPORTER & SAVE ***
*** EX STOCK FOR IMMEDIATE DELIVERY AUSTRALIA WIDE ***

Recommended Add On Accessories
?25-0258 - Air Dryer – Power System – Model: PSD-5N, 20 cfm, 16 Bar 2~3 Degree Dew Point, – 240V
?25+0258 - Filtration – HYPERTHERM – Model: 128647 Micron Eliminiser Filter To Be Fitted To The PMX
?25+0259 - Filtration – Power System – Model: PSF12F, Purity – 0.01 Micron, 54CFM Volume, Auto Drain.
?21+0805 - CLEARMASTER SM-DR-3000 Laser / Plasma Fume Extraction System, 3000m/Hr. Anti-Spark Arrestor – Up to 1500mm x 3000mm Table
?21+0806 - CLEARMASTER SM-PA-6000CT Laser / Plasma Fume Extraction System, 6000m/Hr. Anti-Spark Arrestor Up to 2000mm x 4000mm Table
?25-0259 - Power System Model NB7/270 - 35 CFM Piston Compressor. 7.5 H.P- v
?25-0220 - AIRMASTER Rotary Screw Air Compressor & Air Dryer. Model: 11MK2, 58 cfm Capacity, 116 psi.
?50+0200 - Digital Thickness Gauge - 0mm ~ 15mm
?50+0112 - Digital LCD Vernier Caliper - 150mm Length.
?Full Range of Consumables Available In Store or Online

MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.

Asset Plant & Machinery - Steelmaster Machinery
118 Logis Boulevard Dandenong South VIC 3175
