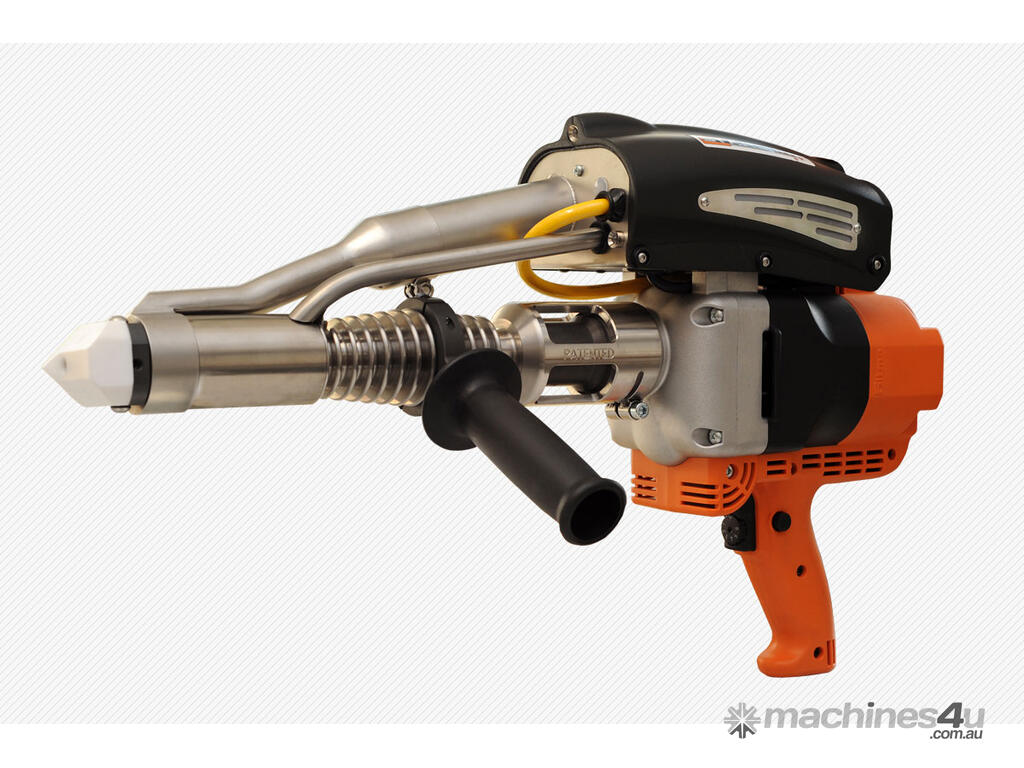

Plastic Extrusion Welder 4kg/hr - Ritmo K-SB40 Stargun

The Italian-Made Ritmo K-SB 40 Stargun Extruder is a compact and ergonomic extruder suitable for welding PE, PP and PVDF according to the DVS 2207 standard. This machine is equipped with a power control device and the safety system “motor block” that doesn’t allow the machine to start before it reaches the right temperature. The extruder has an innovative universal feeding system that makes possible to use the machine with different diameters of wire.

Matrix Piping Systems also offers servicing, calibration and spare parts for Ritmo poly welding machinery. Our experienced team of service technicians can assist you with diagnosing and repairing any issues that may arise. Call us today to find out more!
Machine Composition:

- Rod Ø 4 - 5 mm; 5/32” - 3/16”
- Backlight display
- Two high-brightness LEDs for welding area
- Power regulator; security system “motor block”
- Independent blower
- Thermoregulator double electronic T ° control: for blower and extrusion
- Orientable handle
- 360° orientable and replaceable welding shoes

Technical features:

Materials: HDPE/PP
Rod: Ø 4 - 5 mm
Output up to: 4 Kg/h
Dimensions: 640 x 200 x 100 mm
Weight: 7,6 Kg
Voltage: 230 V
Absorbed Power: 3500 W
Frequency: 50 Hz
Sheet: 15 - 30 mm
