Plastic Sheet Butt Welder - Ritmo Polyfusion 2-25 Manual

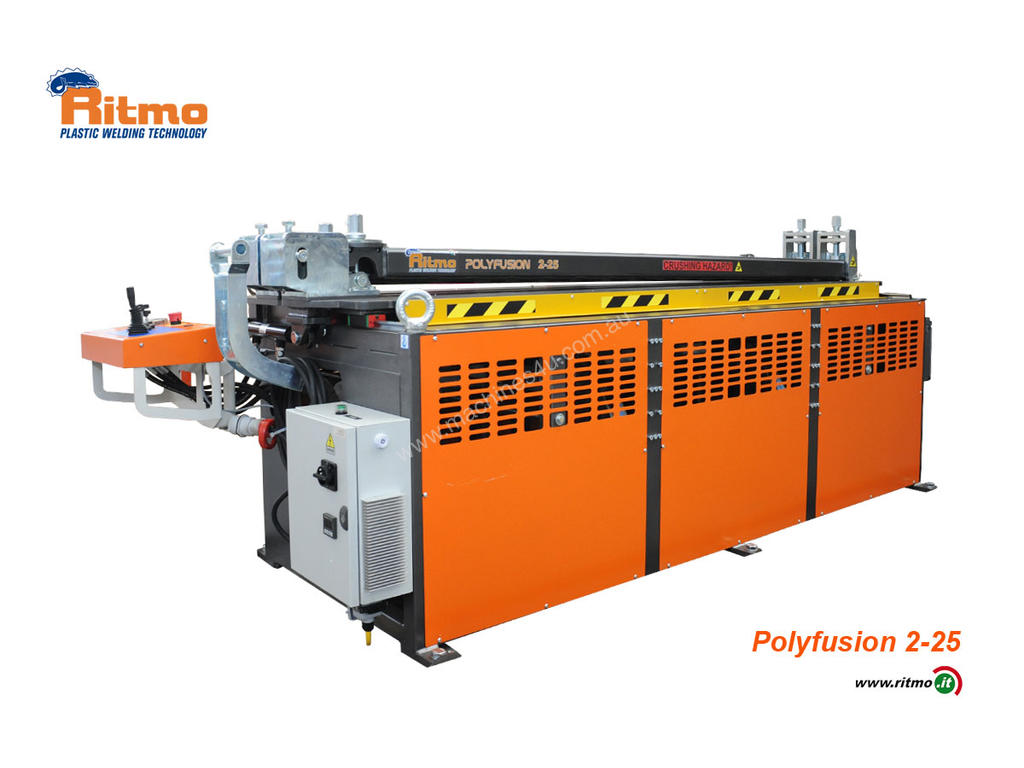

The Italian-Made Ritmo Polyfusion 2-25 is a manual hydraulic welder for HDPE and PP sheets up to two meters wide and 3 mm to 25 in thickness. The machine can also weld twin-wall sheets.

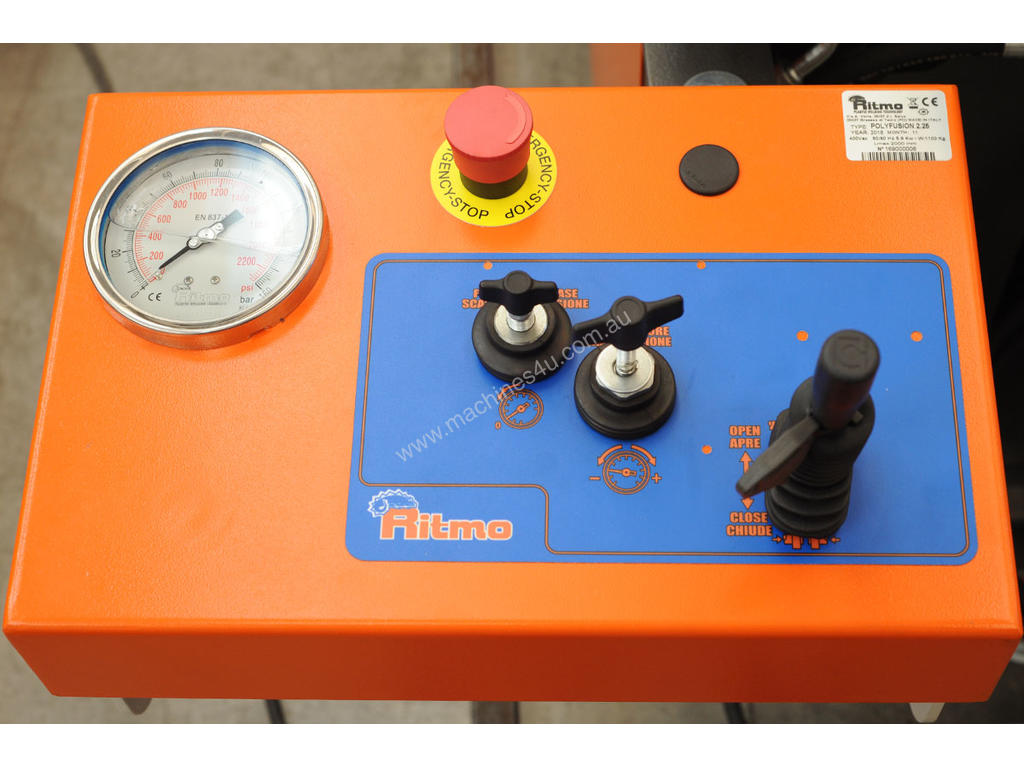

The welding cycle is controlled manually with simple functionality. “Dual Pressure” welding is also feasible. The manual heating plate, located under the machine body, has a height adjustment handwheel. The temperature is controlled by a built-in high-precision electronic thermoregulator,

The sheets are fixed to the machine body by manual hand wheels; the locking arm has an articulated joint that allows its opening and the easy extraction of the welded sheets. The welding machine has a small modulated sustaining frame to perform 90° welds (Kit on request).

Matrix Piping Systems also offers servicing, calibration and spare parts for Ritmo poly welding machinery. Our experienced team of service technicians can assist you with diagnosing and repairing any issues that may arise. Call us today to find out more!

Technical Features:

Materials: HDPE/PP and twin wall sheets
Max. working width: 2000 mm
Min. weldable thickness: 3 mm
Max. weldable thickness: 25 mm
Types of welding: Line - standard composition, 90° - kit on request
Power supply: 400 V Three Phase 50/60 Hz
Max. absorbed power: 5900 W
Pressure working range: 0 ÷ 170 BAR
Dimensions: 3169 x 1990 x 1162 mm
Weight: 1100 Kg
