Plastic Sheet Butt Welder - Ritmo Polyfusion 4-50

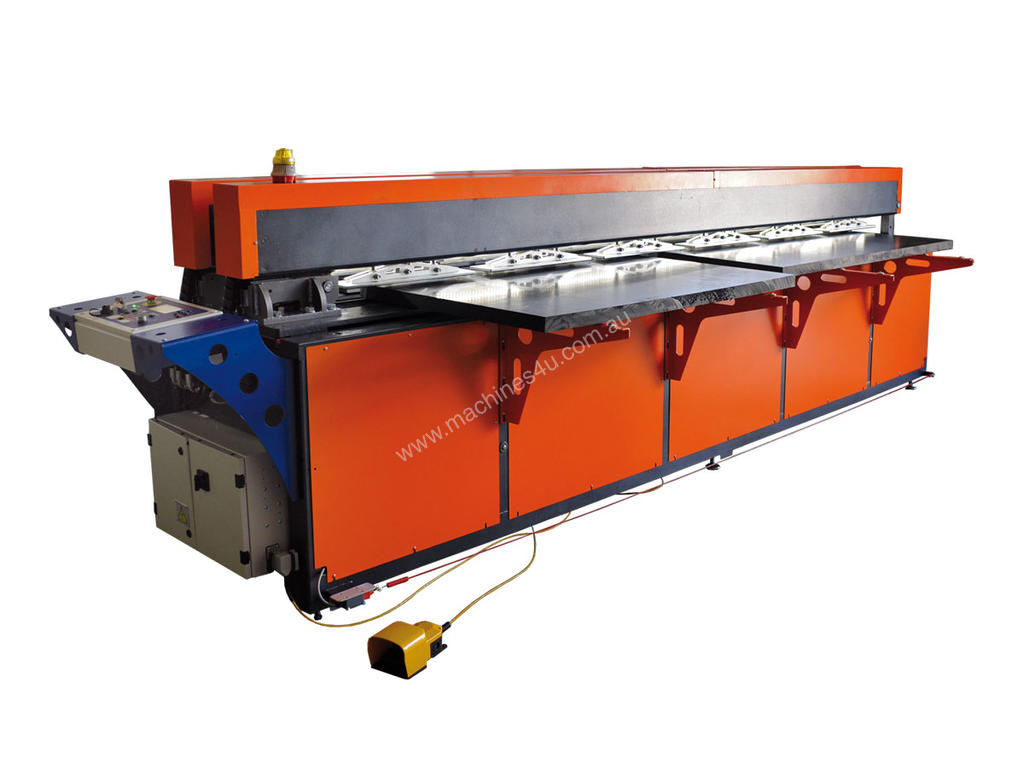

The Italian-Made Ritmo Polyfusion 4-50 is a CNC automatic butt fusion machine, suitable for welding thermoplastic sheets made of HDPE, PP, PVC, PVDF sheets. The sheet welding machine is also able to weld twin-wall PE and PP sheets. Besides operating to weld horizontally, this machine allows you to perform different types of welds such as circular and 90° with special accessories available on request.

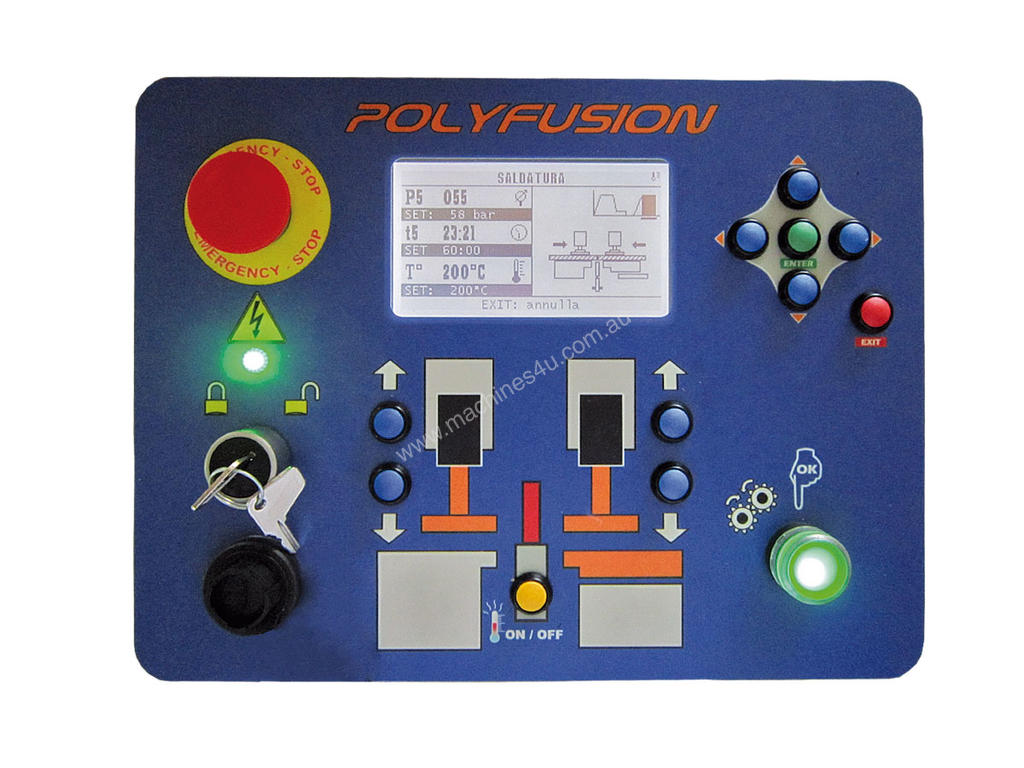

The machine is equipped with a control panel, which allows easily and safely setting and performance of the whole welding process. The welding process setting is arranged with temperature and pressure parameters in compliance with D.V.S. 2207 directives. It is also possible to input the type of material and the dimension of the thermoplastic sheet, and therefore proceed to weld.

Each welding cycle is automatically memorised (4000 welding cycles) and it’s possible to save it and transfer the PDF files via a USB storage device. The machine allows you to pre-set 15 customised welding phases.

Weldable plastic thickness: 3 ÷ 50 mm the indicated maximum thickness can be welded with materials that require a maximum welding pressure not higher than 0.17 N/mm2; Max. weldable length: 4000 mm, with the possibility to weld simultaneously 3 sheets with maximum side of 1300 mm.

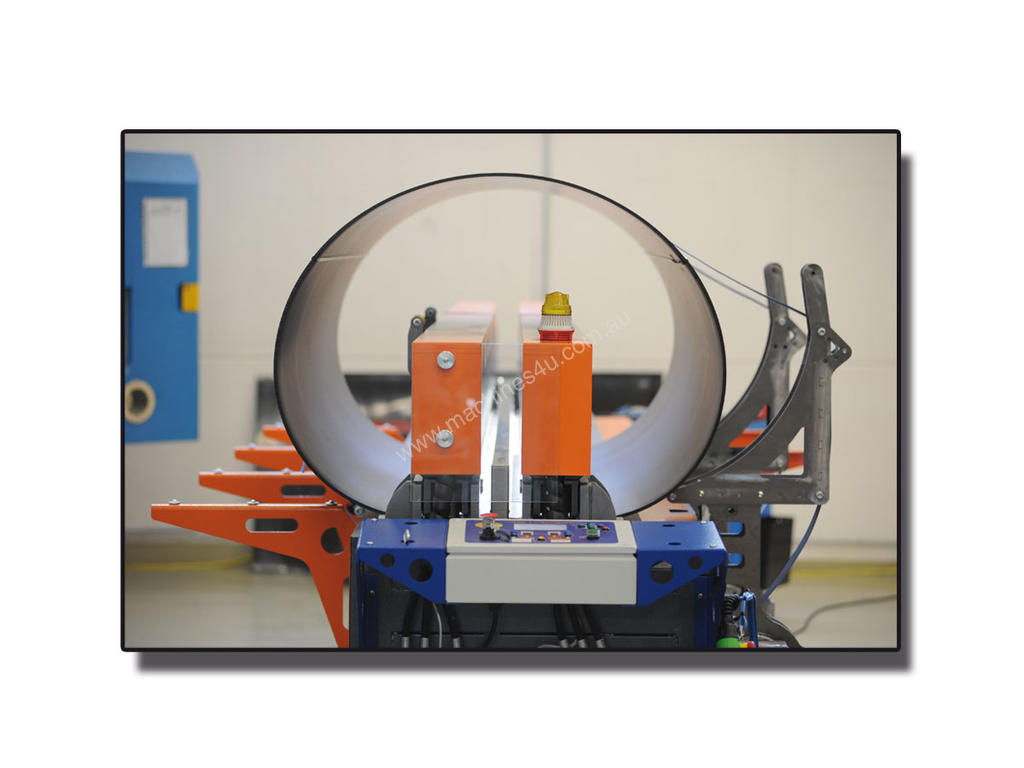

Welding types: horizontal (standard composition); 90 degrees and circular (on request).

Matrix Piping Systems also offers servicing, calibration and spare parts for Ritmo poly welding machinery. Our experienced team of service technicians can assist you with diagnosing and repairing any issues that may arise. Call us today to find out more!

Technical features:

Materials: HDPE/PP/PVDF/PVC
Max.working width: 4000 mm
Min. weldable thickness: 3 mm
Max. weldable thickness: 50 mm
Types of welding: Plane, Circular, 90°
Power supply: 400 V
Max. absorbed power: 12000 W
Pneumatic feed (for 90° welding): Tank 1000 lt – 0.78 m3/h at 9 bar compressor
Report: PDF
Memory: 4000 cycles
Pre-set customised: 15
Dimensions folded brackets: 5200 x 1540 x 840 mm
Dimensions unfolded bracket: 5200 x 1540 x 1960 mm
