Pneumatic Valve Packer: Powders & Granules - PVPE

Fill Dry Solids Faster- Up To 8 Bags Per Minute. Fast bagger for free-flowing, non-clumping powders & granules

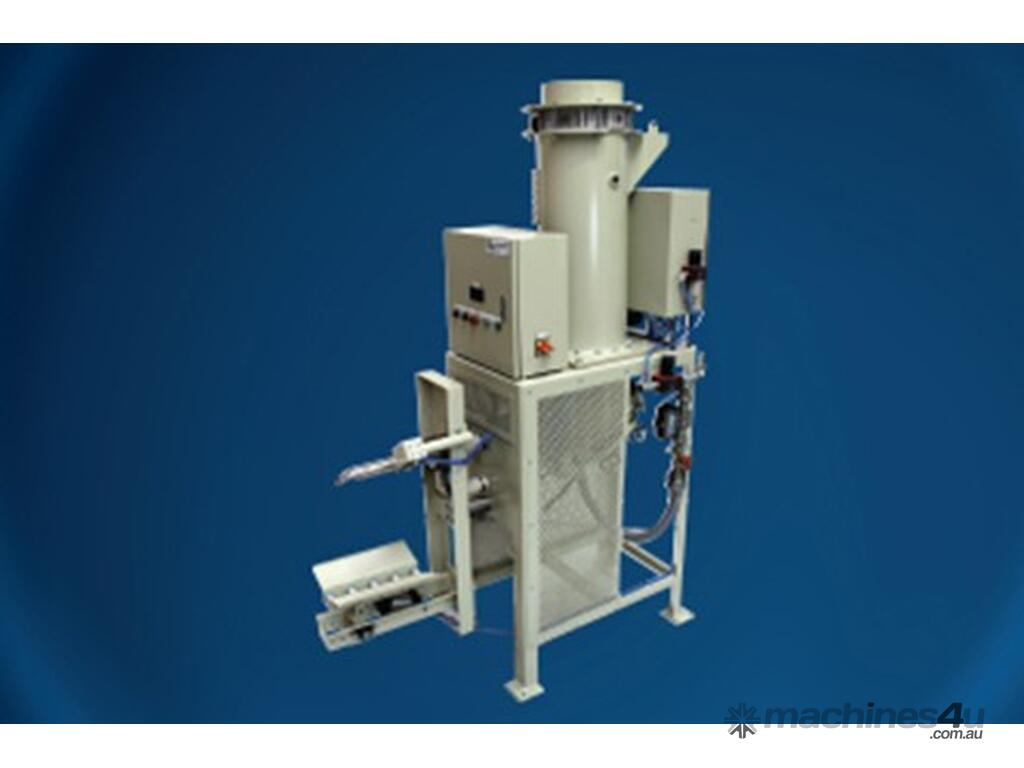

ABOUT THE “PVPE AIR PACKER”
For the fastest dry solid packer with filling speeds of up to 8 bags per minute, you need a PVPE Air Packer. The PVPE Air Packer works by using air fluidisation and differential pressures between the product chamber and the bag where the product is to be filled. The differences in airpressure brought by the the PVPE Air Packer results in the product flowing quickly into valve
bags, cutting down time & man hours.

SUITABLE FOR USE WITH
- Powder
- Renders
- Cement
- Sand or Lime Products
- Tile adhesive
- Flour
- Breadcrumbs
- Free-flowing foods
- (Products sensitive to augering like Pierlite & pedrite)

FEATURES & BENEFITS
ACCURACY & PRODUCTIVITY
» High accuracy patented load cell technology
» Air-flow feed-system provides high production rates

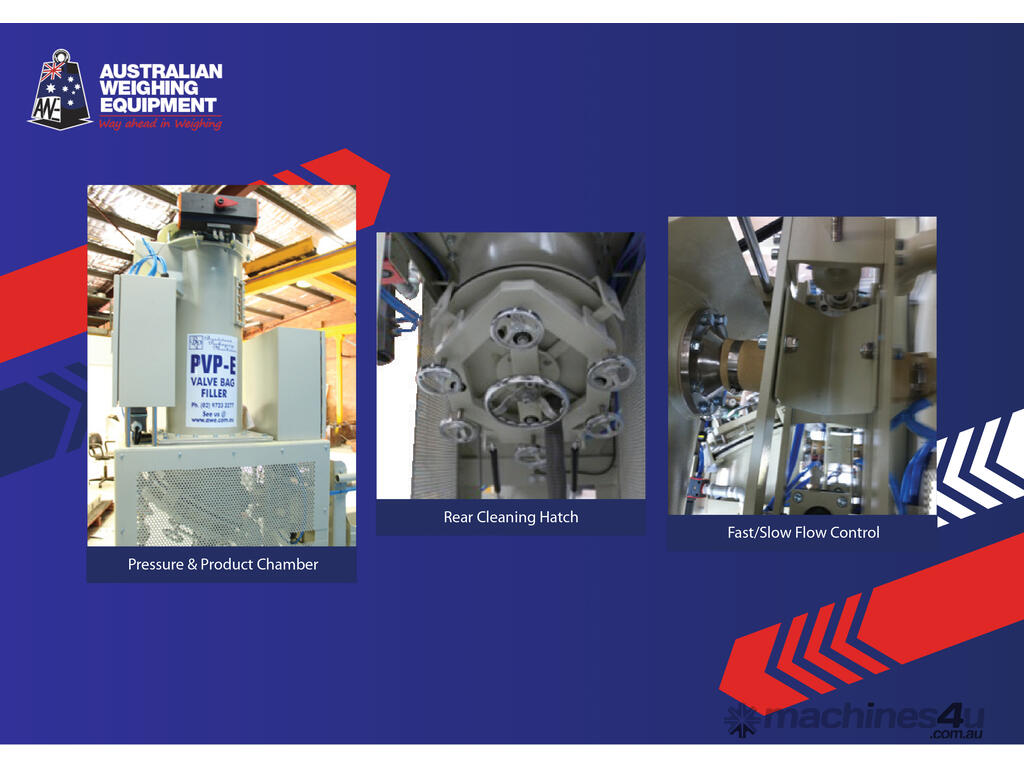

» Easy clean-out & changeover of new products using accessible rear hatch
» Speed can be adjusted manually for weight fine-tuning
» Quick adjustment control to suit bag sizes
» Operator friendly controls

CUSTOMISATION OPTIONS
BULK HANDLING OPTIONS
» Inlet surge bins
» Bulk bag filling outlet
» Discharge chute
» Dust collection vacuum system reducing dust
around fill nozzle
» Blower options:
• Side Channel Blower
• Positive Displacement Blower
» Food Grade construction

BAG LOADING & HANDLING OPTIONS

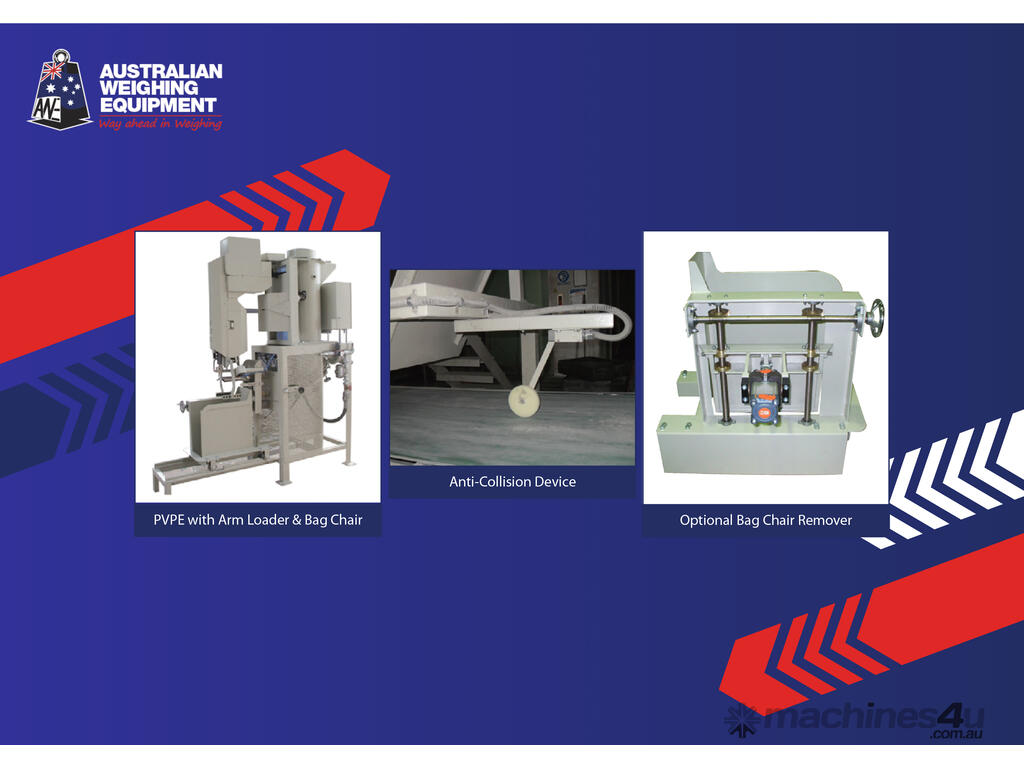

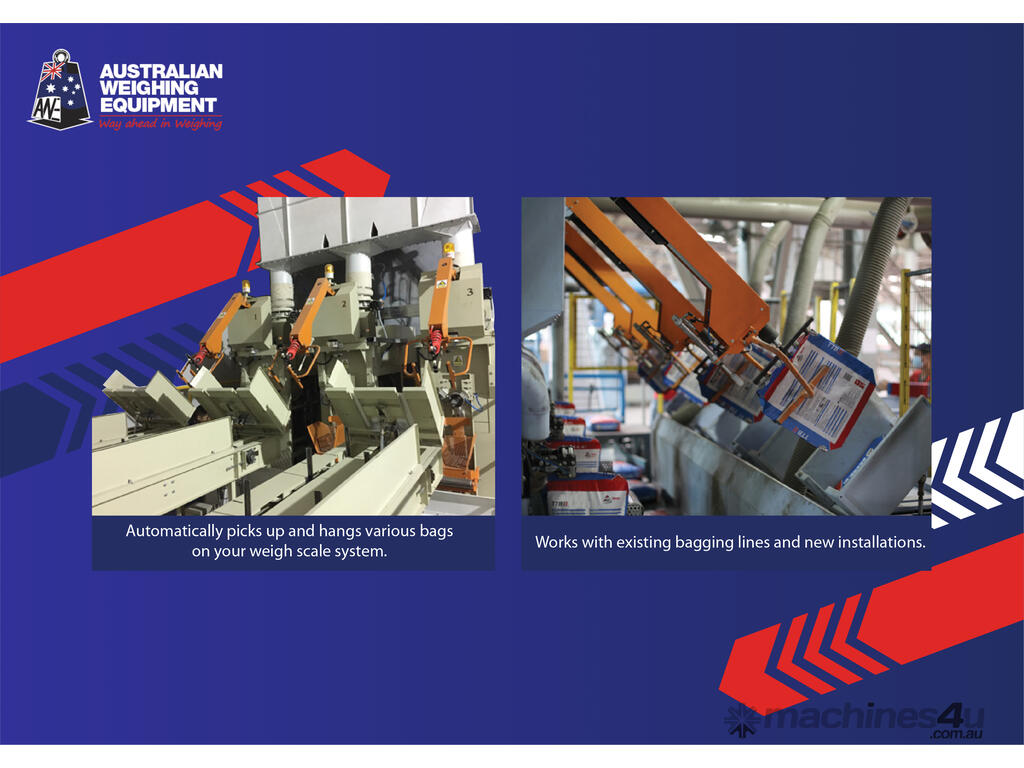

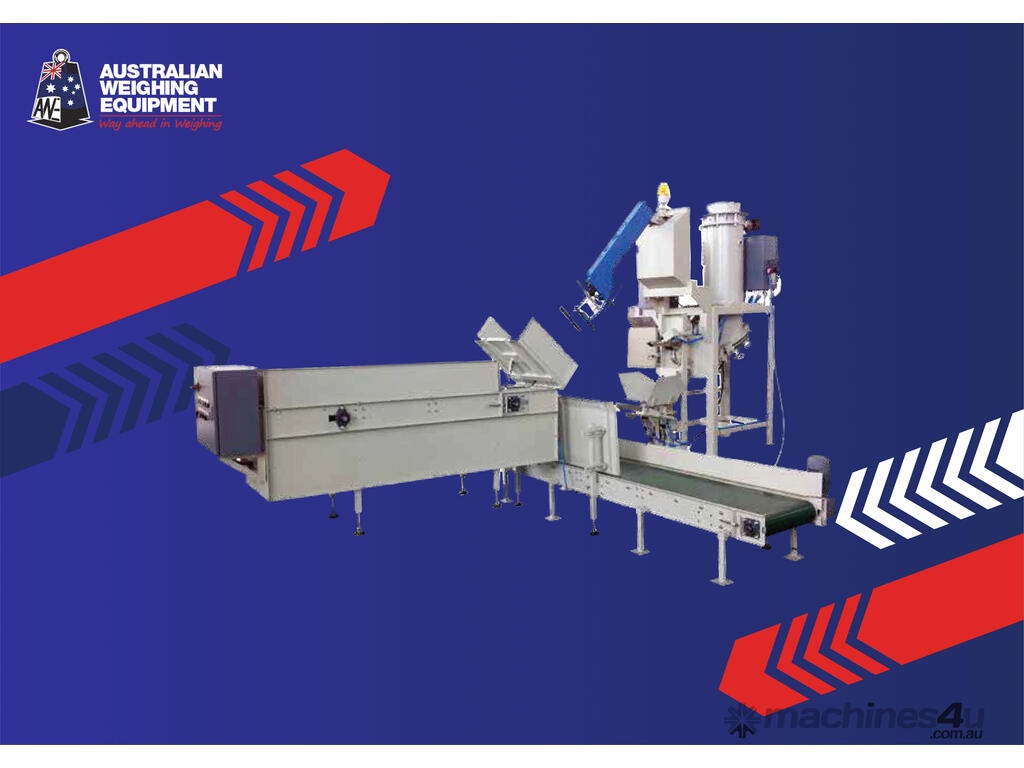

» Automatic bag loader (Arm loader)
» Multiple bag collision sensors
» Check weigher
» Palletisers
» Self-leveling palletisers
» Ultrasonic sealers
» Foot switch for manual valve tuck positioner
» Left-hand machine build
» Left or right hand bag-chair

PVPE AIR-PACKER SPECIFICATIONS
Bag Sizes
Valve Size Suit 50mm (2”) Fill Nozzle
Valve Length 90mm – 165mm long
Bag Width 90mm – 180mm Flat Dimension
Bag Height 300mm – 900mm

Filling Speed 1 to 8 bags per minute, depending on product density, valve size, bag weight, quality of bag, accuracy required
and product flow characteristics

Bag Weights Up to 50 Kg

Accuracy +/- 1% depending on filling speed, product bulk, flow characteristics, particle size, infeed system and bag size.
(Typically +/- 200g 6 bags/ min 20kg)

Electrical Base machine is 240 volt Single phase, 50 hz 1.4 amp

Air System
Compressed Air 34 CMH 800Kpa (8.0 Bar), Clean Dry Air *
Pressure Range 500Kpa (5 Bar) - 1000Kpa (10 Bar)
Control Air 1CMH 800Kpa (8 Bar), Clean Dry Air
Process Air Compressed Air (Typically) 34CMH 100Kpa/1.0 Bar/14.5 psi **

Optional
Positive Displacement Blower 150CMH 80Kpa/0.8 Bar/11.6 psi **
Side Channel Blower 150CMH 50Kpa/0.5 Bar/7.25 psi **

Size
Footprint 800 mm (w) x 1600mm (d) height 2350 mm (Under Silo)

Weighing System Fitted as standard with load cell and precision digital read-out indicator/controller

Flow Control Two stage main/ dribble feed cut off system on pinch gate
