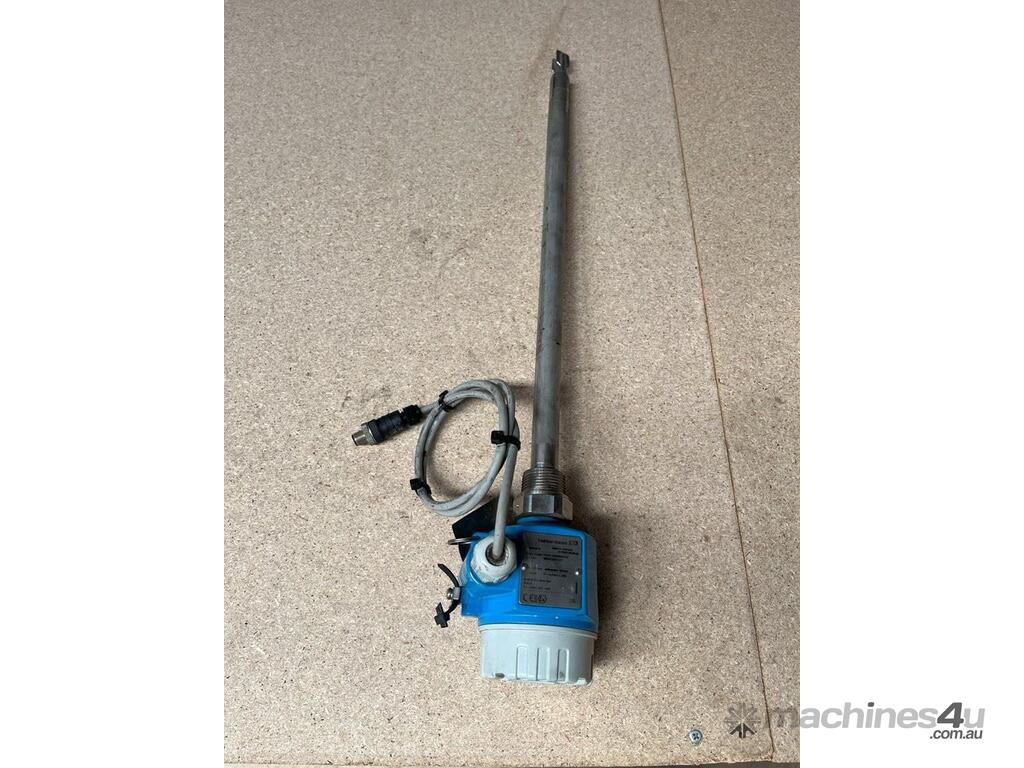

Point Level Switch / Level Sensor

Liquiphant FTL51 is a point level switch with extension tube for use in hazardous areas with all international certificates.
Useable in all industries. FTL51 offers functional safety SIL2/ SIL3.
With the second line of defense highest degree of safety and availability of the device can be guaranteed.
Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.

Benefits:
• Use in safety systems requiring functional safety to SIL2/SIL3 in accordance with IEC 61508/IEC 61511-1
• International explosion protection certificates and overfill protection certificate (WHG)
• No calibration required, easy to start up
• No mechanically moving parts: no maintenance, no wear, long operating life. Monitoring of fork for damage: guaranteed function
• Second line of defense to protect the environment
• Variety of standardized process connections for all applications
• Stainless steel (316L) and high-corrosion resistant sensor material (Alloy)

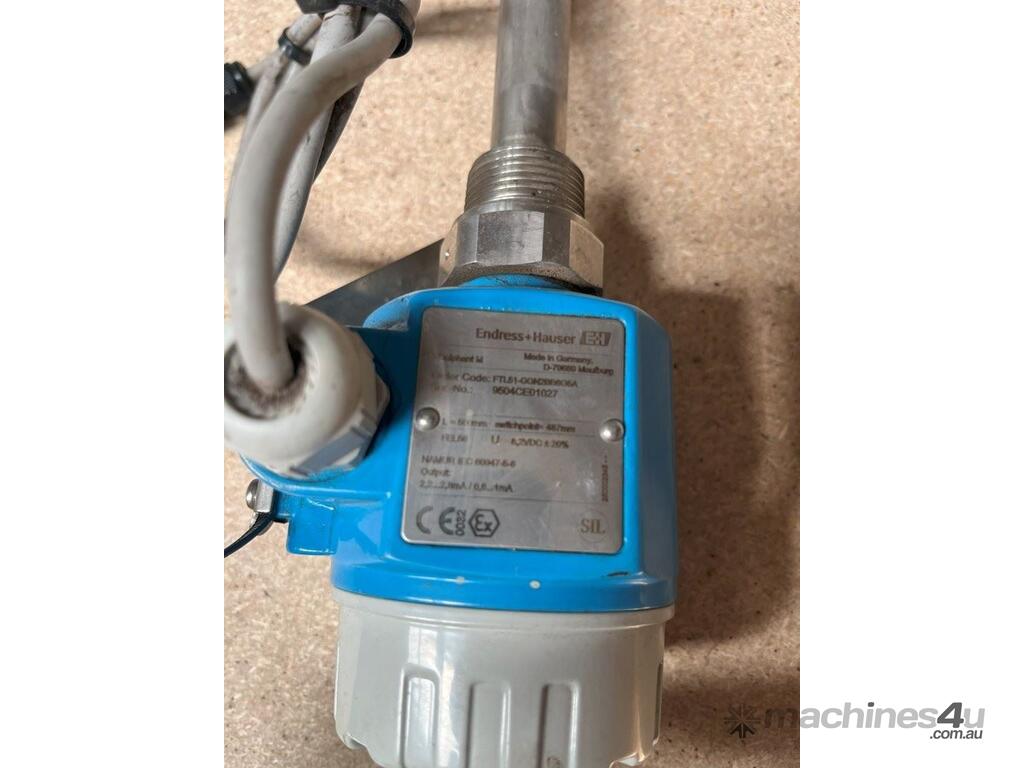

Make: Endress Hauser
Model: Liquiphant M
Model Number: FTL51-GGN2BB6G5A
L= 500mm SwitchPoint 487mm
FEL 56 U 8.2VDC /- 20 Percent
Output 2.2.....2.5mA / 0.6.....1mA
