Portable Compressor 131HP 400CFM - ROTAIR MDVS 120 P10

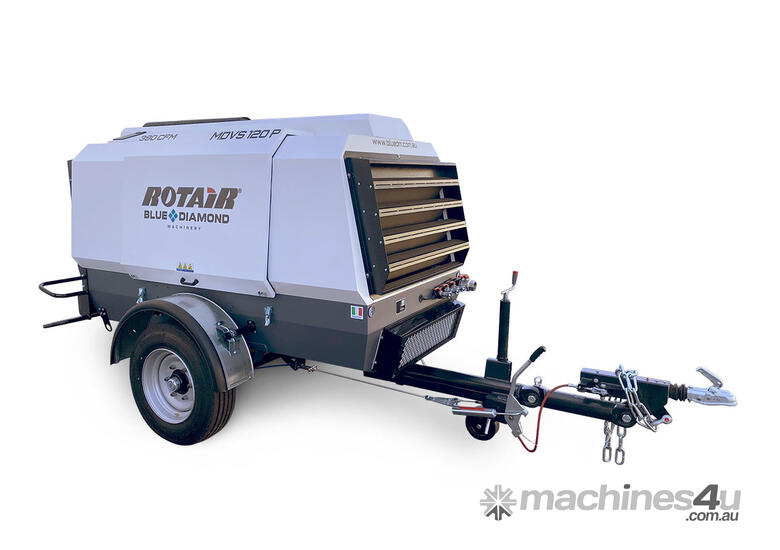

ROTAIR MDVS 120 P Portable Diesel Air Compressor
The new modern and streamlined look of ROTAIR portable compressors with compact dimensions for handling ease, whilst at the same offering high performance levels. Build tough and reliable for the demanding Australian conditions. 50c ambient for extreme operating conditions. Machines can be ordered on Skid Mount or on Trailer.

Blue Diamond Machinery are an exclusive ROTAIR distributor in Australia.

“Intelligent System”- enables a pre-heating of the engine without overloading it, the air end will start working only when the perfect conditions are reached.
Fuel Saving System- when the compressed air is not required, the system allows to compress air at a much lower thus saving fuel consumption significantly. Up to 20% in fuel saving!
Easy Maintenance- Clean and easy layout for quick and efficient maintenance and control
Control Board- complete and fully functional using a “NO KEY” system. So that no keys are needed for internal access to the unit and for its ignition.
Made in Europe- Engineered and manufactured in Europe using top quality materials. Direct coupled, no gearbox

Rotair Compressor Specifications
Comes Standard with built in After Cooler
Free Air Delivery (Lt/min)- 11,000
Free Air Delivery (CFM)- 400
Operating Pressure (bar)- 10
Operating Pressure (psi)-145
Transmission Motor-Screw Unit- Direct Drive
Engine Make- PERKINS - 1104D-E44TA
Cooling System- Water
Engine Power (Kw)- 97
Engine Power (HP)- 131
Max Engine (RPM)- 2,200
Min Engine (RPM)- 1,600
Length (with drawbar)- 4,534mm
Length (without drawbar)- 2,800mm
Width- 1,980mm
Height- 2,137mm
Weight (wet)- 1,920KG
Compressor data
We can customise from manufacture! Increase the operating pressure, but will reduce the CFM.
Optional Extra's
Skid Mounted
Skid Mounted with After cooler

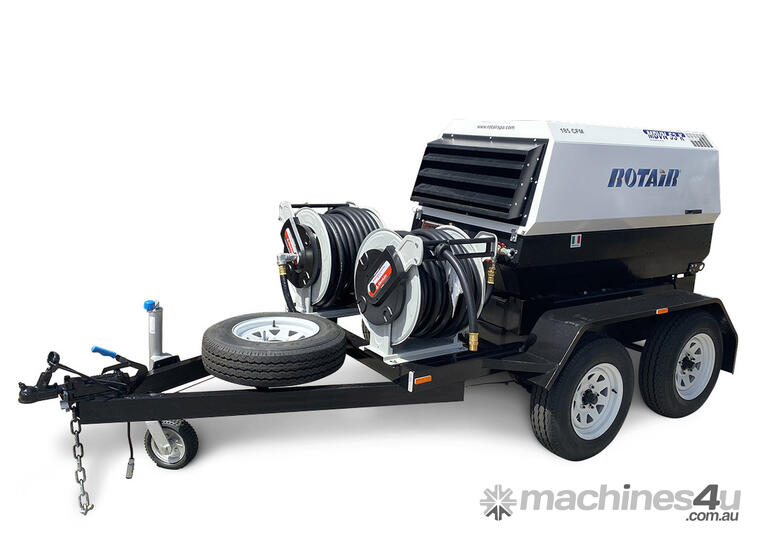

Trailer Mounted
Trailer Mounted with After cooler
Warranty

5 Year unlimited Hour Air-End/Drive Coupling Warranty. Diesel Engine 2 year/1000hrs.

Delivery

We can ship direct to you Australia wide. Alternatively, you can pick up from one of our sales offices located in Perth or Melbourne.

Compressor Servicing

Blue Diamond Machinery also provides comprehensive range of air compressor servicing, preventative maintenance and compressor repair services across Perth, WA. With over 25 years of experience servicing all types of compressors our service team ensure minimum downtime, quality and reliability on all compressor service and repair work.



Blue Diamond Machinery is an Australian-owned and operated company specializing in the supply of high-quality power and construction equipment. With a wide range of products including generators, air compressors, lighting towers, and fuel storage solutions, the company caters to industries such as mining, construction, and agriculture. Known for exceptional customer service, Blue Diamond Machinery delivers tailored solutions to meet diverse project needs. With a strong commitment to reliability and performance, the company ensures that every product is backed by expert support, making it a trusted partner for clients across Australia seeking dependable equipment solutions.

Go to the Blue Diamond showroom on Machines4u to see our range, send Blue Diamond a message about the item you are interested in, or give Blue Diamond a call, we are happy to answer any of your questions.

* Click on the PDF spec sheet for more detailed information *
