Portable Off-Road Sawmill: Woodlander 30"!

Welcome to Old Talgai, your destination for the best equipment in Australia. Our range includes portable sawmills, log splitters, stump grinders and wood chippers all designed to make your work easier and more efficient. Whether you're milling hardwood, splitting logs, removing stumps or turning unwanted branches and timber into useful woodchip our high-quality equipment is up to the task. Shop our range now and see the difference for yourself!

Brand: Woodland Mills
Weight: 918.00 kg

The HM130MAX Woodlander™ is a wide capacity mobile sawmill for sawyers looking to create popular live edge slabs. Featuring a 30” (76cm) diameter log capacity matched with a 30” (76cm) throat opening, producing stunning high-value live edge boards. The HM130MAX Woodlander is loaded with new features like our RapidChange™ blade system, auto lube, an operation hour meter, wider cut capability and much more. Packaged with the Woodlander trailer for multi-terrain transportation, comfortable operation height and easy storage.

TECHNICAL SPECIFICATIONS

Engine 14hp Manual/Electric Start Kohler
Blade Engagement System Centrifugal Clutch (Gas & Go)

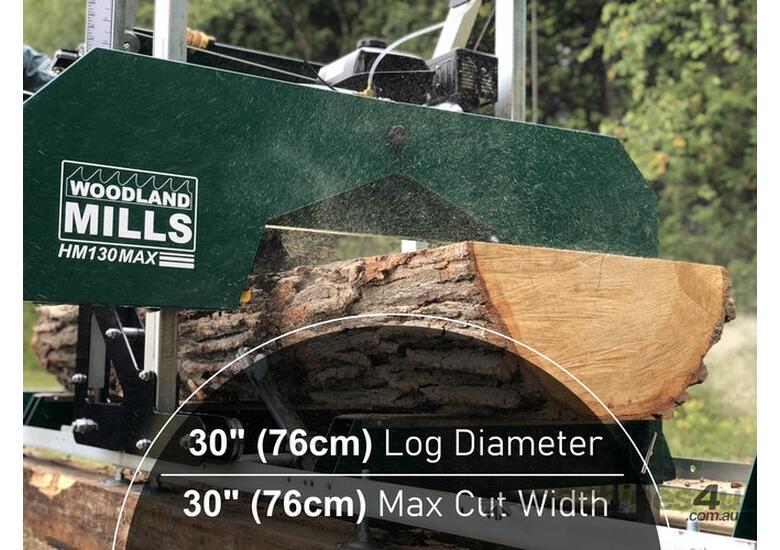

Log Diameter 30" [76 cm]
Max Log Length 16.7ft [5.1m]
Max Board Width 29" [73 cm]
Max Live Edge Width 30" [76 cm]
Max Board Thickness 7" [18 cm]
Cast Iron Bandwheel Diameter 19" [48 cm]
Standard Cutting Length 10' 5" [3.1 m]
Track Width 37" [94 cm]
Track Extension Length 6' 5" [1.95 m]
Levelling Feet 12
Galvanized Track Rails Yes
Track Bunks 3 x 6" [75 x 150 mm]
Log Clamps 2x Quick Lock
4 Post Head Design Yes
Adjustable Blade Guide Yes
Blade Size 158 x 1.25" [4013 x 32 mm]
RapidChange Blade System Yes
Auto Lubrication Yes
Lubricant Tank Size 13L [3.4gal] Aluminum
Hour Meter Yes
Finish Powder Coat Paint / Galvanized Steel
Sawmill Warranty 2-Year
Engine Warranty 3-Year
Shipping Weight 1000 lbs (454 kg)
Trailer Specifications See Below
Trailer Axle Independent Torsion Axle Design
Trailer Wheels 5 Bolts 4.5 in [114 mm] & 5.30-12 DOT Approved Tires
Tire Pressure Refer to Tire
Wheel Nut Torque 80 ft•lb [110 N•m]
Trailer Ball Coupler 2 in [50 mm
Trailer Lights LED Light Kit (stop, turn, tail, side markers, and license plate light)
Finish Powder Coat Paint / Galvanized Steel
Fenders Removable
Safety Locking pins and safety straps to secure sawhead while travelling

Shipping Weight
Woodlander MAX XL: 820 lb [372 kg]

Product Weight
Woodlander MAX XL: 736 lb [334 kg]

HM130MAX WOODLANDER™ SAWMILL

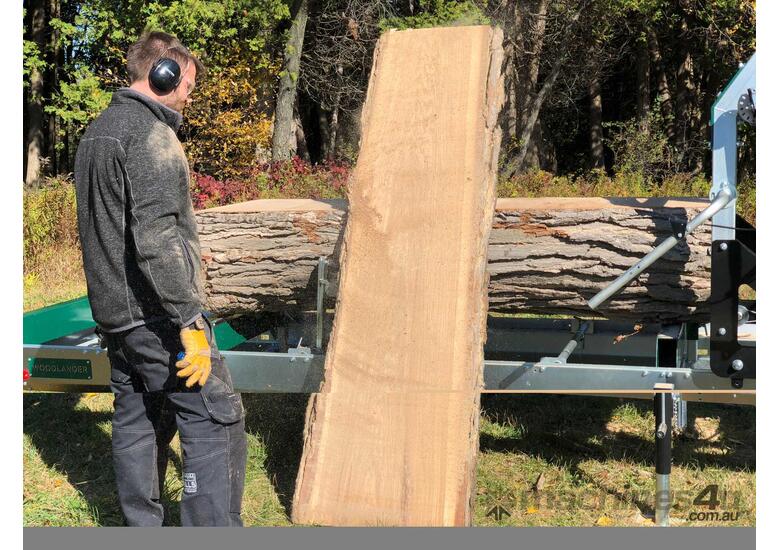

Now you can produce beautiful wide live edge slabs for tabletops, counters, benches and more. The HM130MAX features a 30” (76cm) diameter log capacity matched with a 30” (76cm) throat opening allowing for sawyers to produce wider cuts. Get more horsepower with the included 14HP Kohler gas powered electric start engine. A heavy-duty 4 post head design with reinforced back beam support the serious HM130MAX cutting power. The HM130MAX is loaded with new and innovative features like the automatic blade lubricant system that activates when the throttle is engaged and the RapidChange™ blade system for quick and tool-less blade changes. HM130MAX is designed to be the most affordable and robust wide cut sawmill in the market. Packaged with the Woodlander™ trailer for multi-terrain transportation, comfortable operation height and easy storage.
