Powered Air Purifier Welding Mask Respirator System (PAPR) Complete Set

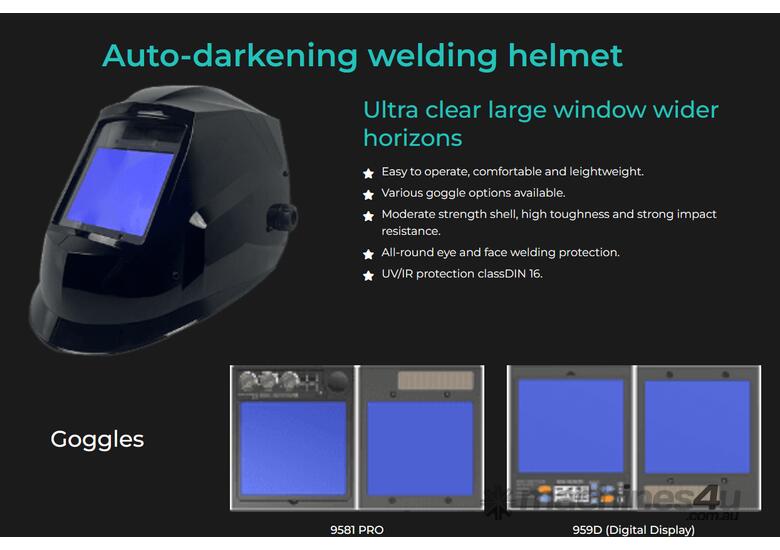

Auto darkening welding helmet Effective protection against breathing, eyes and skin. Designed to enhance comfort. The loose-fit head mask does not require a fit test. Fit your own helmet if you wish on our suit.

Ultra clear large window – wider horizons

Easy to operate. comfortable and lightweight.

Various goggle options are available.

Moderate strength shell, very tough and high impact resistance.

All round eye and face welding protection.

Approvals:

The system complies with the requirements of PPE Regulation 2016/425 and European Standard EN 12941: 1998+A2:2008 class TH2 P R S L . CE2797.

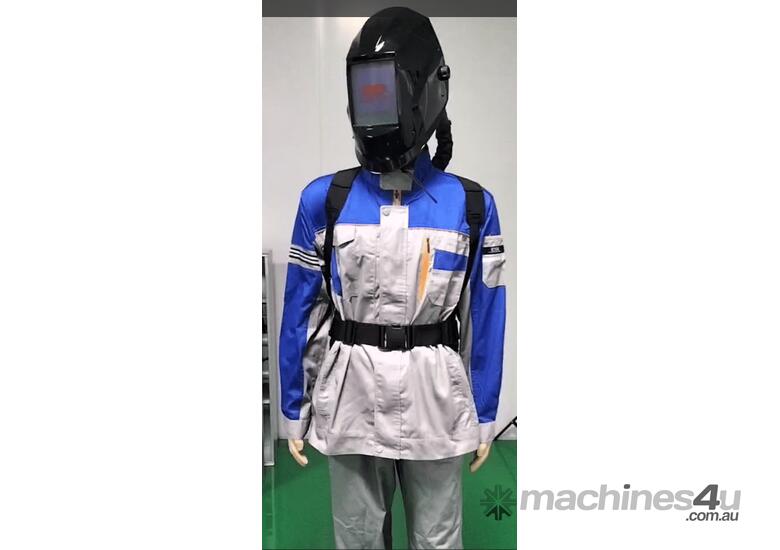

The Respiratory System is designed to provide a supply of filtered air via a breathing tube to a welding headpiece.

The equipment can be used in environment that requires a class TH2 P breathing protection device. It protects against particulate contamination.
Powered filtering device:

? EN 12941:1998 Respiratory protective devices- Powered filtering devices incorporating a helmet or hood- Requirements, testing, marking.

? TH2 P R (SL) classification of the unit. “TH2” defines the level of protection, “P R” indicates the filter type (“P”= Particle filter, “R”= Reusable type of particle filters) and “SL” reflects the filter has been tested against particles of liquid and solid matter.

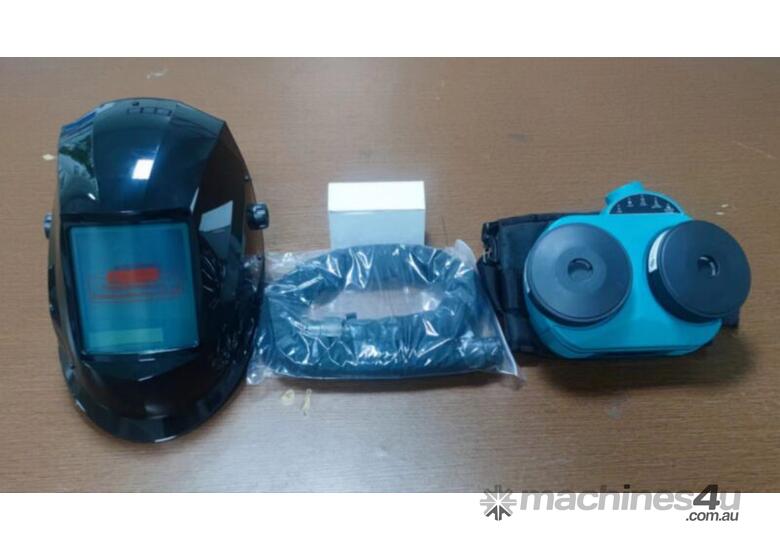

The package includes:

1. The air fed welding + welding hood 2. The respiratory protection system (turbo unit + filter + waist belt) 3. Lithium-ion battery 2600 4. The tube, its anti-fire cloth and both end fittings 5. The shoulder harness 6. The air flow tester 7. The lithium-ion battery charger 8. The carrying bag 9. 2 x H13 Filters (Optional Chemical Filter Available)

Size (Blower Assembly) 240mm x 165mm x 70 mm

Airflow Rates:

Level 1: 170L/min Level 2: 200L/min Level 3: 230L/min

Expected Battery Operation Time Standard battery 2600 Level 1>10h Level 2>8h Level 3>6h

Heavy Duty battery 3000(optional) Level 1>15h Level 2>12h Level 3>10h

Battery Charging Time 3.5 Hours

Battery Life ? 500 Charges Run Time Dependent On Air Flow Rate and Filter Load.

LCD Display Air flow level and data Battery capacity Filter status

Belt Size 35-2/5 x 51-2/5 in. (900mm to 1300mm)

1 Year Parts and Labour Warranty
