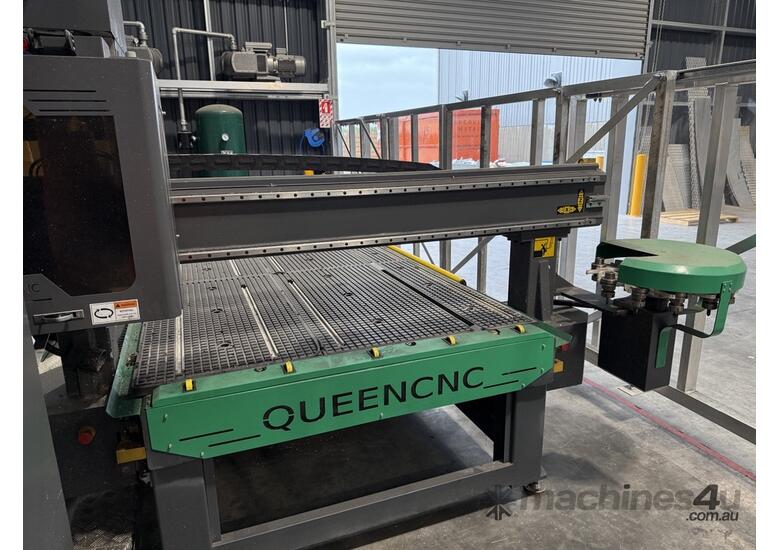

This CNC router is designed with exceptional quality and precision to ensure optimal performance for demanding applications. This was custom Built to our specifications for continuous aluminum machining by Queen CNC in 2022
This Router was purchased for use on Aluminum and fully setup with tooling and Guarding etc. It Can be viewed under power. Due to Employee leaving and use of laser this machine was no longer required and has less than 100 hrs of use.
Purchase Includes :
* Router ,
*Vacuum Hold down system and pumps and receivers
* Extract system,
* Tooling and cabinet

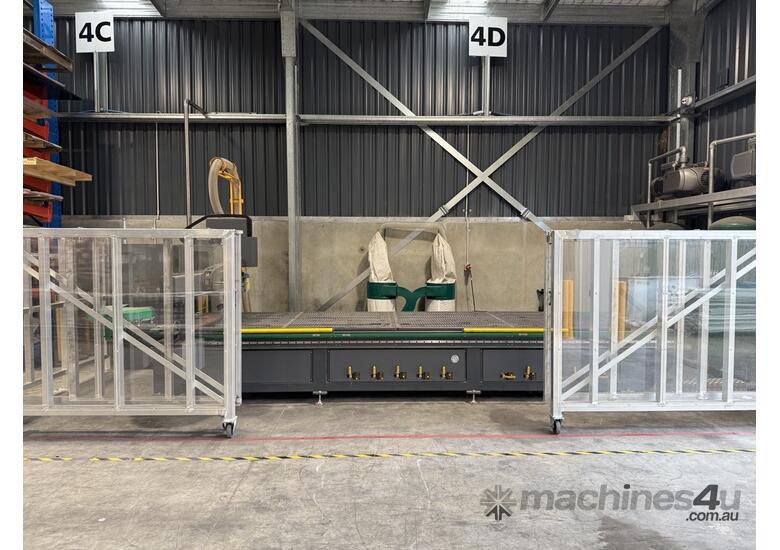

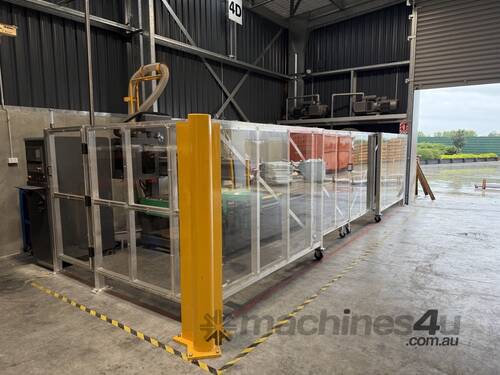

* Fixed Fencing and movable screen and
* Adjustable Sheet loading trolley.
Specifications and Features:
High-Performance Spindle:
Equipped with a 9.0kW HSD-HSK63 air-cooled auto tool changer spindle (model ES951) for high efficiency, durability, and superior cutting performance. High Quality Italian Equipment.
Advanced Tool Magazine:
12-tool carousel type with servo system, offering smooth, fast tool changes for uninterrupted workflows.
Top-Grade Motors and Drives:
Powered by Japan YASKAWA 850W servo motors and drivers, renowned for reliability and precision.
Precision Transmission:
Germany-engineered ball screw transmission for the Z-axis ensures long-lasting precision and stability with 300 mm height capability.
Original Taiwan PMI 25mm linear square rails for the X and Y Axes guarantee accurate linear motion with minimal wear.
Robust Structure:
A thickened steel-welded heavy-duty frame with a tempering process provides a stable base to handle high loads and vibrations Table Size 1500 mm x 5000 mm
Vacuum and Dust Control:
Comes with dual 7.5kW, 265-cubic vacuum pumps for superior material hold-down capability.
Integrated dual-bag dust collector system ensures a clean and safe working environment.
Efficient Automation Systems:
Auto oiling system and pop-up positioning system improve efficiency and reduce maintenance efforts.

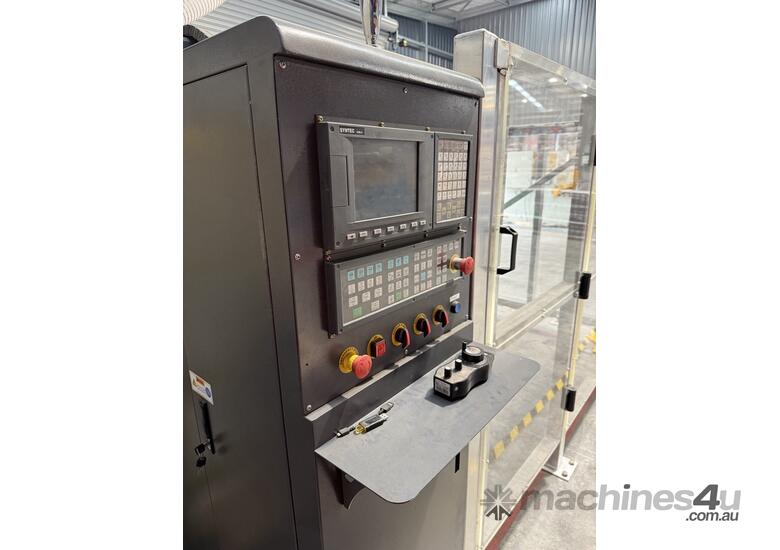

Powerful Electronics and Control Systems:
Features Taiwan SYNTEC control system (model 60W-E) for seamless operation and easy post processor integration.
Includes Taiwan DELTA 11kW inverter, providing reliable performance and energy efficiency.
Schnieder Control cabinet electrical components
Cooling System:
An oil mist cooling system ensures optimal temperature control for prolonged tool life for aluminum cutting
Precision and Speed:
Precision tolerance of
