Press Brake: Hydraulic/Mechanical or Full Synchro - *AUSTRALIAN MADE*

LONG-LASTING AUSTRALIAN MADE MACHINERY

EPIC Hydraulic/Mechanical or Full Synchro Press Brakes are designed and manufactured in the NSW workshop. EPIC has been manufacturing sheet metal processing equipment for more than 40 years, focusing on providing Australian quality workmanship and meeting Australian standards.

The sturdy construction and proven design will provide accurate bending over the long life of the machine.

EASY SET UP

The press brake is fitted with 10-station 99-job electronic depth control. Each job can have 10 depth positions and 10 opening heights. Setting bend angles is simple with the easy-to-use control.

CUSTOMISATION AVAILABLE

EPIC has technical services Australia-wide. Plus, EPIC offers personal customisation and modification of all machines.

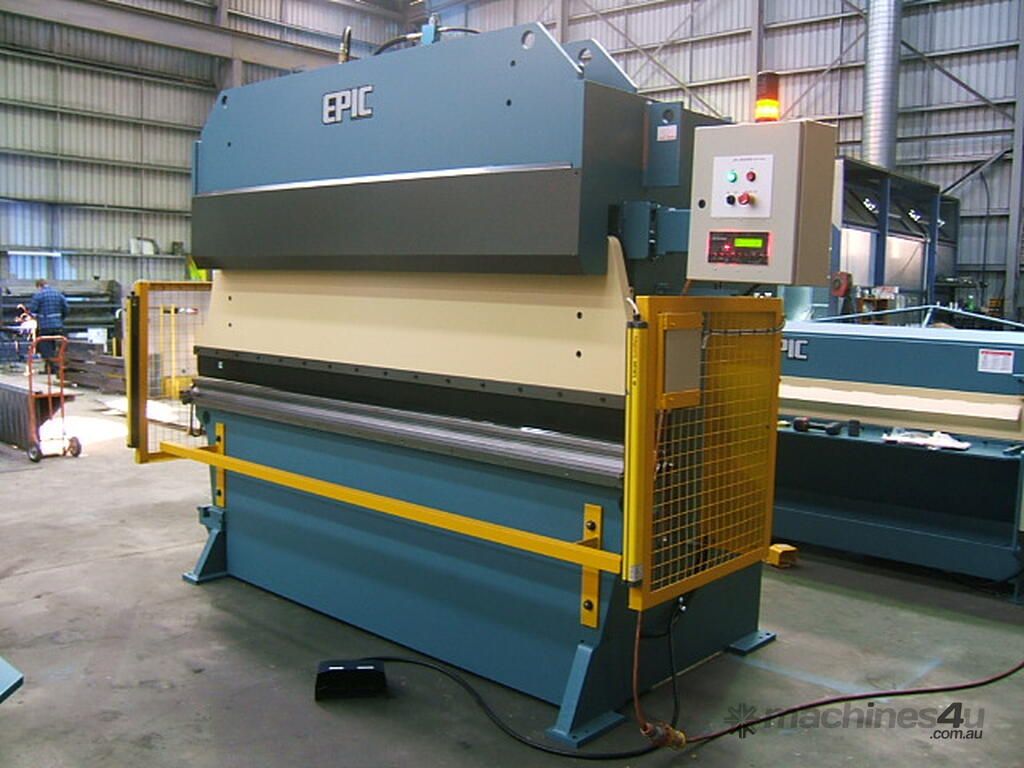

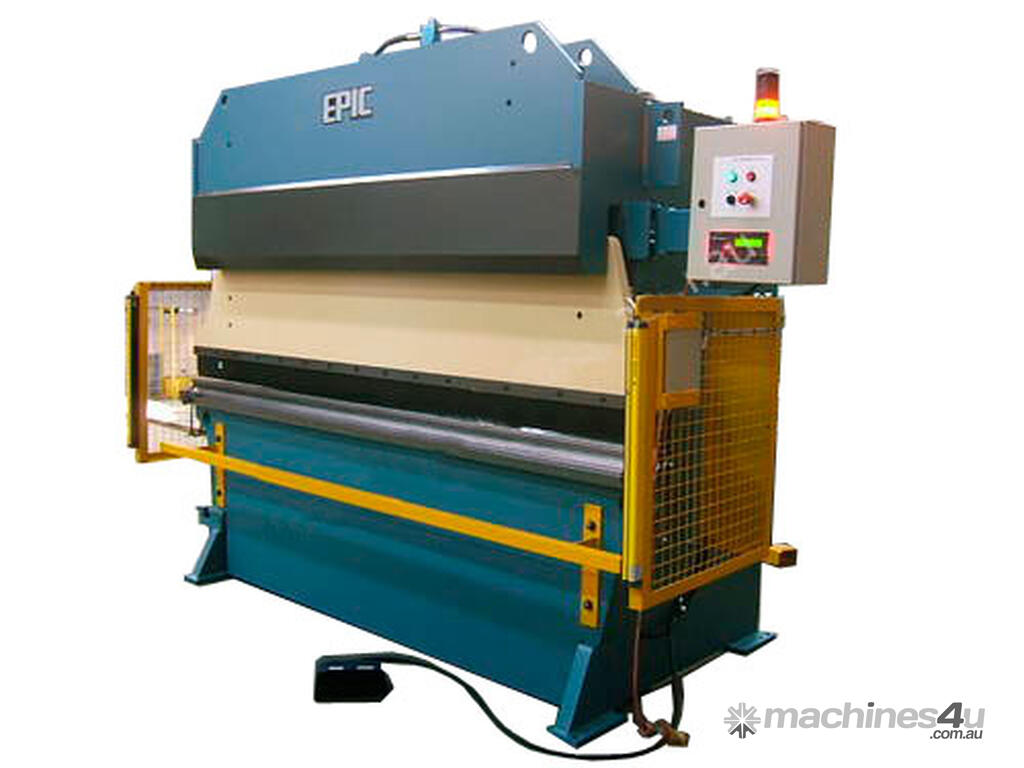

EPIC Hydraulic/Mechanical or Full Synchro Press Brakes

Machine Capacity:
- 60-150 tonne pressing capacity
- 2500mm-4050mm pressing length

Standard Features:
- Australian-made tooling
- Bosch Rexroth hydraulics

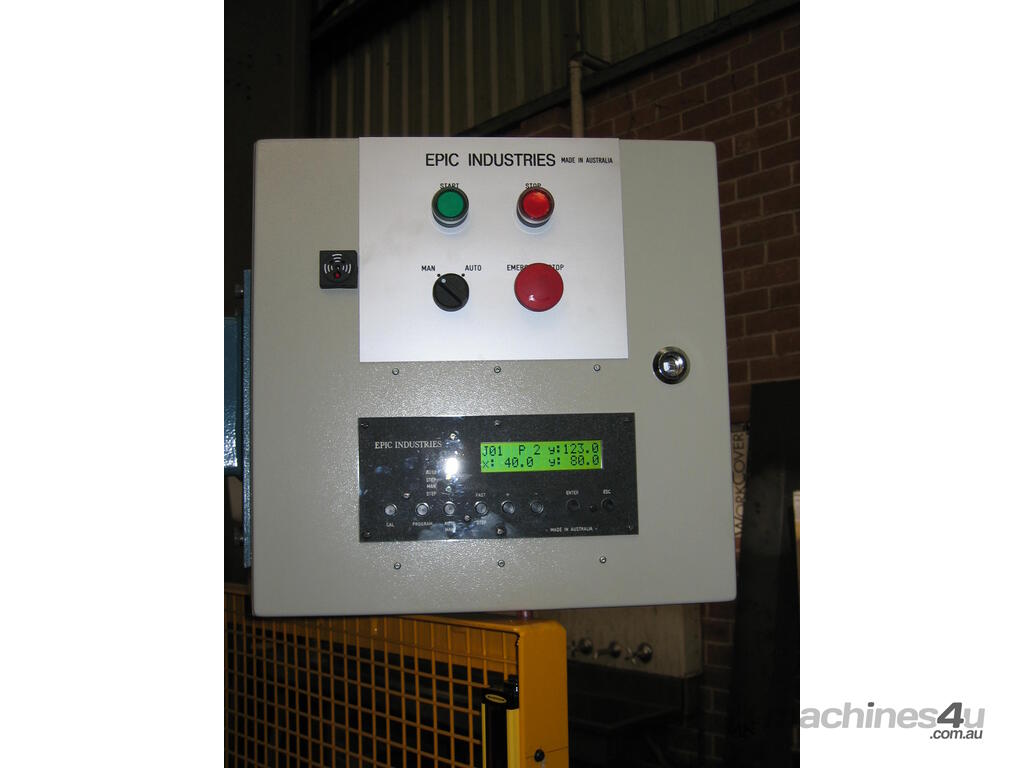

- 10-station 99-job electronic depth control
- Electrics safe 24V
- 7.5kW motor/11kW
- Overload protection on hydraulics and electrics
- Fast approach slow pressing, fast retract
- Light curtain front, gate with interlock switch at the back or laser guarding
- Top beam parallel at all times
- Bottom beam with tilt option
- Encoder-monitored top beam travel for accurate repeatability
- Grease lubrication located in one area of machine
- Spherical bearing on all moving parts of Hydr/Mech models

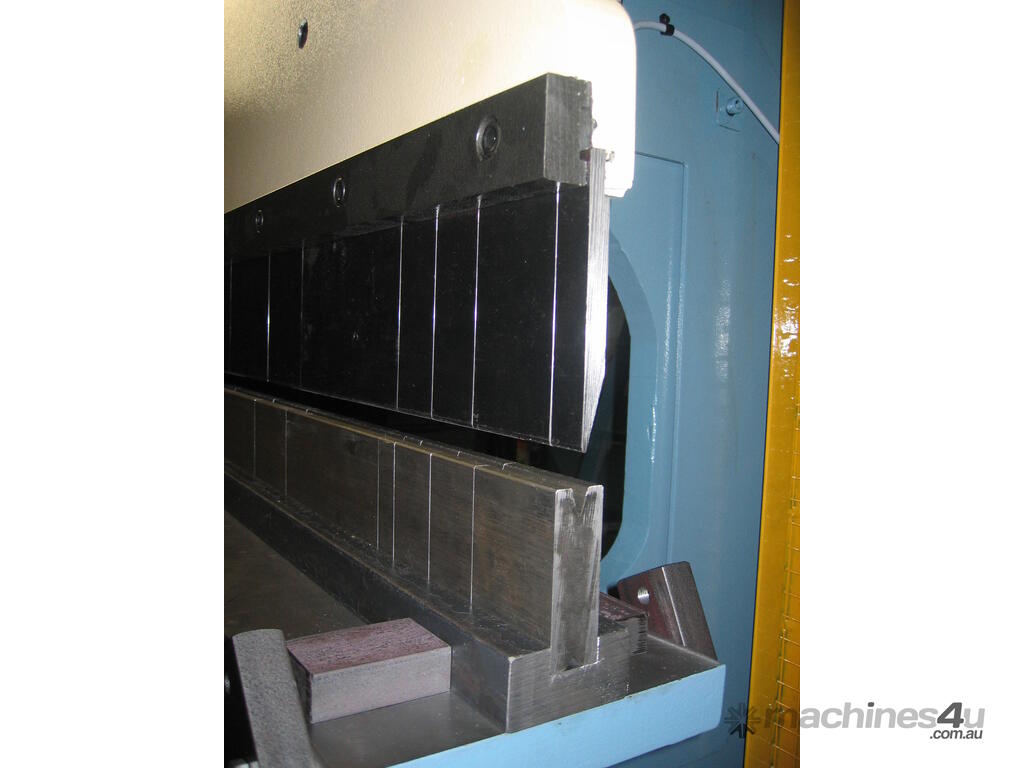

- Multi vee die block
- Single point top tool

Optional Features:
- Cybelec graphic controller suitable for synchro or hydr/mech models
- Electronic touch-and-go back gauge on ball screws, 1000mm travel
- Power operated back gauge, 800mm travel
- Larger throat
- Faster approach speed
- Gooseneck top tool
- Hydraulic crowning of bed
- Custom tooling

Contact EPIC to discuss freight and financing, plus any customisation and modifications you require, or for more information about our press brakes, or any EPIC sheet metal fabrication machines.

Other EPIC press brake ranges:
- 2500-3100mm (50 tonne up to 150 tonne capacities)
- 3100-3710mm (60 tonne up to 150 tonne capacities)
- 3710-4050mm (60 tonne up to 150 tonne capacities)
