Price Drop 20 KVA Kubota Power Remote Series - 20 kVA

Grab a bargain

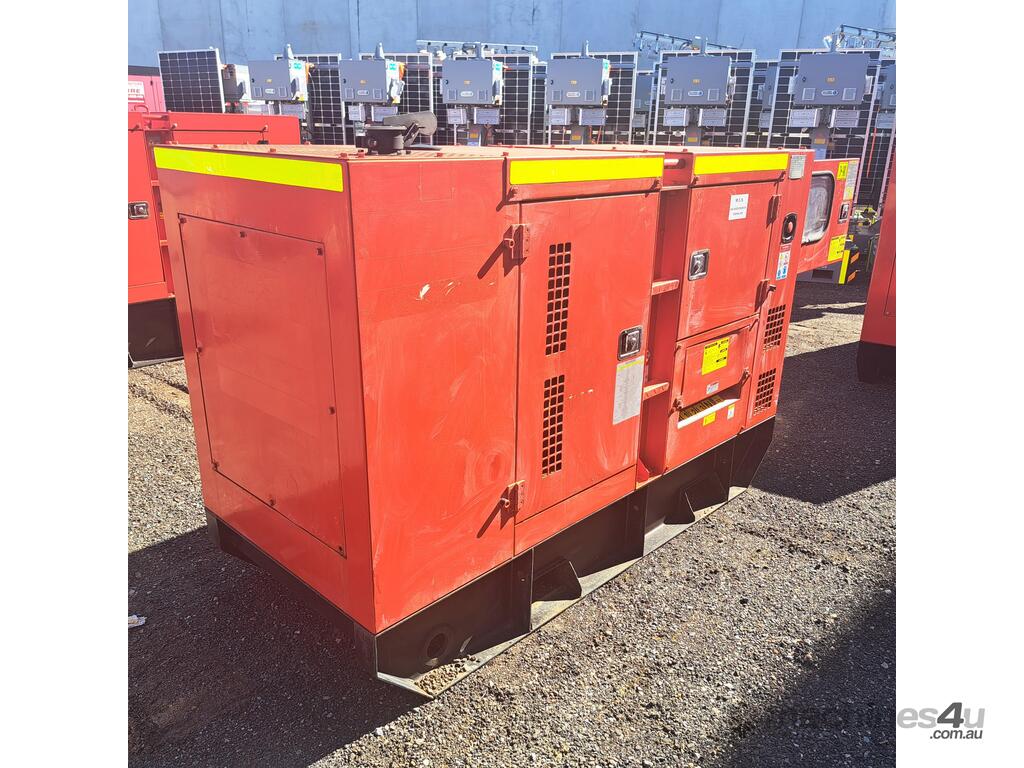

Well presented 20KVA Standby Generator. Currently located in Perth Nationwide Freight can be organized upon request.

Comes as full Mining/Construction/Hire spec

Call Mark Today for more detials

GENERAL
Power Type: Diesel
Prime Power (kW/kA): 15/18
Standby Power (kW/kVA): 16.5/19.8

STANDARD FEATURES
50°C rated radiator
Powder coated finish
External fuel tank connections
EVAC service points
110% bunded skid base
All moving parts are fitted with safety guards
Fitted sockets RCD protectors:
2 x 1Ph 15amp 3 pin
1 x 3Ph 20amp 5 pin
1 x 3Ph 32amp 5 pin
Bunded base with drain valve
IP66 rating outlets
Waterproof IP65
Dust proof electrical components
Rated lifting lugs

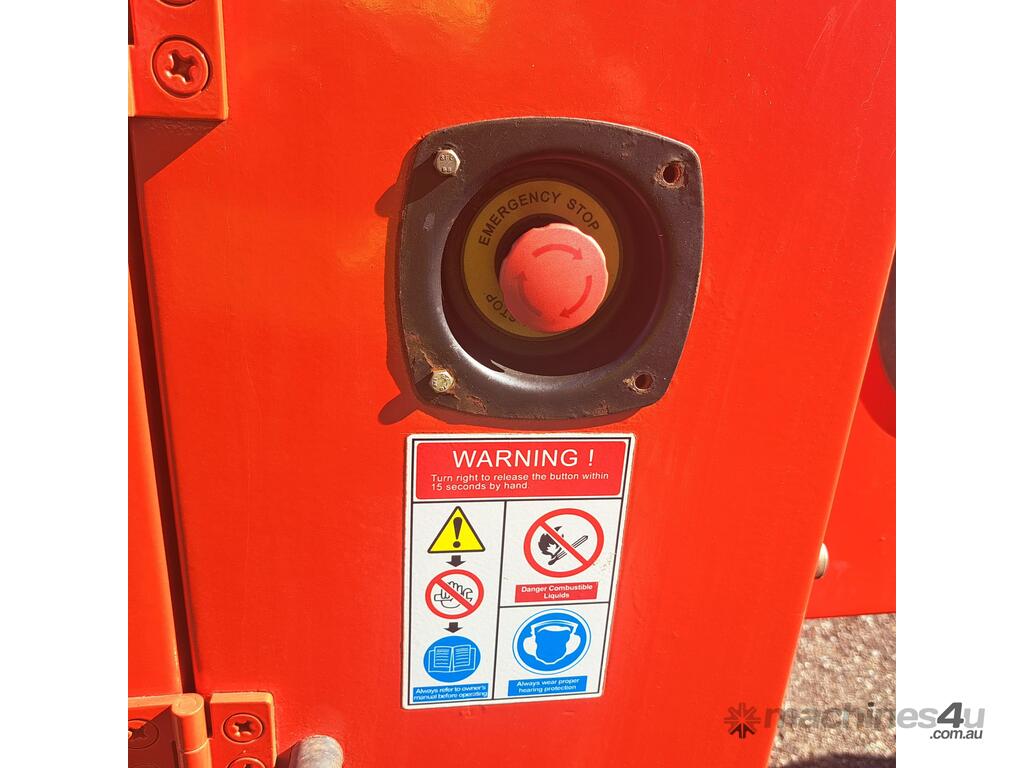

Emergency E stop
State of the art control system - Deep Sea

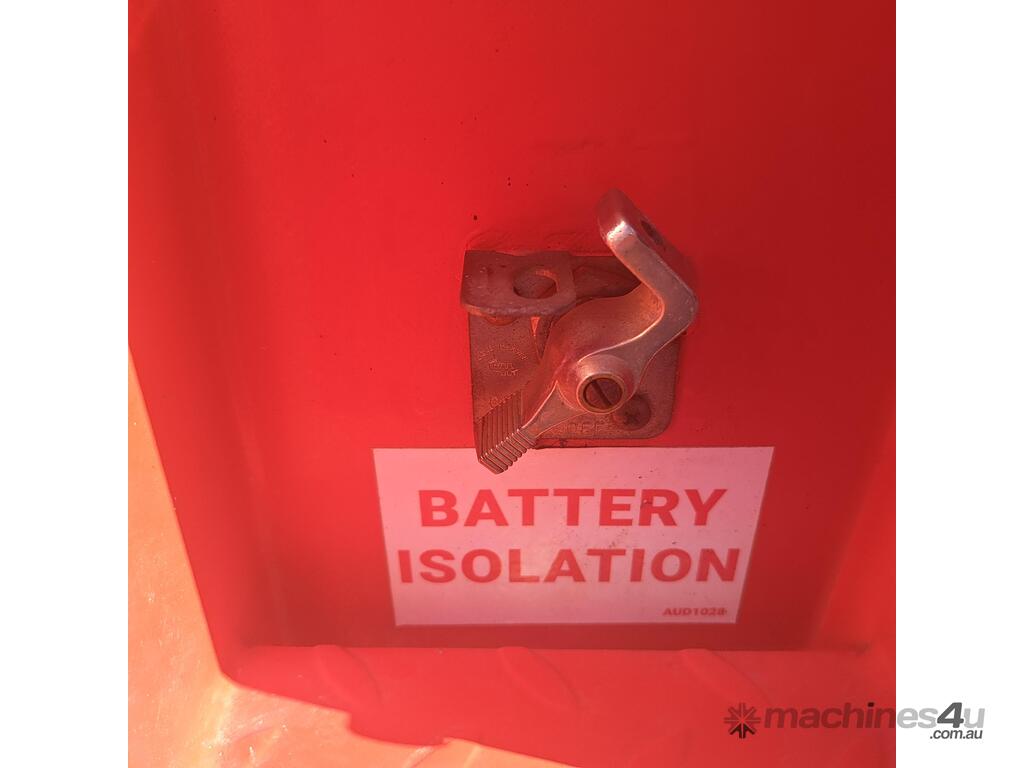

Battery isolator
Door safety interlocks

OPTIONS
24 hour fuel tank

ASSEMBLY

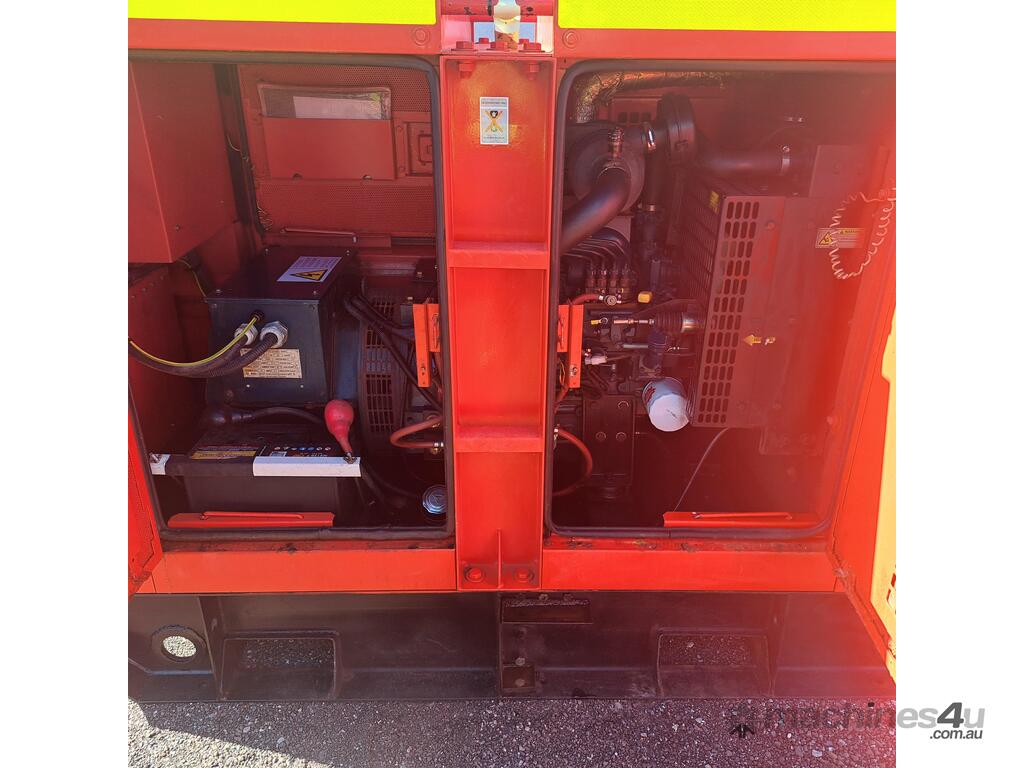

The engine and alternator are closed coupled by means of an SAE flange. A full torsional analysis has been carried out to guarantee no harmful vibration will occur. Anti-vibration pads are affixed between the engine alternator feet and the base frame. Rubber diagonal isolators are specifically designed to reduce engine and alternator vibration and prevent distortion in the voltage and harmonic output of the generator. All iron and steel surfaces of the canopy fabrication have been sand blasted and then powder
coated which provides an excellent corrosion resistant surface

CONSTROL SYSTEMS

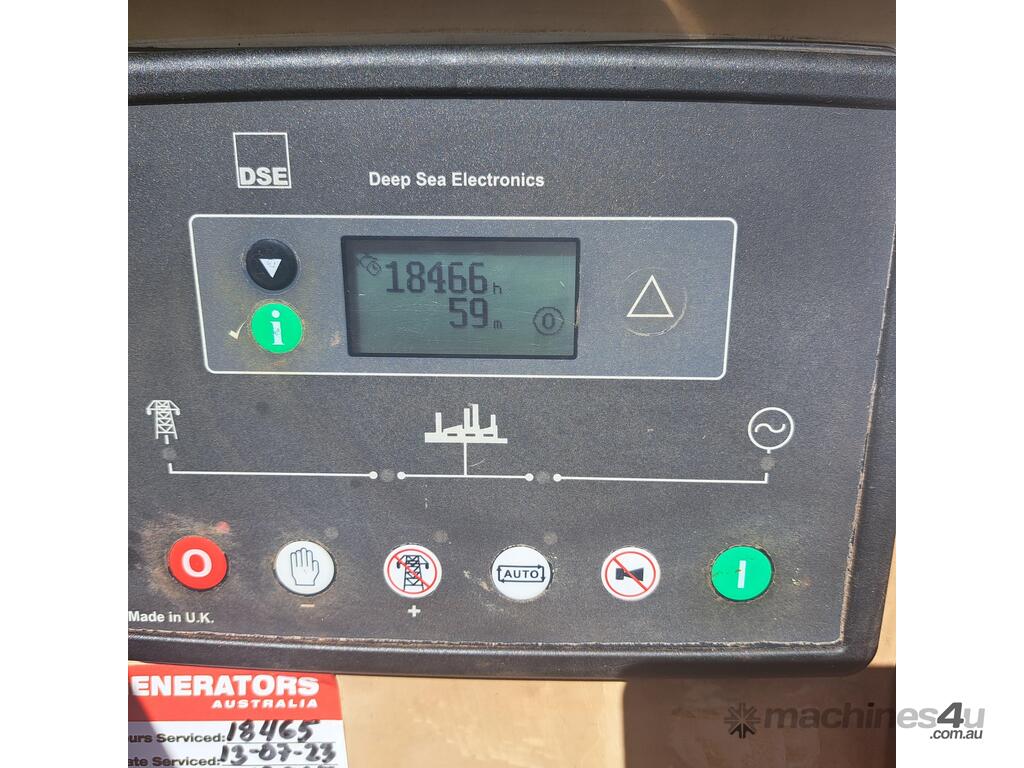

The DSE6020 is an Auto Mains Failure Control Module suitable for a wide variety of single, diesel or gas, generator set applications. Monitoring speed, frequency, voltage, current, oil pressure, coolant temperature and fuel level, the module will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LED.

QUALITY STANDARDS
Our generator sets are compliant with all the main standards, such as ISO8528, ISO14000, ISO3046, GB755, BS5000, VDE0530, IEC34-1, AS3000.
