Primary Jaw Crusher Station

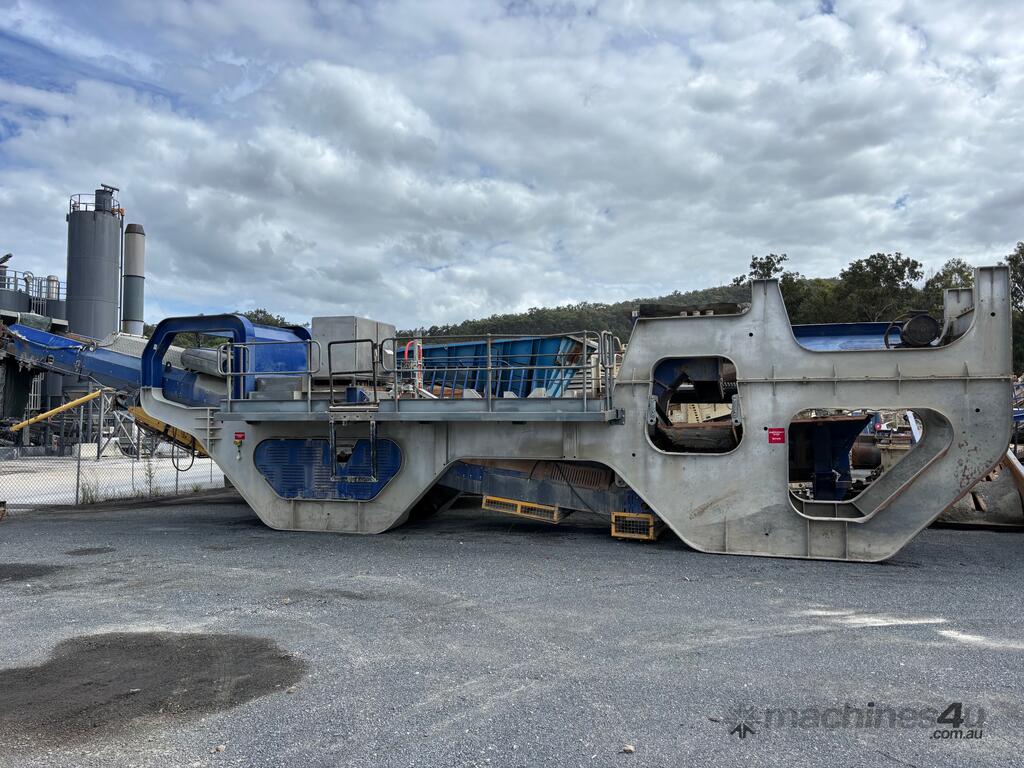

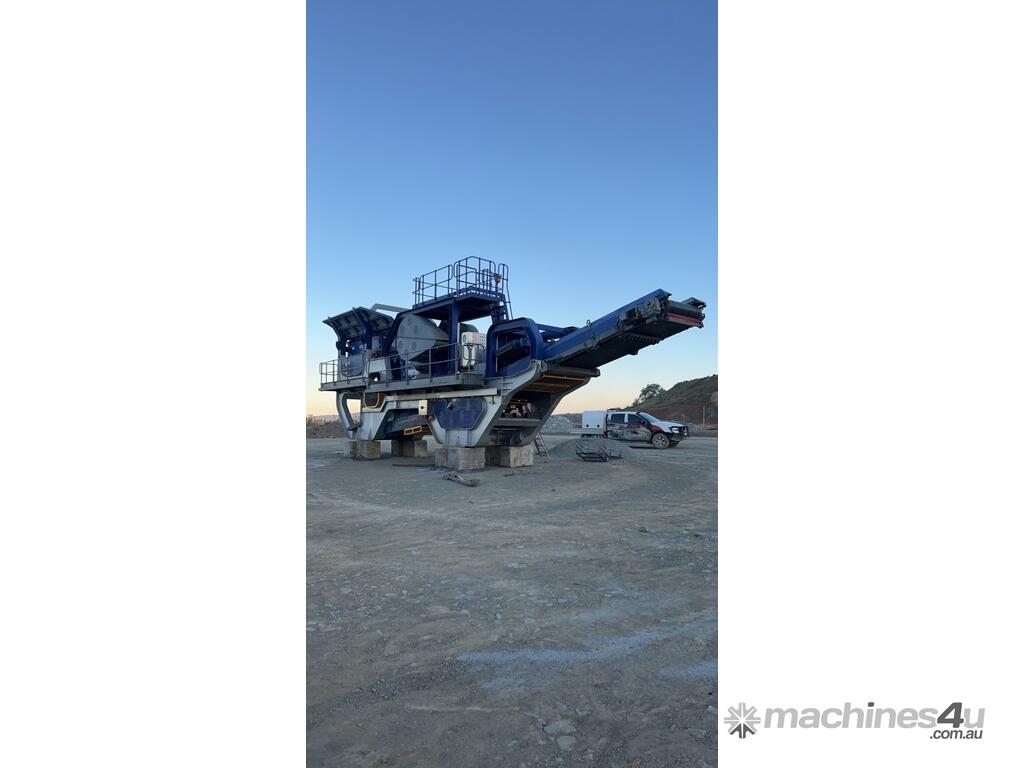

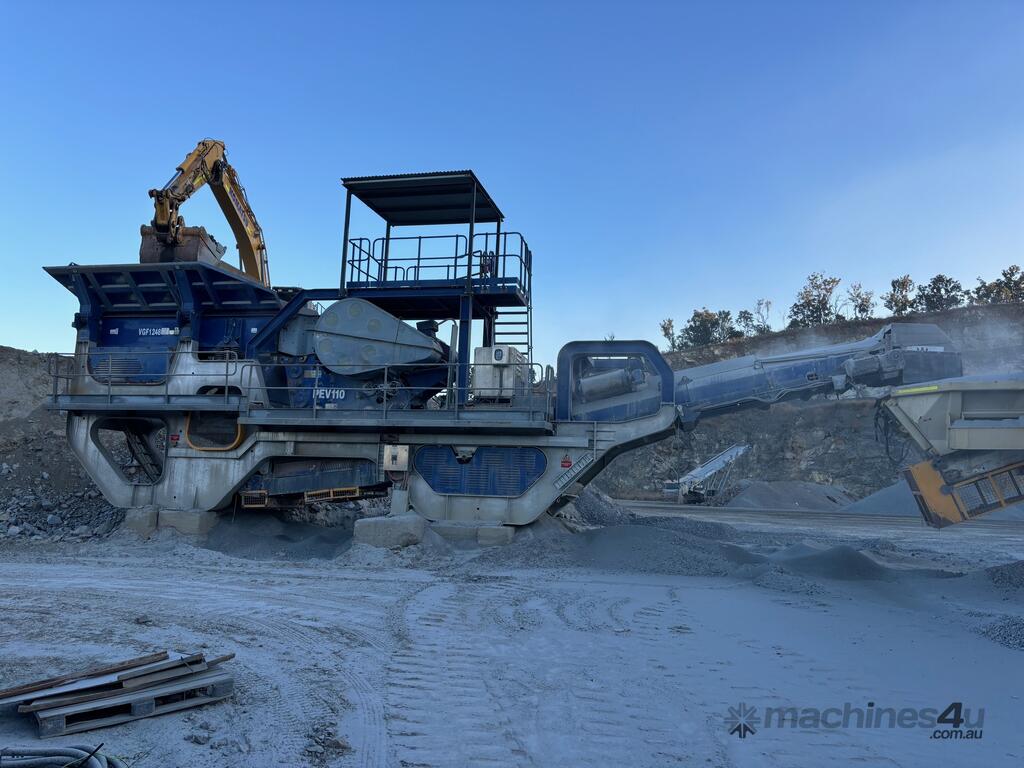

SKID MODULAR PRIMARY JAW CRUSHING PLANT JJ-110J- E/S
DESCRIPTION
? Y.O.M – 2018
? Designed in United Kingdom and built by MW LTD in Shanghai
Heavy duty static modular jaw crusher with following features:

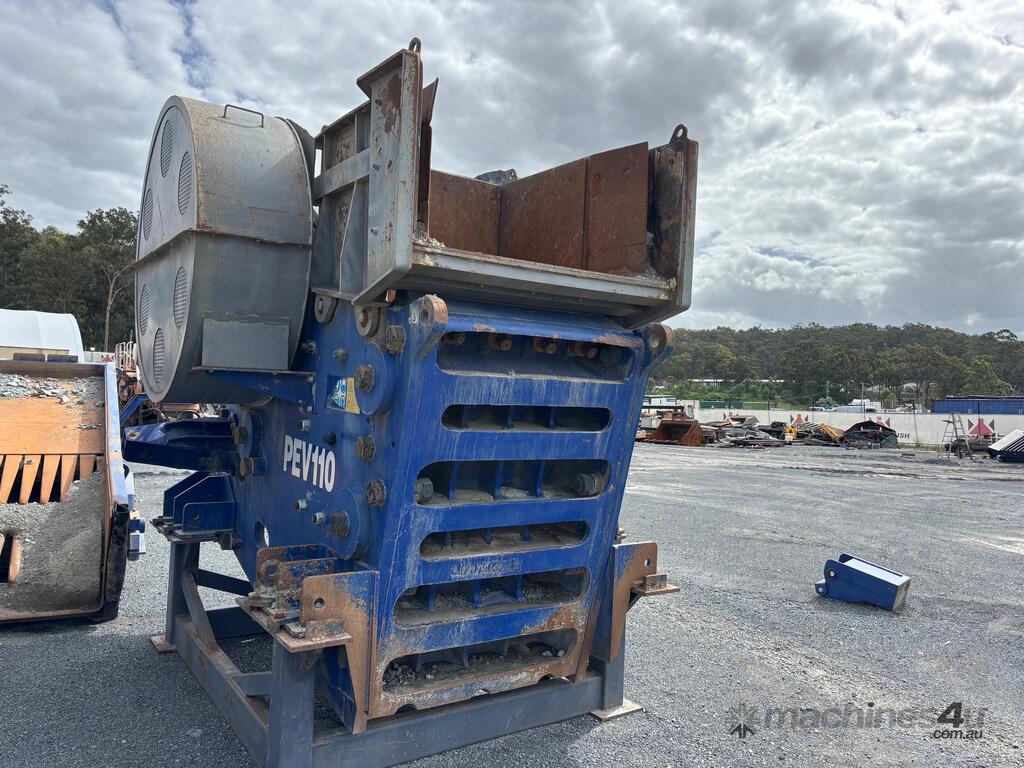

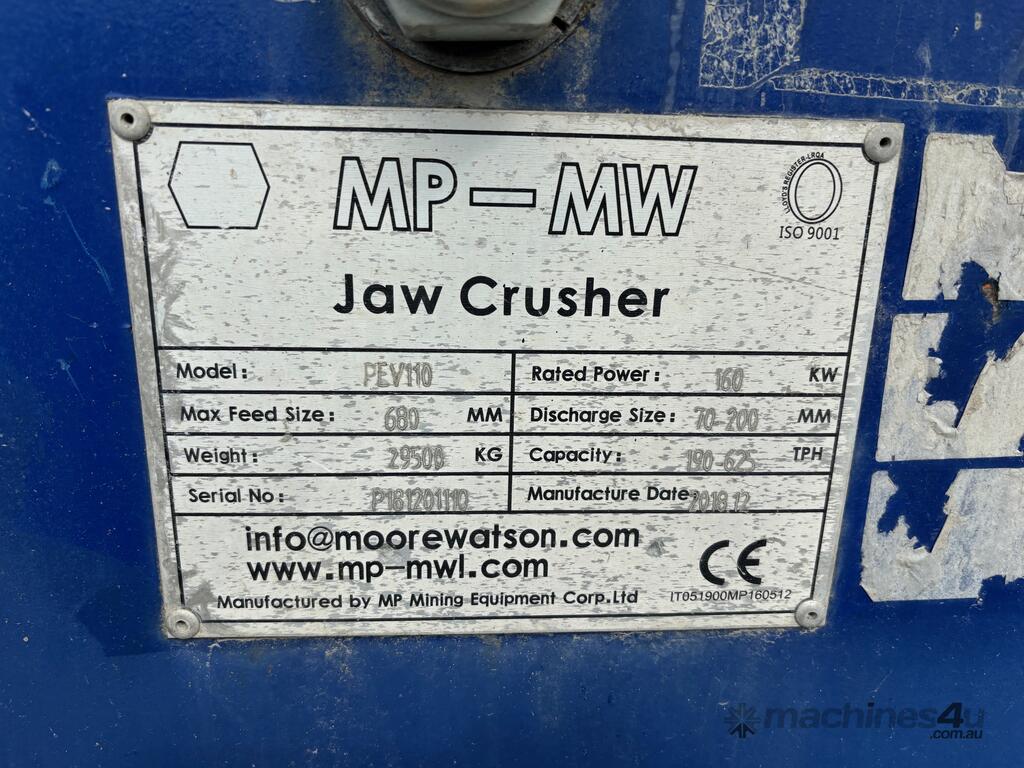

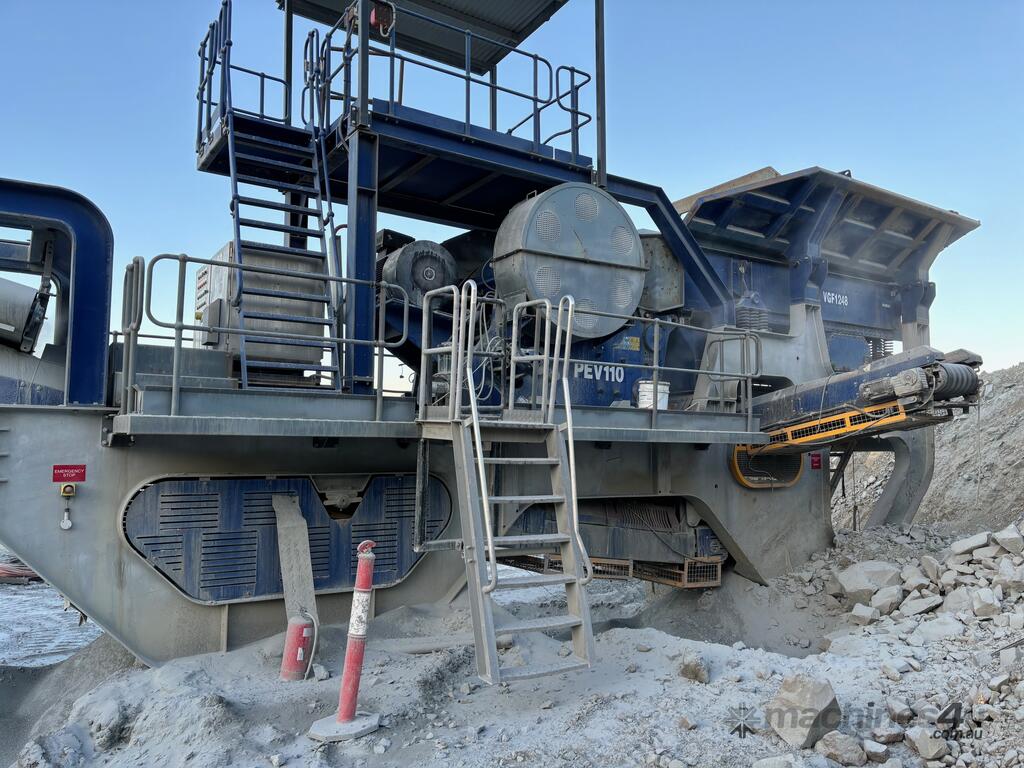

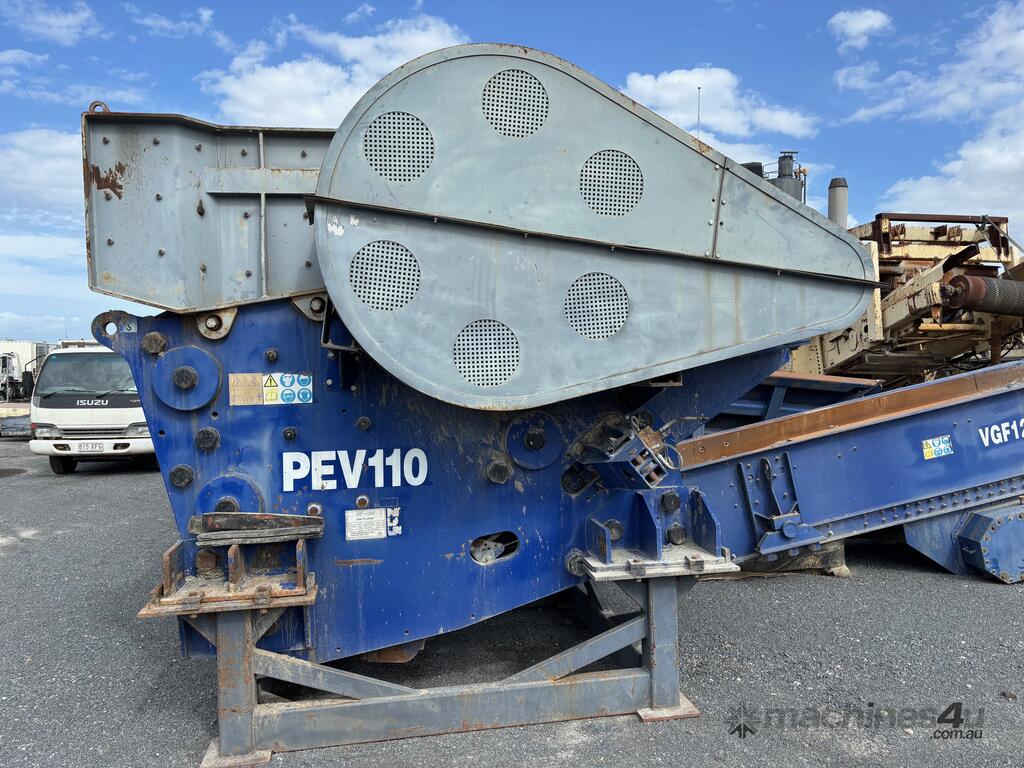

? Skid mounted / modular PEV-110 Primary Jaw Crusher Unit 44" x 34" / 1120mm x 865mm

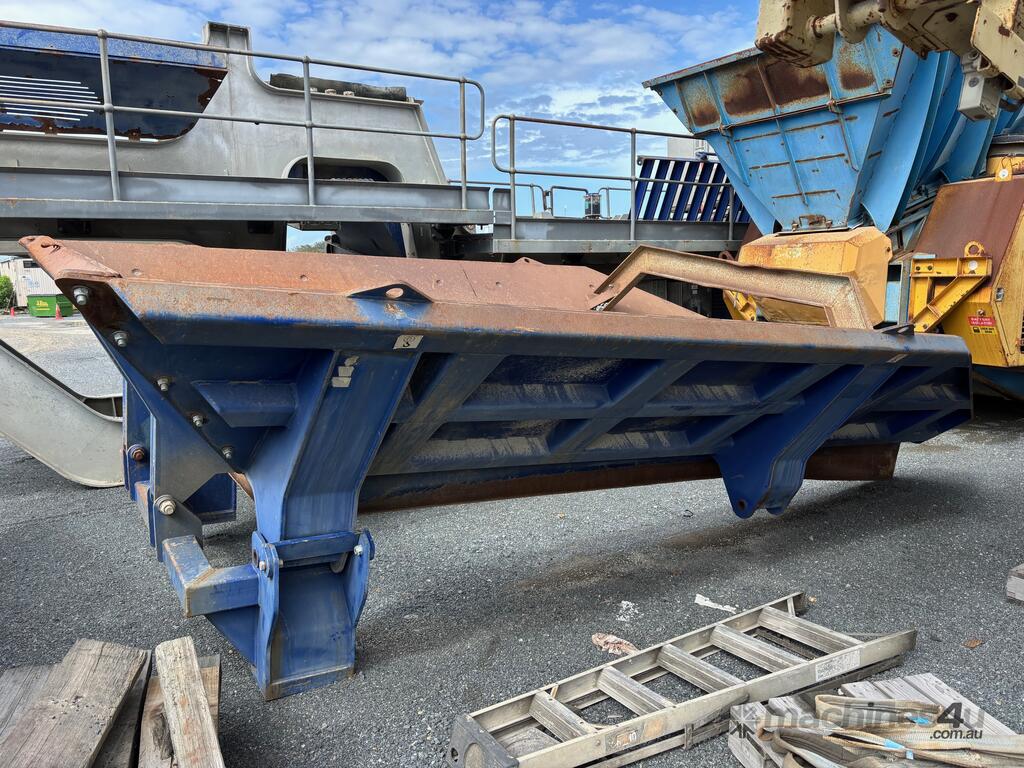

? 9 m3 capacity main feed hopper with Hardox© liners

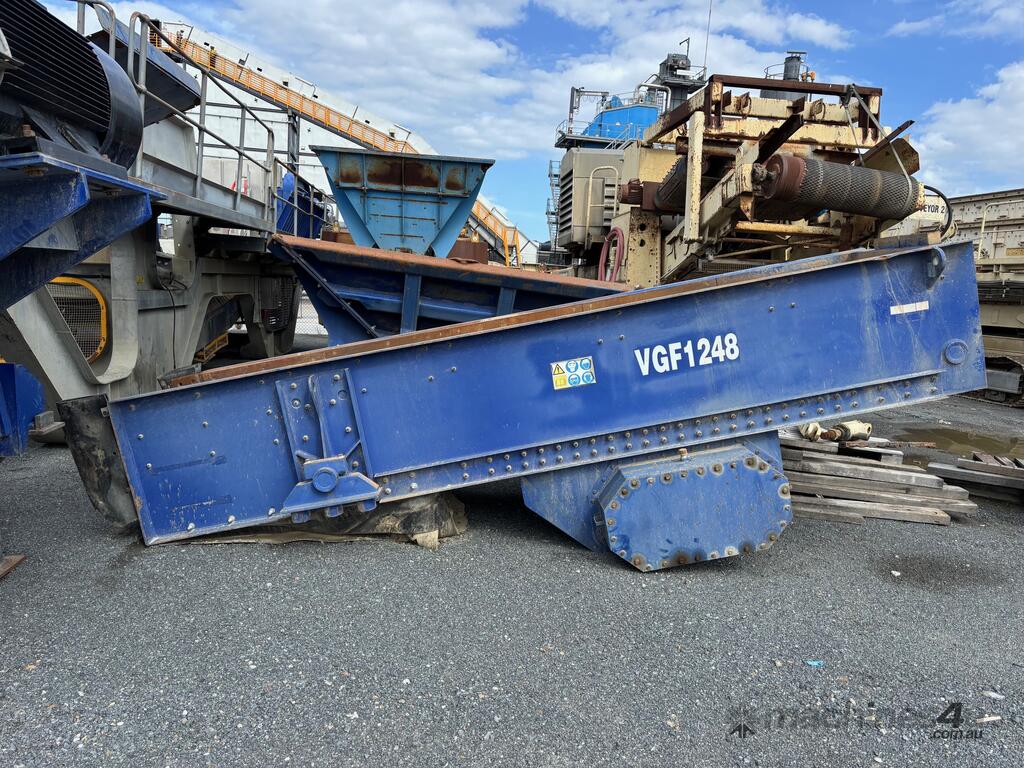

? Stepped bar vibrating grizzly feeder
? Side scalping’s stockpile conveyor (4.5 M Long x 650 mm)

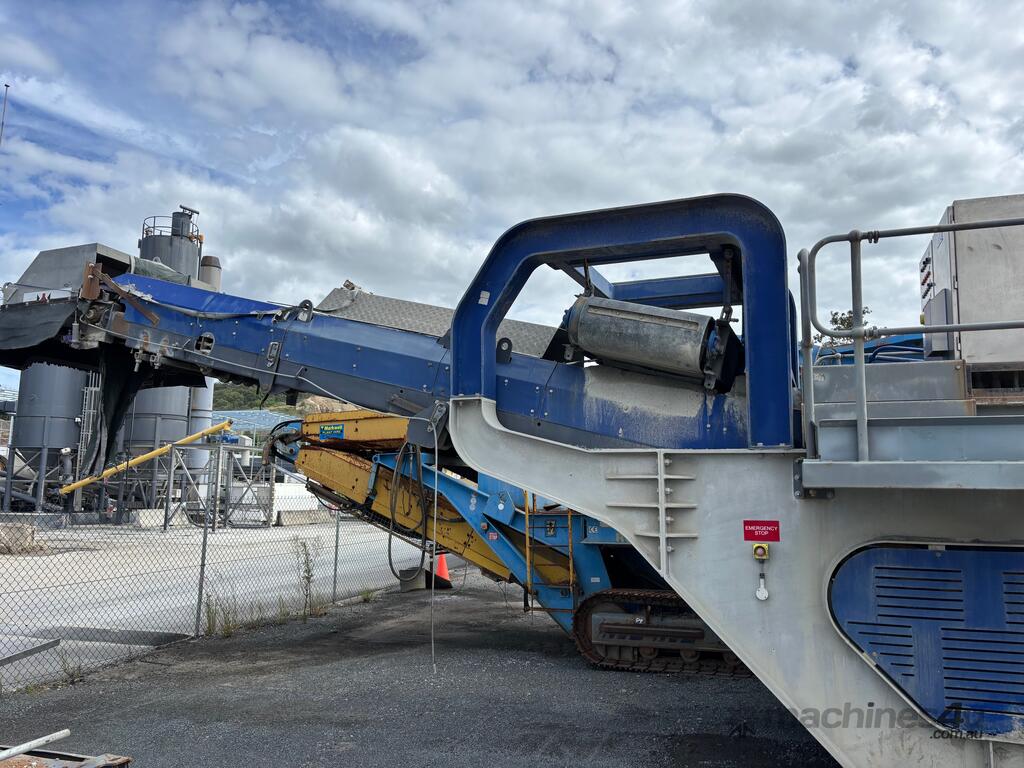

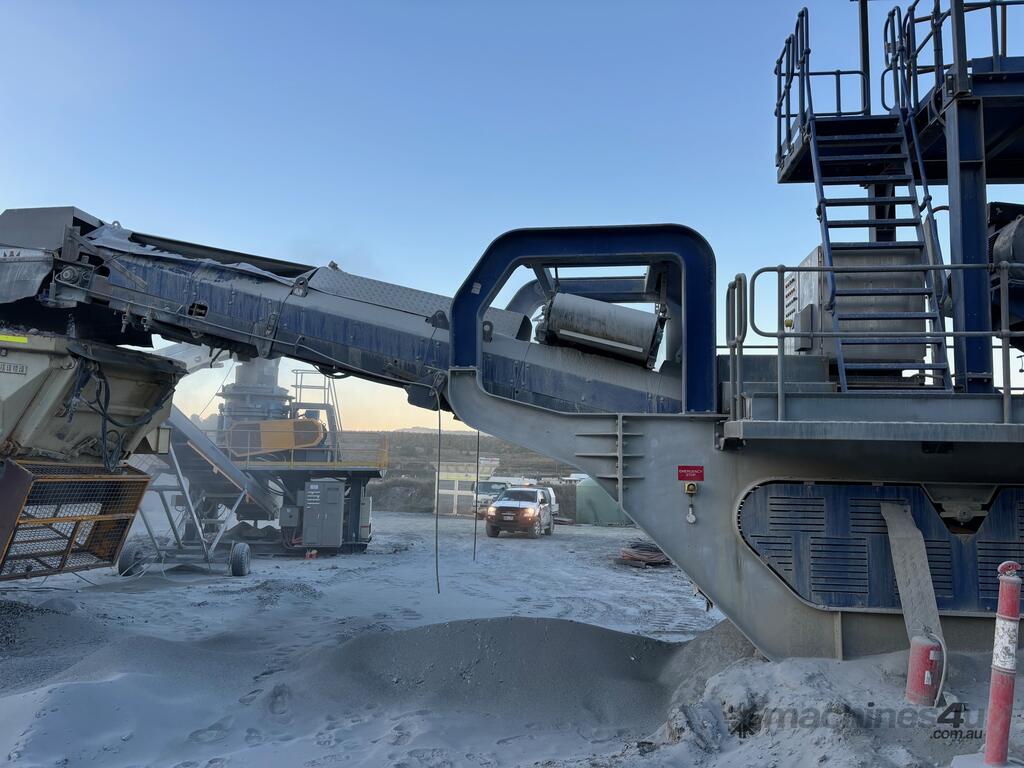

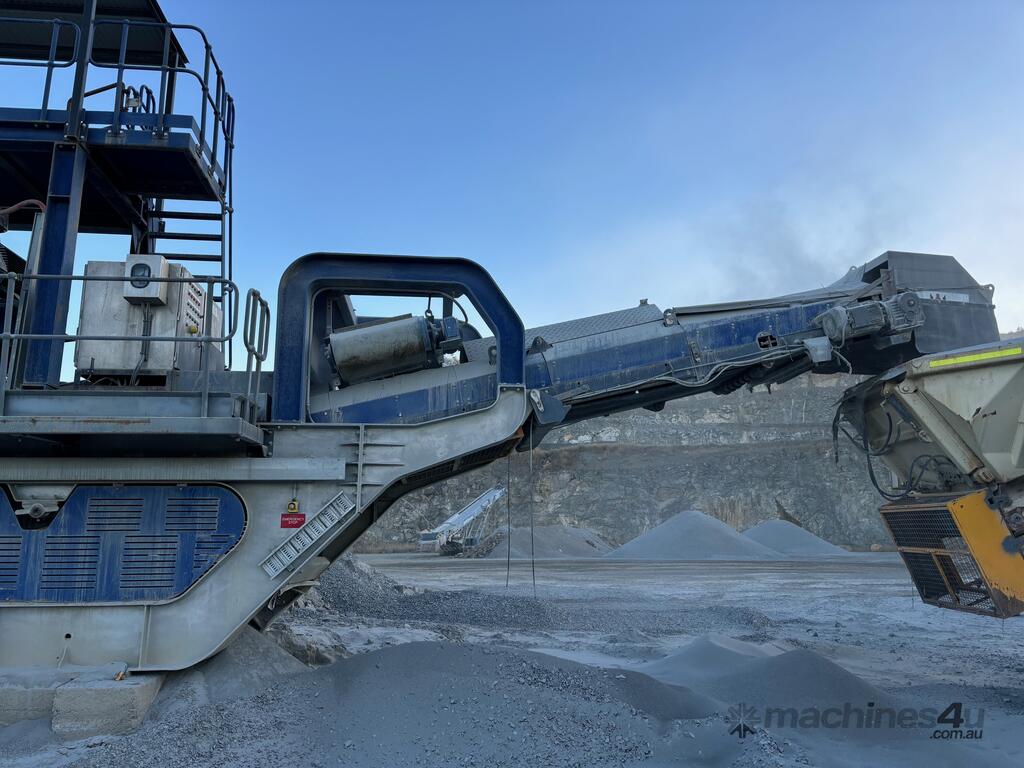

? Main discharge product stockpile conveyor (12.0 M Long x 1200 mm)
? Over-band magnet unit
? Main electrical control cabinet IP65
DIMENSIONS & WEIGHT
Length – Working 17,691 m (58’ – 0 ½”)
Width – Working 6,414 m (21’ – 0 ½”)
Height – Working 5,867 m (19’ – 3”)
Length – Transport 14,512 m (47’ – 7 3/8’)
Width – Transport 2,250 m (7’ – 4 5/8”)
Height – Transport 4,031 m (13’ – 2 ¾”)
Weight – Operational 51,000 Kgs
