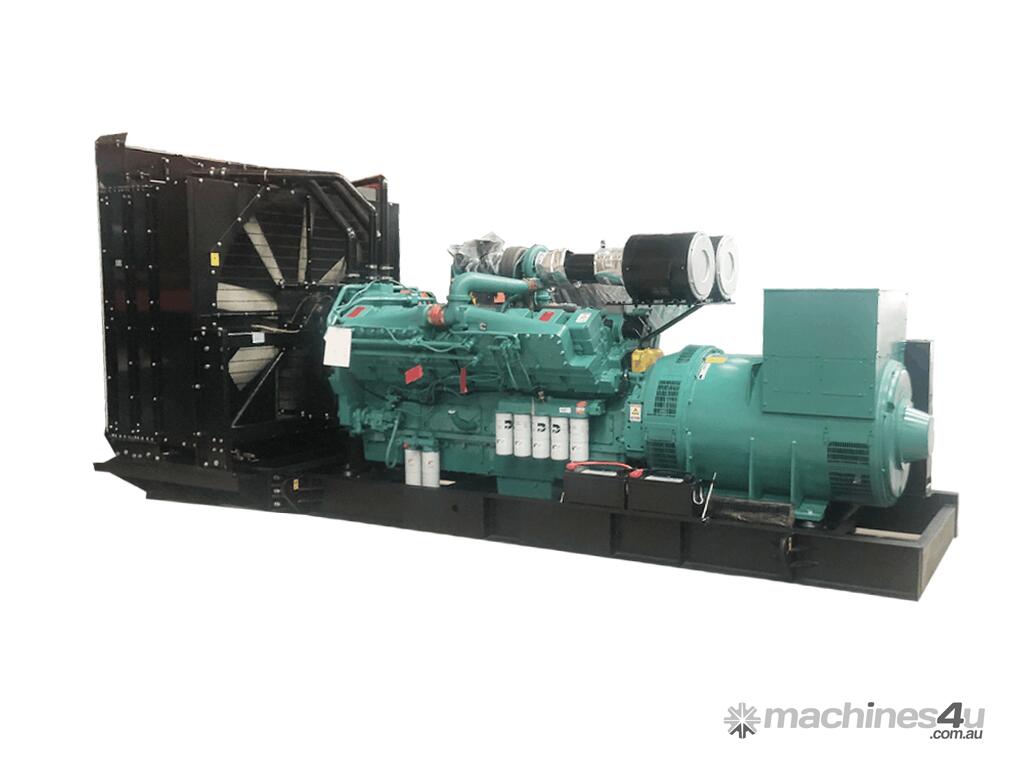

Prime: 1000KVA (800KW) Standby: 1100KVA (880KW)

* Composed of Cummins,Perkins,SDEC diesel engine and Stamford or Kusing, Marathon, Leroy somer alternator;

*24V DC start motor and storage battery;

*Brushless, Self-excited, IP23, insulation class H alternator;

*50? radiator as standard;

*Digitalstart panel control system as standard, digital auto-start panel is optional;

* 8-hour operation base tank;

*Optional open type or silent type;

*All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

RATING DEFINITION

PRIME POWER

Prime Power is available for an unlimited number of annual operating hours in variable load applications,in accordance with ISO8528-1

STAND BY POWER

The Standby Power is applicable for supplying emergency power for the duration of utility power interruption.No overload,utility parallel or negotiated outage operation capacity is available at this rating

TECHANICAL DATA
Generator set Genset Model CK38000 PK38000 SK38000E
Engine Brand Cummins Perkins SDEC
Engine Model KTA38-G5 4008TAG2A 6WTAA35-G31
Alternator Moedel S404G800D4
Controller Kusing 6132
Switch CHNT 1600A
Internal protection IP22
Rate current(A) 1440
Specific Fuel Consumption(G/KW.H)100% Load
Engine Model KTA38-G5 4008TAG2A 6WTAA35-G31
NO. of Cylinder
Cylinder Type V V L
RPM 1500
Bore (mm)
Stroke(mm)
Speed Governor Electronic Electronic Electronic
Start system(VDC)
Lub Oil Specification CF/ 15W40 CF/15W40 CF/15W40
Displacement(Ltrs) 38 30.5 35.1
Lub Oil Sump Capacity(Ltrs) -100
Coolant Capacity(Ltrs) 118(only engine) 162(only engine) 78(only engine)
Air inspiration Turbocharged Turbocharged Turbocharged
Alternator Phase 3
Brand Kusing
Model S404G800D4
3 Phase Voltage(1 Phase) Volts 380-415(220-240)
RPM/Frequency 1500rpm/50hz
Power Factor(%) 0.8(lagging)
Voltage Tolerance(+/- %) 1
Insulation Class H
Weight Open (KG)
Silent(KG) 8000 8627 N/A
Size OPen(L*W*H)mm 4600*2010*2450 5050*2035*2450 4433*1775*2378
Silent(L*W*H)mm 40’ FT CONTAINER 40HQ CONTAINER 40FT HQ container
Noise(DBA) Open NA NA NA
Noise( 7M at the Genset)
Fuel Tank Capacity SUPPORT TO RUN 8 TO 10 HOURS
