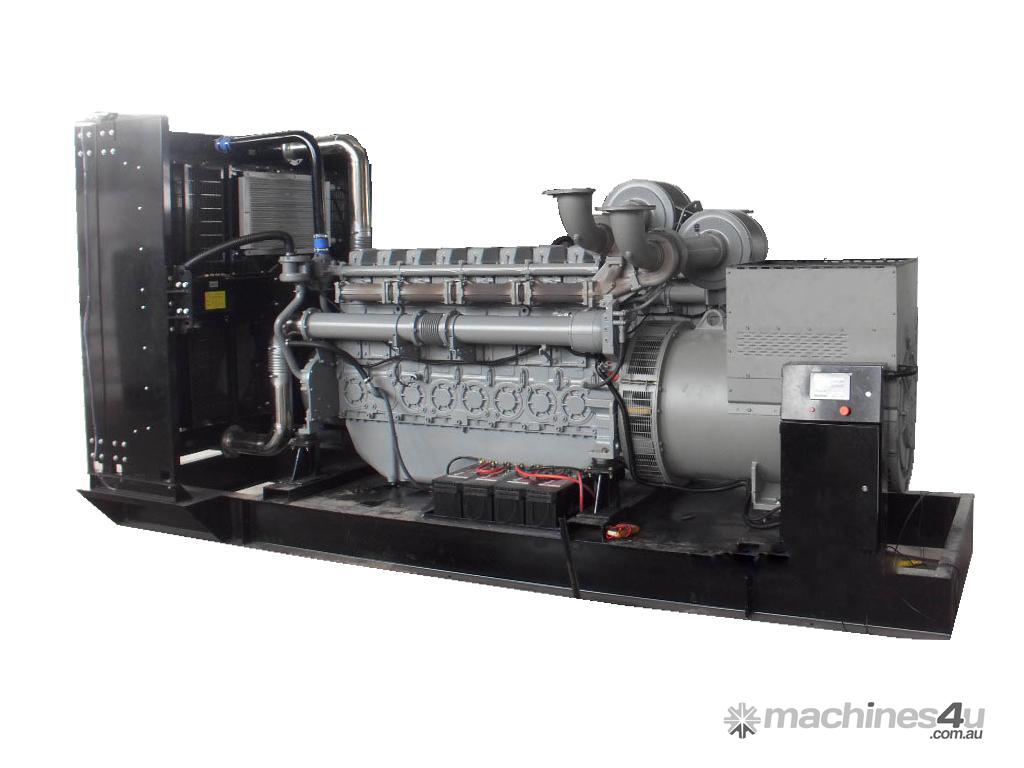

Prime: 1687.5KVA 1350KW Standby: 1856.3KVA 1485KW

*Composed of Perkins diesel engine and Stamford or Kusing, Marathon, Leroy somer alternator;

*24V DC start motor and storage battery;

*Brushless, Self-excited, IP23, insulation class H alternator;

*50? radiator as standard;

*Digitalstart panel control system as standard, digital auto-start panel is optional;

* 8-hour operation base tank;

*Optional open type or silent type;

*All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

RATING DEFINITION

PRIME POWER

Prime Power is available for an unlimited number of annual operating hours in variable load applications,in accordance with ISO8528-1

STAND BY POWER

The Standby Power is applicable for supplying emergency power for the duration of utility power interruption.No overload,utility parallel or negotiated outage operation capacity is available at this rating

TECHANICAL DATA
Generator set Genset Model PK313500
Engine Brand Perkins
Engine Model 4012-46TAG3A
Alternator Moedel S4541350C3
Controller Kusing 6132
Switch CHNT 4000A
Internal protection IP22
Rate current(A) 2430
Specific Fuel Consumption(G/KW.H)100% Load 208
Engine Model 4012-46TAG3A
NO. of Cylinder 12
Cylinder Type V
RPM 1500
Bore (mm) 160
Stroke(mm) 190
Speed Governor Electronic
Start system(VDC) 24
Lub Oil Specification CF/15W40
Displacement(Ltrs) 45.8
Lub Oil Sump Capacity(Ltrs) 177
Coolant Capacity(Ltrs) 207
Air inspiration Turbocharged
Alternator Phase 3
Brand Kusing
Model S4541350C3
3 Phase Voltage(1 Phase) Volts 380-415(220-240)
RPM/Frequency 1500rpm/50hz
Power Factor(%) 0.8(lagging)
Voltage Tolerance(+/- %) 1
Insulation Class H
Weight Open (KG) 11500
Silent(KG) 14260
Size OPen(L*W*H)mm 5530*2800*3125
Silent(L*W*H)mm 40’ HQ CONTAINER
Noise(DBA) Open NA
Noise( 7M at the Genset) 80
Fuel Tank Capacity SUPPORT TO RUN 8 TO 10 HOURS
