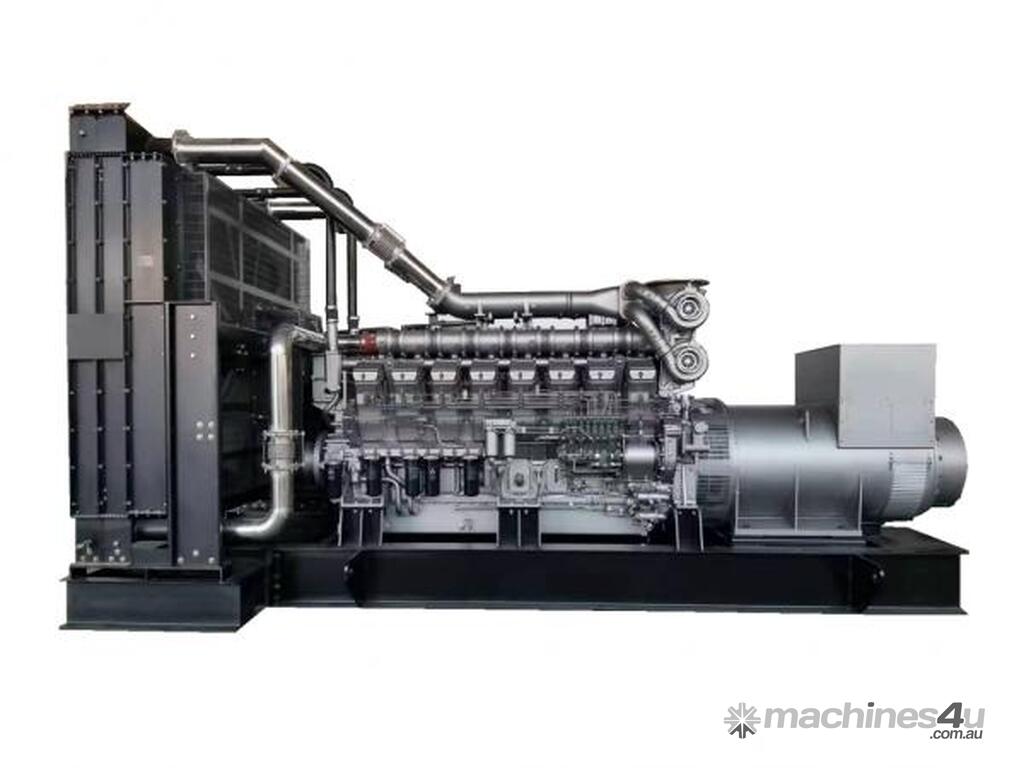

Prime: 2000KVA (1600KW) Standby: 2200KVA (1760KW)

* Composed of Cummins,Perkins diesel engine and Stamford or Kusing, Marathon, Leroy somer alternator;

*24V DC start motor and storage battery;

*Brushless, Self-excited, IP23, insulation class H alternator;

*50? radiator as standard;

*Digitalstart panel control system as standard, digital auto-start panel is optional;

* 8-hour operation base tank;

*Optional open type or silent type;

*All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

RATING DEFINITION

PRIME POWER

Prime Power is available for an unlimited number of annual operating hours in variable load applications,in accordance with ISO8528-1

STAND BY POWER

The Standby Power is applicable for supplying emergency power for the duration of utility power interruption.No overload,utility parallel or negotiated outage operation capacity is available at this rating

TECHANICAL DATA
Generator set Genset Model CK316000 PK316000
Engine Brand Cummins Perkins
Engine Model QSK60-GTRG2
Alternator Moedel S454G1650D5
Controller Comap/Deep sea Kusing 6132
Switch CHNT 4000A
Internal protection IP22
Rate current(A) 2880
Specific Fuel Consumption(G/KW.H)100% Load 202 197
Engine Model QSK60-GTRG2
NO. of Cylinder 16 16
Cylinder Type V V
RPM 1500
Bore (mm) 159 160
Stroke(mm) 190 190
Speed Governor Electronic electronic
Start system(VDC) 24 24
Lub Oil Specification CF/ 15W40 CF/15W40
Displacement(Ltrs) 60.2 61.1
Lub Oil Sump Capacity(Ltrs) 280 237
Coolant Capacity(Ltrs) 490 215
Air inspiration Turbocharged Turbocharged
Alternator Phase 3
Brand Kusing
Model S454G1650D5
3 Phase Voltage(1 Phase) Volts 380-415(220-240)
RPM/Frequency 1500rpm/50hz
Power Factor(%) 0.8(lagging)
Voltage Tolerance(+/- %) 1
Insulation Class H
Weight Open (KG) 13050 14329
Silent(KG) 15500 18189
Size OPen(L*W*H)mm 6150*2300*2550 5530*2800*3125
Silent(L*W*H)mm 40’ HQ CONTAINER 40HQ CONTAINER
Noise(DBA) Open NA NA
Noise( 7M at the Genset) 80 80
Fuel Tank Capacity SUPPORT TO RUN 8 TO 10 HOURS
