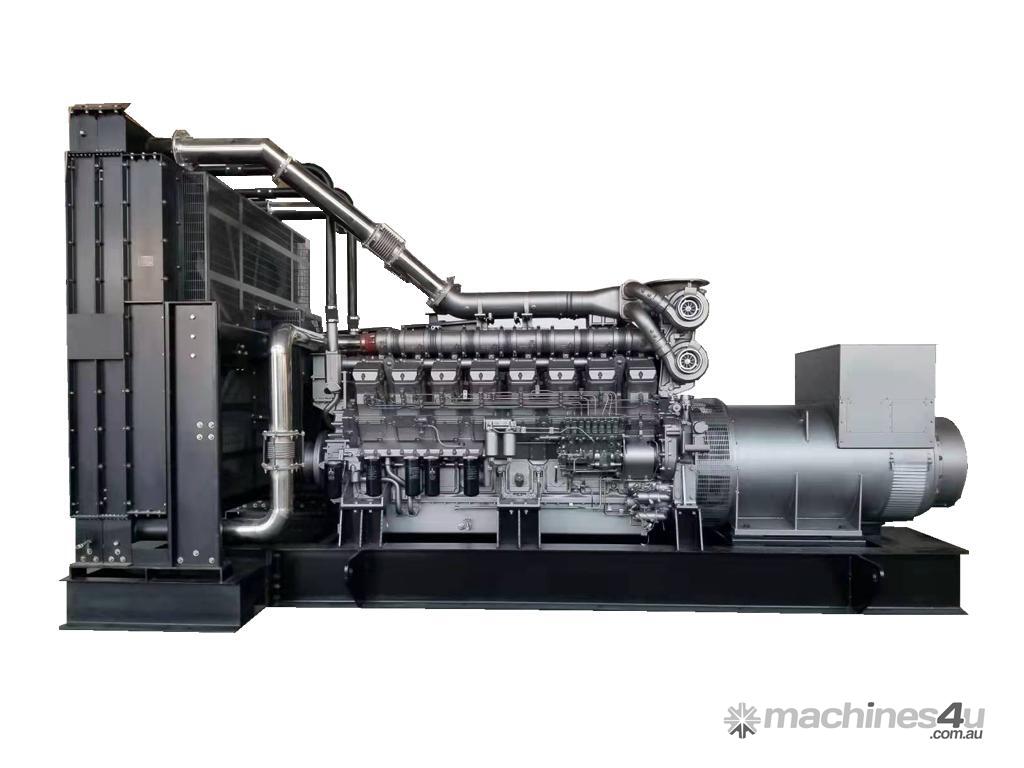

Prime: 2250KVA (1800KW) Standby: 2475KVA (1980KW)

* Composed of Cummins,Perkins diesel engine and Stamford or Kusing, Marathon, Leroy somer alternator;

*24V DC start motor and storage battery;

*Brushless, Self-excited, IP23, insulation class H alternator;

*50? radiator as standard;

*Digitalstart panel control system as standard, digital auto-start panel is optional;

* 8-hour operation base tank;

*Optional open type or silent type;

*All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

RATING DEFINITION

PRIME POWER

Prime Power is available for an unlimited number of annual operating hours in variable load applications,in accordance with ISO8528-1

STAND BY POWER

The Standby Power is applicable for supplying emergency power for the duration of utility power interruption.No overload,utility parallel or negotiated outage operation capacity is available at this rating

TECHANICAL DATA
Generator set Genset Model CK318000 PK318000
Engine Brand Cummins Perkins
Engine Model QSK60-GTRG3
Alternator Moedel S454G1800D6
Controller Comap/Deep sea Kusing 6132
Switch CHNT 4000A
Internal protection IP22
Rate current(A) 3240
Specific Fuel Consumption(G/KW.H)100% Load 215 205
Engine Model QSK60-GTRG3
NO. of Cylinder 16 16
Cylinder Type V V
RPM 1500
Bore (mm) 159 160
Stroke(mm) 190 190
Speed Governor ECM electronic
Start system(VDC) 24 24
Lub Oil Specification CF/ 15W40 CF/15W40
Displacement(Ltrs) 60.2 61.1
Lub Oil Sump Capacity(Ltrs) 230 237
Coolant Capacity(Ltrs) 159(engine only) 260
Air inspiration Turbocharged Turbocharged
Alternator Phase 3
Brand Kusing
Model S454G1800D6
3 Phase Voltage(1 Phase) Volts 380-415(220-240)
RPM/Frequency 1500rpm/50hz
Power Factor(%) 0.8(lagging)
Voltage Tolerance(+/- %) 1
Insulation Class H
Weight Open (KG) 20650 15904
Silent(KG) 21780 19764
Size OPen(L*W*H)mm 6150*2300*2550 6280*2220*3050
Silent(L*W*H)mm 40’ HQ CONTAINER 40HQ CONTAINER
Noise(DBA) Open NA NA
Noise( 7M at the Genset) 80 80
Fuel Tank Capacity SUPPORT TO RUN 8 TO 10 HOURS
