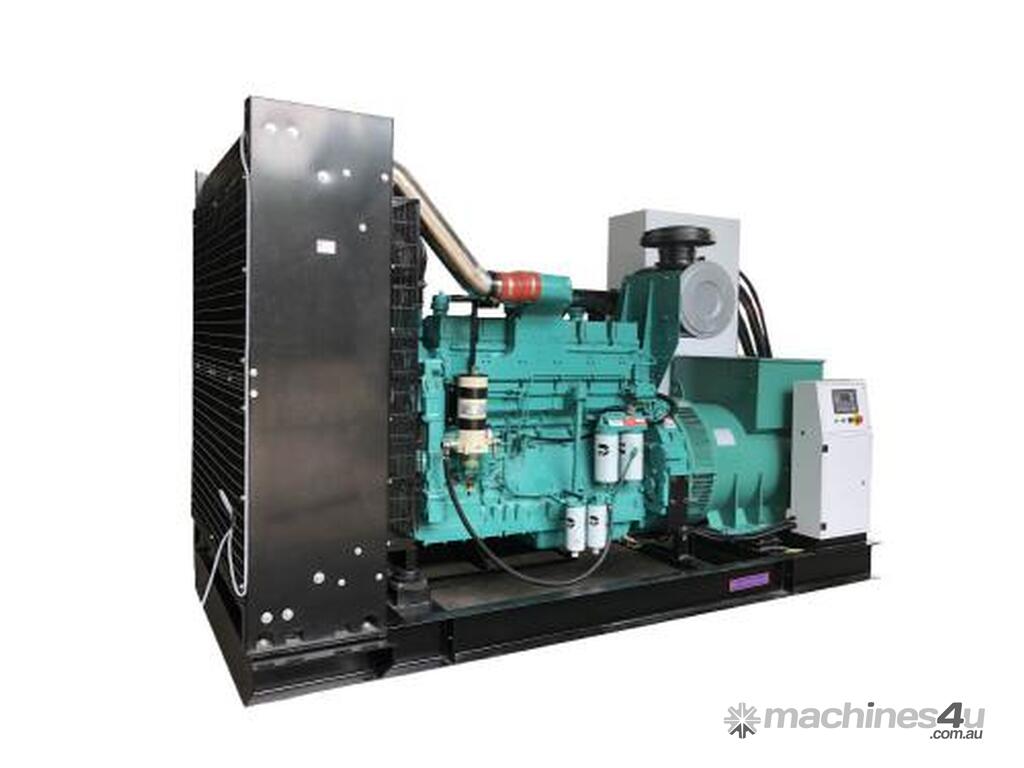

Prime: 450KVA (360KW) Standby: 495KVA (396KW)

*All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)


PRIME POWER

Prime Power is available for an unlimited number of annual operating hours in variable load applications,in accordance with ISO8528-1

STAND BY POWER

The Standby Power is applicable for supplying emergency power for the duration of utility power interruption.No overload,utility parallel or negotiated outage operation capacity is available at this rating

TECHANICAL DATA
Generator set Genset Model CK33600 DK33600 PK33600 SK33600
Engine Brand Cummins Deutz Perkins SDEC
Engine Model QSZ13-G2/6ZTAA13-G2 BF8M1015C-LA G1A 2506C-E15TAG1 SC25G610D2
Alternator Moedel S314G360E9
Controller Comap/Deep sea Kusing 6132
Switch CHNT 800A
Internal protection IP22
Rate current(A) 648
Specific Fuel Consumption(G/KW.H)100% Load 205
Engine Model QSZ13-G2/6ZTAA13-G2 BF8M1015C-LA G1A 2506C-E15TAG1 SC25G610D2
NO. of Cylinder 12
Cylinder Type L L L V
RPM 1500
Bore (mm) 135
Stroke(mm) 150
Speed Governor Electronic Electronic Electronic Electronic
Start system(VDC) 24
Lub Oil Specification CF/ 15W40 CF/15W40 CF/15W40 CF/15W40
Displacement(Ltrs) 13 15.9 15.2 25.8
Lub Oil Sump Capacity(Ltrs) 45. 55-65
Coolant Capacity(Ltrs) 23.1(only engine) 21(only engine) 62(only engine) 48
Air inspiration Turbocharged Turbocharged Turbocharged Turbocharged
Alternator Phase 3
Brand Kusing
Model S314G360E9
3 Phase Voltage(1 Phase) Volts 380-415(220-240)
RPM/Frequency 1500rpm/50hz
Power Factor(%) 0.8(lagging)
Voltage Tolerance(+/- %) 1
Insulation Class H
Weight Open (KG) 3590
Silent(KG) 4300
Size OPen(L*W*H)mm 3320*1380*1950 3250*1150*1900 3300*1150*1990 3533*1400*1992
Silent(L*W*H)mm 4800*1700*2250 4800*1700*2300 4800*1700*2250 4500*1500*2200
Noise(DBA) Open NA NA NA NA
Noise( 7M at the Genset) 80
Fuel Tank Capacity SUPPORT TO RUN 8 TO 10 HOURS
