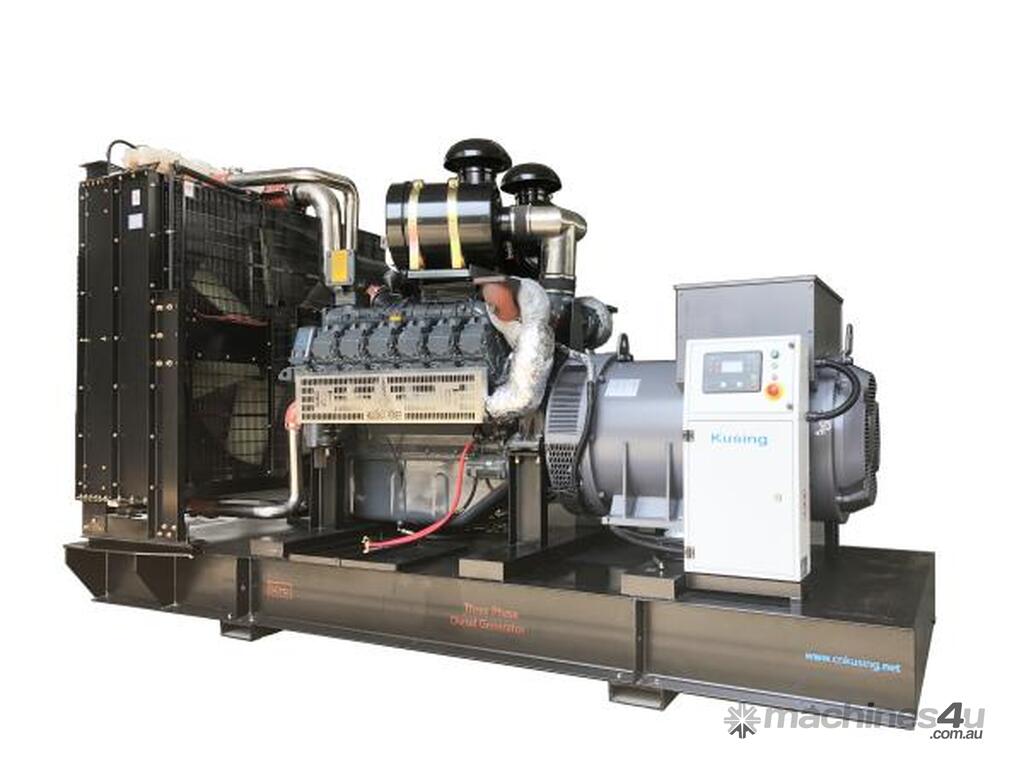

Prime: 625KVA (500KW) Standby: 687.5KVA (550KW)

* Composed of Cummins,,SDEC,Deutz diesel engine and Stamford or Kusing, Marathon, Leroy somer alternator;

*24V DC start motor and storage battery;

*Brushless, Self-excited, IP23, insulation class H alternator;

*50? radiator as standard;

*Digitalstart panel control system as standard, digital auto-start panel is optional;

* 8-hour operation base tank;

*Optional open type or silent type;

*All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

RATING DEFINITION

PRIME POWER

Prime Power is available for an unlimited number of annual operating hours in variable load applications,in accordance with ISO8528-1

STAND BY POWER

The Standby Power is applicable for supplying emergency power for the duration of utility power interruption.No overload,utility parallel or negotiated outage operation capacity is available at this rating

TECHANICAL DATA
Generator set Genset Model CK35000 DK35000 SK35000
Engine Brand Cummins Deutz SDEC
Engine Model KTAA19-G6A/QSK19-G4 BF8M1015CP-LA G5 SC27G830D2
Alternator Moedel S354G500D6
Controller Comap/Deepsea Comap/Deepsea Kusing 6132
Switch CHNT 1000A
Internal protection IP22
Rate current(A) 900
Specific Fuel Consumption(G/KW.H)100% Load
Engine Model KTAA19-G6A/QSK19-G4 BF8M1015CP-LA G5 SC27G830D2
NO. of Cylinder
Cylinder Type L L V
RPM 1500
Bore (mm)
Stroke(mm)
Speed Governor Electronic Electronic Electronic
Start system(VDC)
Lub Oil Specification CF/ 15W40 CF/15W40 CF/15W40
Displacement(Ltrs) 19 15.9 26.6
Lub Oil Sump Capacity(Ltrs) -65
Coolant Capacity(Ltrs) Engine only – not applicable 21(only engine) 48(only engine)
Air inspiration Turbocharged Turbocharged Turbocharged
Alternator Phase 3
Brand Kusing
Model S354G500D6
3 Phase Voltage(1 Phase) Volts 380-415(220-240)
RPM/Frequency 1500rpm/50hz
Power Factor(%) 0.8(lagging)
Voltage Tolerance(+/- %) 1
Insulation Class H
Weight Open (KG)
Silent(KG) 4300 5200 N/A
Size OPen(L*W*H)mm 3650*1500*2050 3200*1250*1450 3548*1400*1992
Silent(L*W*H)mm 5000*1800*2550 5400*2100*2500 20FT container
Noise(DBA) Open NA NA NA
Noise( 7M at the Genset)
Fuel Tank Capacity SUPPORT TO RUN 8 TO 10 HOURS
