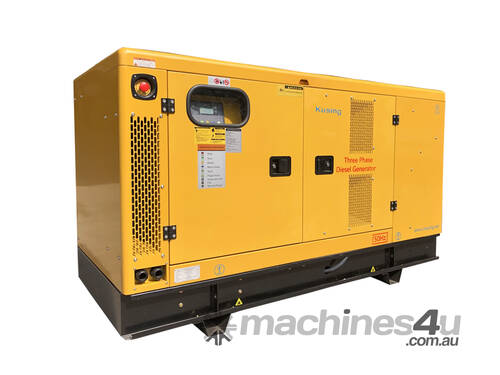

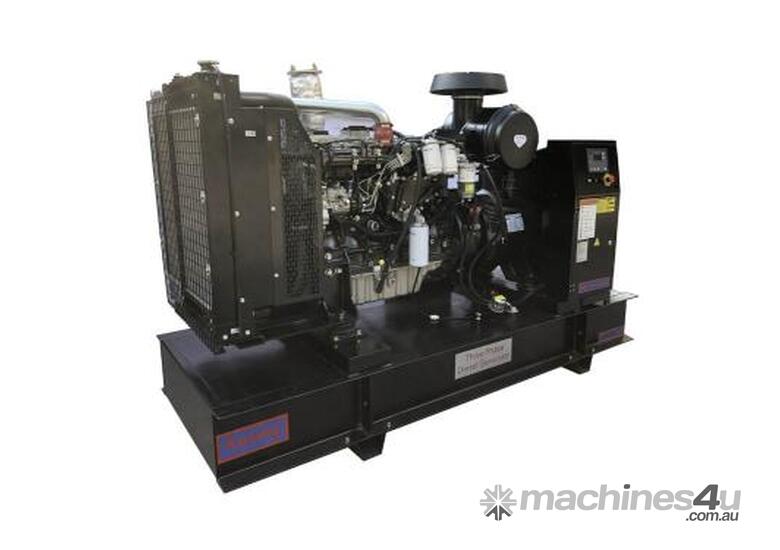

Prime: 75KVA (60KW) Standby: 82.5KVA (66KW)

* Composed of Cummins,Deutz,SDEC,Weichai diesel engine and Stamford or Kusing, Marathon, Leroy somer alternator;

*12/24V DC start motor and storage battery;

*Brushless, Self-excited, IP23, insulation class H alternator;

*50? radiator as standard.

*Digitalstart panel control system as standard, digital auto-start panel is optional;

* 8-hour operation base tank;

*Optional open type or silent type;

*All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

RATINGS DEFINITION

PRIME POWER

Prime Power is available for an unlimited number of annual operating hours in variable load applications,in accordance with ISO8528-1

STAND BY POWER

The Standby Power is applicable for supplying emergency power for the duration of utility power interruption.No overload,utility parallel or negotiated outage operation capacity is available at this rating

TECHANICAL DATA
Generator set Genset Model CK30600 DK30600 SK30600 WCK30600
Engine Brand Cummins Deutz SDEC Weichai
Engine Model 4BTA3.9-G11 BF4M2012C G1 SC4H115D2 WP4.1D80E200
Alternator Moedel S224G64D8
Controller Kusing 6132 Comap/Deep sea Kusing 6132
Switch CHNT 125A
Internal protection IP22
Rate current(A) 108
Specific Fuel Consumption(G/KW.H)100% Load
Engine Model 4BTA3.9-G11 BF4M2012C G1 SC4H115D2
NO. of Cylinder 4
Cylinder Type L L L L
RPM 1500
Bore (mm)
Stroke(mm)
Speed Governor Electronic Electronic Electronic
Start system(VDC)
Lub Oil Specification CF/ 15W40 CF/15W40 CF/15W40 CF/15W40
Displacement(Ltrs) 3.9 4.04 4.3
Lub Oil Sump Capacity(Ltrs) 13 8.
Coolant Capacity(Ltrs) 8.3(only engine) 6(only engine) 6.8(only engine)
Air inspiration Turbocharged Turbocharged Turbocharged
Alternator Phase 3
Brand Kusing
Model S224G64D8
3 Phase Voltage(1 Phase) Volts 380-415(220-240)
RPM/Frequency 1500rpm/50hz
Power Factor(%) 0.8(lagging)
Voltage Tolerance(+/- %) 1
Insulation Class H
Weight Open (KG)
Silent(KG)
Size OPen(L*W*H)mm 1900*850*1380 2000*850*1200 1950*893*1170
Silent(L*W*H)mm 2600*1100*1600 2600*1100*1400 2600*1100*1450
Noise(DBA) Open NA NA NA NA
Noise( 7M at the Genset) 80
Fuel Tank Capacity SUPPORT TO RUN 8 TO 10 HOURS
