Print on MDF, Wood, Plastic, Composites and Tile. Large Format UV Flatbed Digital Inket Printer

Anderson by Wood Tech. Aus Owned and Operated. Local Service and Parts in 5 States. Download Brochure Now.

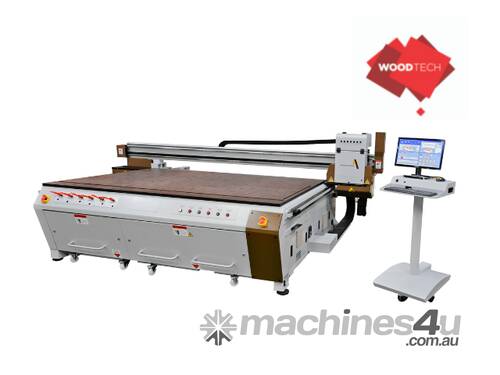

The Anderson CoJet Large Format printer takes full advantage of CNC flatbed technology and UV-curable inks to print large format graphics on coated or uncoated rigid materials.

The Anderson CoJet inkjet is capable of printing high resolution graphics (up to 720DPI) in color, white and translucent patterns. Vivid photographic images are easily printed on MDF, Wood, Plastic, Composites and Tile materials.

Final clear coat can also be applied to achieve flat or high gloss protective coating. On-board CNC software supports all major graphic formats.

MACHINE SPECIFICATIONS

1. Print Heads
- Piezo Drop-On-Demand InkJet head; 1024 nozzles, Model No:KM1024i-MHE
- Drop volume: 13 pl
- Max. 18 Print heads installation space, all of configuration refer the description and image below

CoJet Plus-3115-C4H4, equipped with 4 ink channel (K, C, M, Y) and 4 print heads, print head installed at K0, C0, M0, Y0

CoJet Plus-3115-C4H8, equipped with 4 ink channel (K, C, M, Y) and 8 print heads, print head installed at K0, C0, M0, Y0, K1, C1, M1 and Y1

- Ink type: UV curable
- Primer printing by print head function is option-able
- White ink function is an option


2. Machine Configuration
- Flatbed with gantry moving
- Material of table top is hard phenolic without grooves and 3mm diameter vacuum holes
- Selectable (6) Six suction zones vacuum table
- Maximum acceptable material width 3100 mm (122.04 inch)
- Maximum acceptable material length 1550 mm (61.02 inch)
- Maximun acceptable material height is 100 mm (3.94 inch)
- Adjustable registering guide is included at front-right corner and back-left corner


3. Printing Area
- Maximum Width: 2500 mm (98.4 inches)
- Maximum Length: 1250 mm (49.2 inches)
- Maximum Height: 100 mm (3.94 inches)


4. Resolution
- Support resolution: 720x360, 720x720, 720x1080, 720x1440, 360x360, 360x720, 360x1080, 360x1440 dpi
- Highest Resolution: 720x1440 DPI
