Prinz CUTSTAR 11KW Timber Package Saw

The Prinz CUTSTAR – 11 kW was developed for a precise and economic cutting of packages up to 6 m length. The parallel-guided cutting unit fulfils the highest requirements of cutting accuracy and the compact design allows a space-saving set up.

Saw motor 11 kW
Cut feed electric
For packages up to 600 x 120 x 120 cm (L x W x H)
Single cut cycle

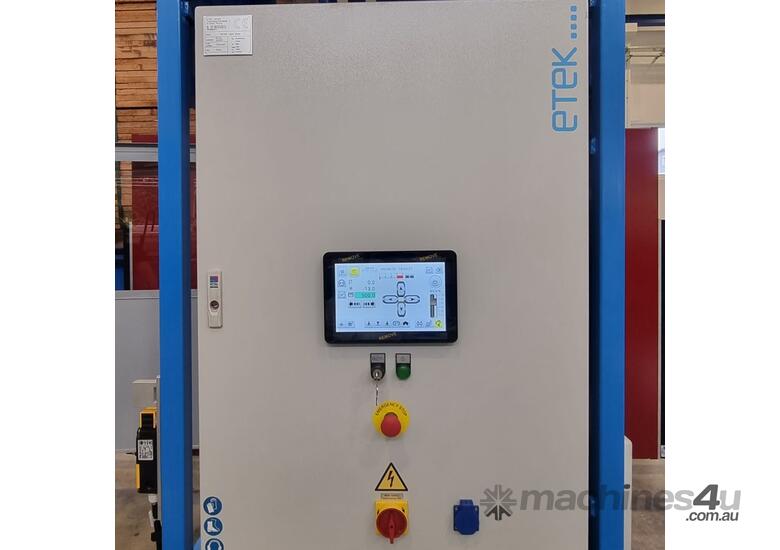

Automatic saw positioning or via touch panel
10 lengths can be stored
Reinforced package frame
Automatic fixing of the saw unit on the package frame
Easy installation and commissioning in 2 days

Technical Data:

Power saw motor: 11 kW
Motor/Engine: electric
Standard package size (width x height): 120 x 120 cm
Cut feed: continuous saw feed (optionally adjustable on the motor current or stepless through potentiometer)
Guiding of the cut: on both sides
Direction of cut: from top to bottom
Saw type: package is positioned on frame / saw unit moves
Chain types: scraper chain / carbide tipped chain
Guide bar: Special hard faced edge
Digital length measuring: yes
Control system: single cut cycle
Application: cycle controlled process with highest cutting accuracy
Optionen: down holders, package lift, laser light for cut position, safety curtains, remote maintenance, conveyors for waste removal, safety fence for package frame, output for 3 kW-contactor, special painting
