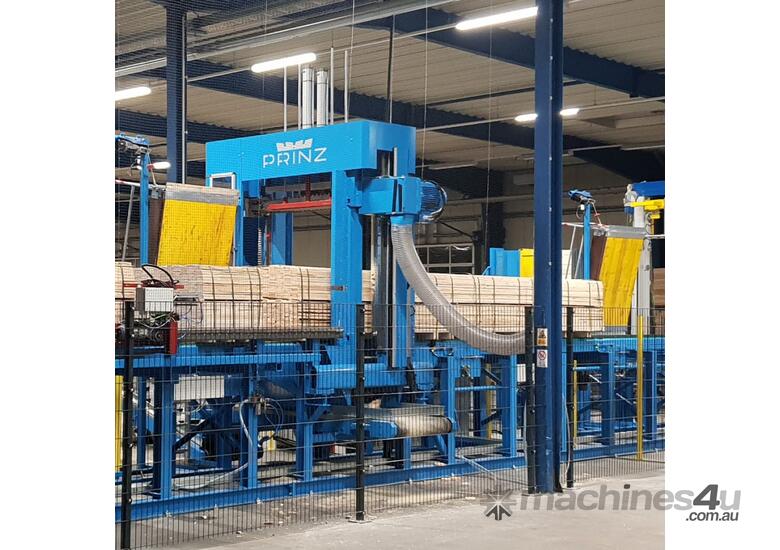

Prinz PC120 Saw Milling/Conveyor

Introducing chain conveyors, the perfect solution for efficiently forwarding packages of short length, including MDF, chipboard, and composite materials, in continuous and uninterrupted systems. These conveyors are designed to transport fragile surfaces with precision and reliability.

Key Features:

Powerful Performance: Equipped with a 15 kW electric motor/engine, the chain conveyors ensure efficient and reliable operation.

Cutting Accuracy: Achieve ±1mm cutting accuracy, guaranteeing precise cuts for your packages.

Package Size: The conveyors support standard package sizes of 120x120cm, with options for larger dimensions available to accommodate various materials.

Cut Feed: Utilize a gear motor cut feed system for smooth and controlled cutting processes.

Guiding of the Cut: Benefit from a parallel precision linear bearing guide system, ensuring accurate and consistent cuts.

Saw Type: The conveyors feature a stationary saw with the package moving, optimizing cutting efficiency.

Chain Types: Choose between scraper chain and carbide-tipped chain options, providing versatility for different cutting needs.

Guide Bar: The solid steel guide bar with a special hard-faced edge ensures durability and longevity.

Package/Saw Drive: Utilize a gear motor with a frequency converter for efficient package and saw drive control.

Measuring Device: An optional measuring device is available for precise measurement and cutting control.

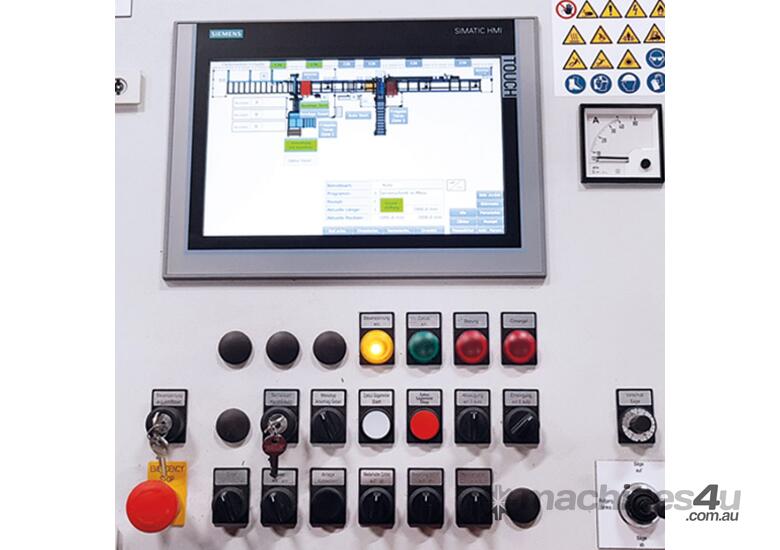

Control System: Enjoy full and half automatic control options for seamless operation and production efficiency.

Applications: Ideal for fully automatic production systems with ±1mm cut accuracy and unlimited package length.

Options and Accessories:


Manual or electronic measuring device
Exhaust connection
Cross conveyors
Laser light for cut position
Strapping machine
Conveyors for waste removal
Vibrating roll case for package alignment
Container for waste removal
Package holding down appliance

For more information, personalized quotes, and detailed specifications, please contact us. Our team at Acora is dedicated to providing expert guidance and support for your woodworking and cutting needs.
