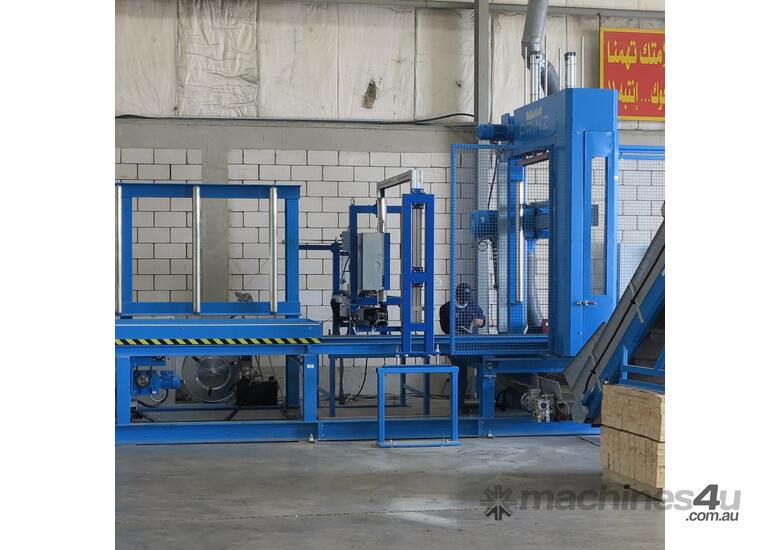

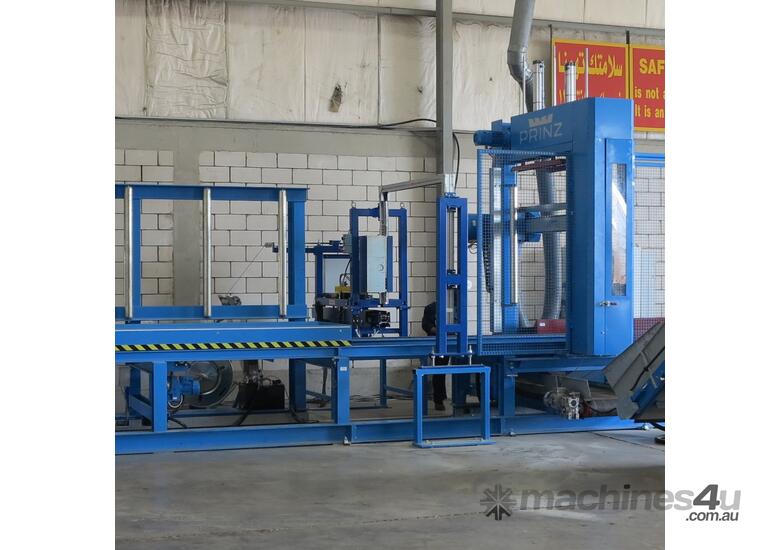

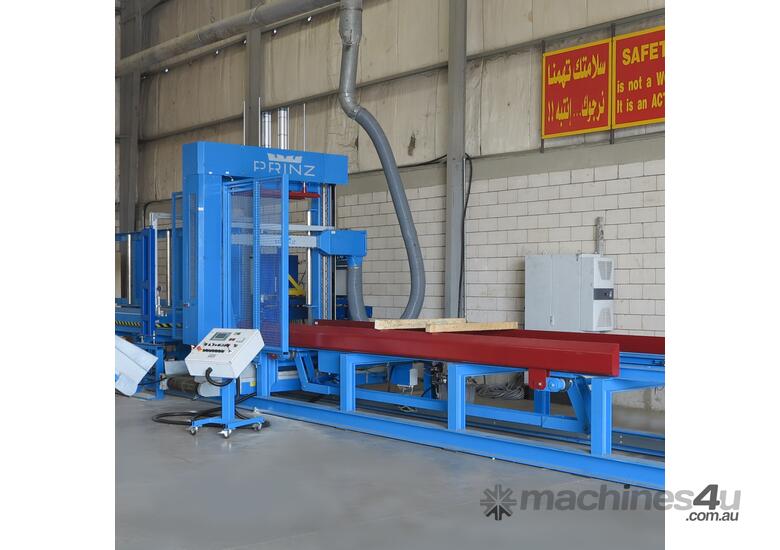

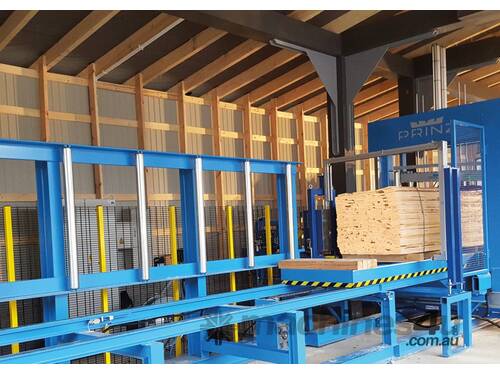

Prinz PC120–ULTRACUT Cross Cut Package Saw

Thanks to exact package positioning with the precisely guided carriage a maximum cutting accuracy of ±1?mm is guaranteed. The bar can optionally be guided diagonally through the package by pivoting the saw unit. Thus an optimum cutting angle can be combined with the option of cross-cutting packages at arbitrary package heights when you don’t want to cut completely through, e.g. with very small packet lengths. Series cuts can be optimally performed in combination with saw kerf opening.

powerful 15 kW chain drive motor
very stable saw unit with robust, bilateral precision guides for the guide bar guarantees the greatest long-term cutting accuracy
continuously adjustable feed rate of the guide bar ensures an optimal cutting process

Technical Data:

Power: 15 kW
Motor/Engine: electric
Cutting accuracy: ±1mm
Standard package size (width x height): 120x120cm
Larger dimensions available: yes
Cut feed: gear motor
Guiding of the cut: parallel precision linear bearing guide system
Saw type: stationary saw/package with carriage moves
Chain types: scraper chain/ carbide tipped chain
Guide bar: solid steel, special hard faced edge
Package/saw drive: gear motor with frequency converter
Measuring device available: yes
Control system: full and half automatic
Applications: automatic production system with ±1mm cut accuracy
Options: manual or electronic measuring device. exhaust connection, laser light for cut position, container for waste removal, package holding down appliance, pivoting cut, serial cut function, package lift
