Pro Bender 35T Hydraulic Horizontal Bender 35 Tonne Force 100 x 12mm bending Capacity

BRAMLEY Pro Bender 35T Hydraulic Horizontal Bender 35 Tonne Force 100 x 12mm bending Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P550

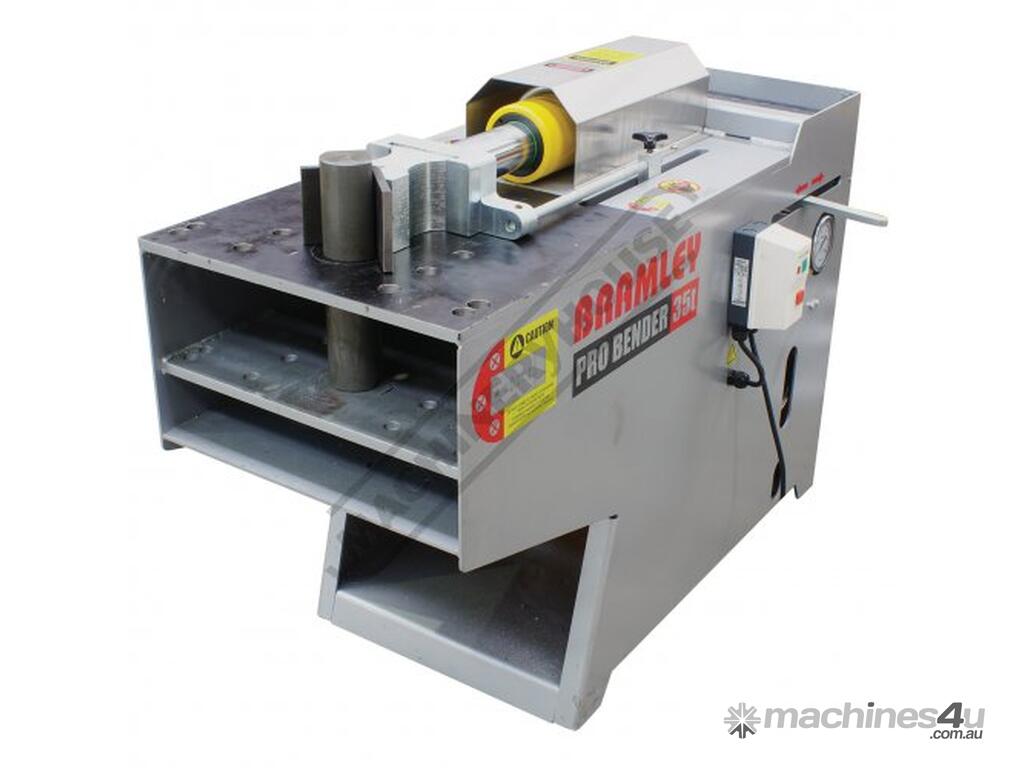

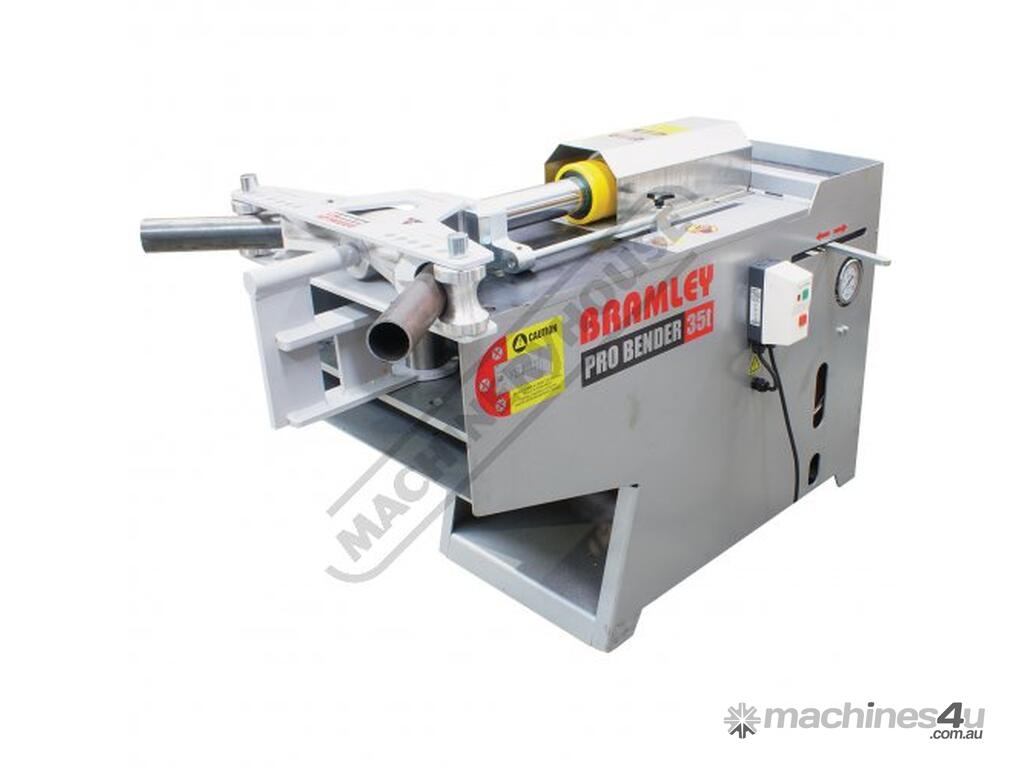

The Pro Bender 35t bending machine is a hydraulically powered metal bender for thick material.

Each machine has been individually tested in the factory and undergone an extensive pre-delivery check to ensure that the machines meet the highest quality standard. The bending machine has been designed to be a reliable and dependable machine with excellent performance

Features:
35 Ton Bending Force
Angle folding attachment - 100mm

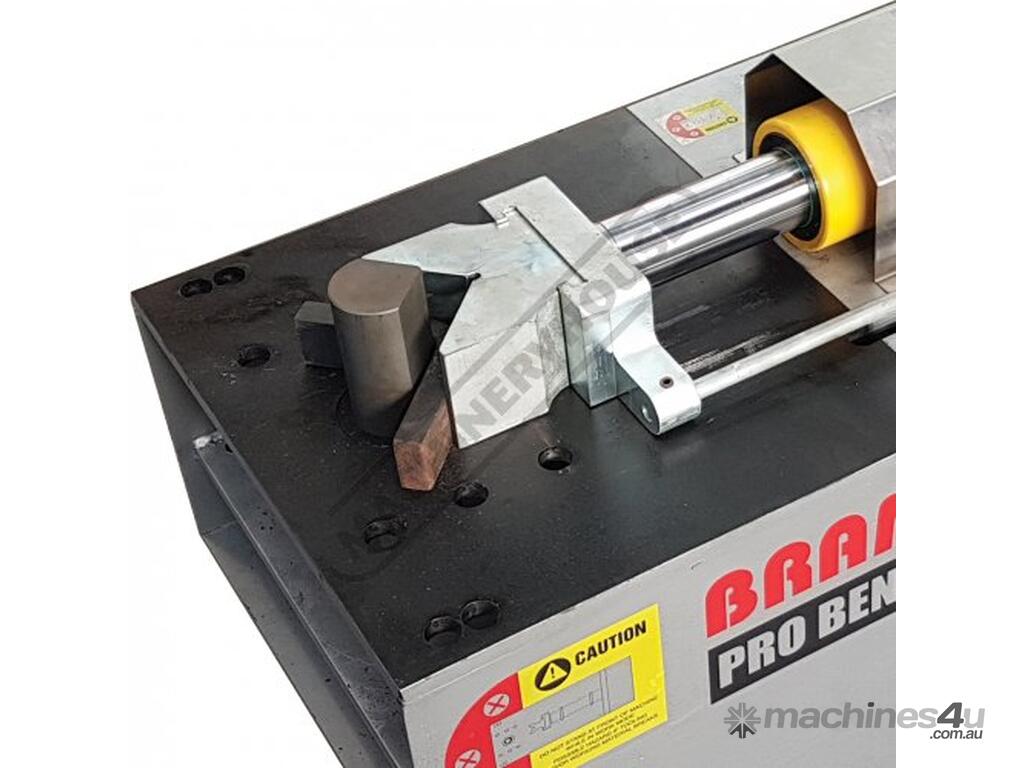

Mandrel pin for bending 90 degree
Quick action slide in/out self aligning vee block system
Adjustable ram positioning stop
Electric starter with emergency stop
Storage shelves
Pressure gauge

Mild Steel Bending Capacity
Flat bar: 100mm x 12mm with standard former 75mm x 16mm / 50mm x 20mm with optional larger former
Square bar: 25mm x 25mm
Round bar: Ø25mm

Includes:
- Standard Small Vee Bending Attachment



Specifications:
ORDER CODE: P550
MODEL: Pro Bender 35T
Capacity (Tonne): 35
Back Gauge (Type): Manual - Adjustable
Bending Capacity - Mild Steel (mm): 100 x 12
Vee Die Size - (Height x Vee Width) (mm): 97 x 72
Ram Stroke (mm): 300
Forward / Reverse - Speed (mm/sec): ~
Fixing Holes - Diameter x Number (mm / No.): ~
Motor Power (kW / hp): 3 / 4
Voltage / Amperage (V / amp): 415
Floor Space (L x W x H) (mm): 1275 x 540 x 930
Dimensions (L x W x H) (mm): 1350 x 700 x 980
Nett Weight (kg): 300
