Pro-Plas 2060 CNC Plasma with 125A Hypertherm Powermax & Fastcam Professional

See why our range of Pro-Plas CNC plasma cutting machines have been such a hit with Australian industry.

** Hypertherm Powermax plasma source
** 12 month subscription to FastCAM Professional CAD software with automatic nesting
** Hypertherm cutting torch with 45° L/R tilt
** THC (torch height controller)
** Hiwin linear guides (Taiwan)
** Dual rack and pinion drives resulting in 10,000mm/min rapid travel
** Locally trained plasma technicians for all of your ongoing service and support needs.

--------------------------------------

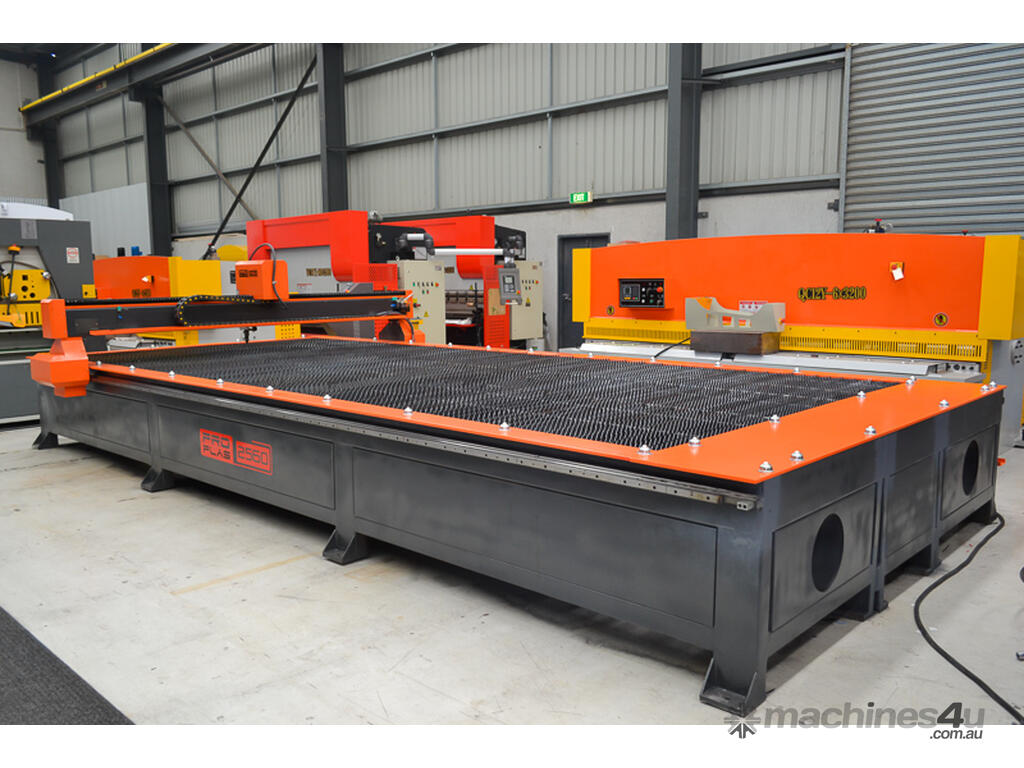

NEW Pro-Plas 2060 CNC Plasma Cutting System.

Features and inclusions:

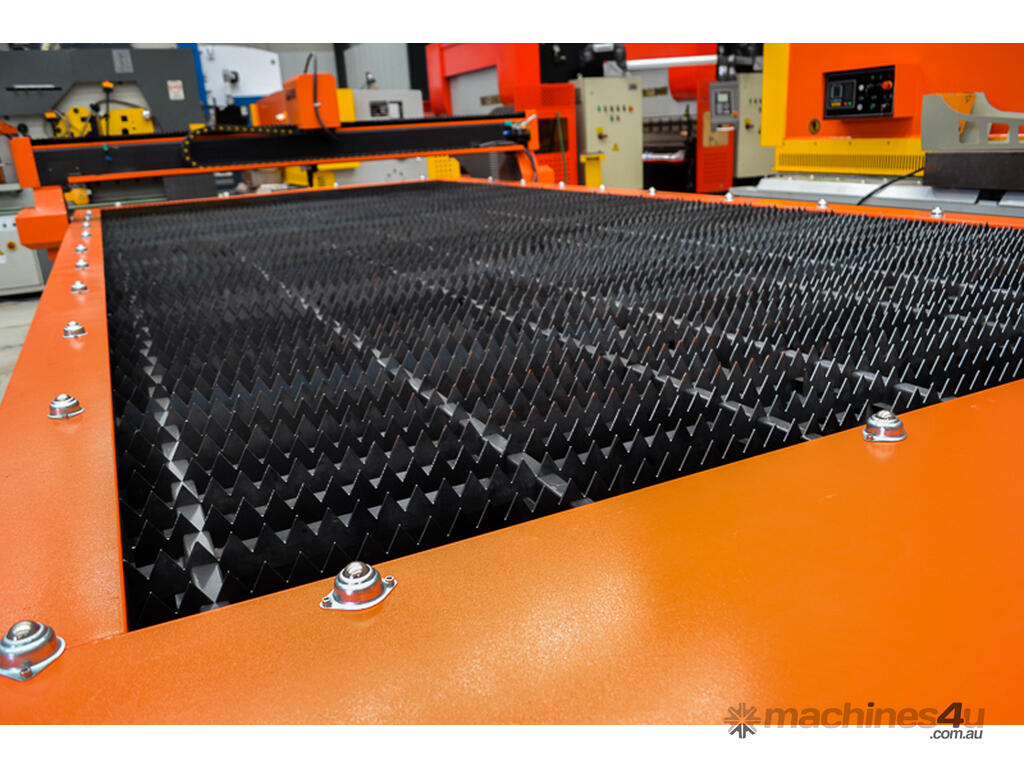

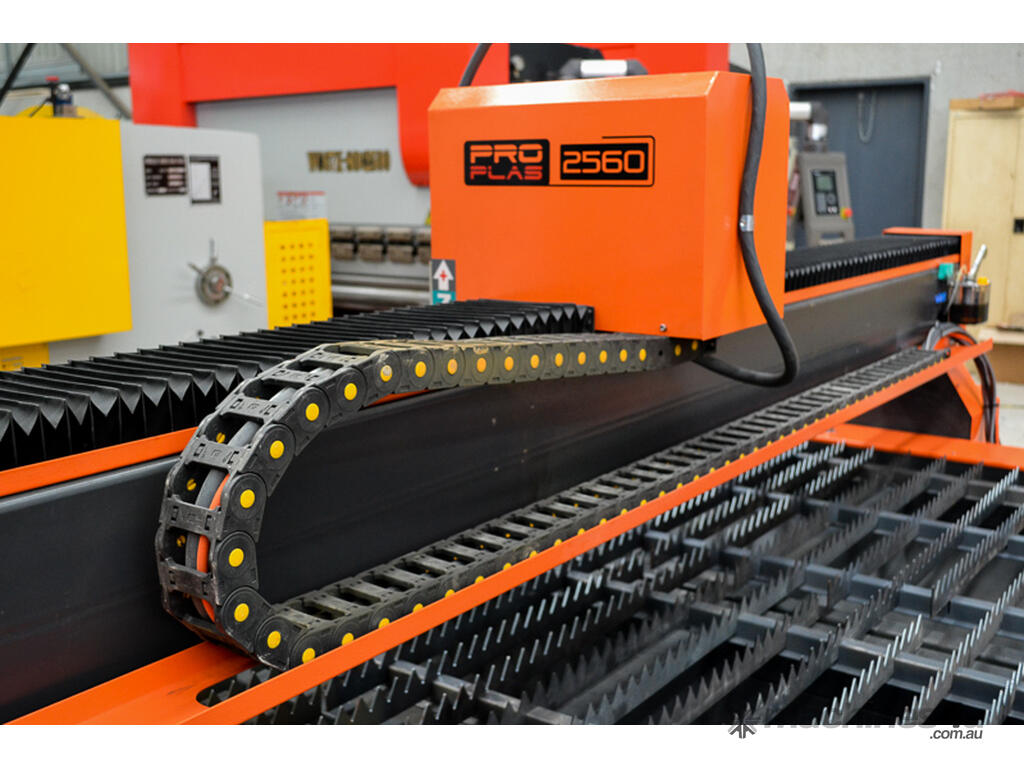

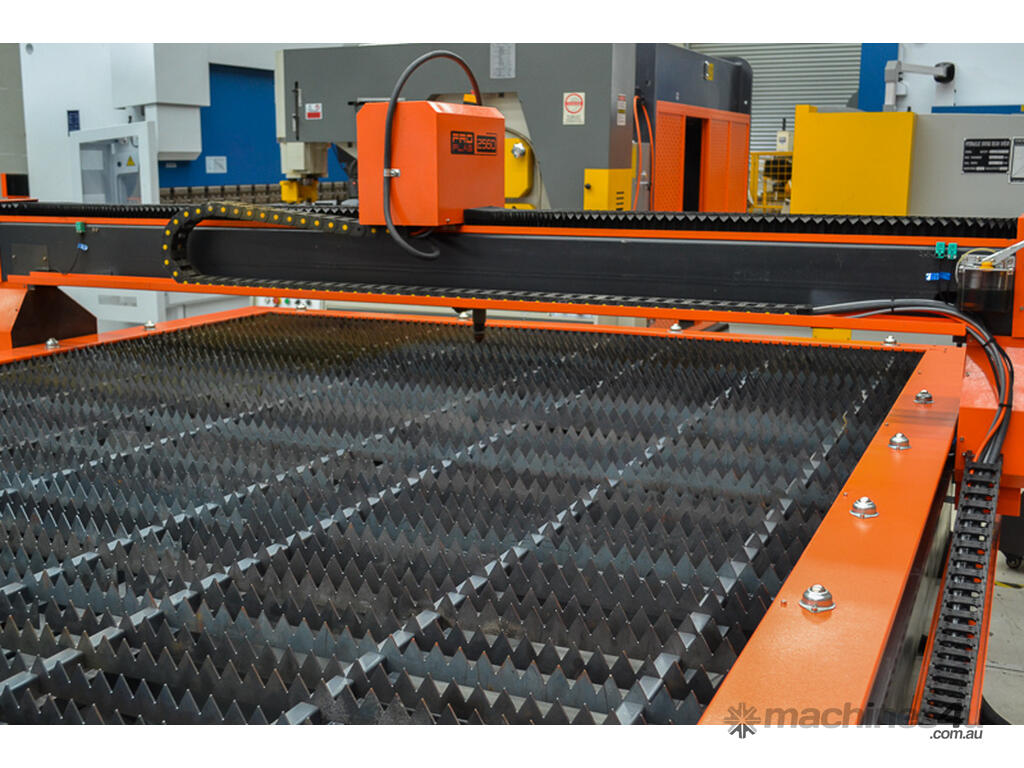

Work Table & Gantry

- 2000 x 6000mm sheet capacity
- Dual rack and pinion drives
- 10,000mm/min rapid travel
- 50-8,000mm/min cutting speed
- 150mm z-axis travel
- 300mm inbuilt dust extraction fan
- Hiwin linear guides (Taiwan)
- Roller balls to assist with material loading and unloading

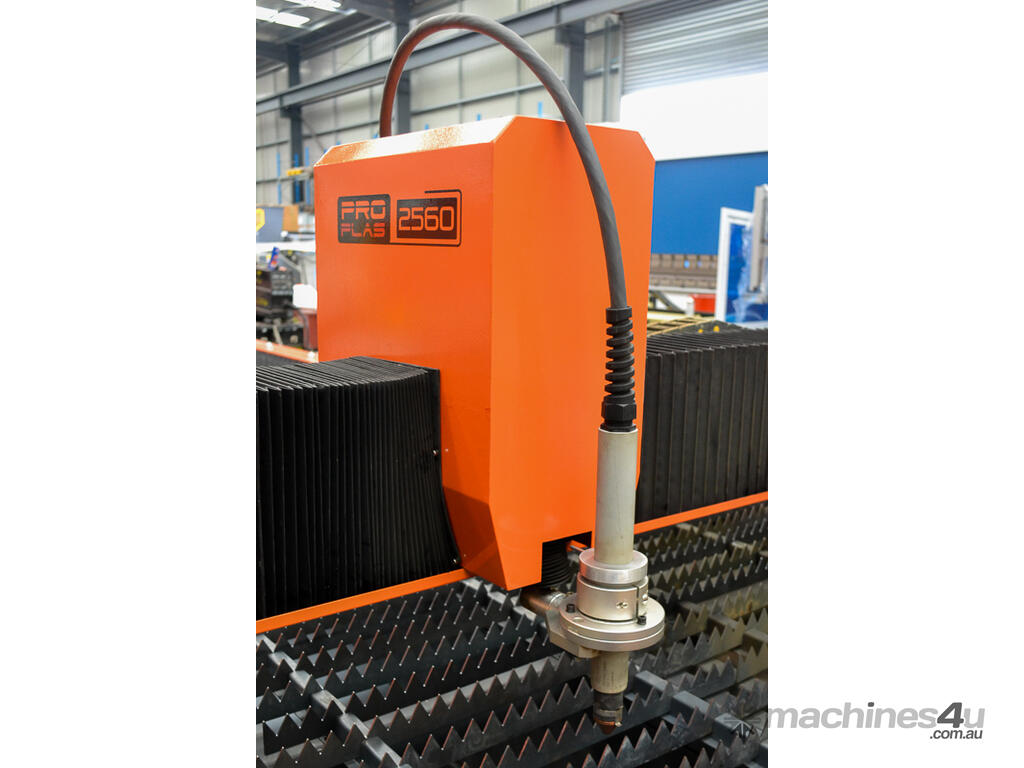

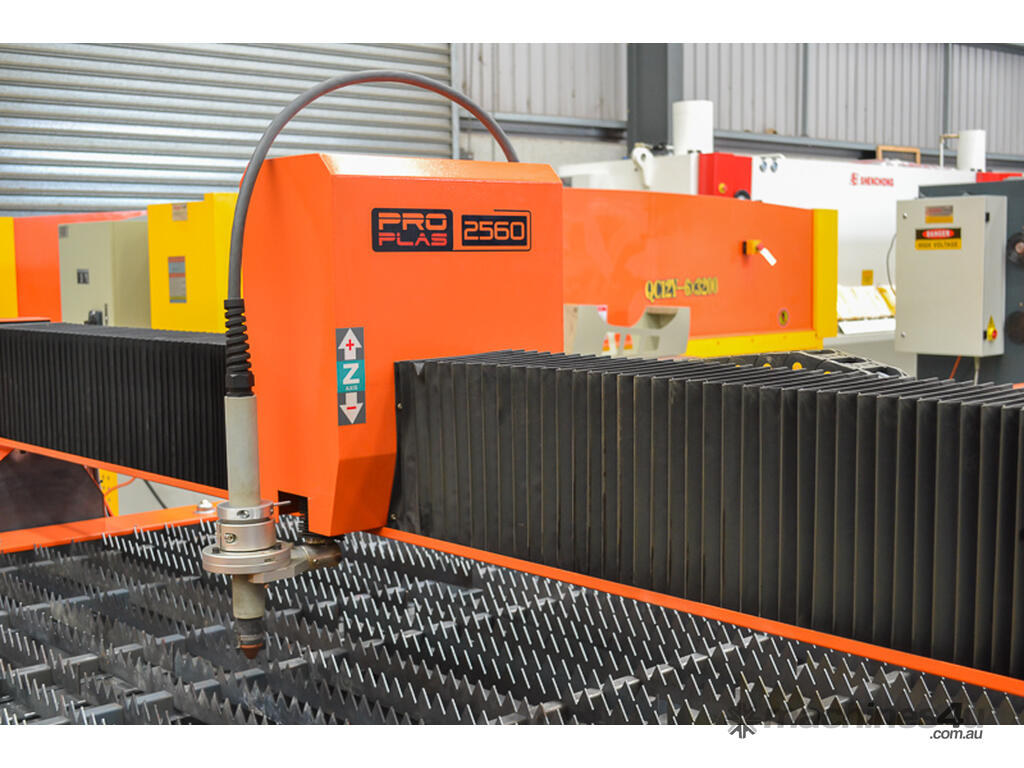

Cutting Head

- Hypertherm cutting torch

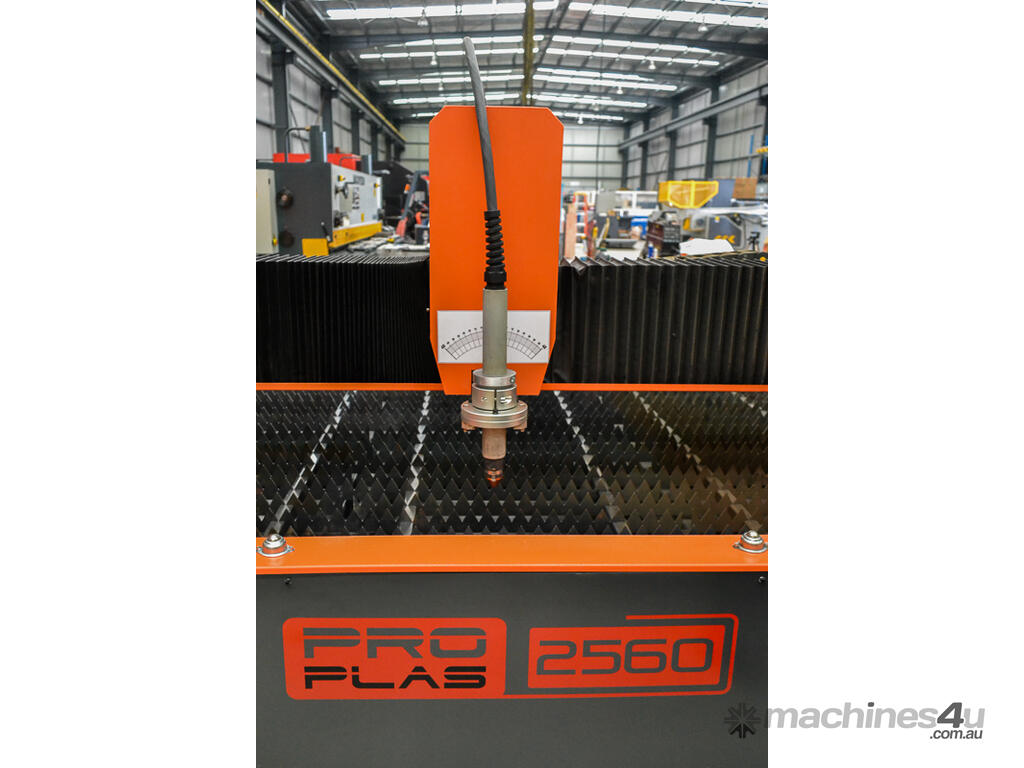

- 45 degrees right and left tilt
- THC height sensor (Torch Height Control)

Plasma Source & Cutting Capacity

- 125A Hypertherm Powermax

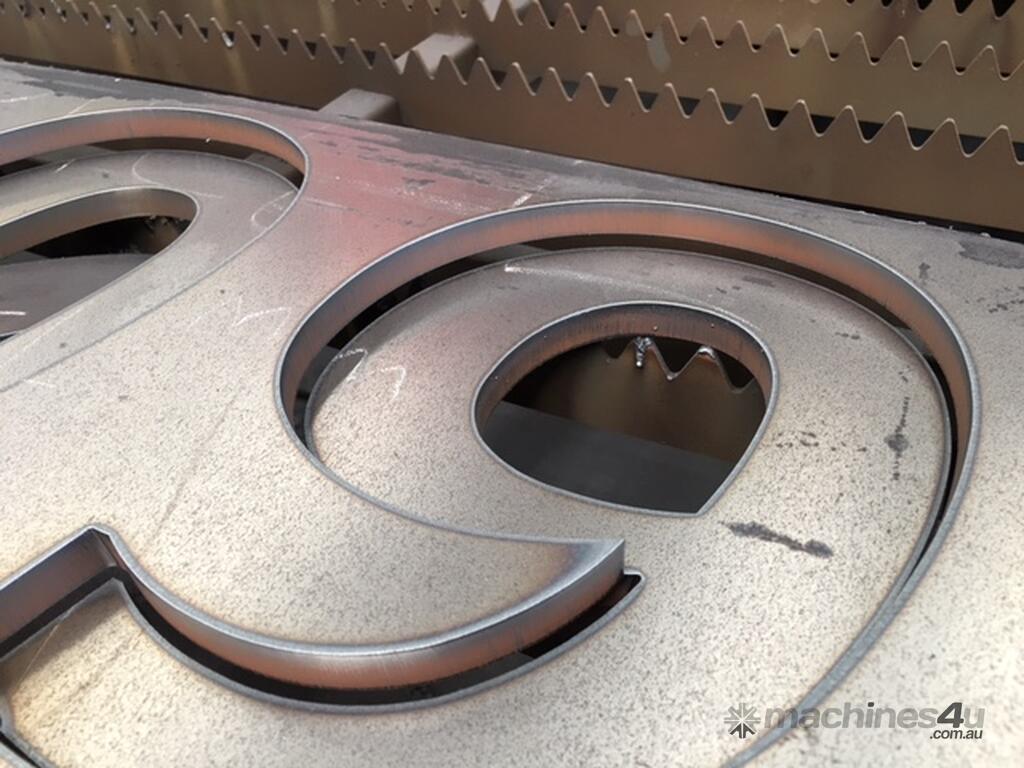

- Pierce and cut up to 25mm mild steel
- Maximum edge cut 38-44mm
- Air or nitrogen assist gas

Programming Software

- 12 month subscription to FastCAM Professional (Value USD999.00)
- Time saving automatic nesting for excellent sheet utilisation
- Save drawings to USB
- All popular DXF and DWG files supported

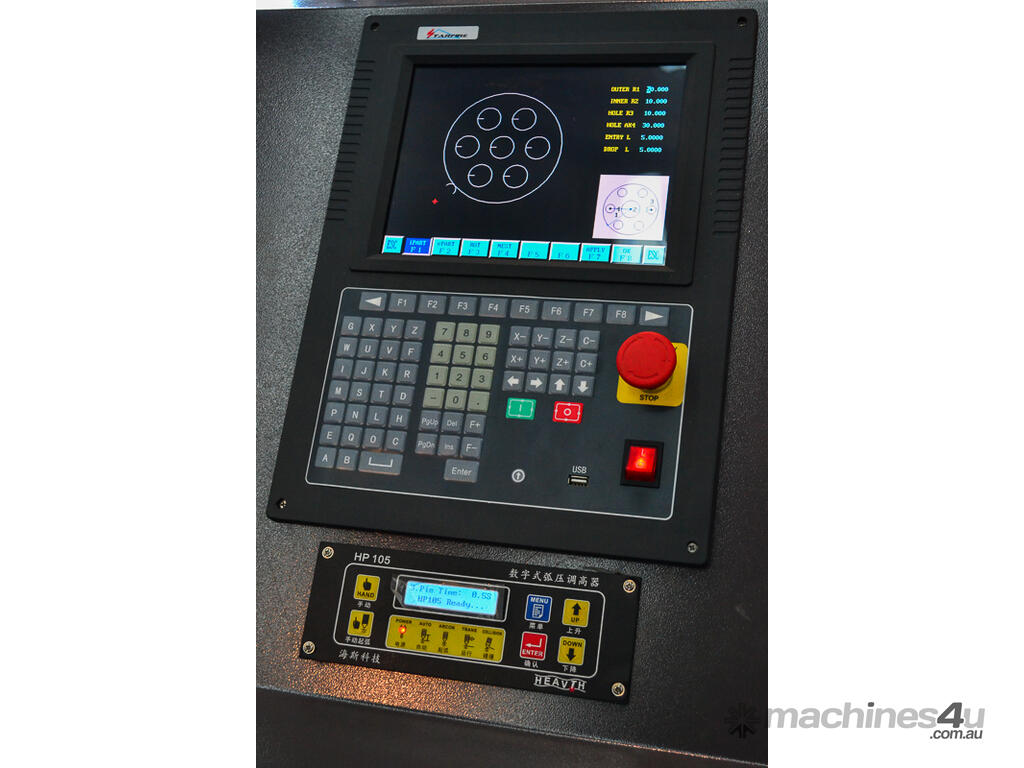

CNC Control

- Starfire CNC
- 10" LCD colour display
- USB input
- Mobile console
- Template library for quick and easy cutting of standard shapes and angles
- Real-time cutting path
