Proarc PT-203 Welding Postioner (200kg)

Brand new high precision positioners provide steel fabrication shops to position jobs for 'downhand' position in the shortest possible time without the use of cranes and manpower. This is proarcs updated model which superseeds the PT-201 model.

Features
• High frequency protected.
• Machined "T" slots table with pilot and through hole.
• High quality worm gear reducers for smooth operation and minimal backlash.
• Free maintenance grounding system.
• Standard forward/reverse rotation and variable speed control.

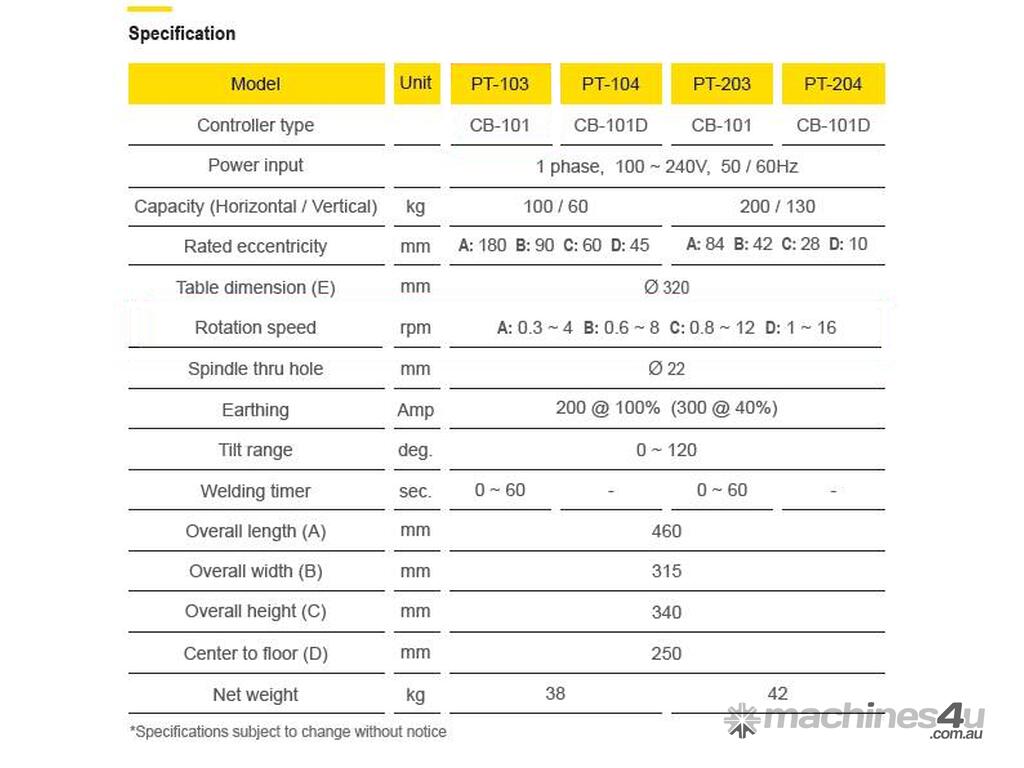

Specifications

Power Input: 1Phase 220V 50/60Hz
Loading Capacity Horizontal: 200kg
Loading Capacity Vertical: 130kg
Rated Eccentricity 90mm
Table Diameter: 320mm
Rotation Speed: 0.6-8rpm
Spindle Hole 22mm
Earthing Amp 200amps 100% / 300amps 40%
Tilt Range: 0-120deg.
Welding Timer: 0-60 seconds
Center To Floor 250mm
Length 460mm
Width 315mm
Height 340mm
Weight 42kg


Many Options including, Digital readout, PLC Controller, 3 jaw lathe chucks and much more

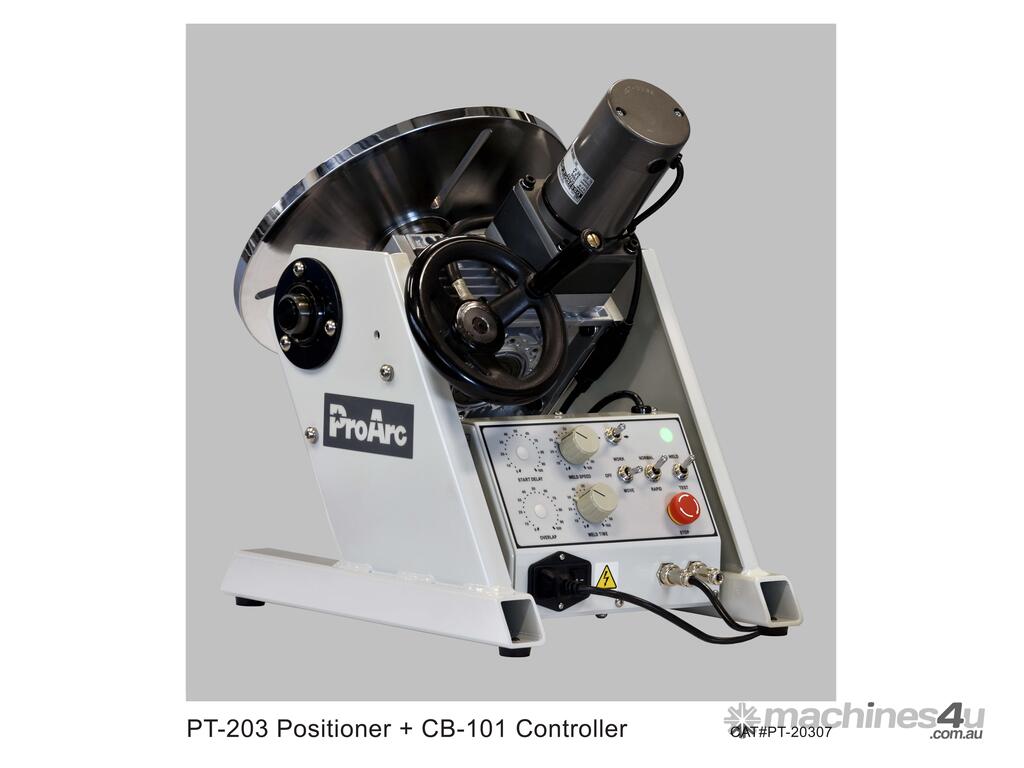

Each unit comes complete with a control box, power lead, foot pedal. Optional fixtures in the pictures are not included but can be purchased separately.
We have the largest stock of Positioners in Australia ranging from 10kg to 250ton.
