Probst Round Grab RG-8/40 for Pipe Laying

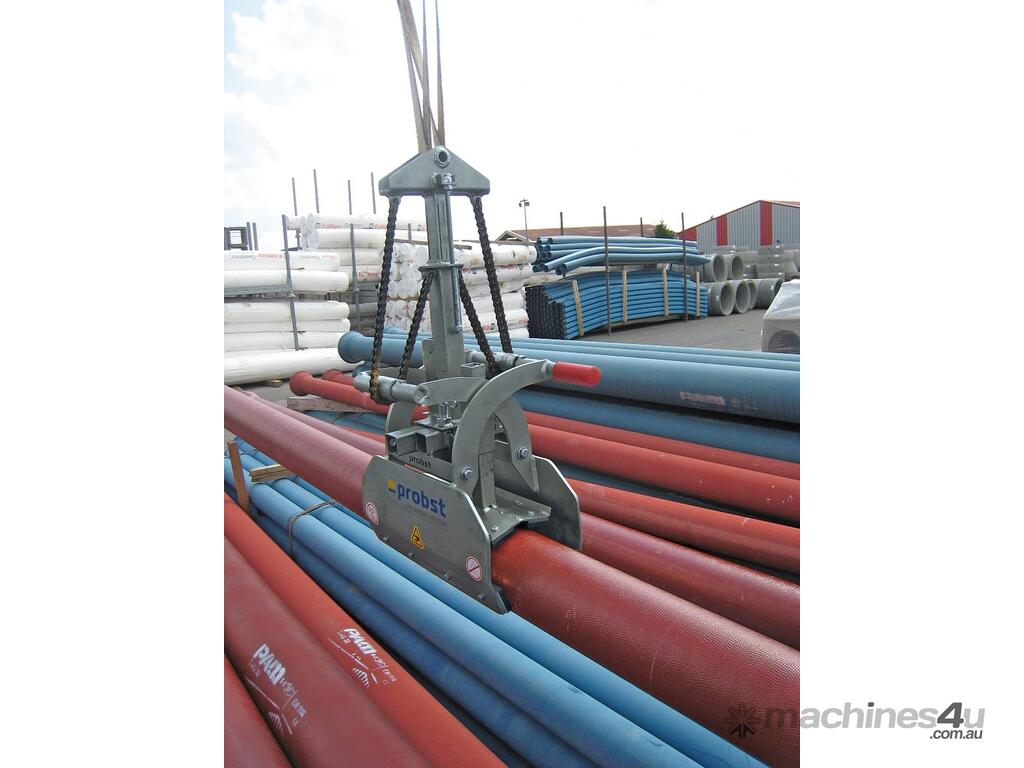

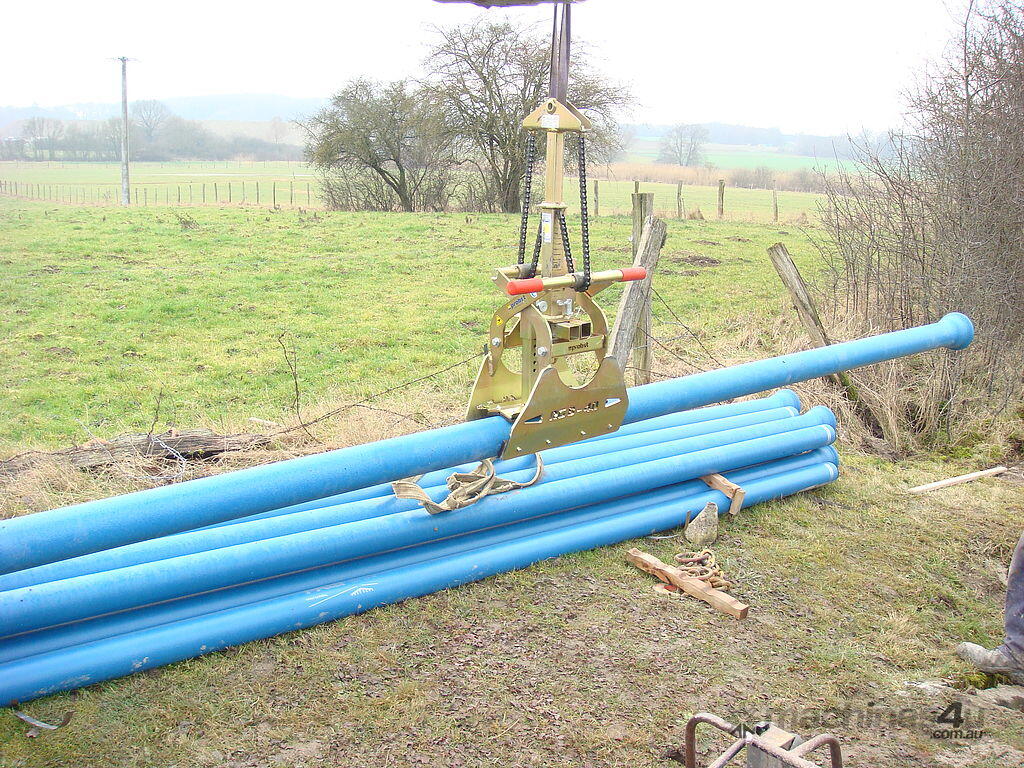

Probst Round Grab RG for Pipe Laying is designed for lifting, moving and laying pipes on civil construction or plumbing sites. The ultra slim design of the grab means it can be used to lay pipes in very narrow trenches.

Using the pipe laying grab will save time during pipe lifting and installation, making the process less labour intensive and improving safety, with no chains or slings required. The Probst grabs are ideal for use with any machine with sufficient lift capacity such as excavators, cranes, mini loaders, wheel loaders, skid steers and tractors.

Standard Specifications:
- Exchangeable gripping elements to prevent coated or stoneware pipes from damage.
- Large gripping width adjustment with loss proof spring loaded locking bolt (bolt cannot get lost).
- Lifting eye for attaching to crane hook.
- Automatic release for the fully automatic switch over from “grip” to “release”.
- Automatic release mechanism which means no additional operating personnel are needed.
- Cost effective, highly wear resistant rubber grippers that can be easily replaced as plug-in components.
- Height adjustment bars.

Type: RG-8/40
Working load limit: 430kg
Dead weight: 45kg
Gripping range: 80-400mm
Length of gripper: 500mm
