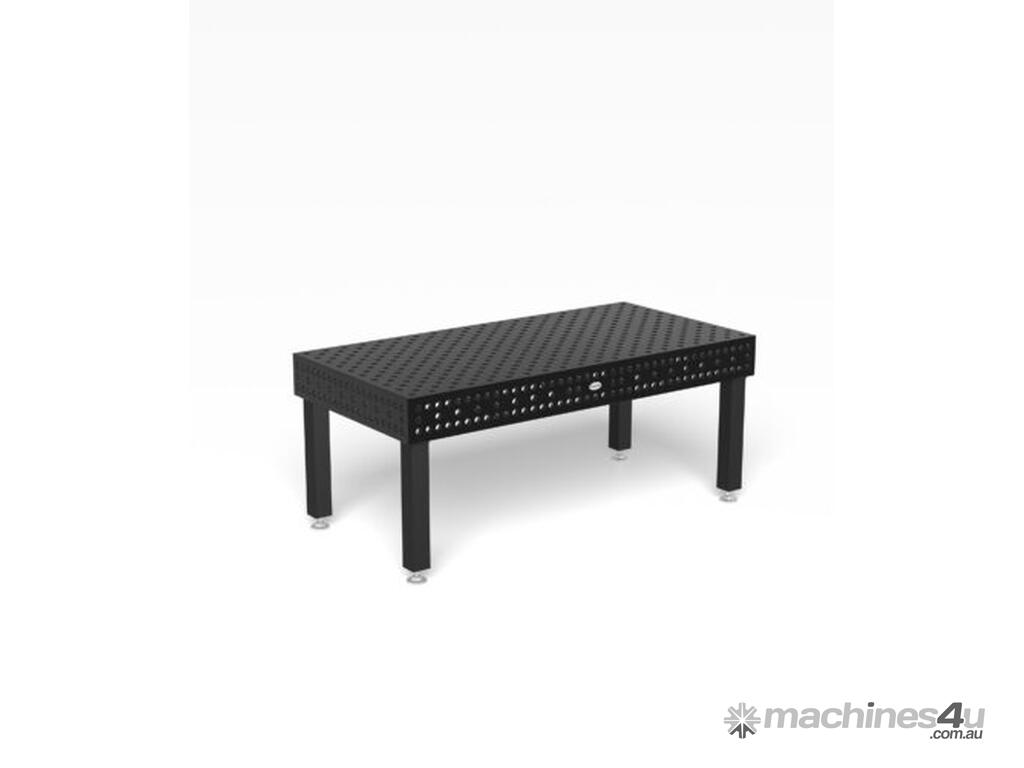

Professional Extreme 2000x1000x200 Plasma nitrided Diagonal grid

Professional Extreme 8.7 – 2000x1000x200 Plasma nitrided Diagonal grid table side with diagonal grid 4x Leg standard equipment 650

Through-hardened tool steel X8.7 + Plasma nitration
Material thickness approx. 24,5 – 27 mm
Table side panel made of high quality steel S355J2+N + Plasma nitration
Borehole Ø 28 mm

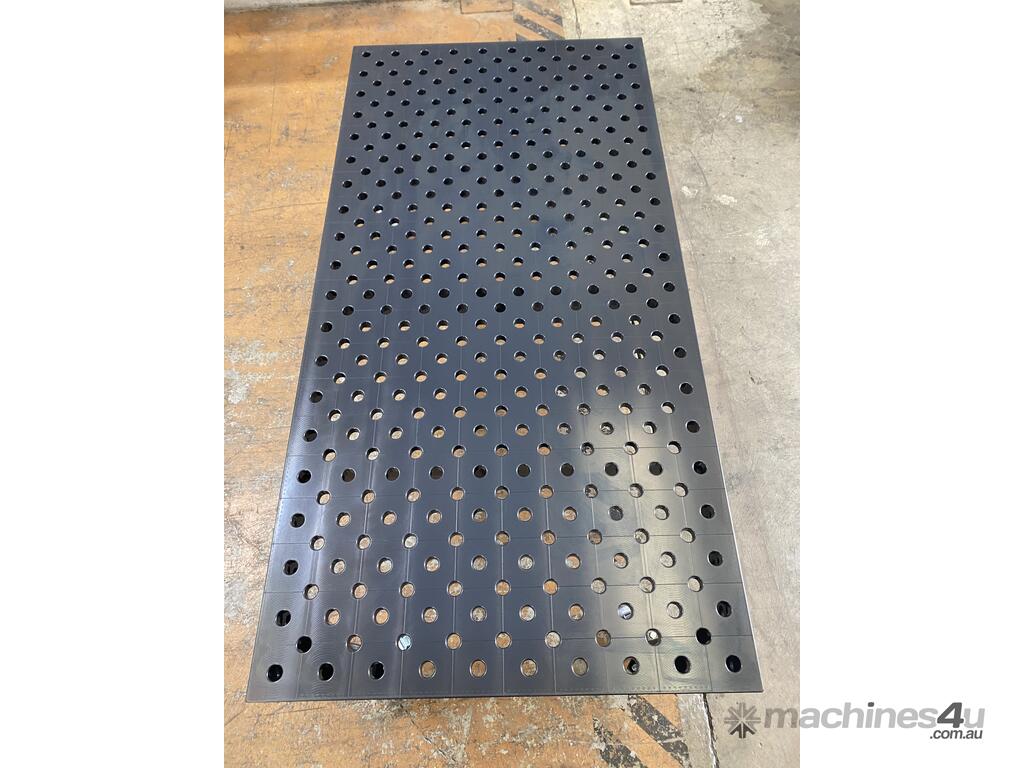

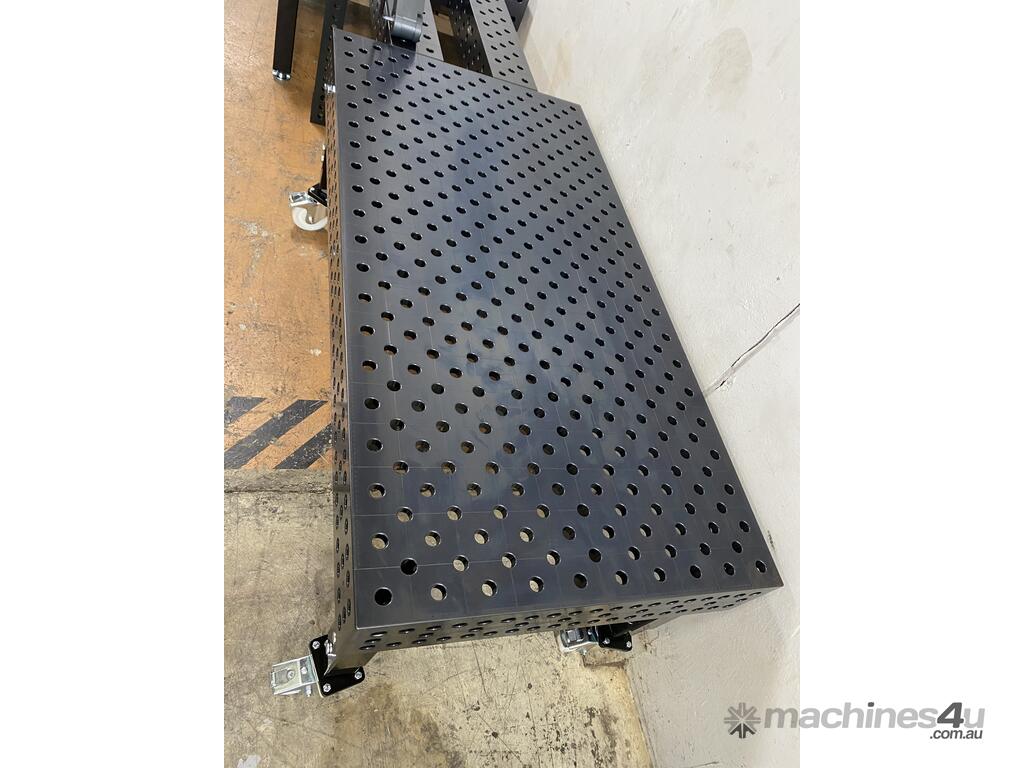

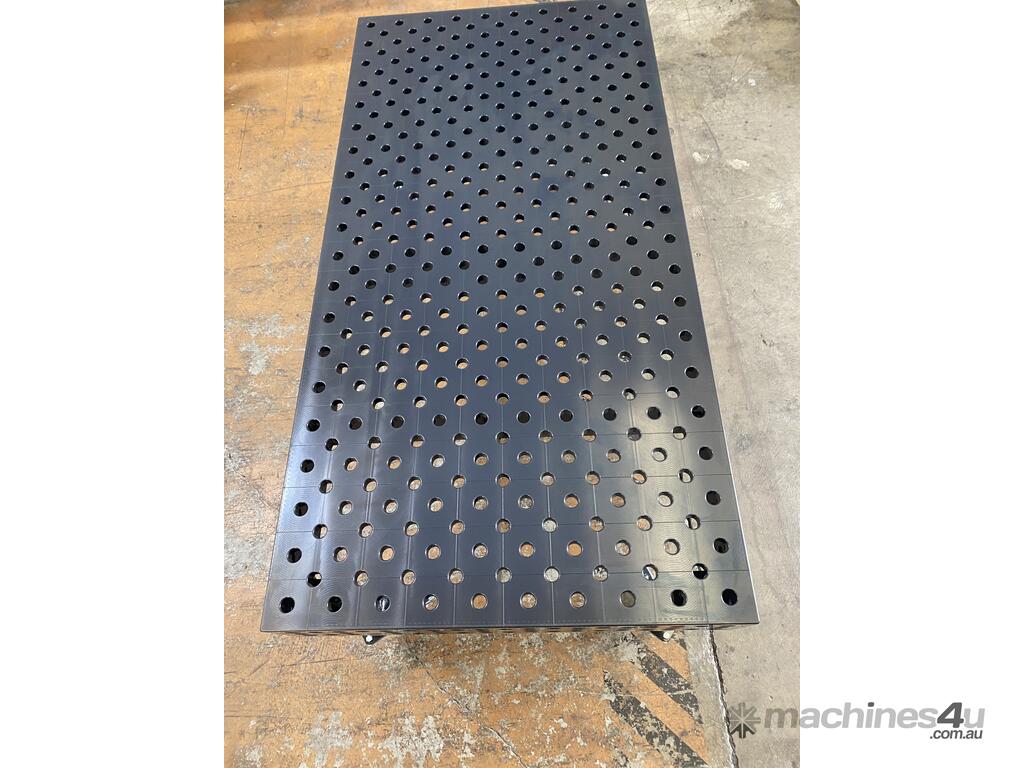

Boreholes on the surface in diagonal grid

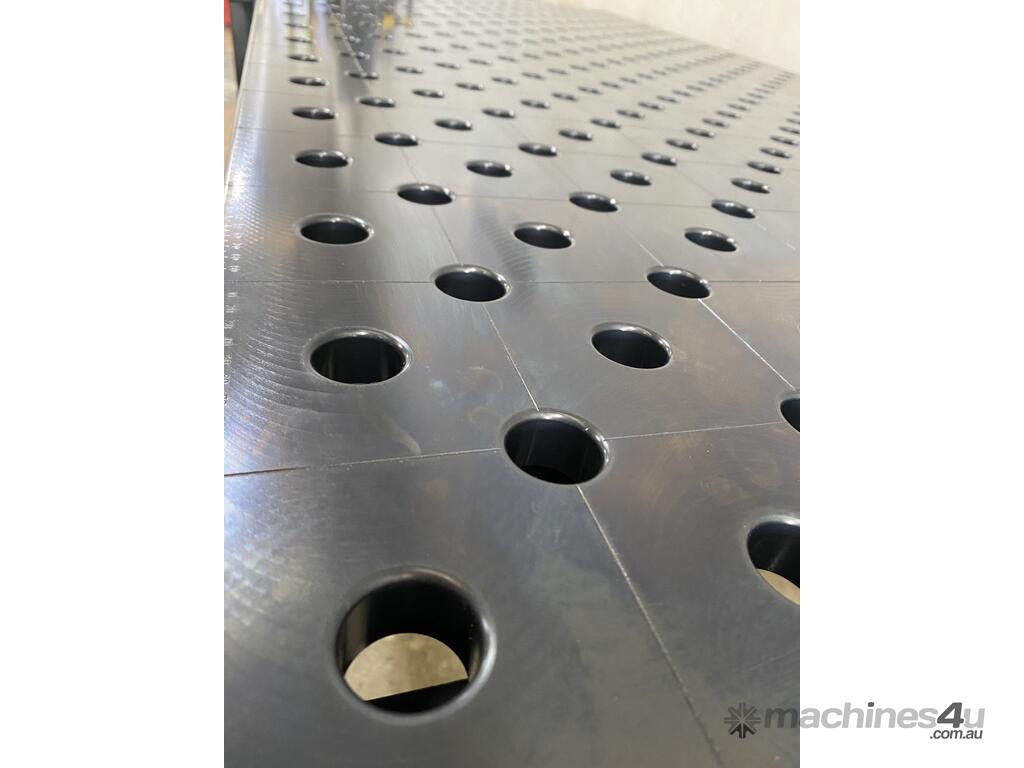

Corners, edges and boreholes rounded
Height of table side 200 mm

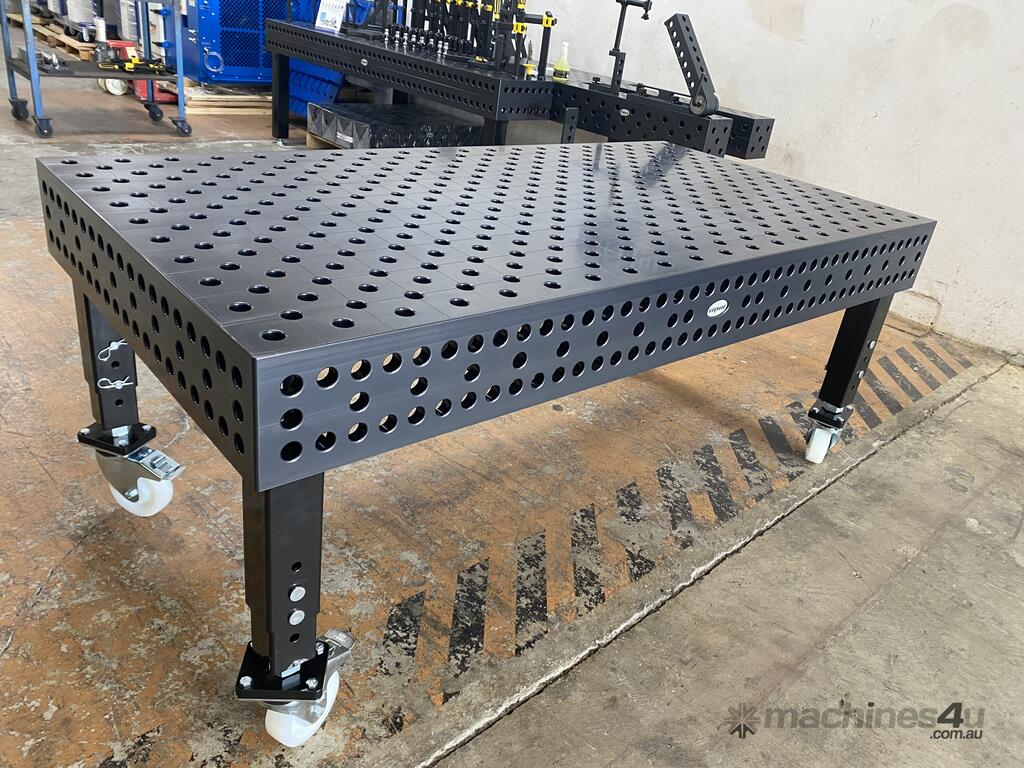

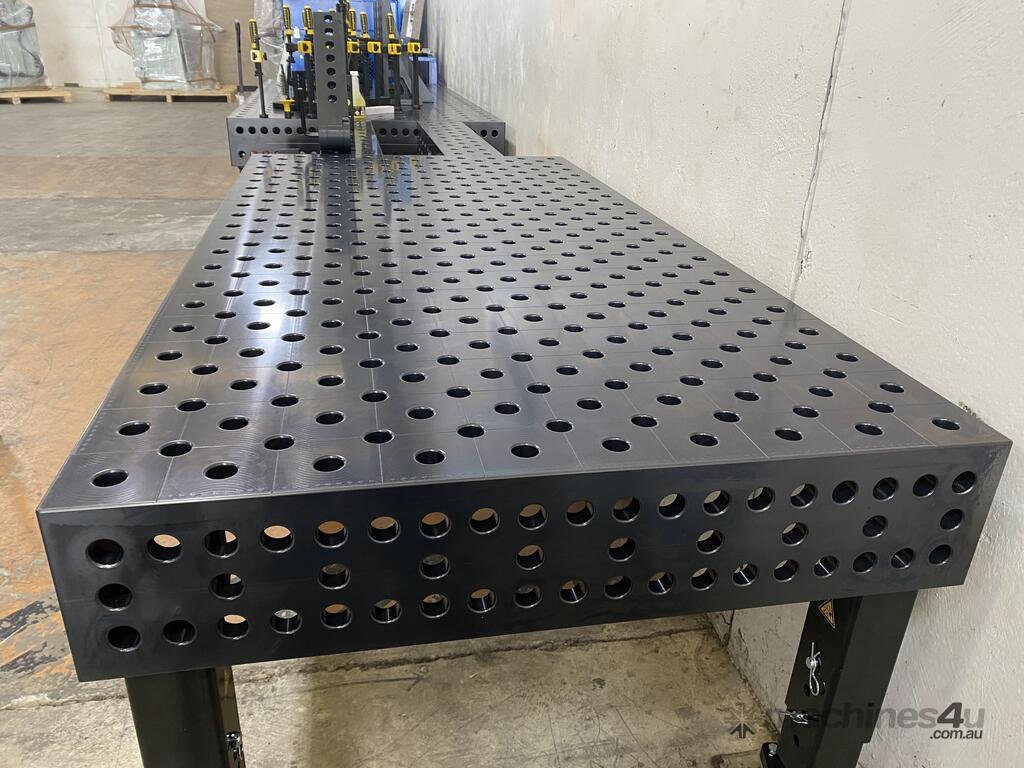

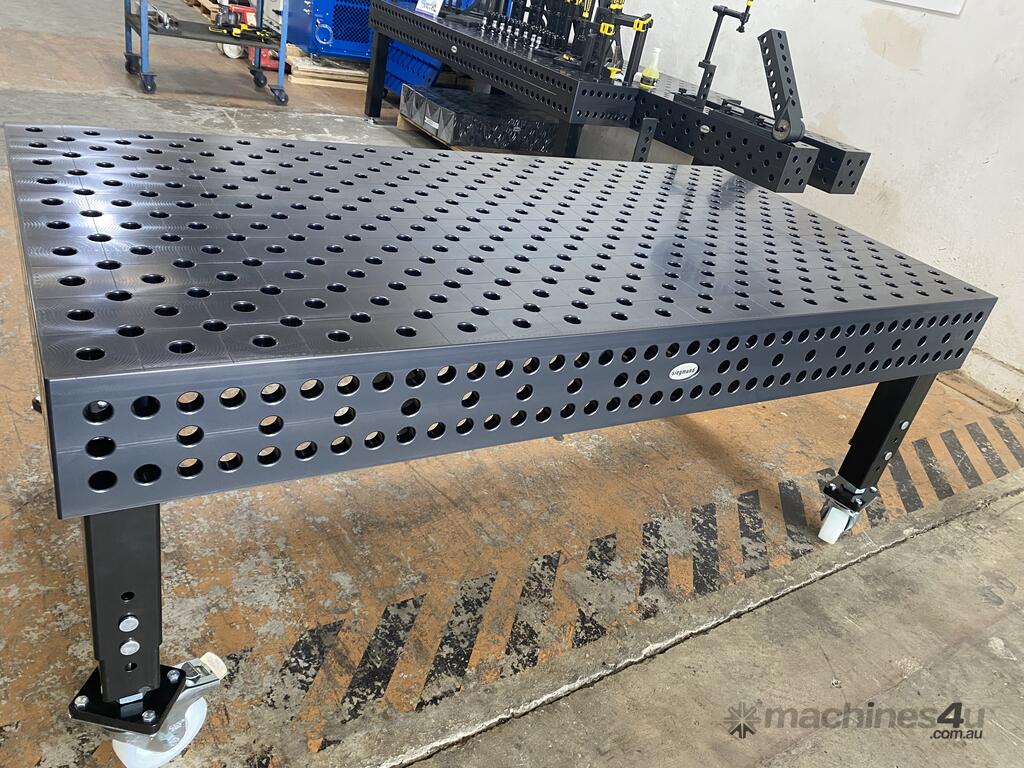

Boreholes on table sides in diagonal grid
With scaling on the surface
Construction reinforced with ribbing
Grid lines allow precise constructions
Special equipment for welding tables available by request.

Standard Leg, available in various lengths (special lengths upon request). Load-bearing capacity 2,000 kg, adjustable up to 50 mm (vernier adjustment).

Our recommendation: Sleeve for Table Leg for every table leg with foot plate (Item No. 280859 for Leg standard equipment / Leg with Floor Anchoring System 28) (not included in the delivery)

Leg Boot protects threaded arbor from dirt and prevents damages to the welding hose, due to the constant contact with the threaded arbor.

50 mm vernier adjustment

Length (a) : 2000 mm
Width (b) : 1000 mm
Height (c) : 200 mm
Weight : 699 kg
