Profile Shaping Machines

Technical Data
Gauges: Non-ferrous metals up to 0.8 mm
Steel: up to 0.7 mm
Stainless Steel: up to a gauge of 0.5 mm
Width adjustment: 230 – 850 mm in the infeed
160 – 780 mm axial dimensions
Dimensions: LX W x H 1.600 X1370 X 850-1.050 mm
Infeed height: 670 – 870 mm infinitely adjustable
Weight: app. 315 kg
Feed rate: app. 11 m/min.
Drive: 1,1 kW, 400 Volt 3-ph.
optionally available: 230 Volt, 1-ph.

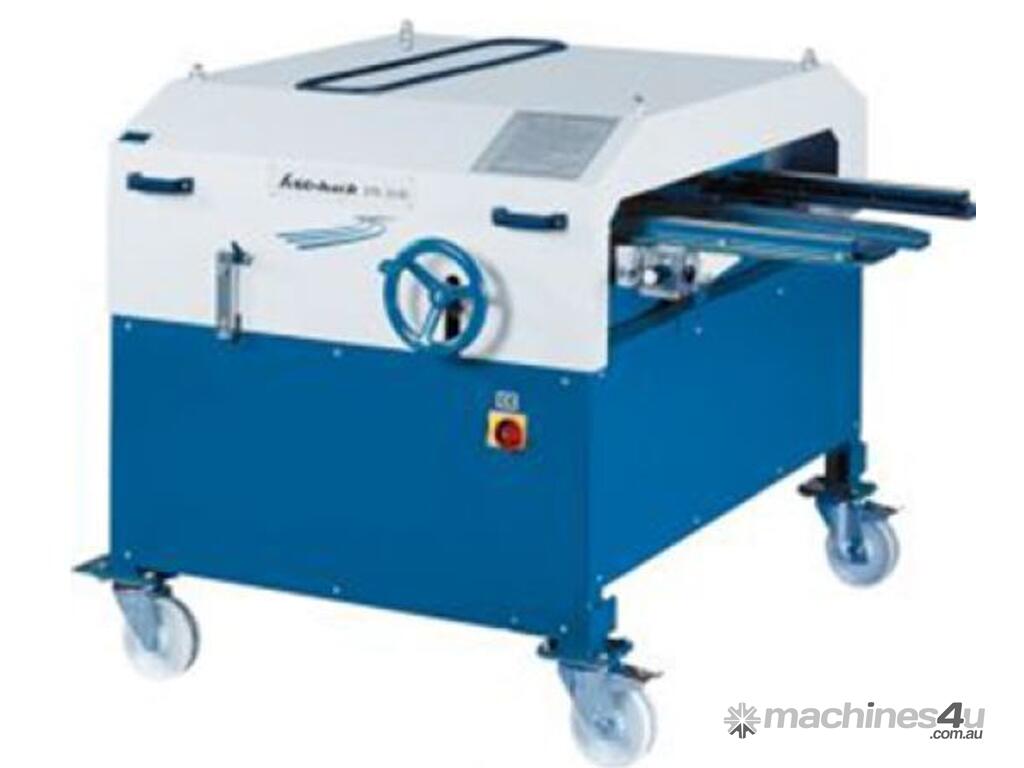

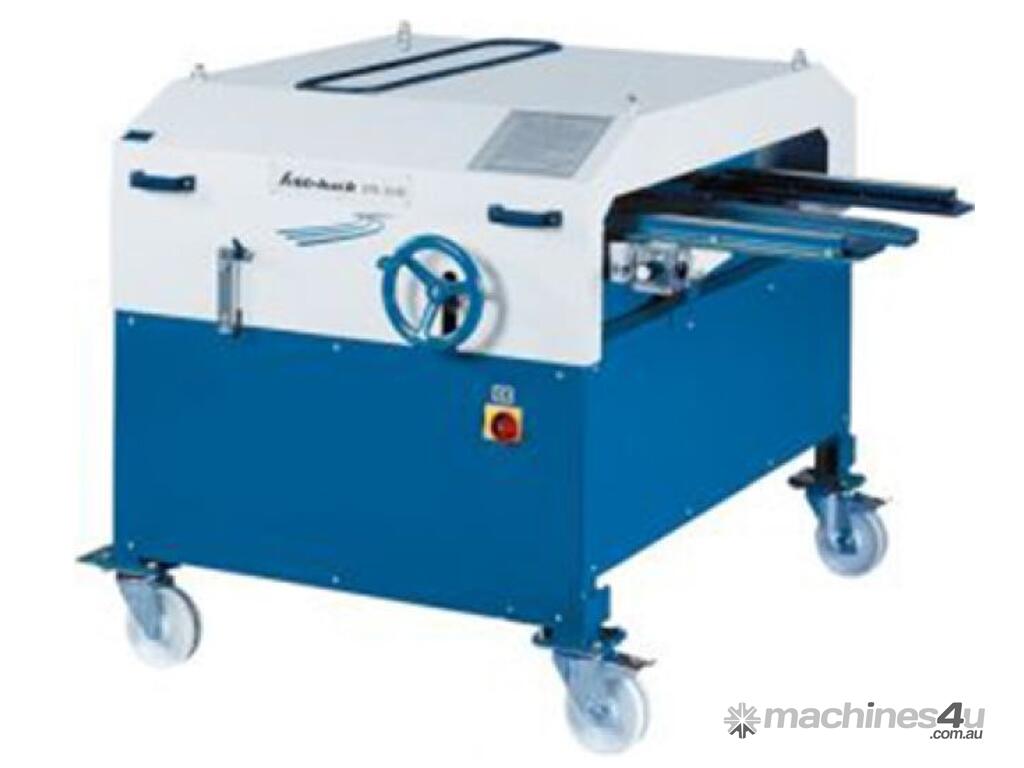

The profile Shaping machines SPM 30/80, for roofing and walling Standing Seam profiles, has a modular design and can be extended with a number of additional elements (page 19-22) — even at a later date. The infinitely variable width adjustment of 290-880 mm caters for a large number of applications. Axial dimensions for parallel processing range from 220 to 810 mm. For single-sided processing of Slanted, conical or locating panels sheets can be manufactured with axial dimensions from 50 mm. A special version caters for a profile height of 32 mm and/or an intake width 1,080 mm.
