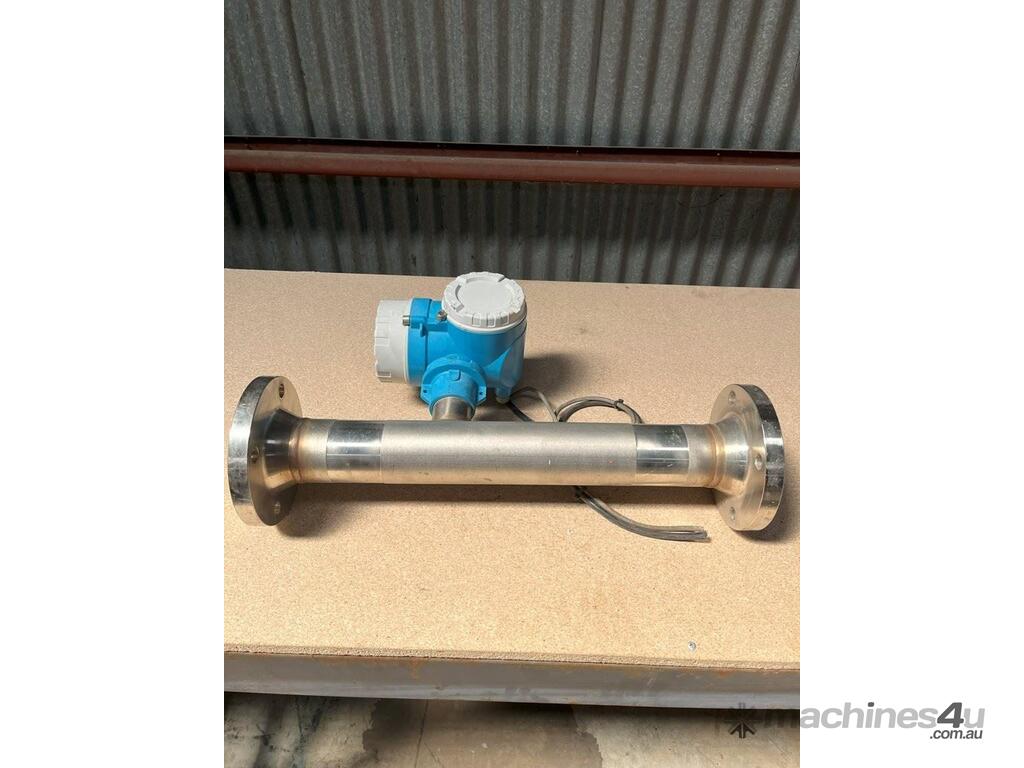

Proline t-mass 65 Mass Flow Meter

Endress Hauser - Proline t-mass 65 - Mass Flow Meter.

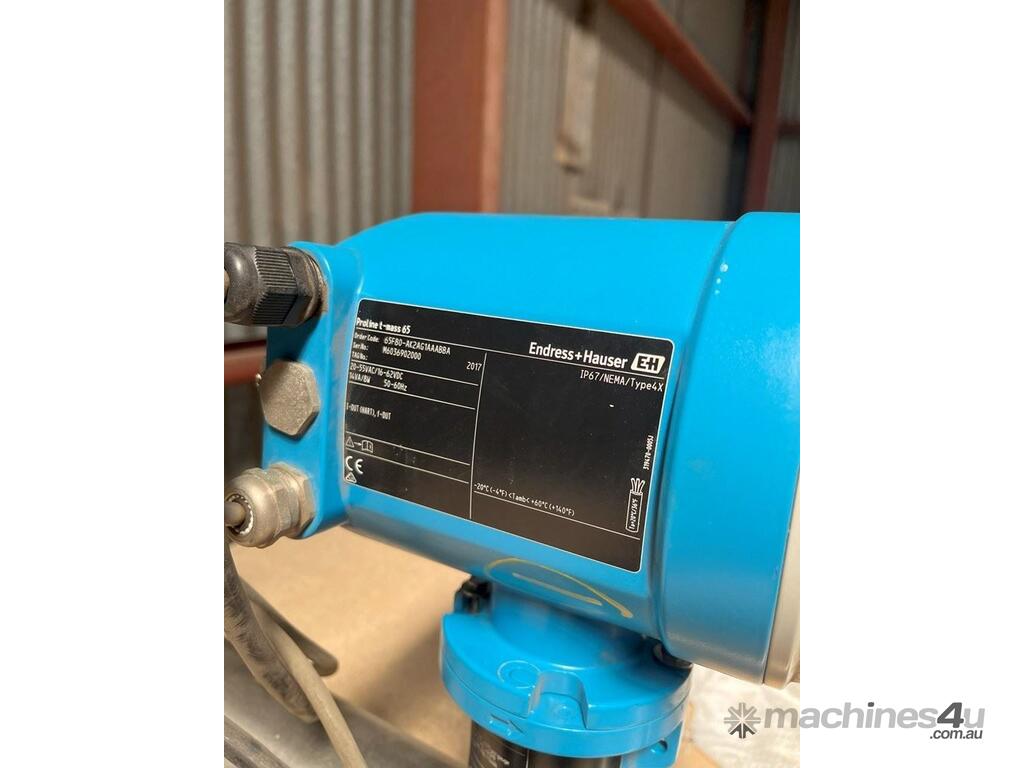

Model: 65F80-AK2AG1AAABBA
YOM: 2017
20-55V AC/16-62V DC 14VA/8W 50-60Hz
I-OUT (HART), f-OUT

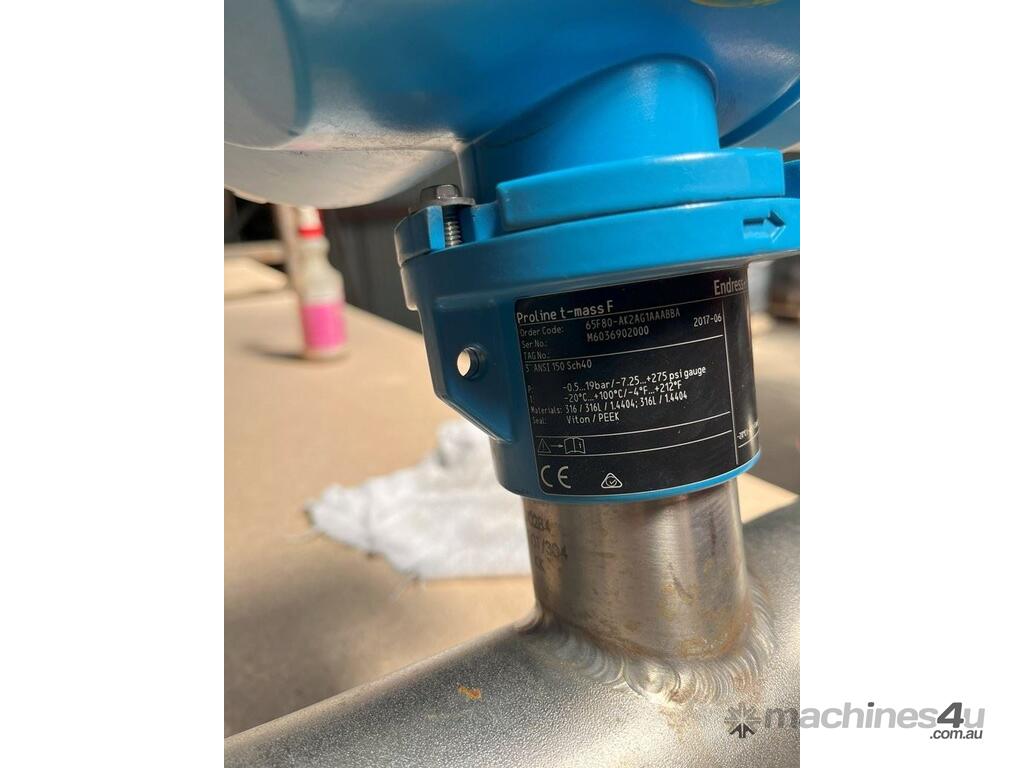

Proline t-mass F

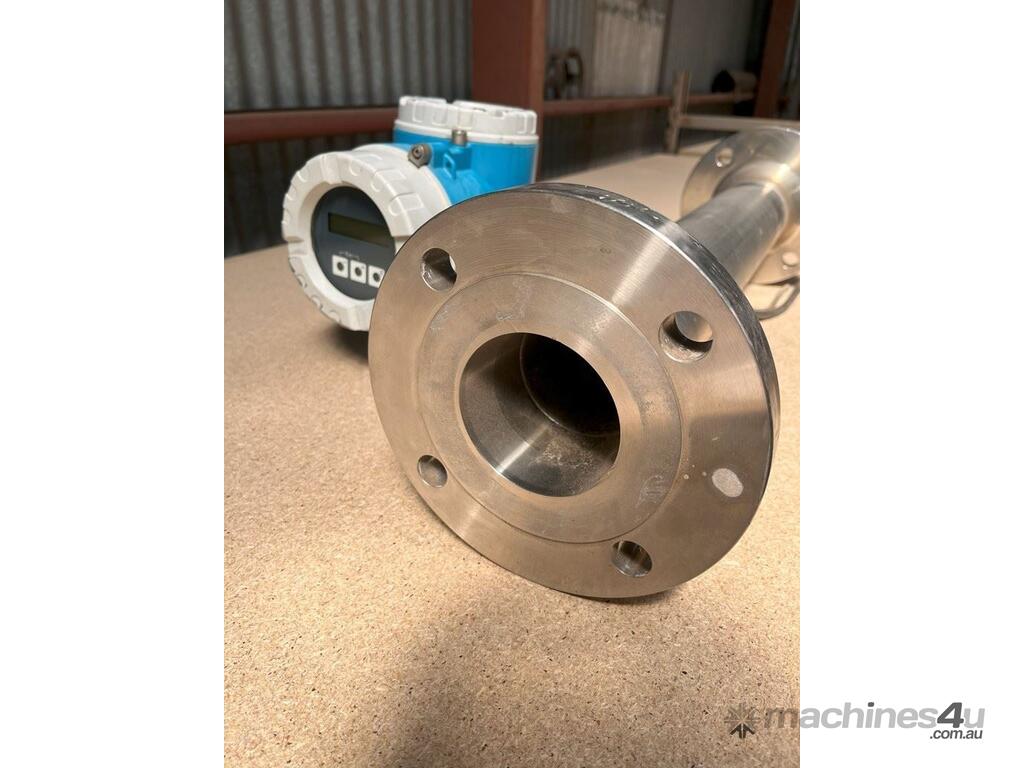

3 inch ANSI 150 Sch40
P: -0.5...19BAR/ -7.25...275PSIG
T: -20 degrees C... 100 degrees C
Materials: 316, 316L, 1.4404
Seal: Viton / PEEK
Benefits:
• Measurement of gases and gas mixtures in small line sizes
• Plant safety – high accuracy and repeatability for a wide range of utility and process gases
• Cost-effective measurement – easy installation, negligible pressure loss and maintenance-free
• Reliable flow trending – multivariable measurement • Fast and efficient commissioning – guided operating menus
• High plant availability – self-diagnostics and error monitoring
• Automatic recovery of data for servicing
Field of application: The t-mass 65F inline device is specially designed for the direct mass flow measurement of industrial gases and compressed air.
With a turndown of typically 100:1 it can measure accurately operational flow rates and off line leakage.
The integrated gas engine allows the customer to configure the device for 20 freely selectable gases.
