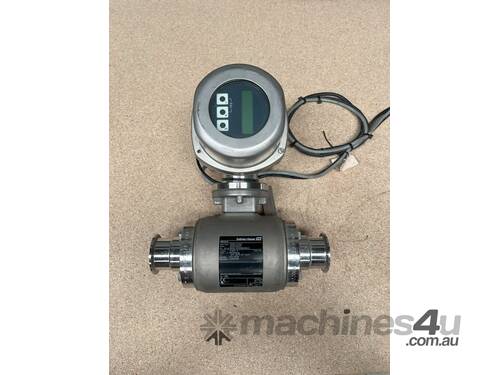

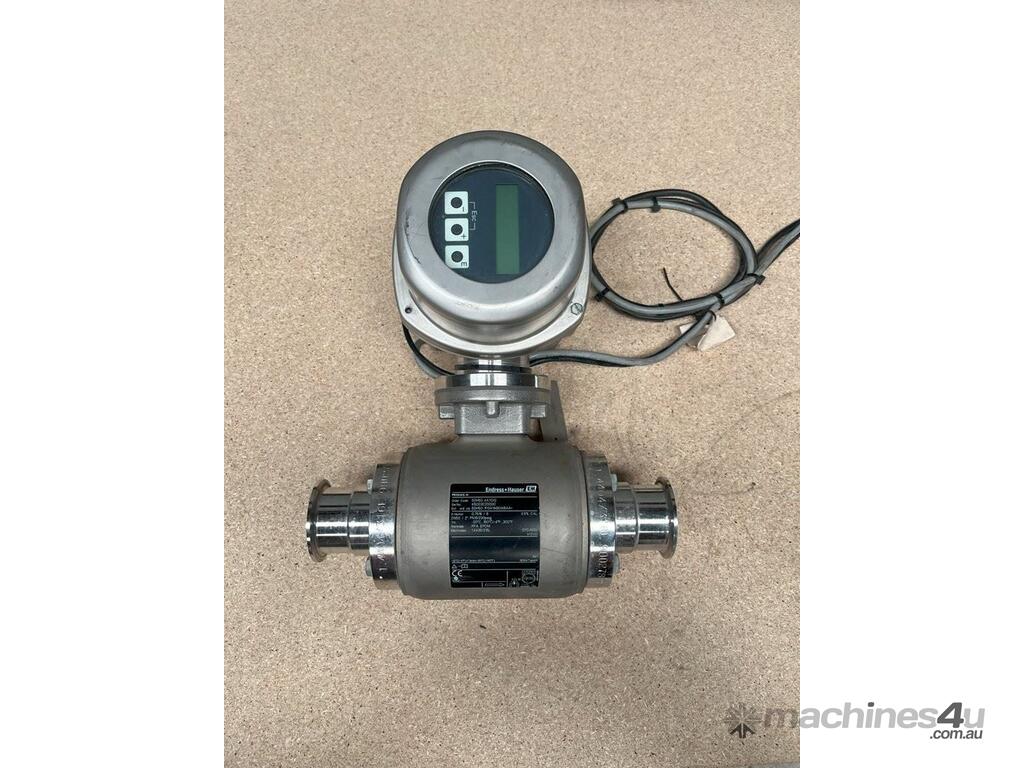

Promag 50 Flow Meter

Promag H is the preferred sensor for applications with highest requirements in the food and beverage and life science industries. Combined with the proven Promag 50 transmitter with push buttons, Promag 50H offers highly accurate measurement of liquids for a wide range of standard applications.

Benefits:
• Flexible installation concept – numerous hygienic process connections
• Energy-saving flow measurement – no pressure loss due to crosssection constriction
• Fast commissioning – application-specific Quick Setups
• Safe operation – display provides easy readable process information
• Fully industry compliant – IEC/EN/NAMUR
• Maintenance-free – no moving parts

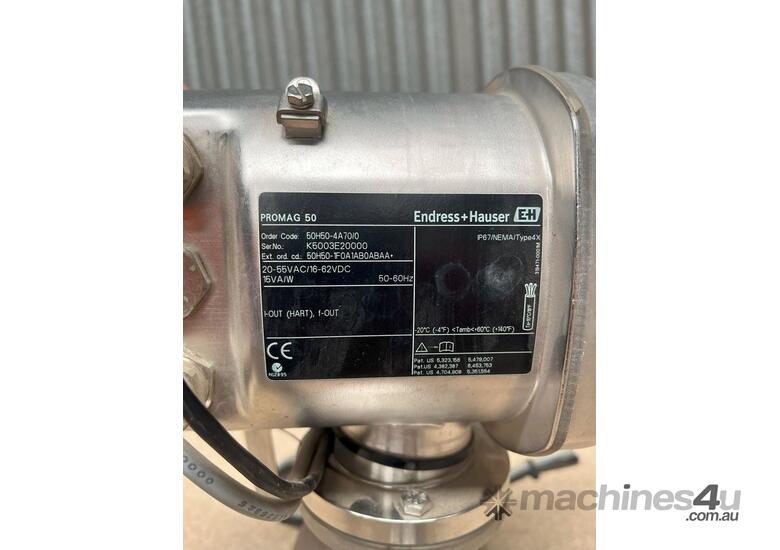

Make: Endress Hauser
Model: Promag 50
Model Number: 50H50-4A70/0
20-55 VAC / 16-62 VDC
15V A/W 50/60Hz
I-OUT, f-OUT

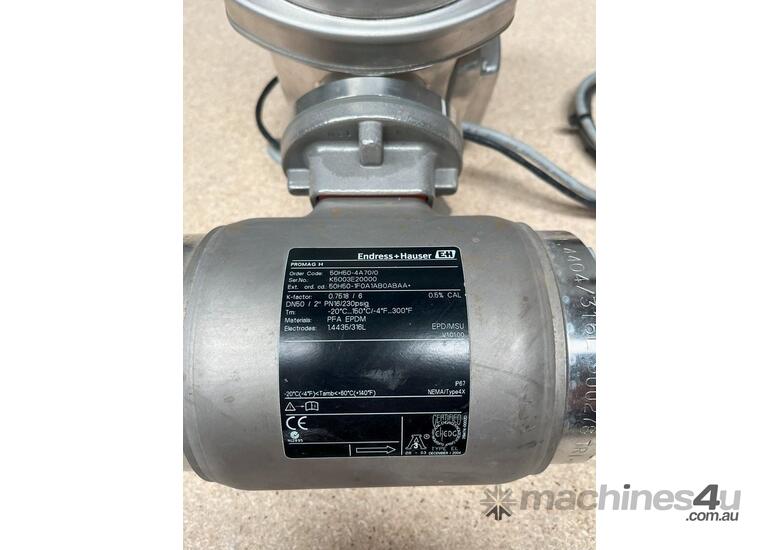

Promag H
K-Factor: 0.7518 / 6 0.5 percent CAL
DN50 / 2 Inch PN16 / 230PSIG
Tm: -20 degrees C...150 degrees C
Materials: PFA EPDM
Electrodes: 1.4435 / 316L EPP/MSU
