Prussiani Engineering Cut & Jet Shuttle - & 5 Axis Bridge Saw Combined 5 Axis Waterjet

Quality 100 % Italian made with standard 3 year warranty. Composed of two rotating tables for stone cutting and working through the combined action of the diamond disc and the high-pressure water jet.

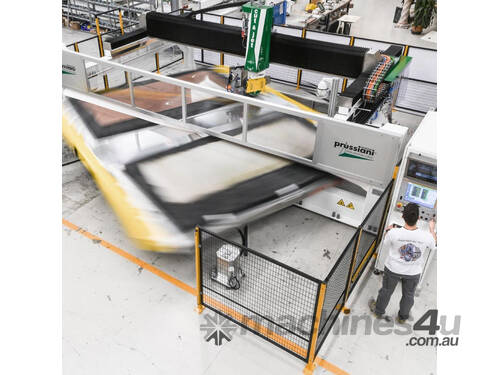

ROTATING TABLE
While a slab is being processed, the operator can unload the one just cut from the table and load the next one, improving the management of working time.

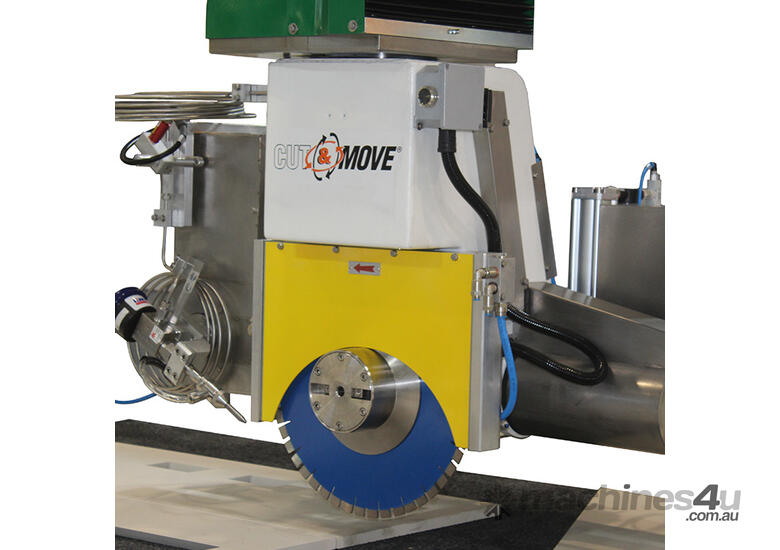

INDEPENDENT CUTTING HEADS
Presence of two independent cutting heads with disc inclination up to 90° through numerical control.

PRECISION

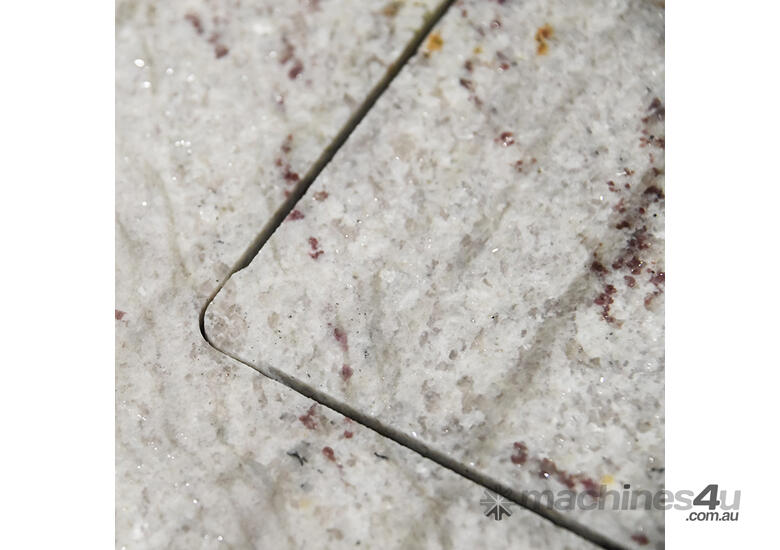

The technology used allows a compensation of the natural jet conicity ensuring maximum precision in the perpendicularity of the cut.

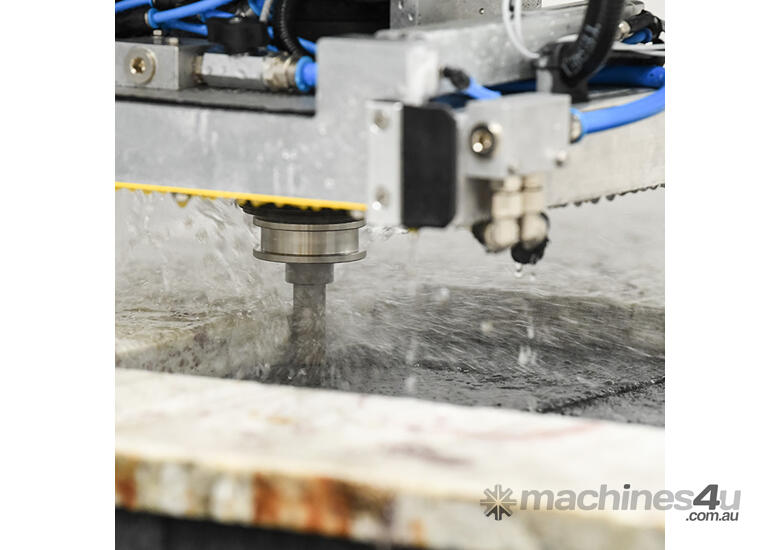

POLISHING
Possibility of cutting kitchen and vanity tops, both with straight and tilting edges at 45 degrees, and polishing the edges and internal holes without the intervention of the operator.

LARGE WORKABLE SURFACE
Inclined cut on a large surface, thanks to the -60 ° / + 60 ° inclination of the cutting head

TECHNICAL DATA
Details Size Specifications
X axis stroke mm (in) 3.800
Y axis stroke – GANTRY mm (in) 2.500
Z axis stroke mm (in) 350
A axis rotation degrees -185° ÷185° (370°)
C axis inclination degrees 0° ÷ 90°
C2 axis inclination degrees -60° ÷ 60°
50hp KMT Intensifier
KMT Cutting head - IDE II
Suction cup capacity 420kg
Electrospindle torque 94Nm
