Puma 6000mm BC | 800mm swing heavy duty lathe Incl Digital Readout

New Puma CW6180 x 6000 Manual Lathe - 800mm swing - 140mm spindle bore

Accessories:

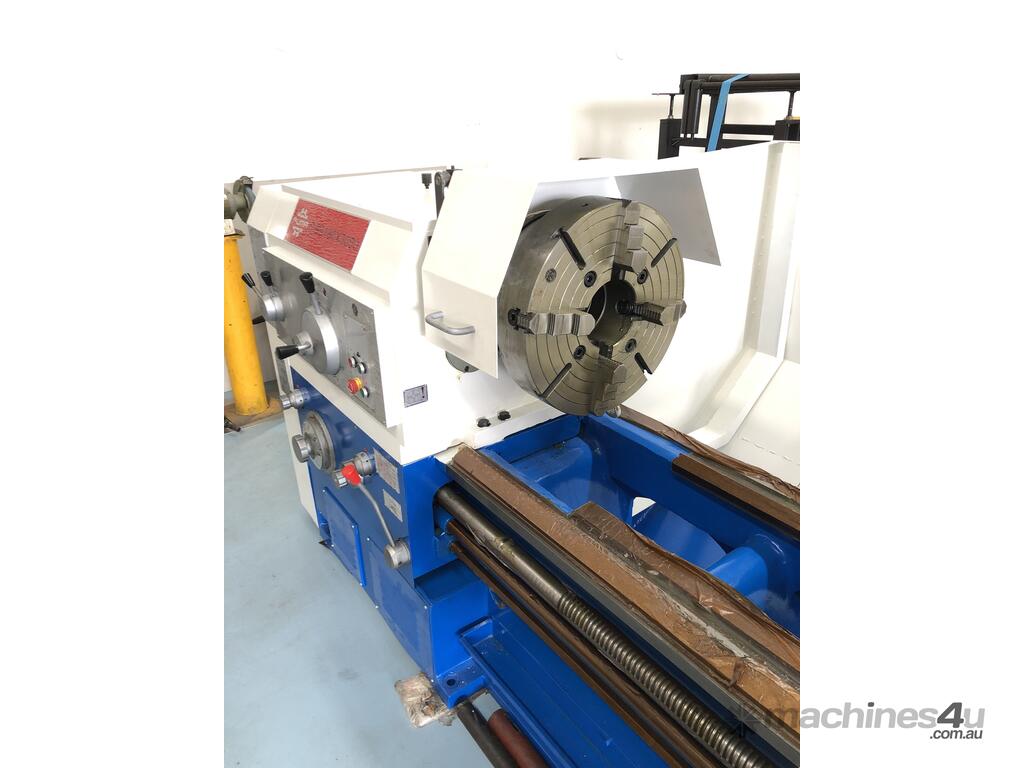

- 500mm 4-Jaw Chuck

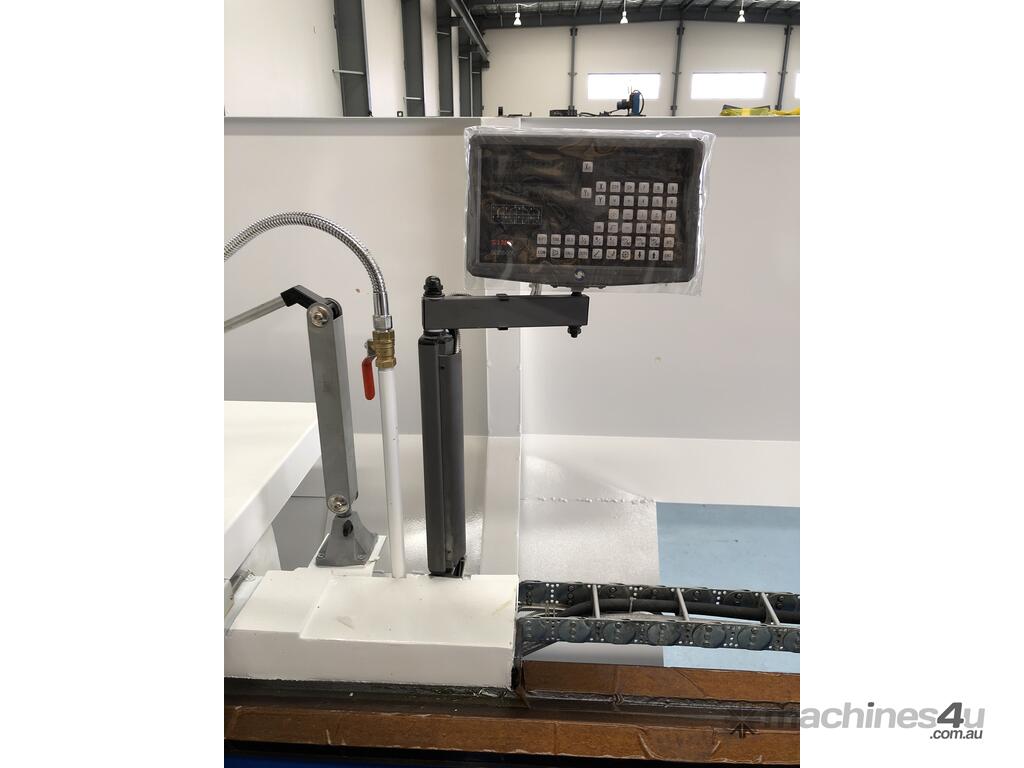

- 2 Axis Digital Readout
- 140mm Spindle Bore
- Chuck cover + toolpost Cover
- Live Center

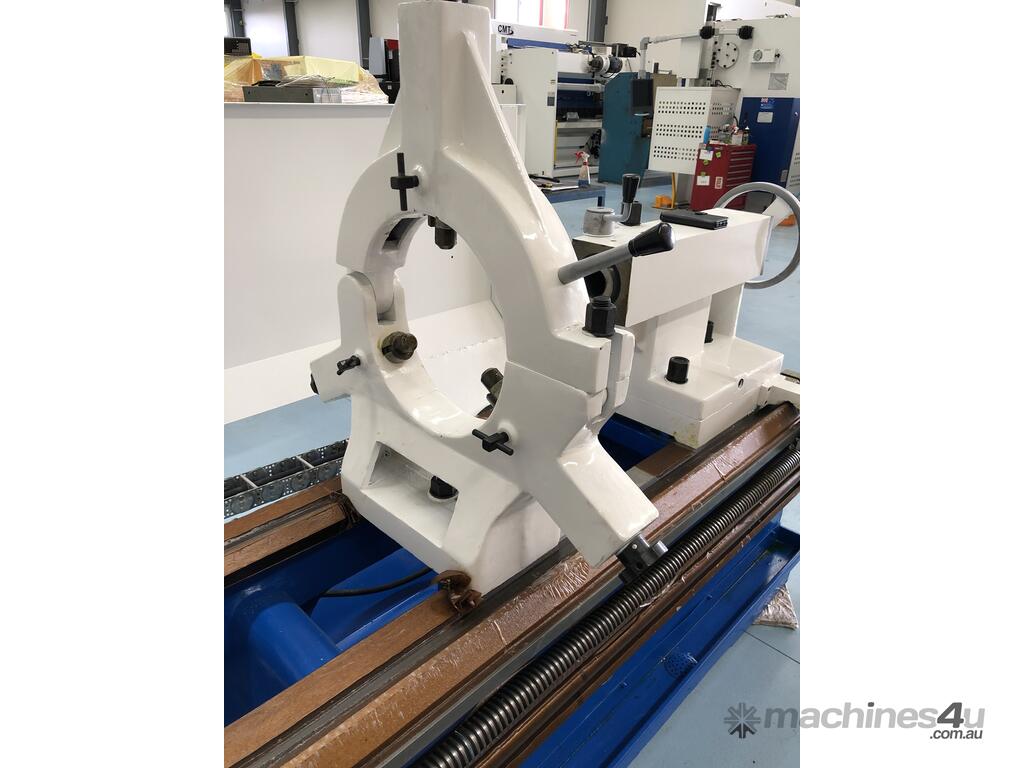

- 40-350mm steady rest
- 20-130 follower rest
- 400 mm 3-jaw chuck
- Dead center M6
- Center sleeve M6
- Manual tools
- Rapid traverse
- Compound feed
- One piece base
- Splash Guard
- Coolant pump
- Work light
- Chuck with backing plate

Specs:

Swing over bed - 800mm
Swing over carriage - 480mm
Max length of workpiece - 6000mm
Max turning length - 2850mm
Pan of guideway - 600mm
Spindle nose - C15

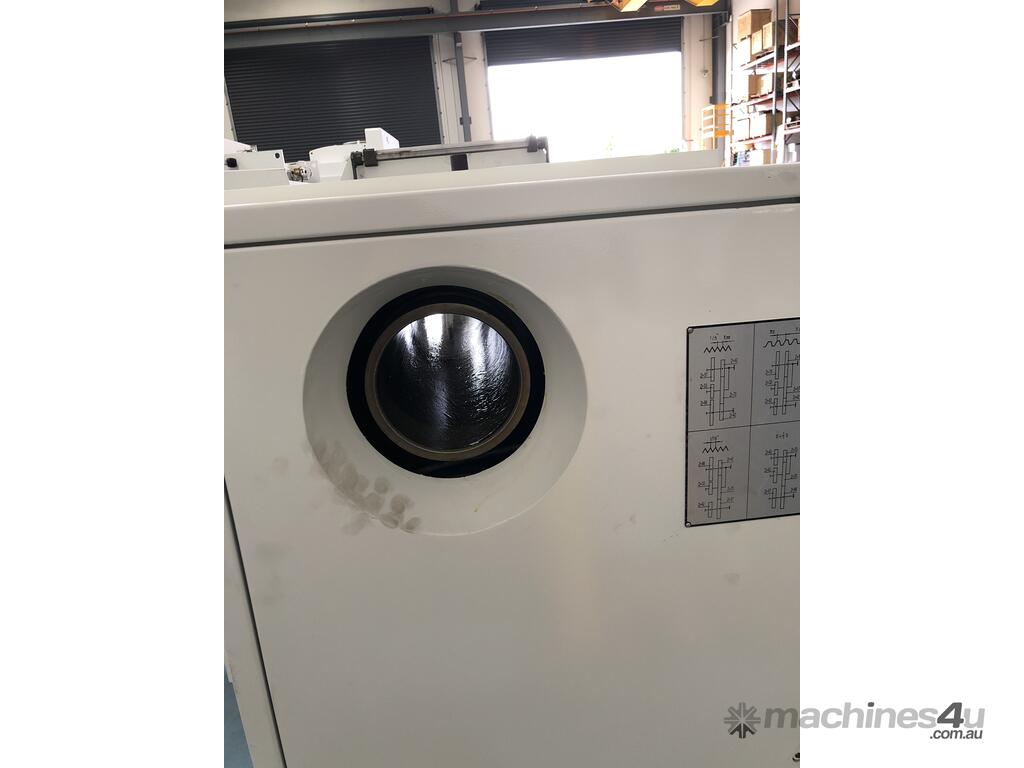

Spindle bore - 140mm
Taper hole of spindle - 1:20
Range of spindle speeds - 6-70 / 10-775
Number of spindle speeds - 18 / 6
Longitudinal and cross - 64; 0.1 ~24.32
Cross/long longitudinal feed - 1/2
Screw pitch of leadscrew - 12mm
No and range of metric thread - 50; 1~240
No and range of inch thread - 26; 14~1
No and range of module thread - 53; 0.5~120
No and range of dia. thread - 24; 28~1
Rapid traverse speed - 4000mm/min
Distance of spindle and tool plane - 33mm
Tool post swing range +/- 90º
Max travel of cross slide - 500mm
Max travel of top slide - 200mm
Section of tool shank - 32mm (202x202)
Dia. / Travel of tailstock - 100mm/250mm
Taper hole of tailstock quill - Morse 6
Main motor power - 11KW
415V | 50HZ | 3PH
24V control panel
