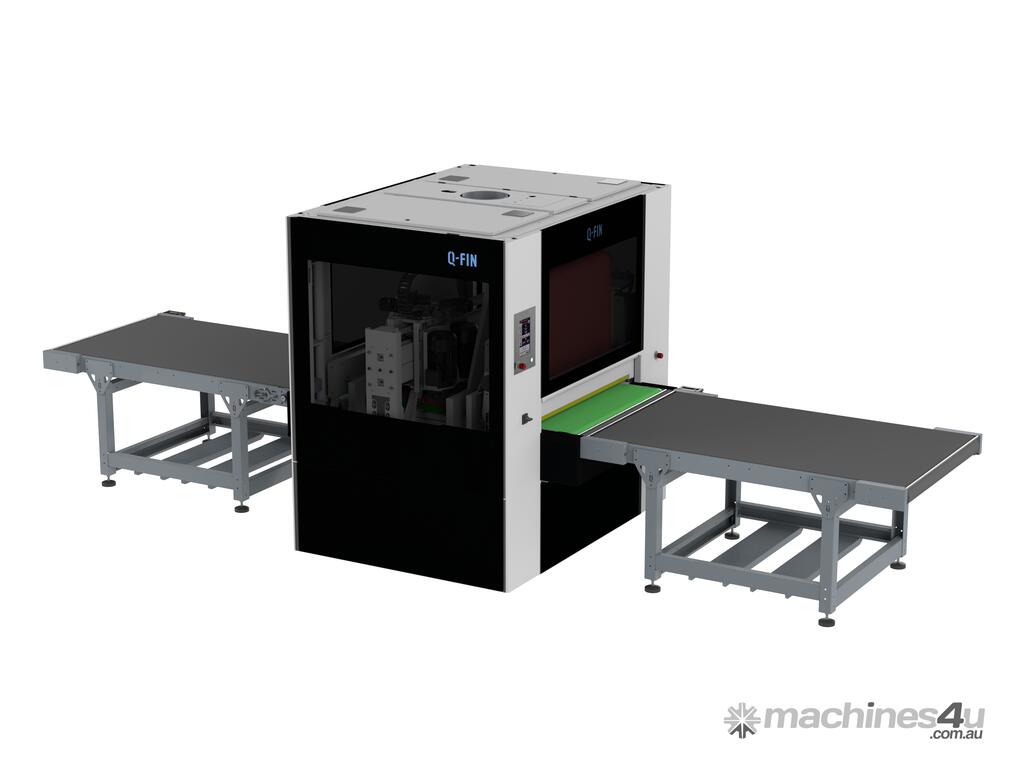

Q-Fin F1200 - Deburring, Edge rounding and finishing

For deburring, edge rounding and finishing of sheet metal parts up to 1200 mm wide, all in one compact, lightning-fast machine.

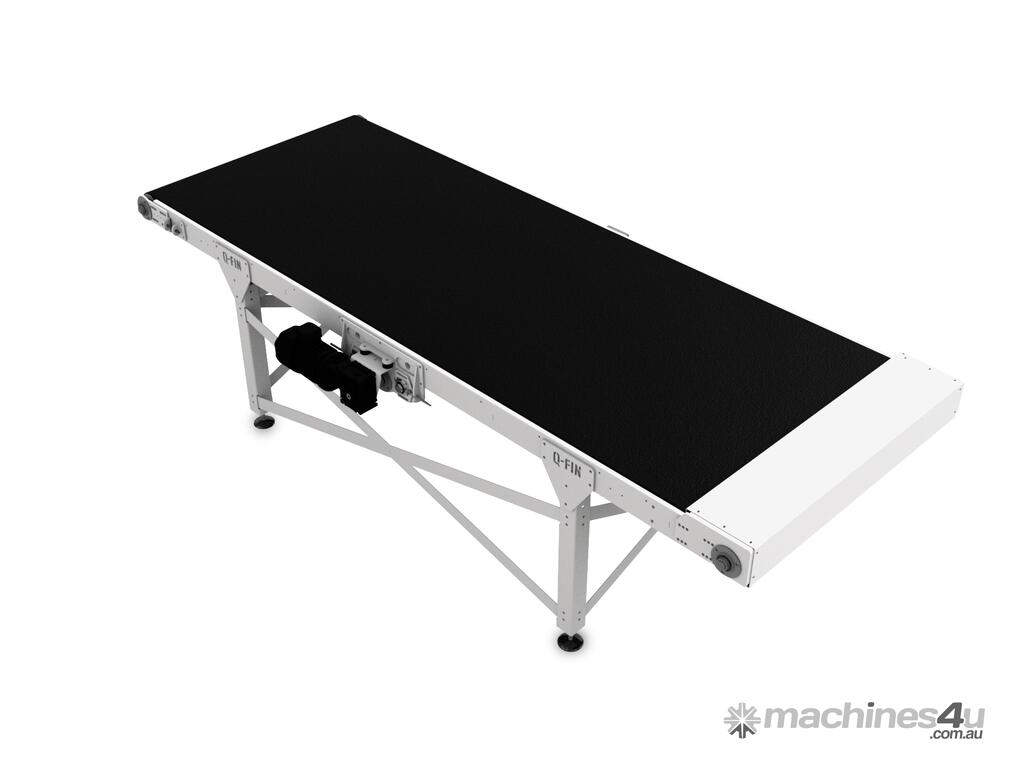

With the F1200 from Q-Fin you can deburr, edge round and/or finish sheet parts up to 1200 mm wide in a single pass. Depending on the material to be processed, you can either choose a system with vacuum or magnetic product fixation. The conveyor belt is adjusted accordingly. The machine is easy to operate by means of a touchscreen and consists of 3 operating stations.

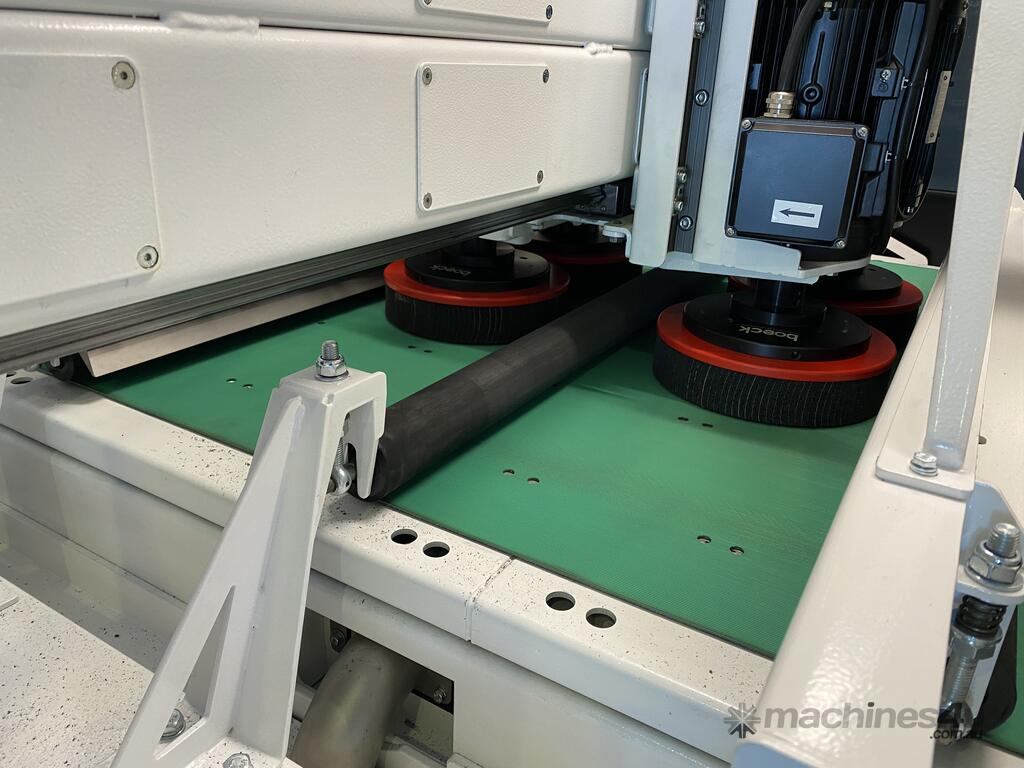

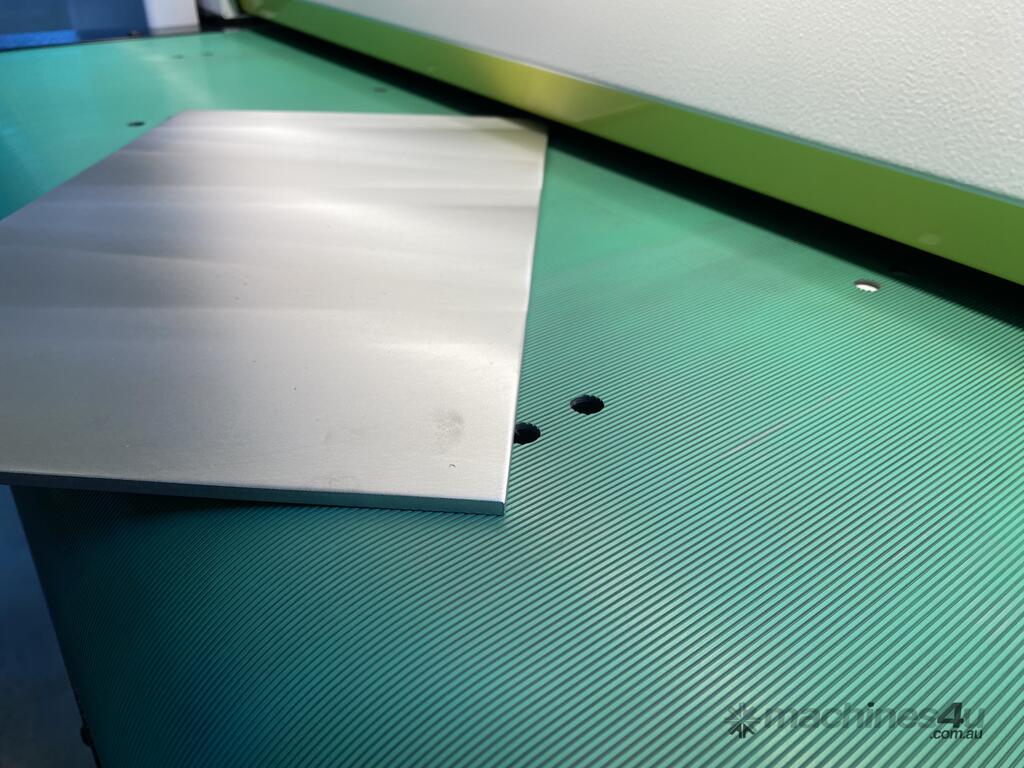

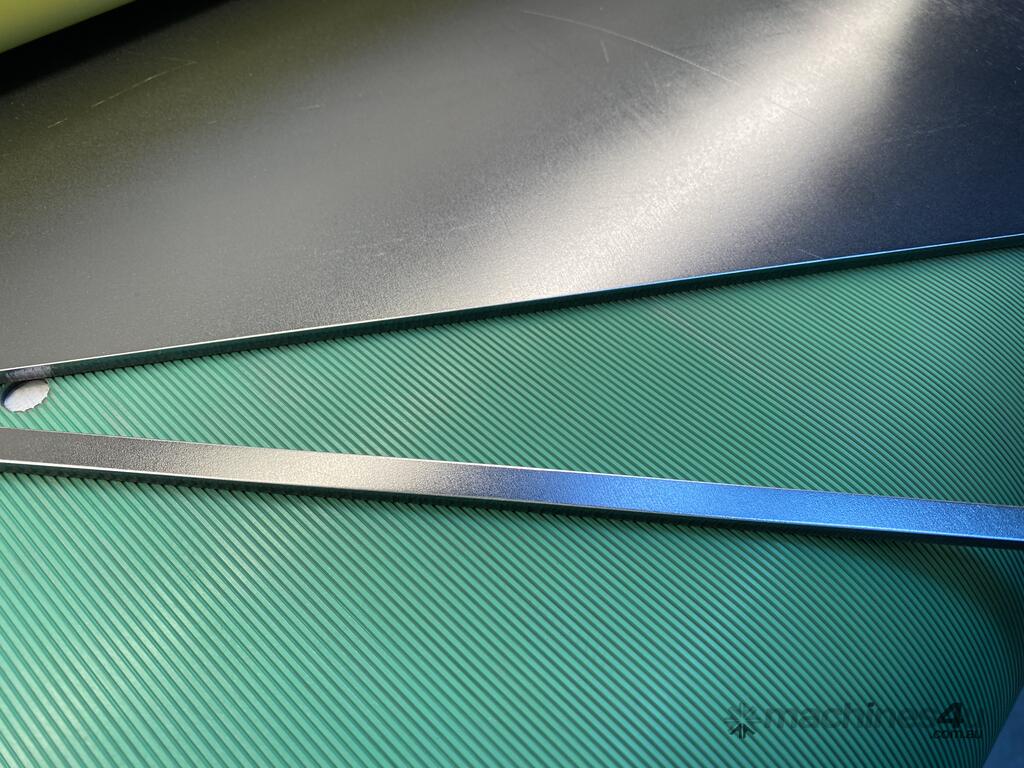

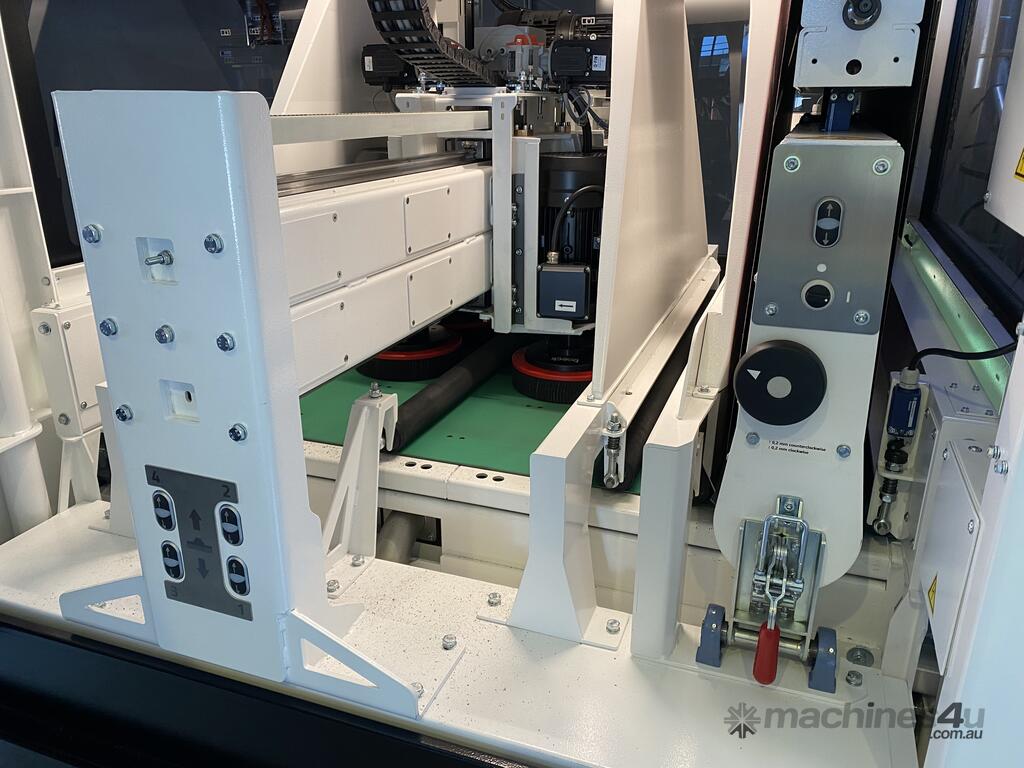

The first station of the F1200 is the grinding unit. This abrasive belt removes the burrs and/or incineration points from the product surface. You can decide yourself on the grain size of the abrasive belt, depending on the height and hardness of the burr. If there are no burrs, you can leave the grinding belt switched off. The second and third station is the so-called brush unit, fitted with four diagonal counter-rotating brushes. This can break the sharp edges of the product and provide the edges with a large radius. You can also change the surface finish (e.g. more gloss / lower roughness value) by changing the type and grit of the brushes. By placing special brushes, you can remove the oxide layer or do slag removal on steel products when using the F1200 with magnetic product fixation.

The F1200 machine is also available in the XL version, adding a fourth station to the machine. The fourth station consists of a second grinding unit. This unit makes it possible to apply a line grain finish to your product by means of a fine abrasive belt or scotch-brite belt.

Features -
Unique brush system, stable grinding belt
Fully automatic adjustable stations

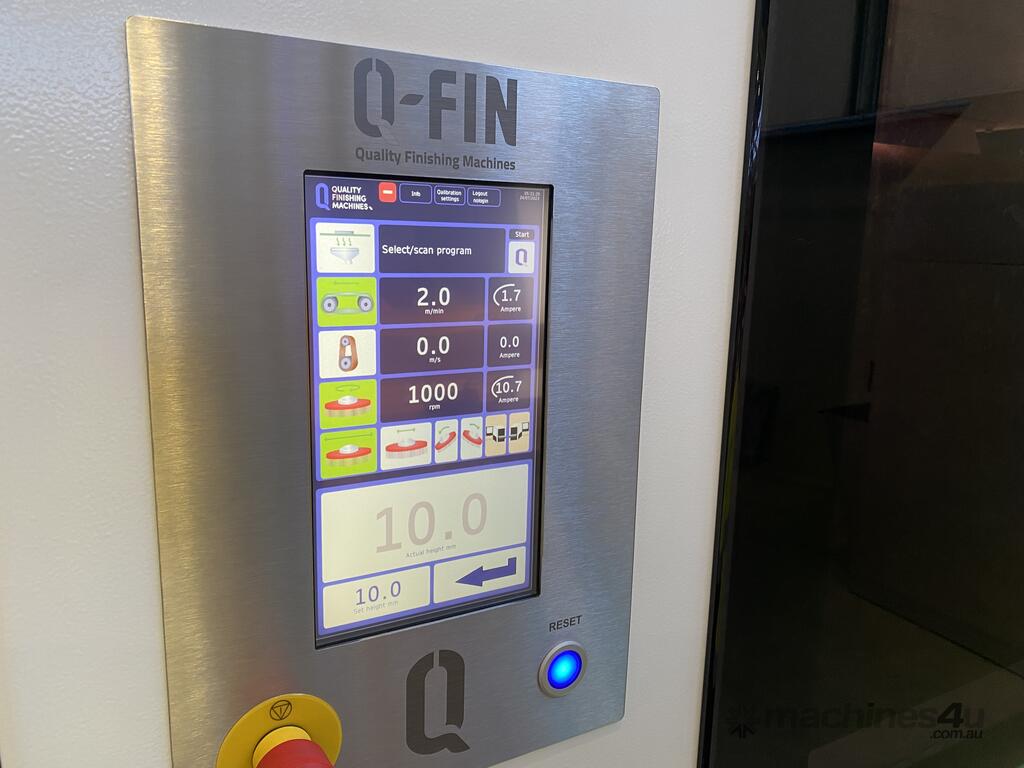

Intuitive, multilingual HMI touchscreen
Reproduce with adjustable programs
Integration with ERP & handling systems
Option: automatic brush calibration

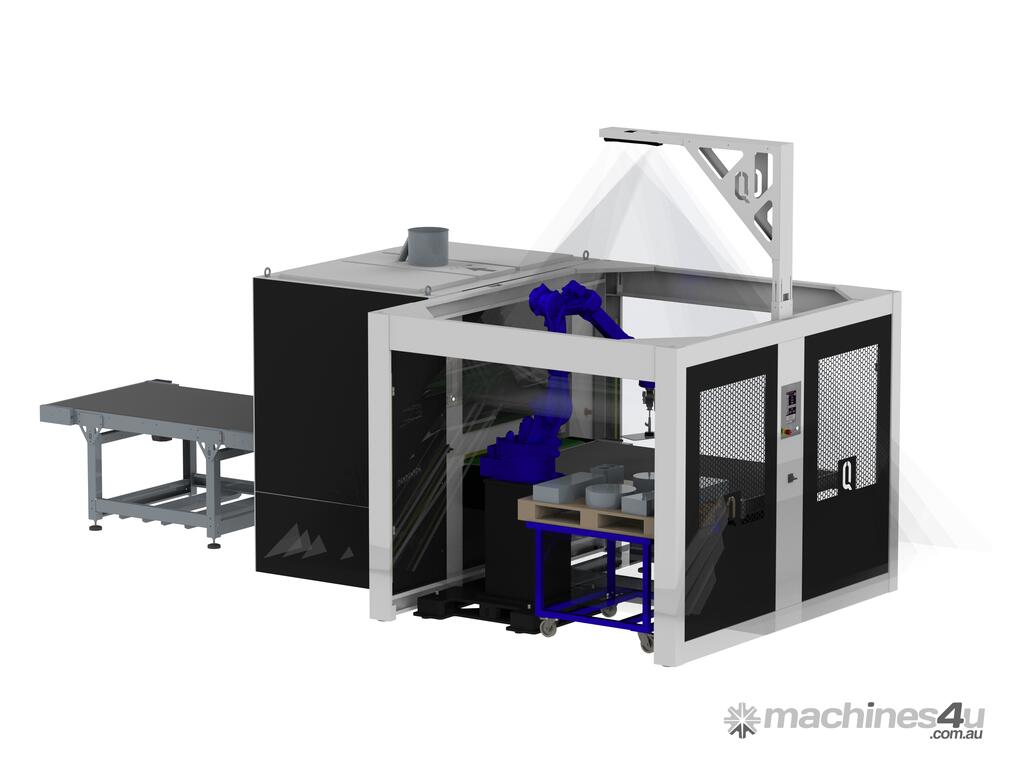

Automation and handling solutions are available.

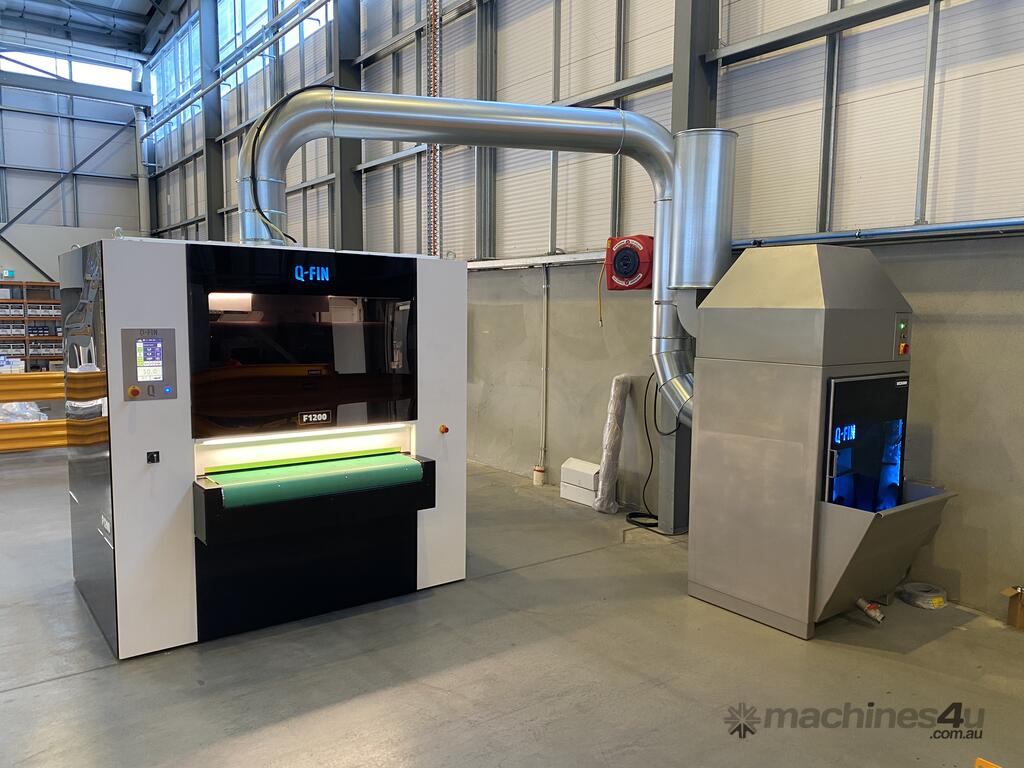

These systems are sold as a package with a wet extraction system and piping. They are turnkey solution with installation and training included.

For more information contact us.
