Q-Fin F1500 - Deburring, Edge rounding and finishing

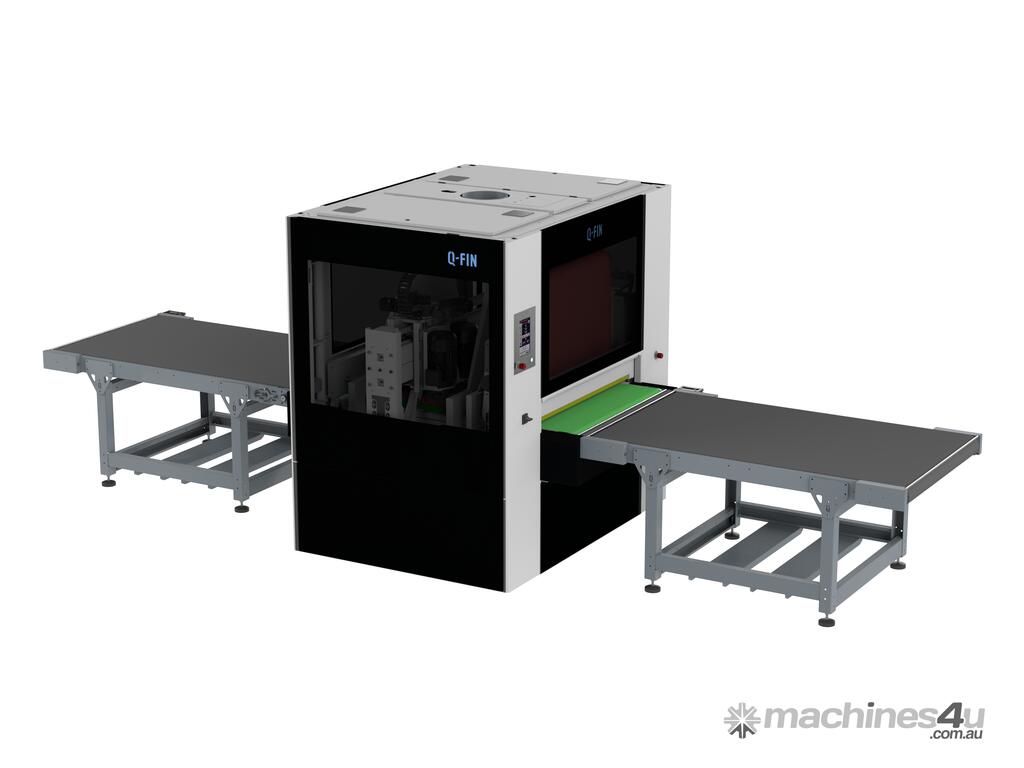

For deburring, edge rounding and finishing of sheet metal parts up to 800mm wide, all in one compact, lightning-fast machine.

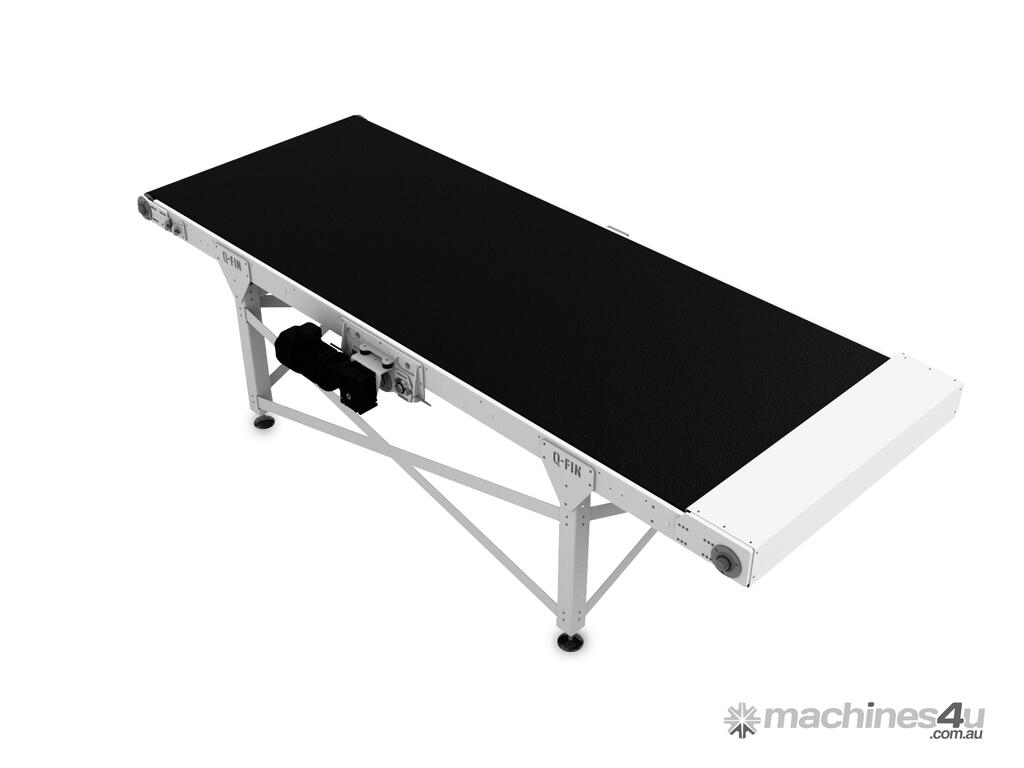

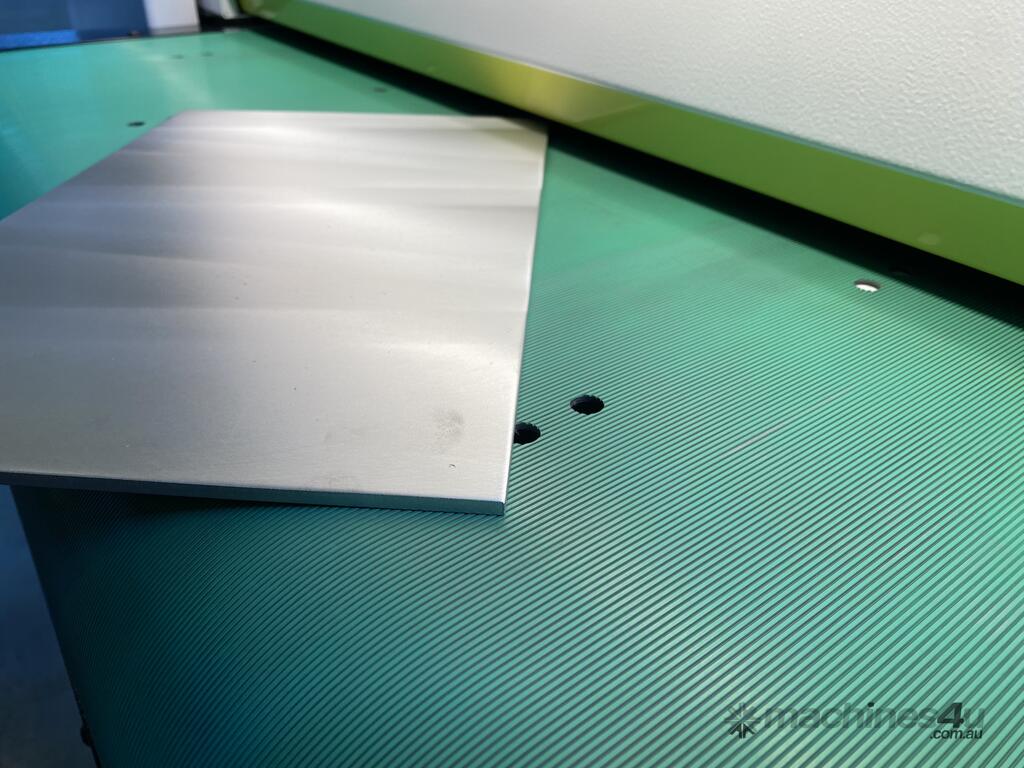

With the F800 from Q-Fin, you can deburr, round off and/or finish sheet materials in one single pass. Depending on the materials to be finished you select a vacuum or magnetic system. The conveyor belt is adjusted according to your choice of system.

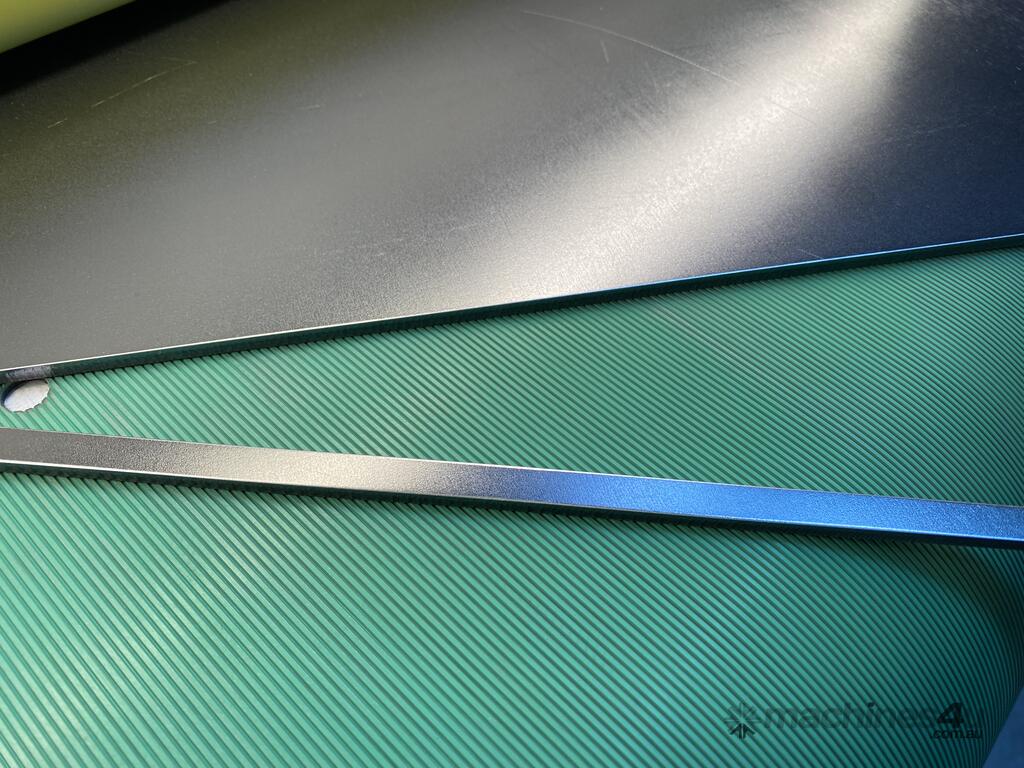

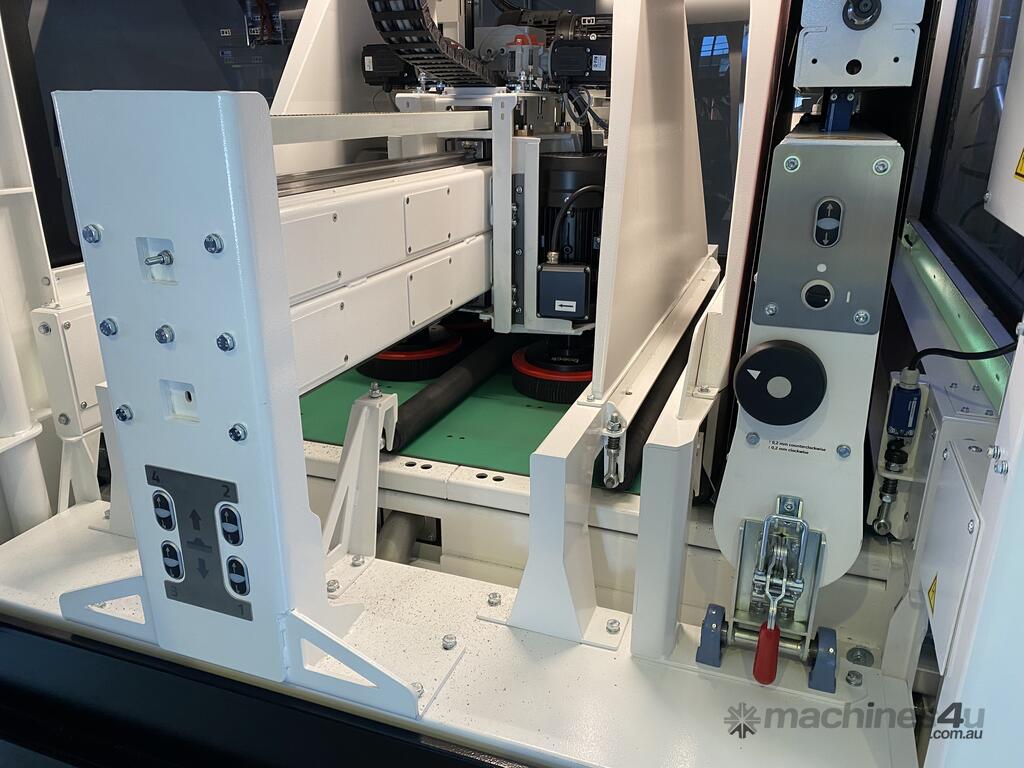

The first station of the F800 consist of a grinding unit. The abrasive belt of this unit removes the burrs and/or incinerations marks from the product surface. If you do not have any burrs you can leave the abrasive belt switched off or remove them. It is also possible to apply a line finish to your product with a finer grinding belt or finish with a scotch-brite belt. The second and third station consist of the brush unit, equipped with 4 cross-rotating oscillating brushes. These allows you to remove the sharp edges of the product by breaking the edges or providing them with a (large) radius. By placing special brushes, the F800 with magnetic system also allows you to perfectly remove oxide skin or slag from steel sheet parts.

Features -
Efficient processing of compact sheet metal parts
Unique brush system, stable grinding belt
Fully automatic adjustable stations

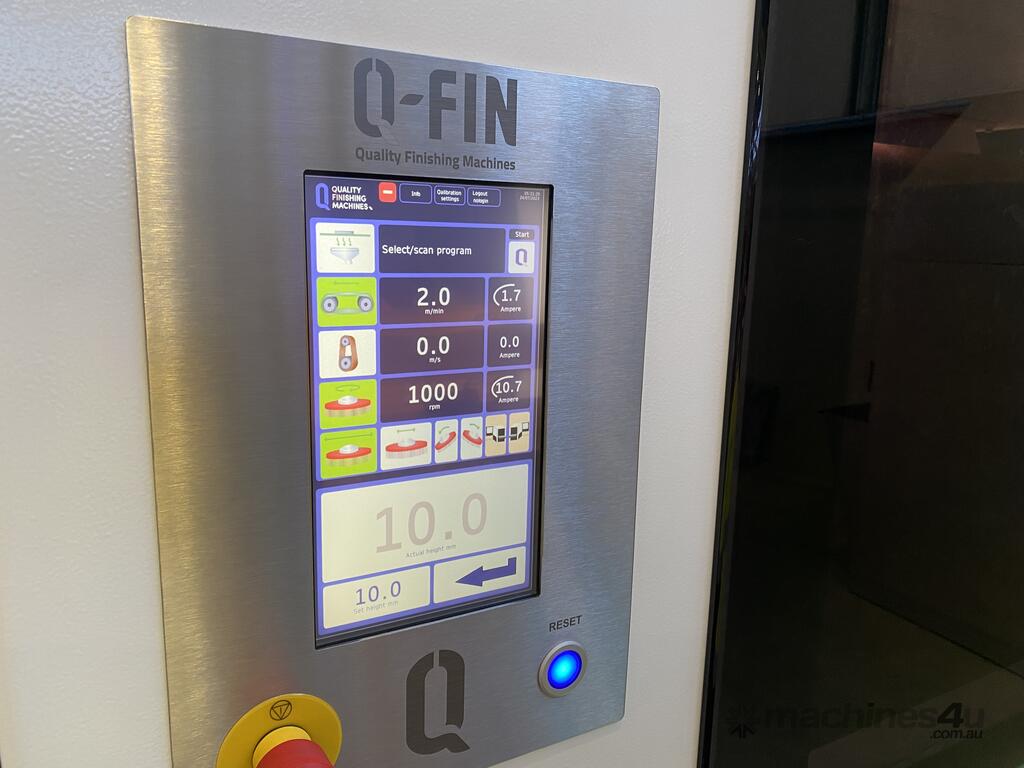

Intuitive, multilingual HMI touchscreen
Reproduce with adjustable programs
Integration with ERP & handling systems
Option: automatic brush calibration

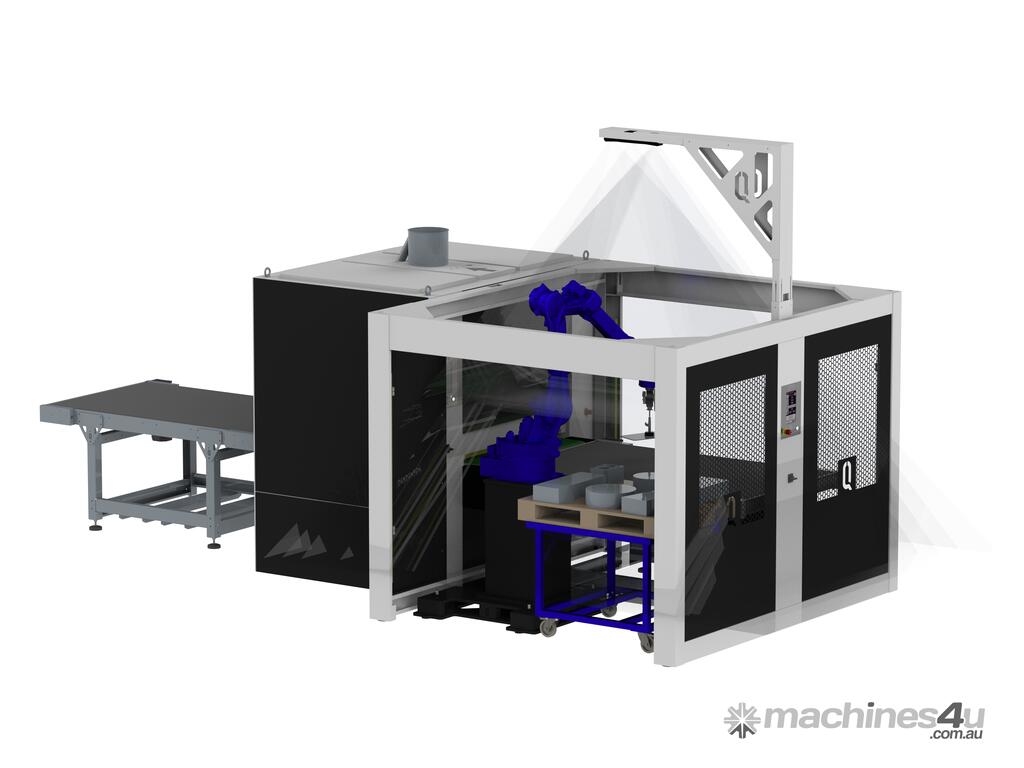

Automation and handling solutions are available.

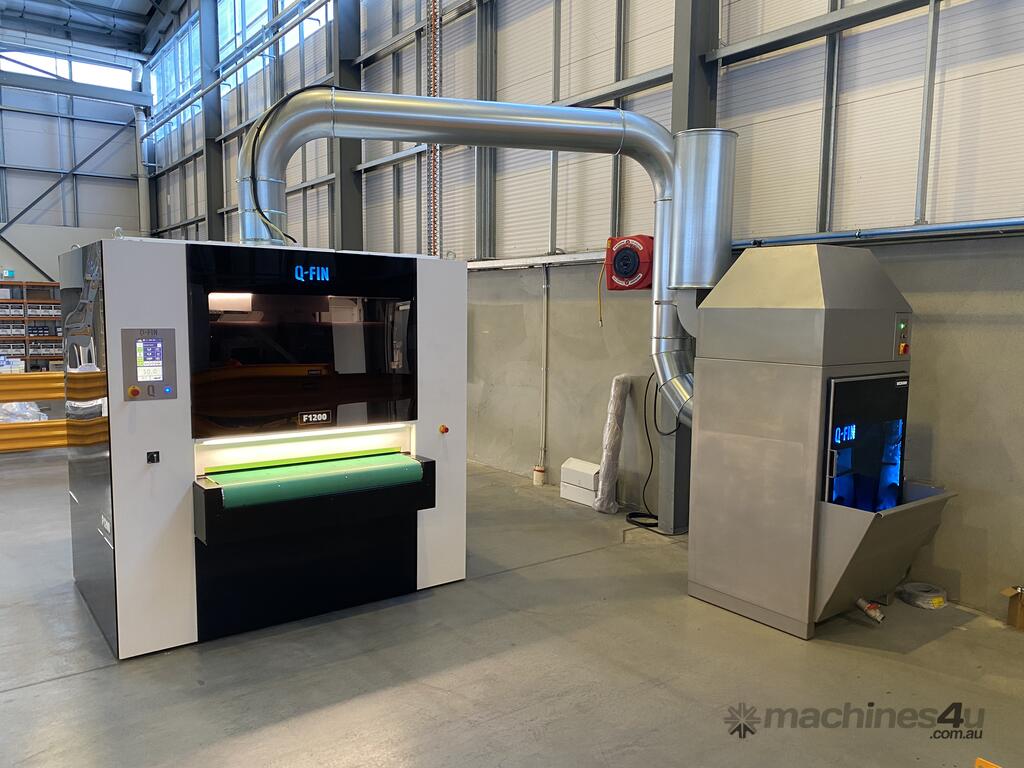

These systems are sold as a package with a wet extraction system and piping. They are turnkey solution with installation and training included.

For more information contact us.
