Q-Fin SER1200 - Deburring, Edge rounding and finishing

SER1200 | Super edge rounder finishing machine

The completely newly developed SER1200 Multibrush deburring and finishing machine has 4 operating stations and a total of 17 controllable motors. The HMI touch screen operates very intuitive. The screen allows you to choose different finishing programs easily. This ensures a high reproducibility of product quality and prevents setting errors by the operator. All processing stations are equipped with automatic height adjustment.

The first station consists of a grinding unit. The grinding belt of this aggregate removes burrs from the product surface. The second and third stations consist of the so-called brush unit, equipped with 4 crosswise rotating oscillating disc brushes. This allows you to remove the sharp edges of the product and round off the edges. The fourth station consist of a Multibrush unit. The unit has six round brushes with a maximum grinding surface. This station van apply a non-directional finish on the product and increase the radius to 2+ mm.

The SER1200 Multibrush is also available in the XL version, adding a fifth station to the machine. The fifth station consists of a second grinding unit. This makes it possible to use a finer grinding belt or scotch-brite belt to put a line finish on your product.

Features -
Complete machine with unique brush combination
Fully automatic adjustable stations
Combination of operations programmable
Intuitive, multilingual HMI touchscreen
Reproducible finish quality with adjustable programs
Automatic brush calibration and height adjustment of grinding unit
Qonnect+: Full ERP, handling & process integration

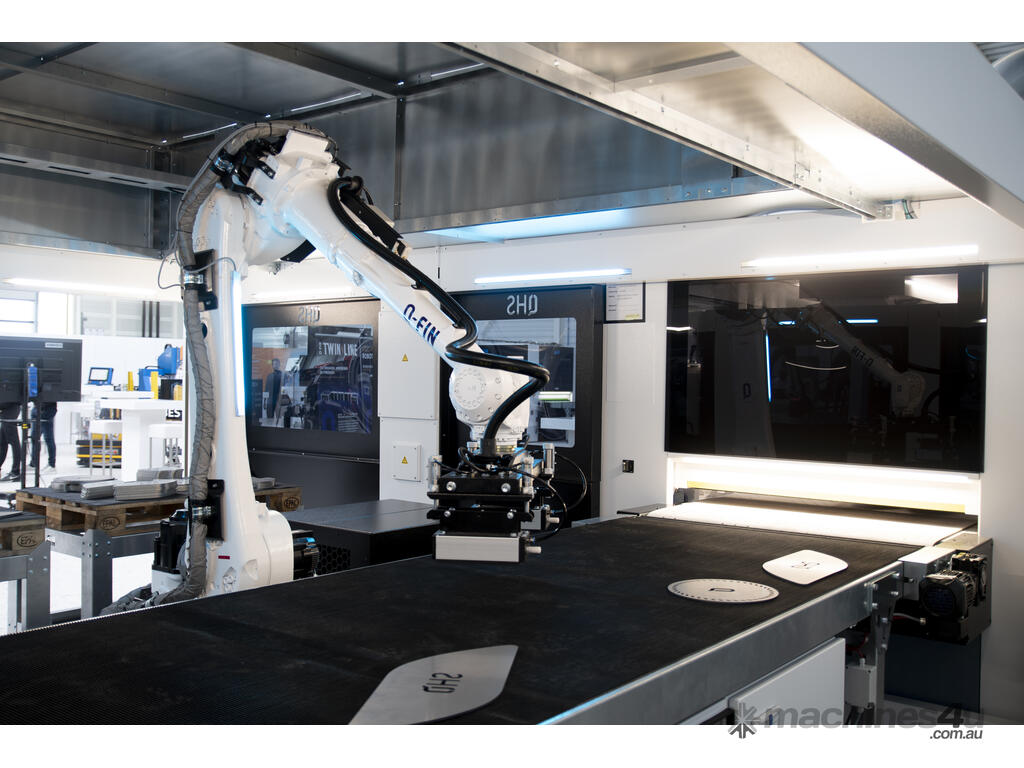

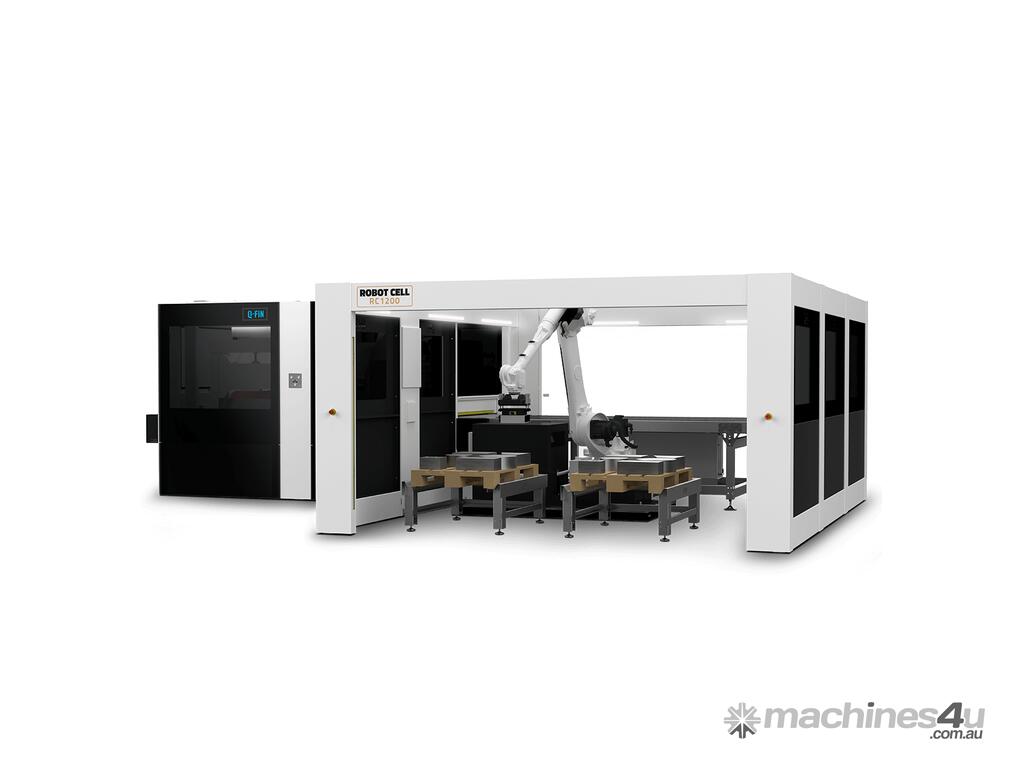

Automation and handling solutions are available.
These systems are sold as a package with a wet extraction system and piping. They are turnkey solution with installation and training included.

For more information contact us.
