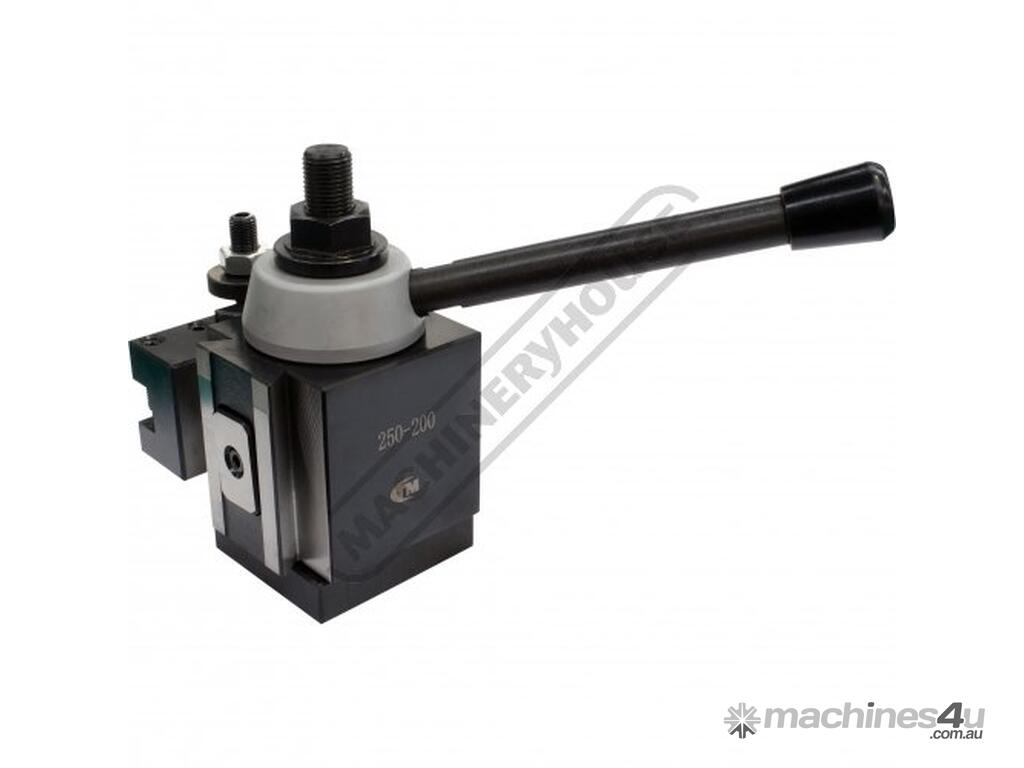

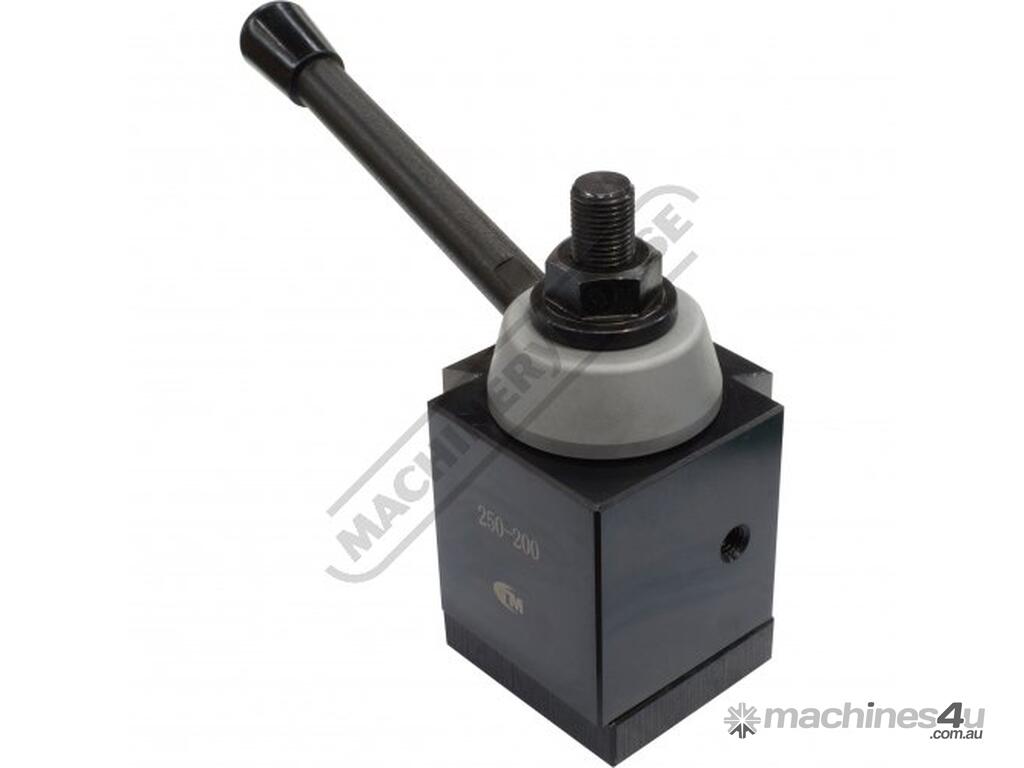

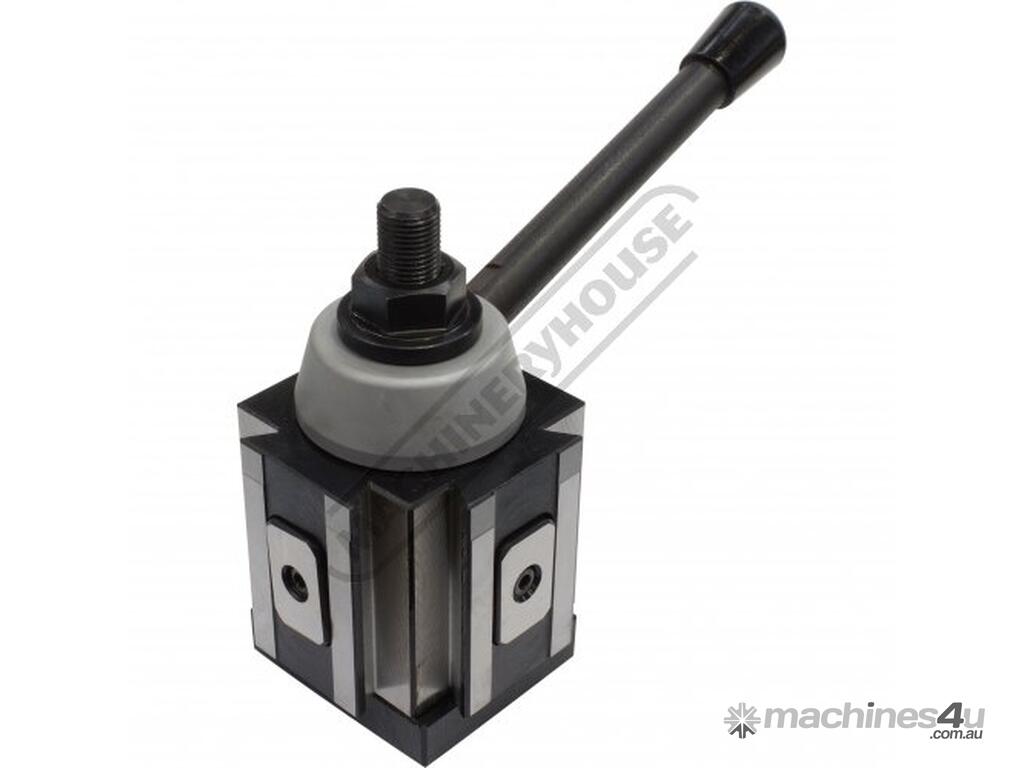

QA-140 Quick Change Toolpost 150 - 170mm Lathe Centre Height

HAFCO QA-140 Quick Change Toolpost 150 - 170mm Lathe Centre Height
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L292

Manufactured from carbonised and hardened steel.

Features:
All bearing surfaces are precision ground to ensure rigidity
Handy lathe accessory for tool rooms and general engineering shops
Ease of operation cuts set-up time by 90%
No shims are required to adjust tools to correct centre height
Easily fitted to most centre lathes
Please Note: Some machining required to suit your lathe

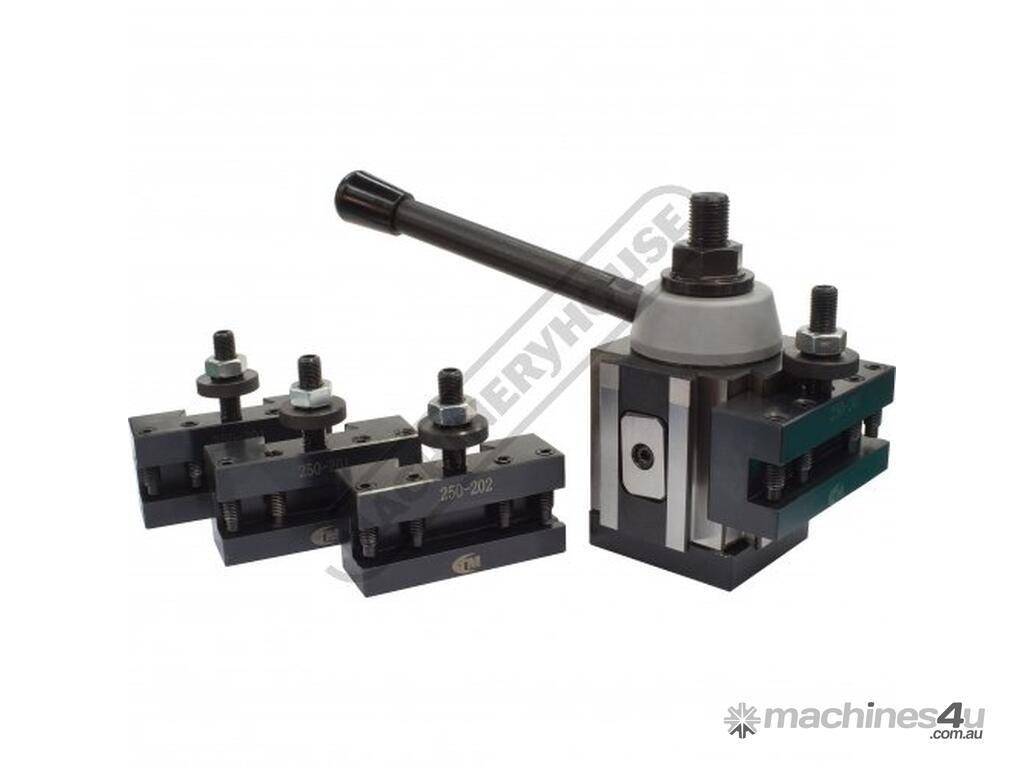

Includes:

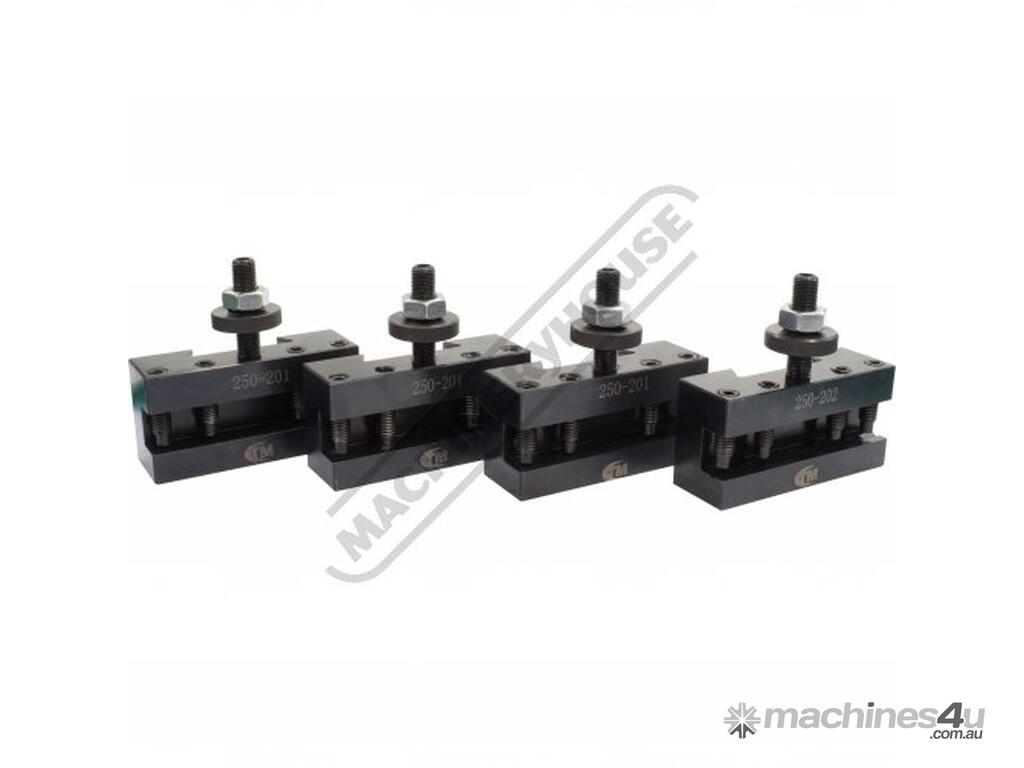

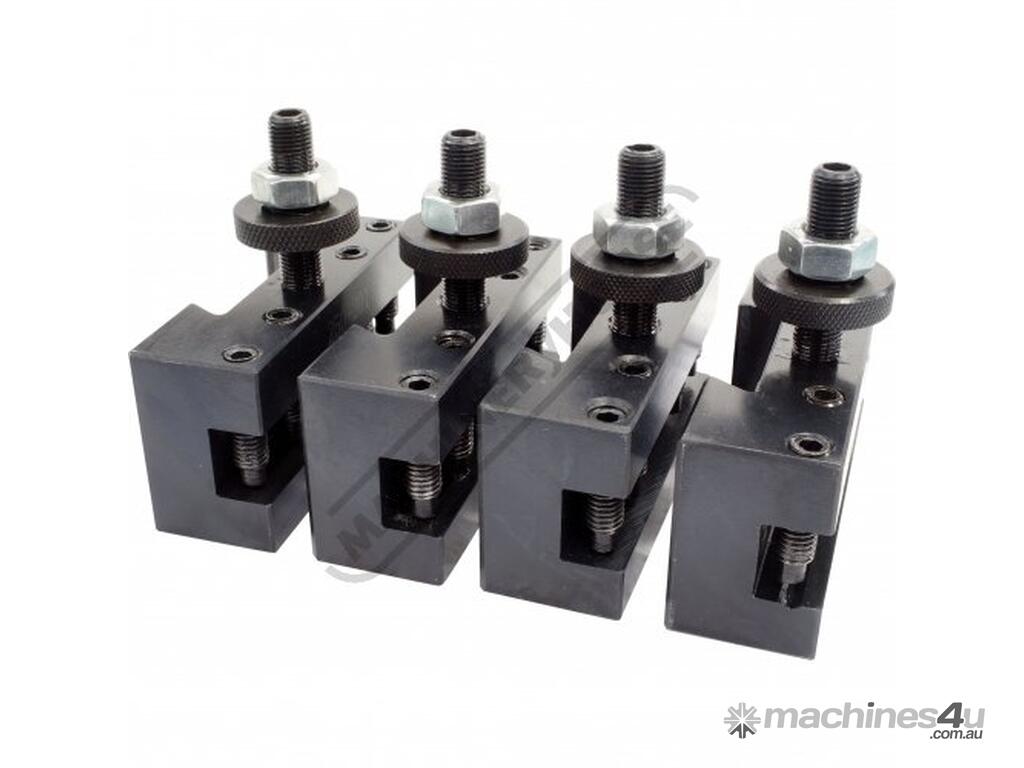

- 4 x Square Tool Holders - for 16mm tools



Specifications:
ORDER CODE: L292
MODEL: QA-140
Lathe Centre Height (mm): 150 - 170
Lathe Swing (mm): 300 - 340
A (mm): 25
B (mm): 12.65
C (mm): 61
D (mm): 72.6
E (mm): 41
H (mm): 28.65
h (mm): 69.85
S (mm): M16 x 1.5
T (mm): 16
Y (mm): 112
Number of Sides (No.): 2
Number of Holders (No.): 4
Nett Weight (kg): 6.2
