QCM-SRP1300 Wide Belt Sander

QCM-SRP1300 Wide Belt Sander
Solid Timber Wide Belt Sander 1300mm Wide

Sold for many years - Quality - Reliable and Great Value

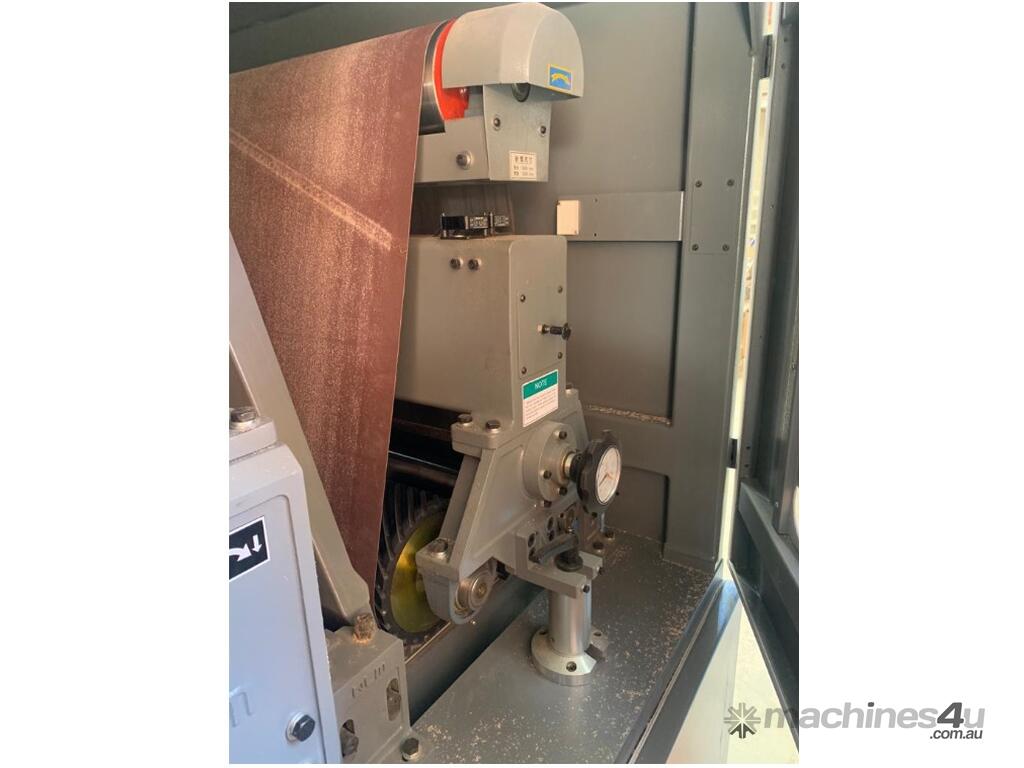

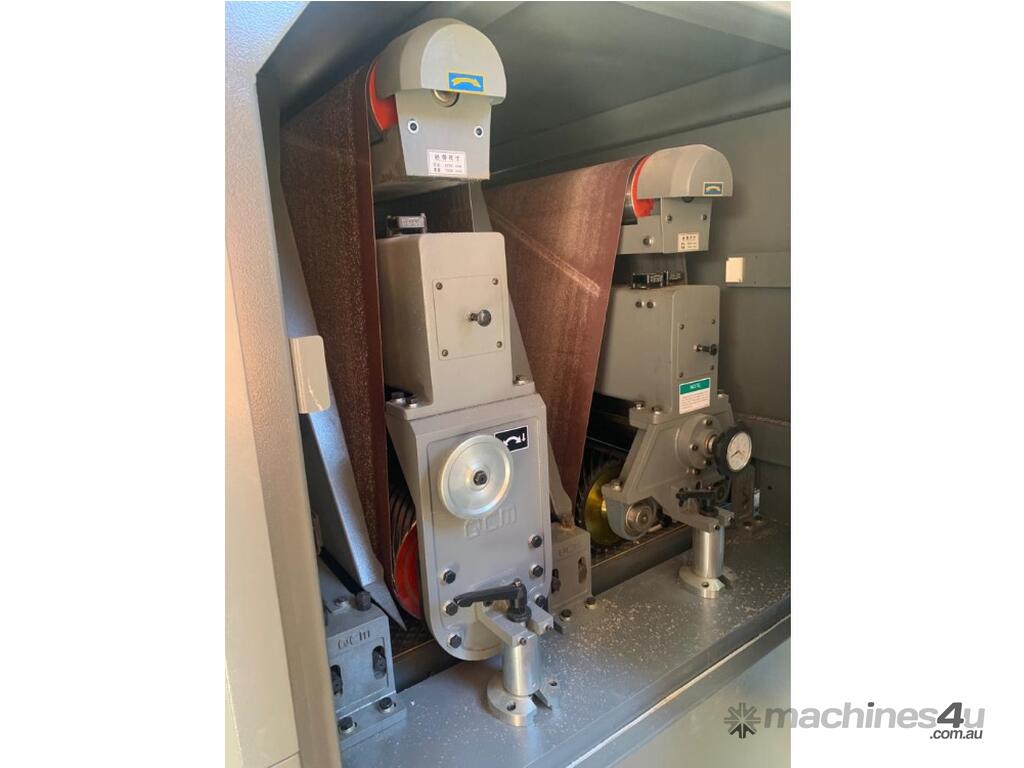

Set Up – Main First Drum Then Second Platen Sanding head. Solid and Quality built machine that has been tried and tested over many years

The machine’s abrasive roller beam support uses high-quality castings, heavy volume, and special processing and precision processing, which have stable performance and high accuracy.
The base of the machine tool is made of heavy channel steel and high-quality plates. The main motor is a fixed chassis structure.

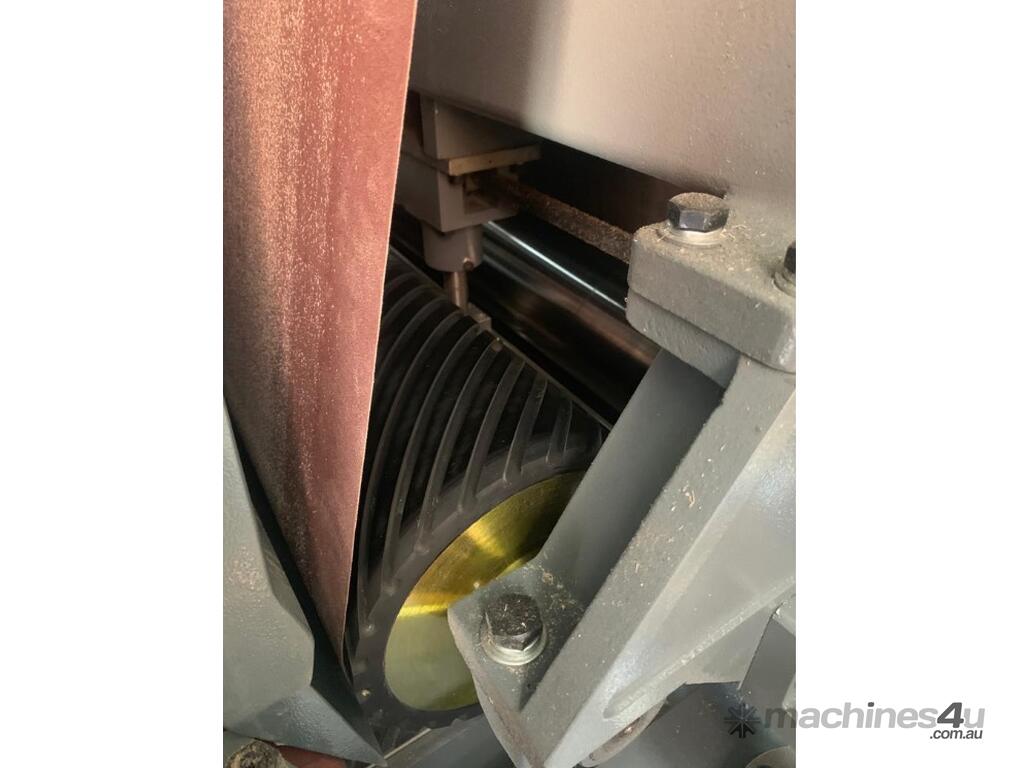

Sanding drum rolls use thick-walled large-diameter steel rolls.
After precision dynamic balance processing, they have strong cutting performance and stable performance.

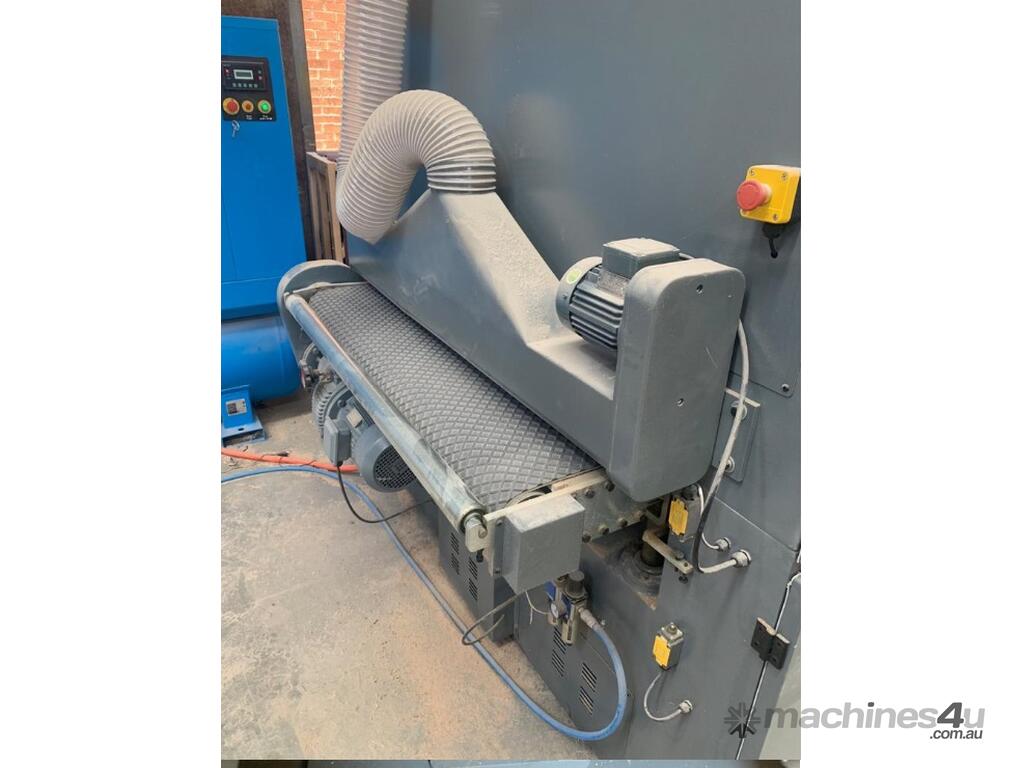

Fitted with a brush roller dust removal mechanism to remove dust on the surface of the workpiece.

ADDITIONAL INFORMATION
Parameter name Unit SRP1300A
Sanding width mm 50-1300
Sanding thickness mm 3-120
Shortest sanding length (fixed thickness) mm 300
Shortest sanding length (polished) mm 500
Coarse (front) roller speed m/s 19
Fine (rear) sand roll speed m/s 18
Conveyor speed m/min 6~30
Total machine power kW 57
Suction port diameter mm ?150*5
working pressure Mpa 0.55
Dust extraction air volume m3/h 9500
Vacuum speed m/s 25-30
Machine dimensions mm 2650*2080*2020
Machine weight kg 3500

Call for Demo Today
