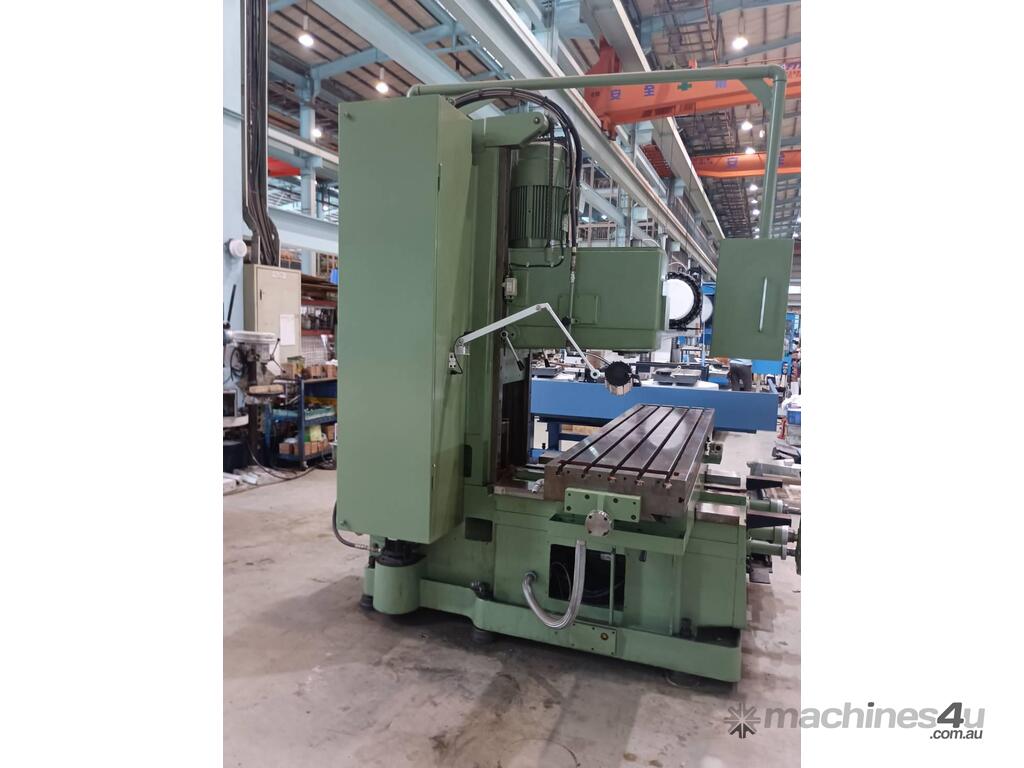

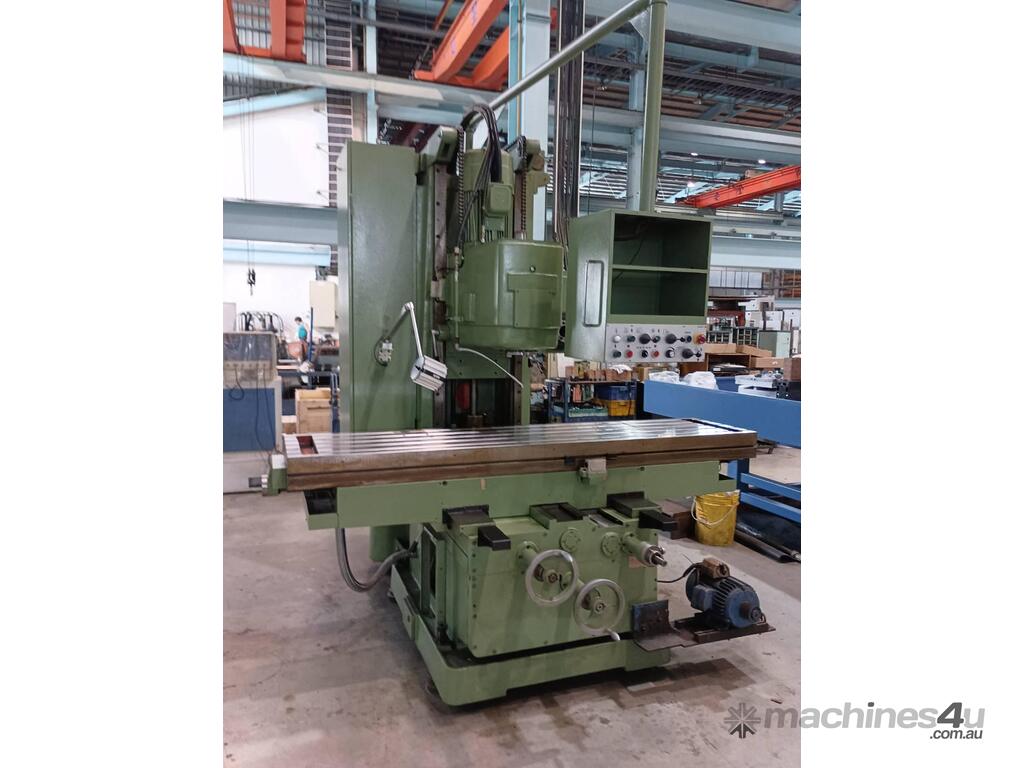

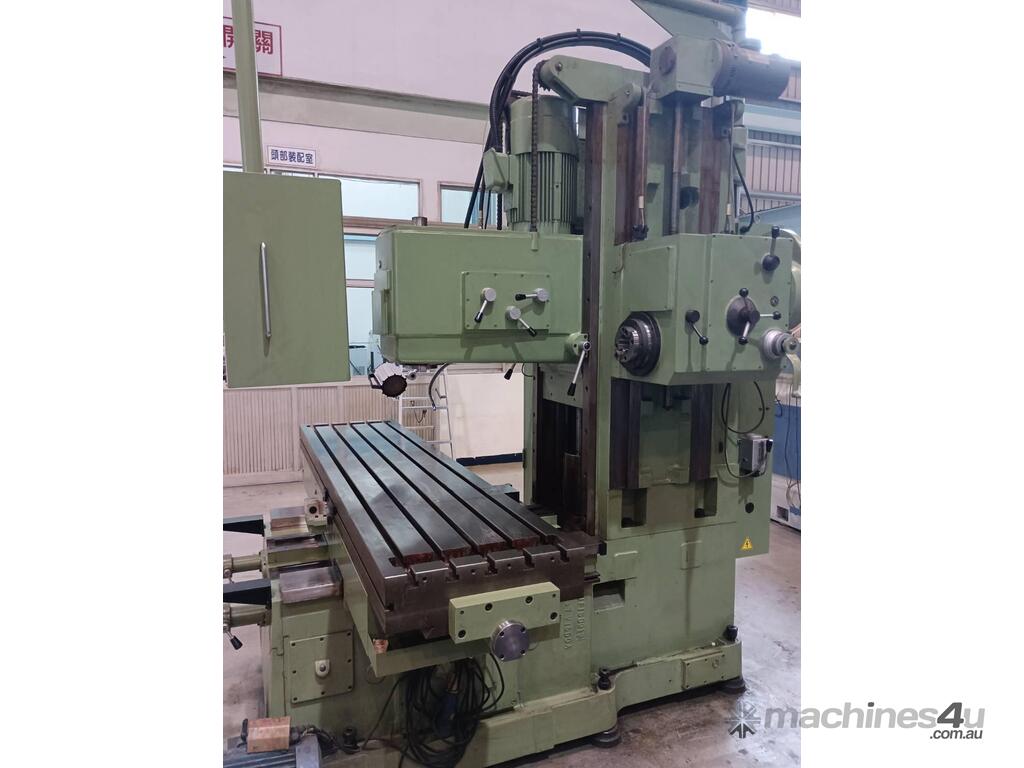

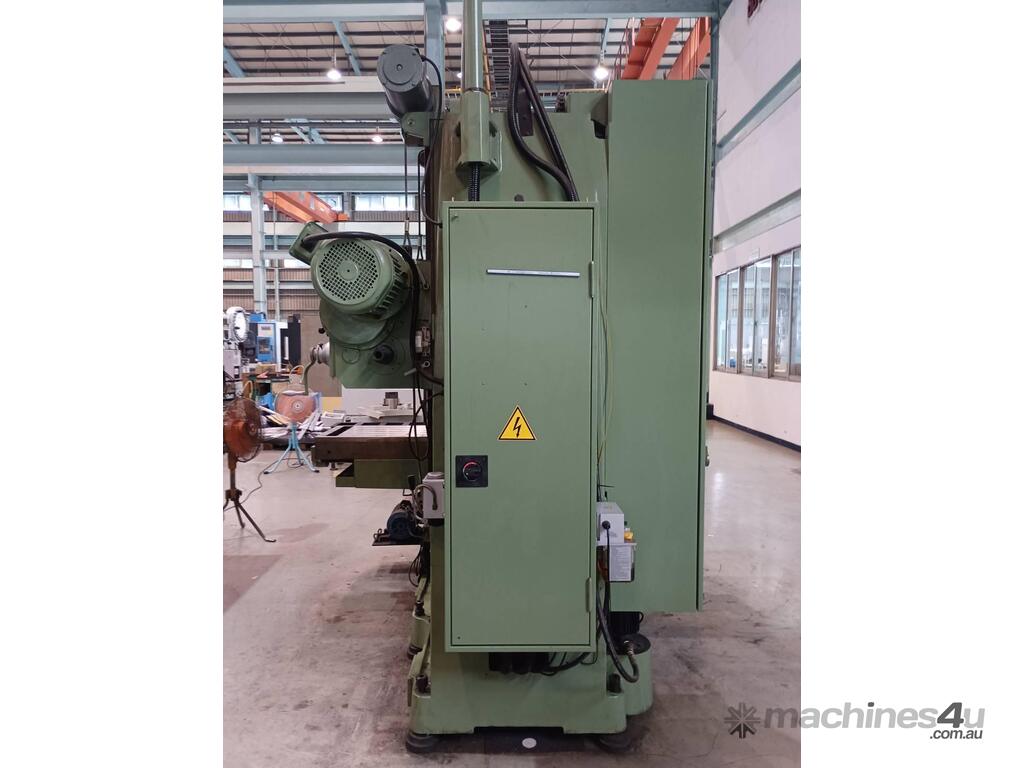

QUANTUM DL-V1600 Heavy Duty Vertical / Horizontal Bed Mill

CNC MACHINERY SALES AUSTRALIA PRESENTS - QUANTUM (Taiwan) DL-V1600 Heavy Duty Vertical / Horizontal Bed Mill.

TABLE
Working Surface 2200mm x 500mm
Longitudinal Travel 1600mm
Cross travel 600mm
T-Slots (Size x Number Distance) 18mm 5x95mm
Long & Cross feed; (12 steps) 10 - 1520mm/min
Long & Cross rapid traverse 3000 mm/min

MAIN SPINDLE
Headstock Travel 120mm
Headstock feeds (12 steps) 5-760mm/min
Headstock rapid traverse !500 mm/min
Spindle speeds (12 steps) 60- 1720 rpm
Taper of spindle NST 50
Distance of spindle to table top 80-800mm
Distance of spindle center to column surface 600mm

HORIZONTAL MAIN SPINDLE
Headstock travel 530mm
Quill travel 80mm
Spindle speeds (8 steps) 110-840rpm
Taper of spindle NST 50
Quill diameter 180mm
Headstock feeds 7-550mm/min
Distance of spindle center to table -10 - 520mm
Distance between vertical and horizontal spindles 530mm

MOTOR
Vertical Main spindle motor 15hp 4P
Horizontal main spindle motor 7.5hp 4P
Table feed motor 2hp 4P

Machine max height 2750mm
Floor space 4640mm x 2340mm

STANDARD ACCESSORY
1. COOLANT SYSTEM
2. TOOLS
3. MANUAL
4. DRAW BAR X 1PC

Delivery and ongoing support Australia wide.

Since 1989, CNC Machinery Sales Australia's commitment has extended beyond the sale. We prioritize seamless service and support to all of our clients, large and small. Our in-house service engineers and network of industry professionals ensure swift response to any machine issue at any location across Australia.

Go to the CNC Machinery Sales showroom on Machines4u to see the rest of our range, send us a message about the product you are interested in, or give CNC Machinery Sales a call, we are happy to answer any of your questions and provide professional advice.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
