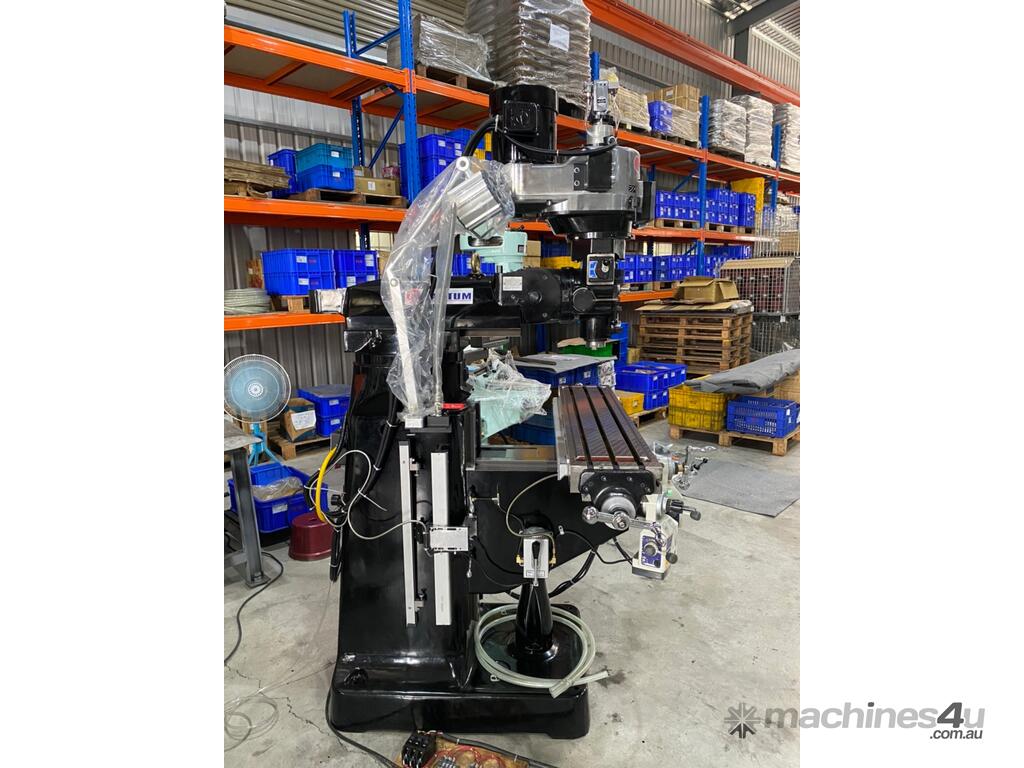

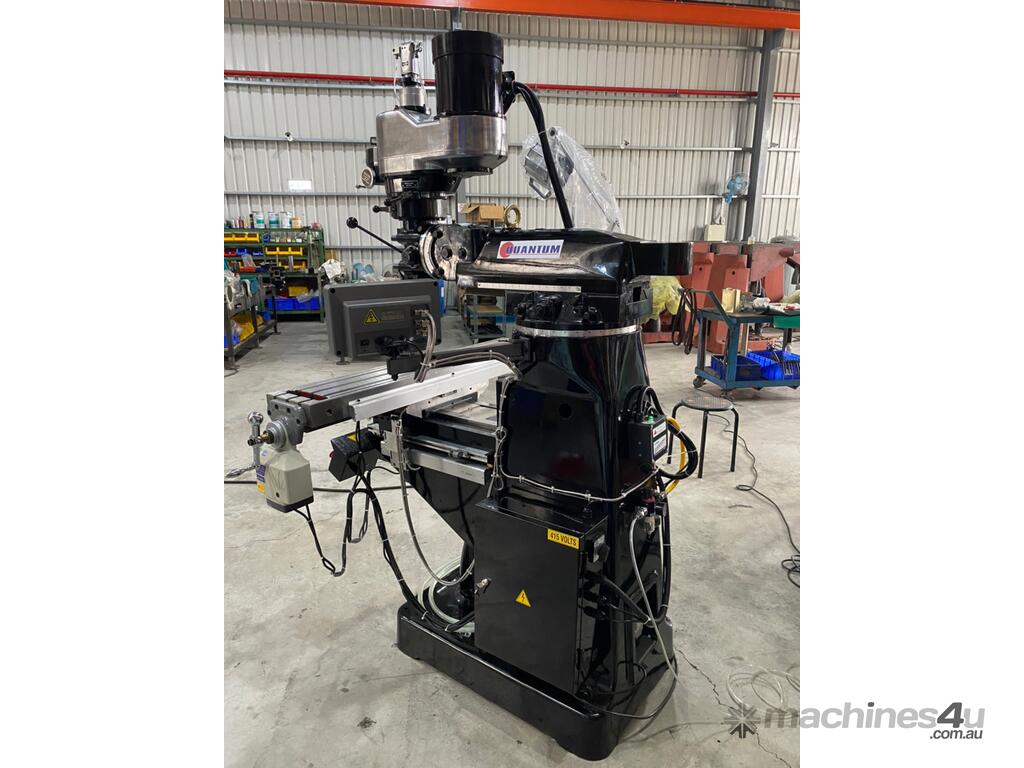

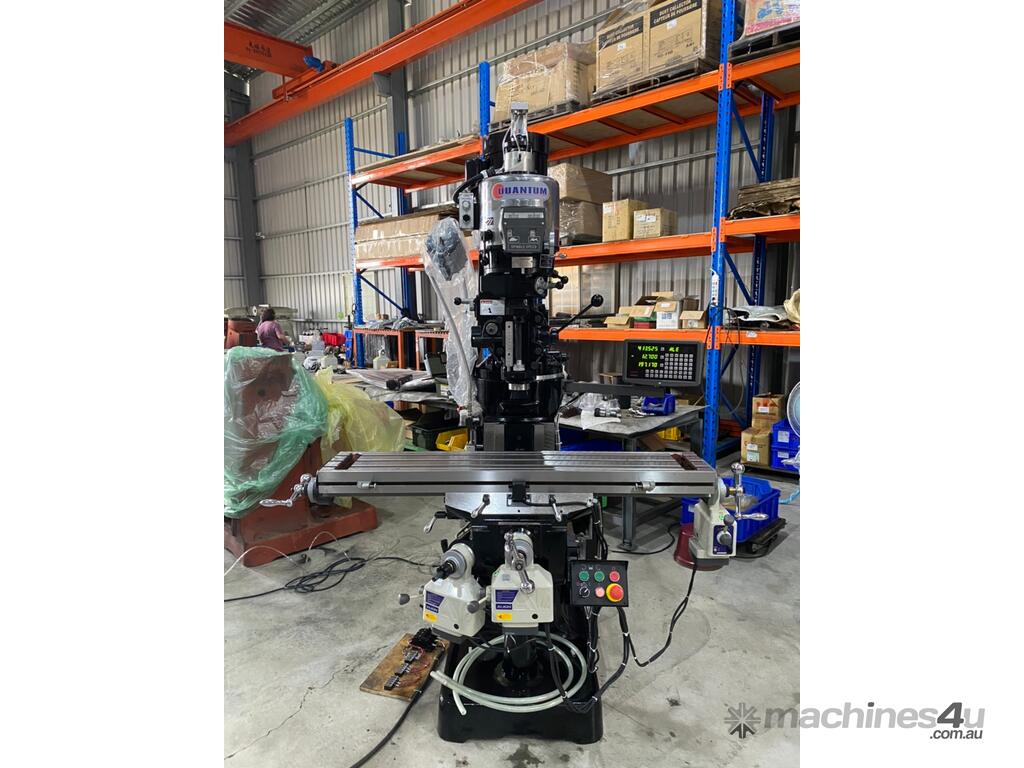

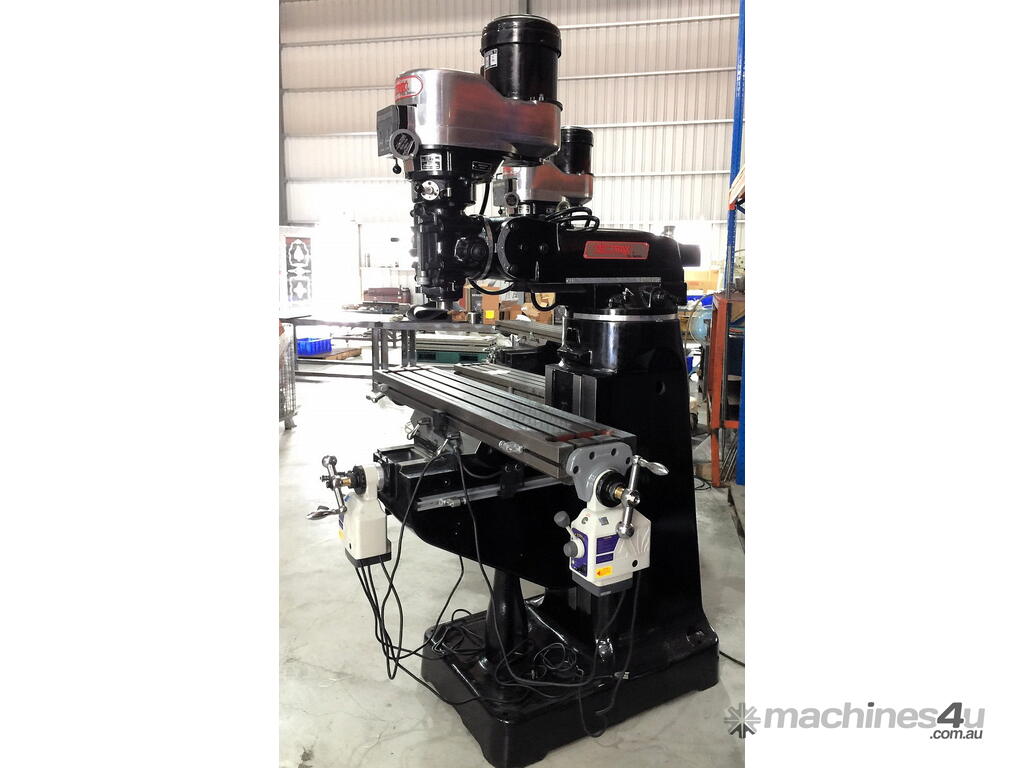

QUANTUM F-2J Taiwanese Turret Milling Machine

CNC MACHINERY SALES AUSTRALIA PRESENTS - Built in Taiwan to exacting standards and offering the best usable specifications and features.

TABLE SIZE 9`` X 48`` (229 X 1219MM)
T-SLOTS 5/8`` X 3 X 2-1/2``
TABLE TRAVEL X-AXIS 31`` (787.4MM)
SADDLE TRAVEL Y-AXIS 12`` (305MM)
KNEE TRAVEL Z-AXIS 14-1/4`` (361.95MM)
RAM TRAVEL 13`` (330.2MM)

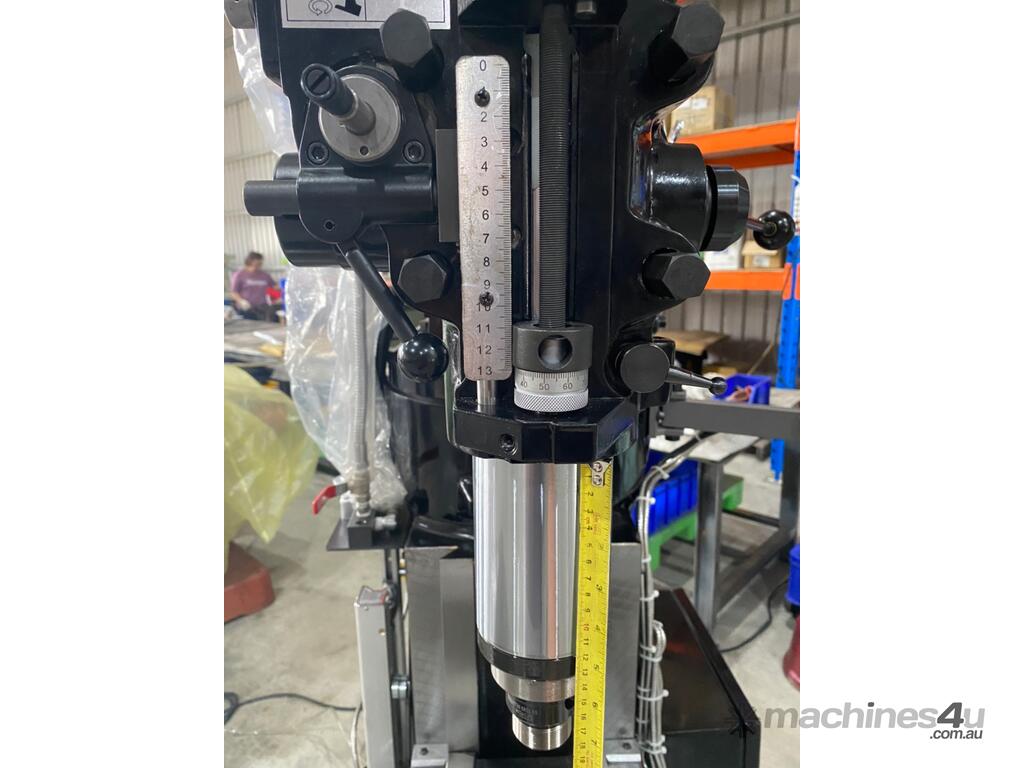

QUILL TRAVEL 5`` (127MM)

SPINDLE DIAMETER 1-7/8`` (48MM)
VARIABLE SPEED RANGE 60~4200RPM
SPINDLE MOTOR 3PH
QUILL DIAMETER 5-1/4`` (133.35MM)
THROAT DISTANCE 6``~17`` (161.9MM~492.1MM)
TABLE TO SPINDLE NOSE GAGE LINE 4``~18-1/4`` (101.6MM~463.5MM)
CONTROLLED DOWNFEED RANGE 0.0015`` (0.038MM)
MANUAL ADJUSTMENT 0.03``~0.06`` (0.76~1.52MM)
MACHINE HEIGHT 83`` (2100MM)
FLOOR AREA 98.5`` X 63`` (2500 X 1600MM)
NET WEIGHT 1000 KGS

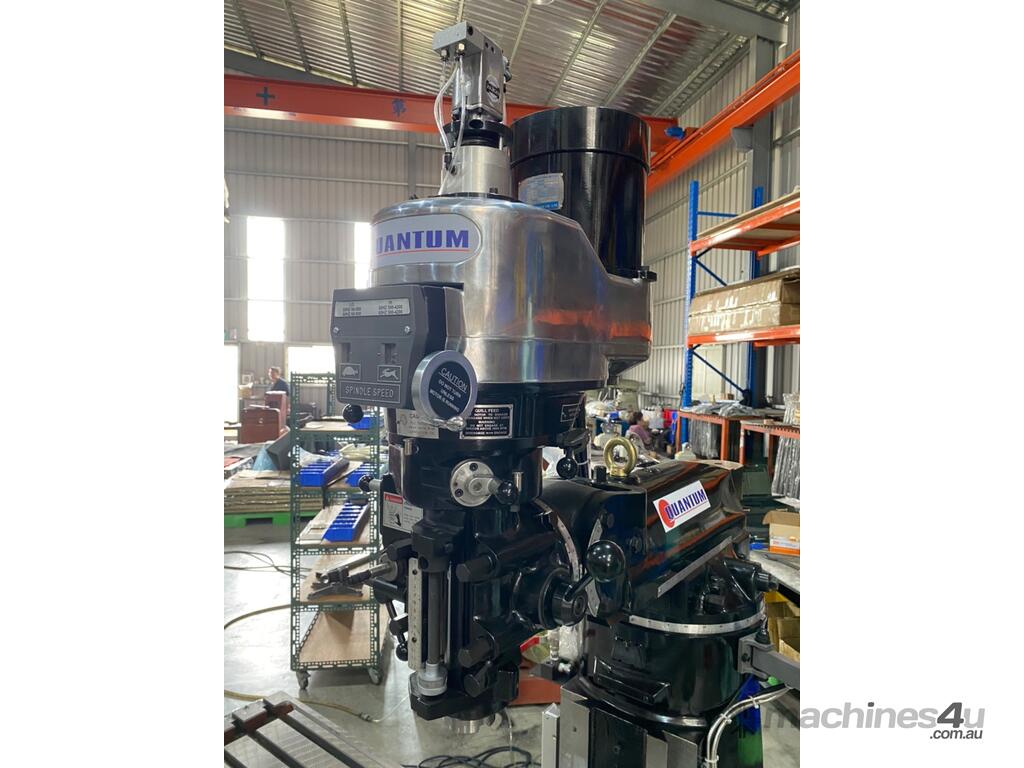

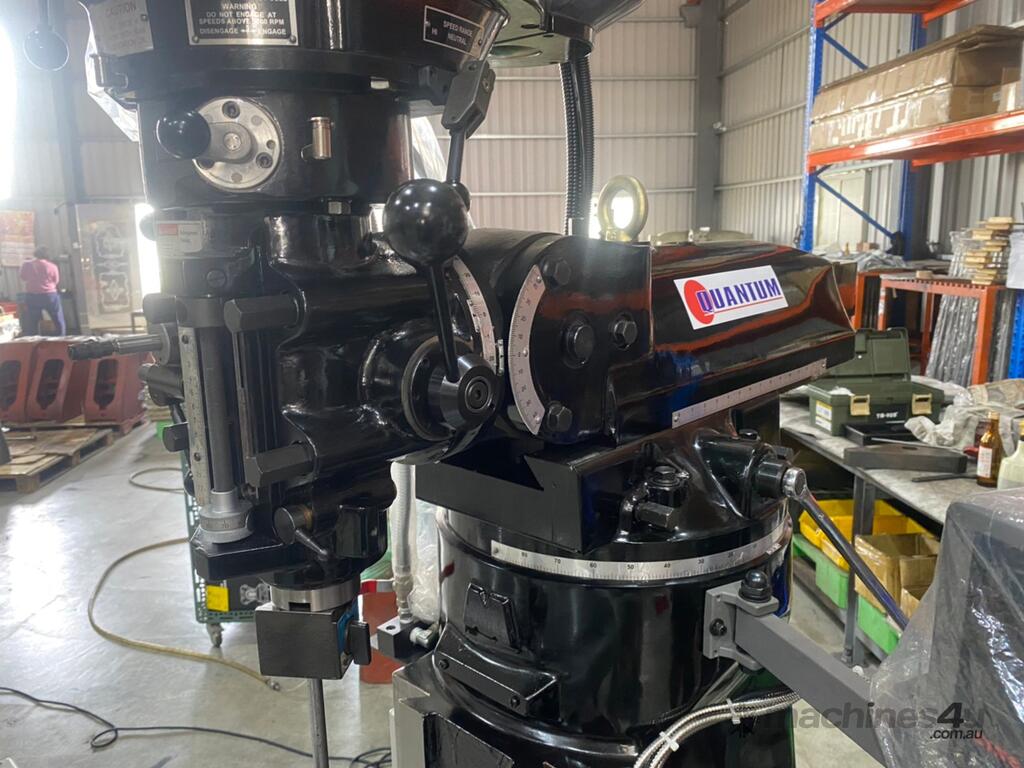

3HP VARIABLE-DRIVE HEAD
DOUBLE SADDLE LOCKS THAT PROVIDE
RIGIDITY.

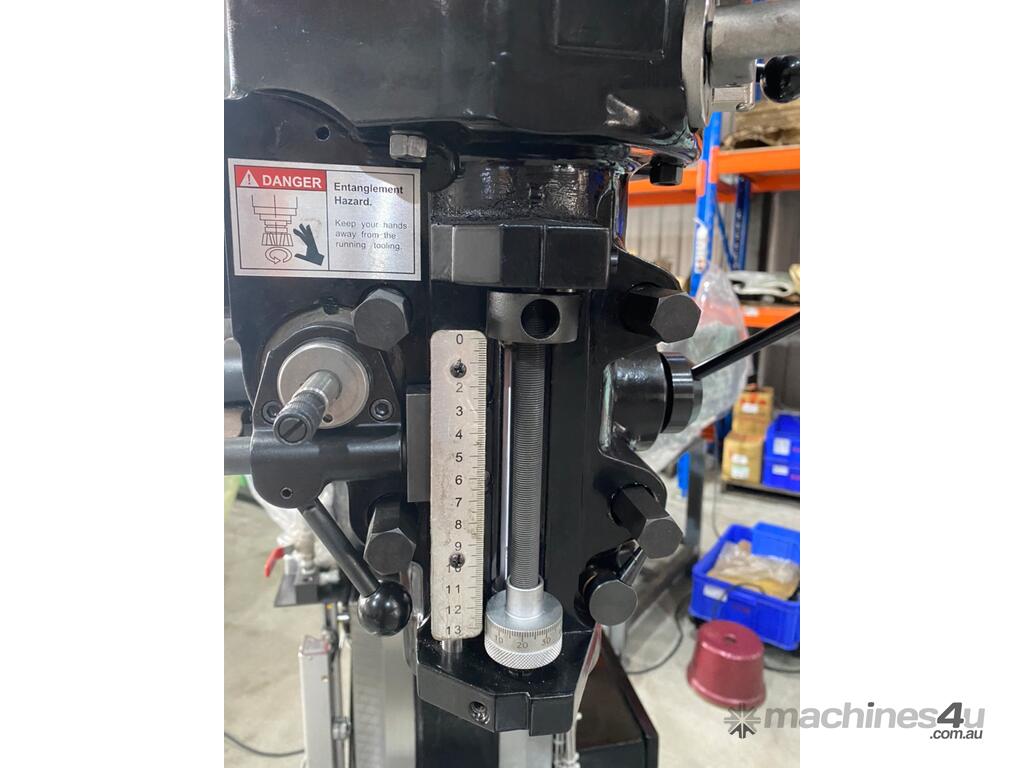

CHROMED QUILL-HONED HEAD.
ADJUSTABLE GIBS

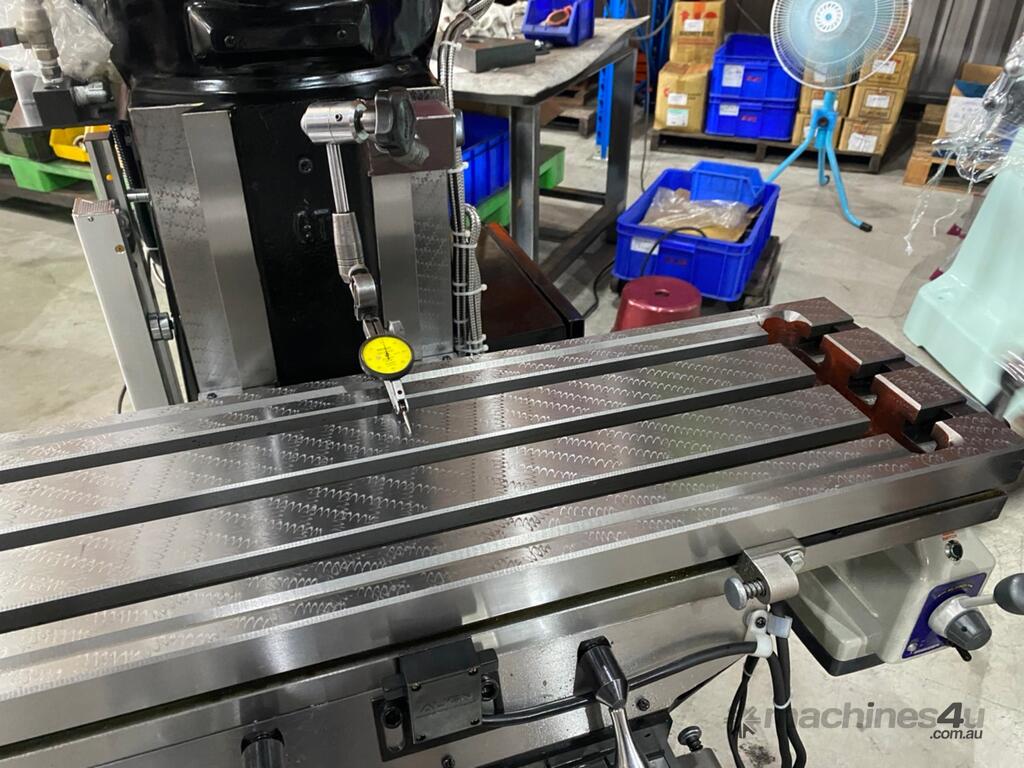

THE PRECISION GROUND, HEADY DUTY
TABLE WITH RIBS AND T-SLOTS.
CHROMED VARIABLE DISCS.
DIAL INDICATOR.

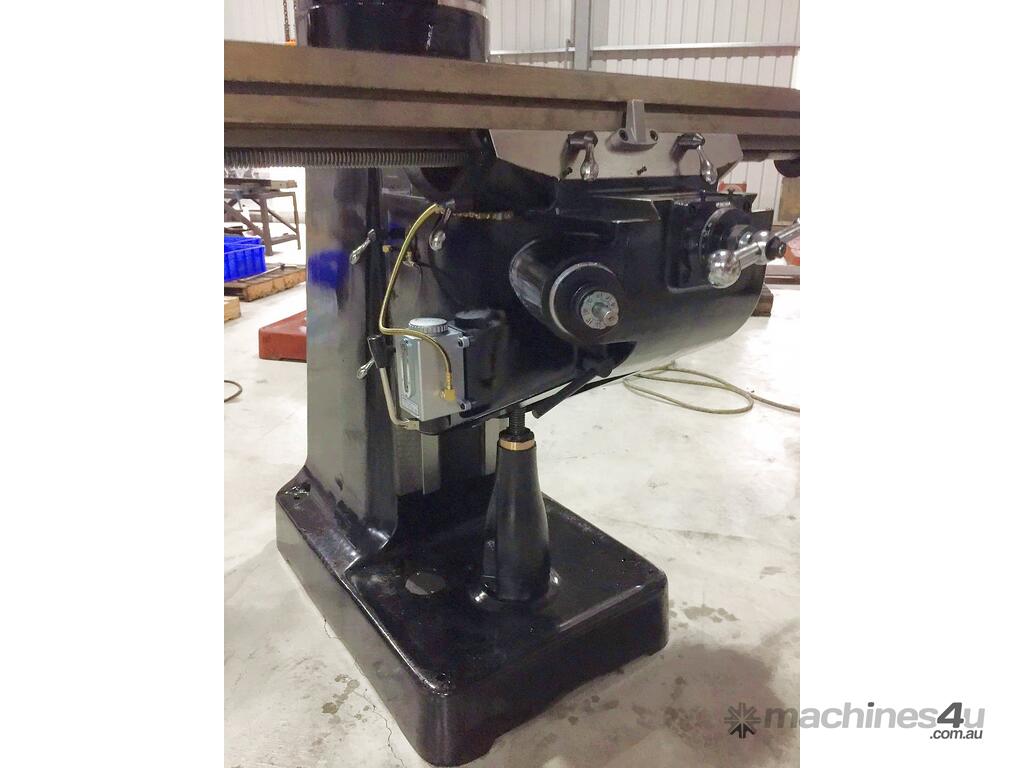

ONE PIECE COLUMN AND BASE WITH
EXTRA RIBS AND WEBS.
ONE SHOT LUBRICATION SYSTEM.

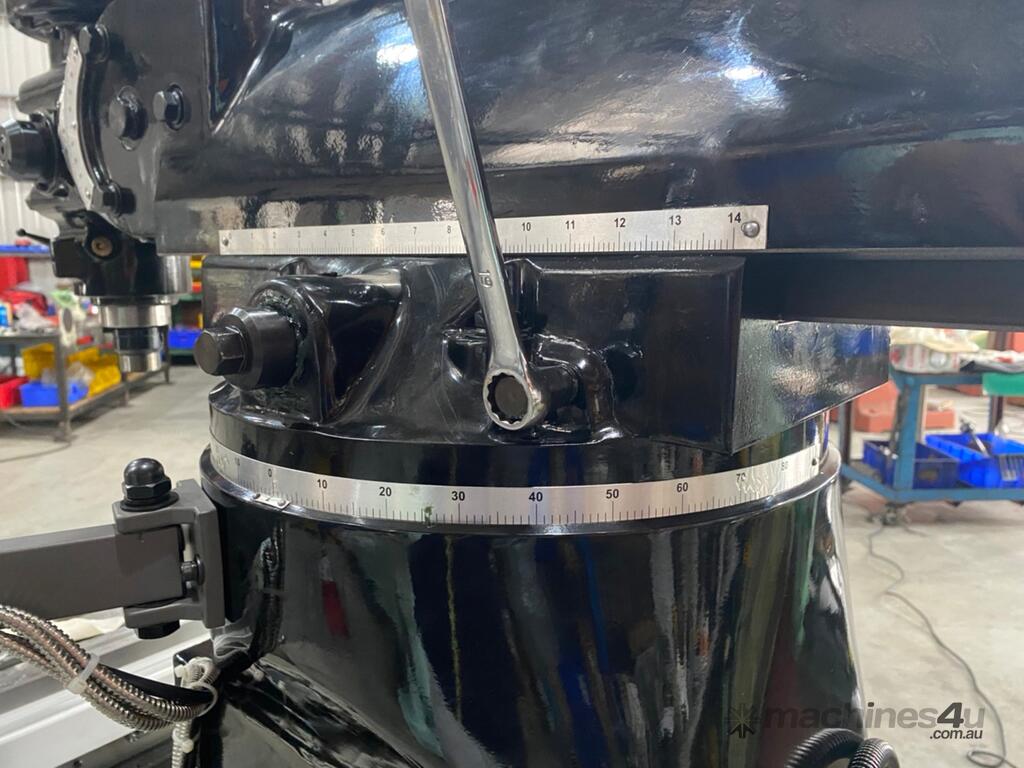

RAM AND TURRET GROUND DOVETAIL
WAYS ARE FITTED PERFECTLY FOR LESS
VIBRATION, ALONG WITH RAM LOCKS
DESIGNED FOR HEAVY CUTTING.
HAND SCRAPED TAPER AND HAND-FITTED
GIBS TO ENSURE EXTREME LONG LIFE &
ACCURACY
C70 HARDENED CHROME PLATED SADDLE
WAYS AND GIBS FOR LONG LIFE & ACCURACY

Delivery and ongoing support Australia wide.

Since 1989, CNC Machinery Sales Australia's commitment has extended beyond the sale. We prioritize seamless service and support to all of our clients, large and small. Our in-house service engineers and network of industry professionals ensure swift response to any machine issue at any location across Australia.

Go to the CNC Machinery Sales showroom on Machines4u to see the rest of our range, send us a message about the product you are interested in, or give CNC Machinery Sales a call, we are happy to answer any of your questions and provide professional advice.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
