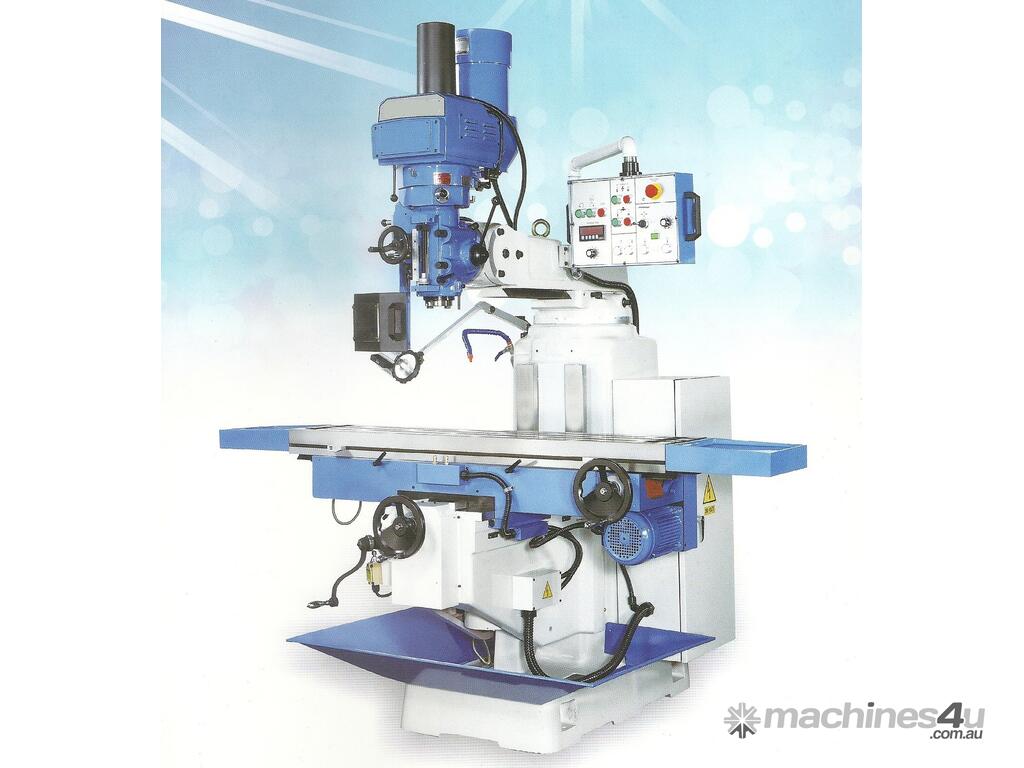

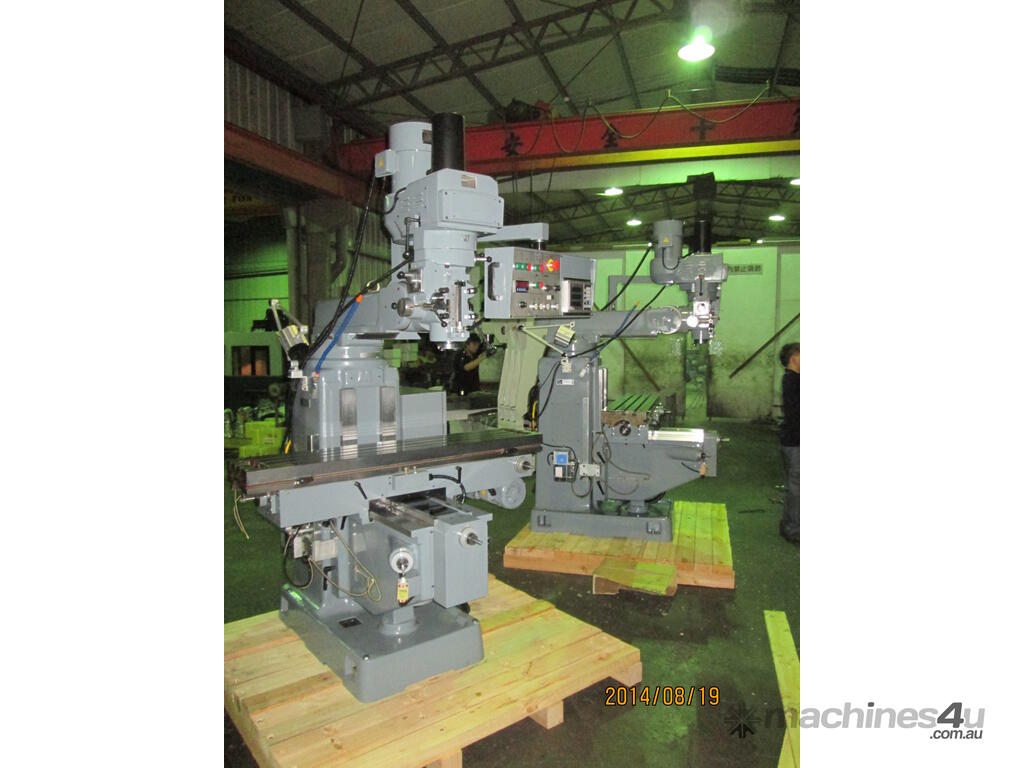

QUANTUM FVTM-S4AL milling machine with Inverter Drive & h/duty 305mm x 1500mm Table

CNC MACHINERY SALES AUSTRALIA PRESENTS - Specifications:
Table overall 1500mm x 305mm
T-slots 3 slots. 16*71mm
Longitudinal X axis 1000mm
Cross Y axis 374 (auto) / 397mm (manual)
Vertical Z axis 403mm
Quill travel 125mm or 150mm
Quill diameter 105mm
Ram travel 500mm
Spindle taper NT#40
Spindle speed (inverter) variable 70~4200rpm
Automatic spindle feeds 3 steps, 0.04, 0.08, 0.13mm
Distance from spindle to column 265-750mm
Distance from spindle to table 85-470mm
Swivel head left/right 90 degree
Tilting head front/back 35 degree
Spindle motor with inverter 5HP
Z axis rapid up/down motor 1/2HP
Coolant pump 1/8HP
X/Y axis motors 1/2HP, 12P
X/Y axis inverter 2HP
Spindle motor 5HP & Yaskawa (Japan) inverter
X & Y axis 2HP Yaskawa (Japan) inverter

Features:
Auto Lubricator

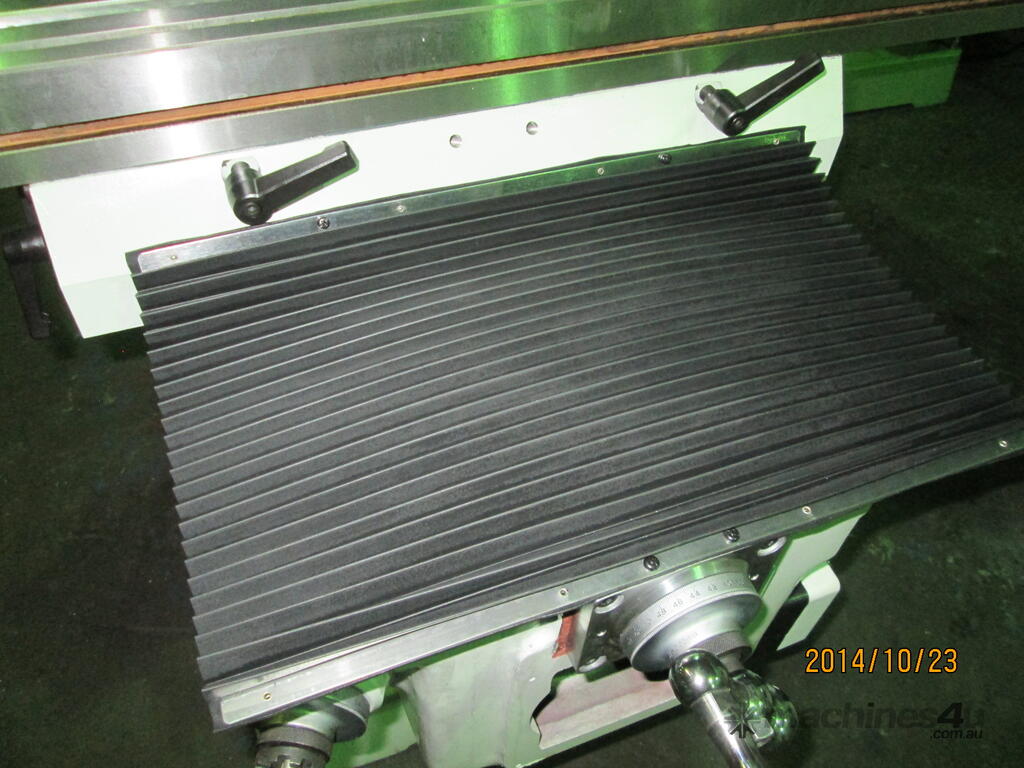

Coolant System & chip cover
Halogen lamp
Electric box installed with overarm control panel
CE electric & spindle cover

Optional Sino or Fagor Digital Read Outs, Power draw bar etc.

Delivery and ongoing support Australia wide and to our International clients.

Please call for more information.



Since 1989, CNC Machinery Sales Australia's commitment has extended beyond the sale. We prioritize seamless service and support to all of our clients, large and small. Our in-house service engineers and network of industry professionals ensure swift response to any machine issue at any location across Australia.

Go to the CNC Machinery Sales showroom on Machines4u to see the rest of our range, send us a message about the product you are interested in, or give CNC Machinery Sales a call, we are happy to answer any of your questions and provide professional advice

* CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
