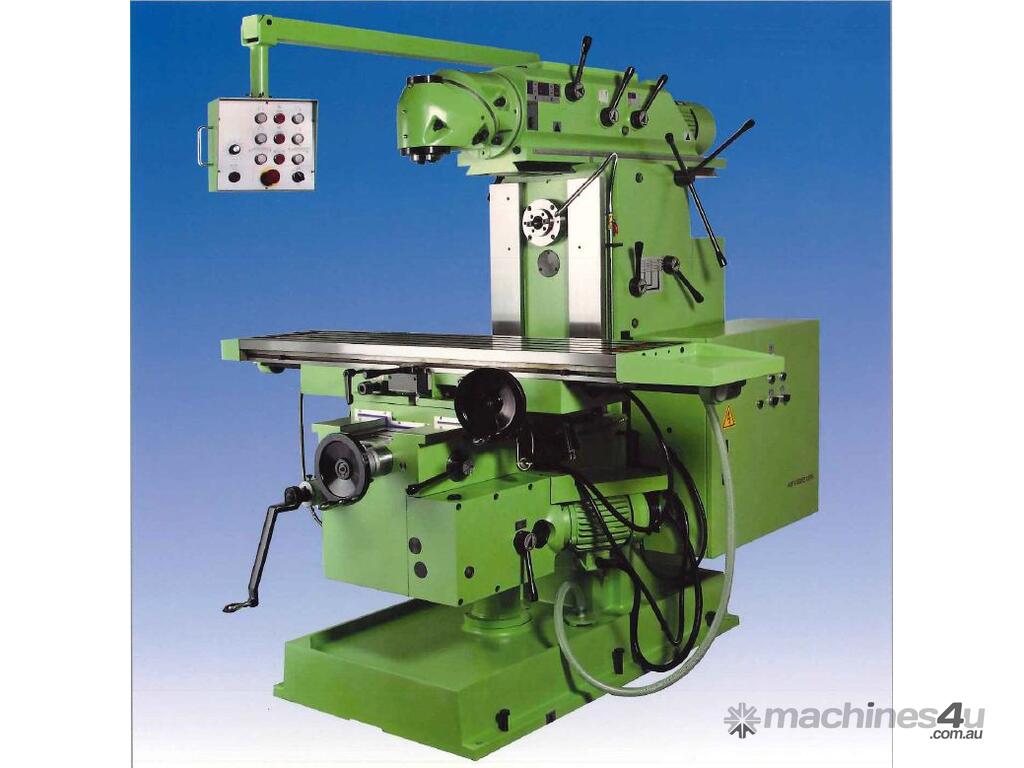

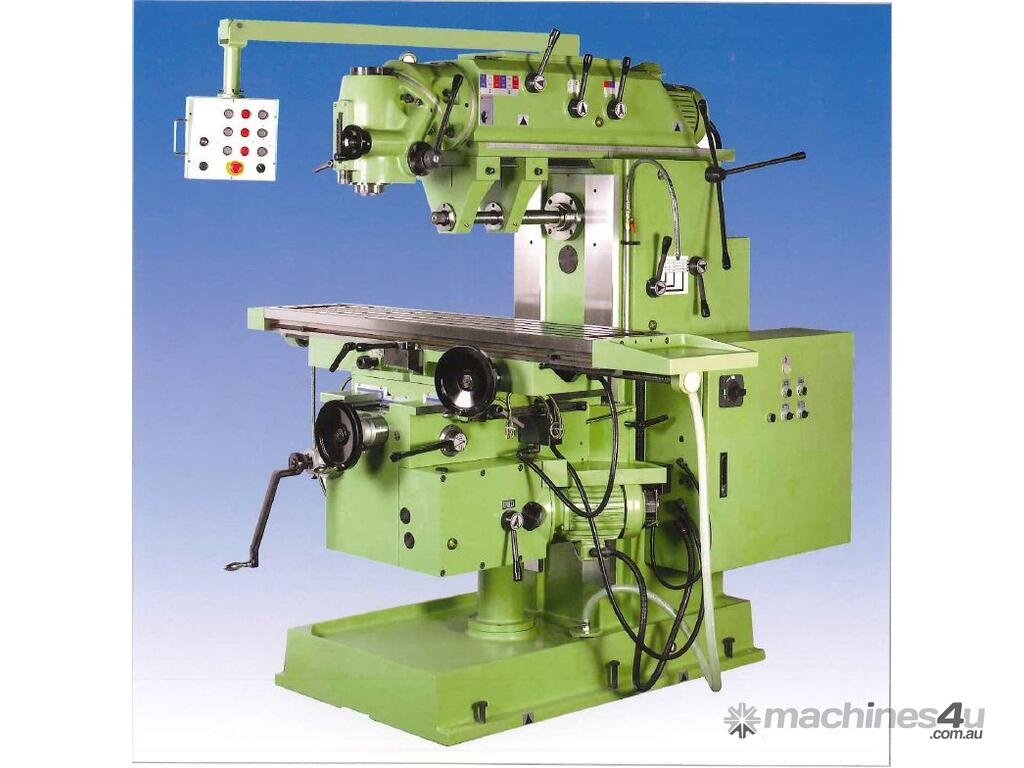

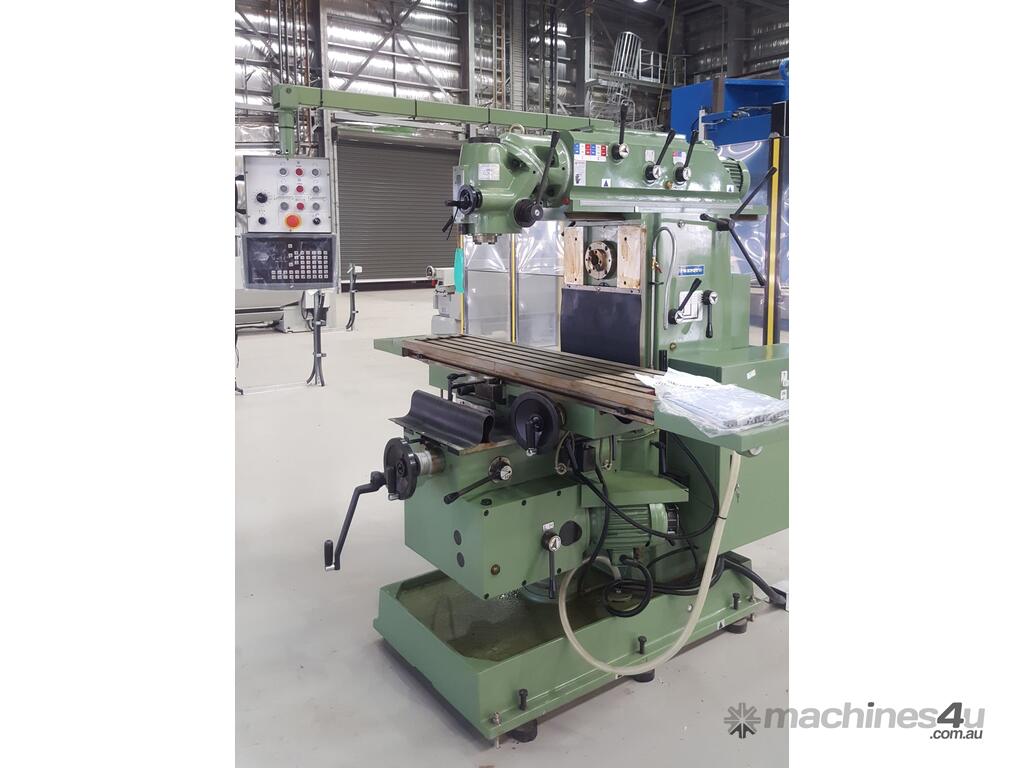

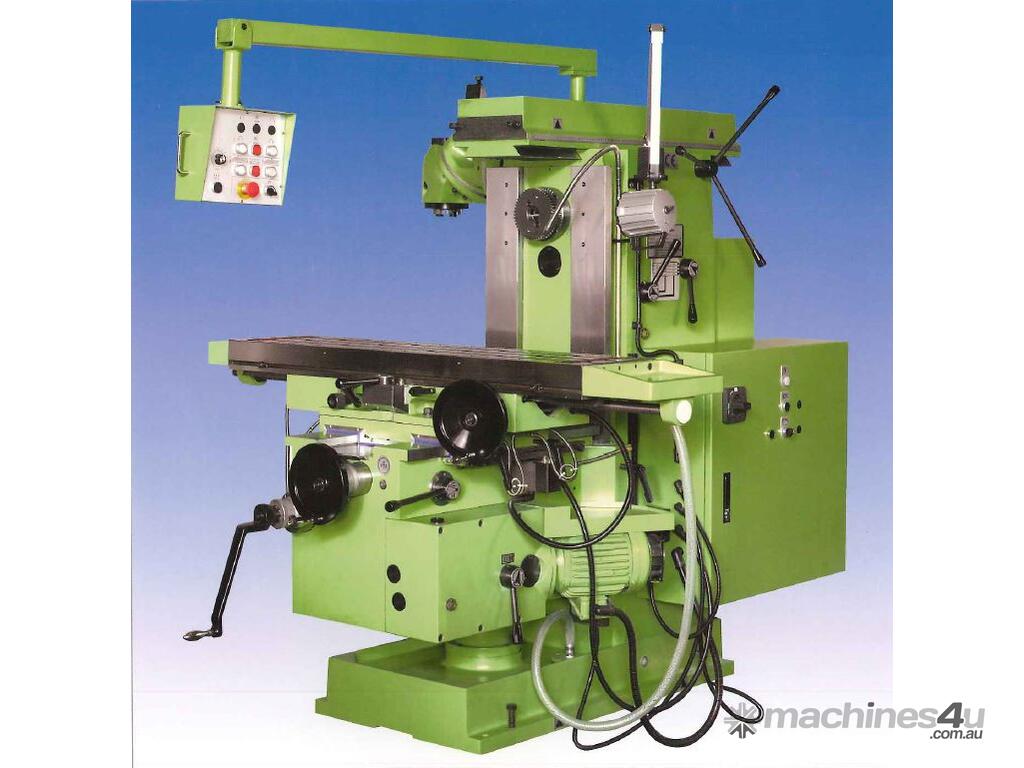

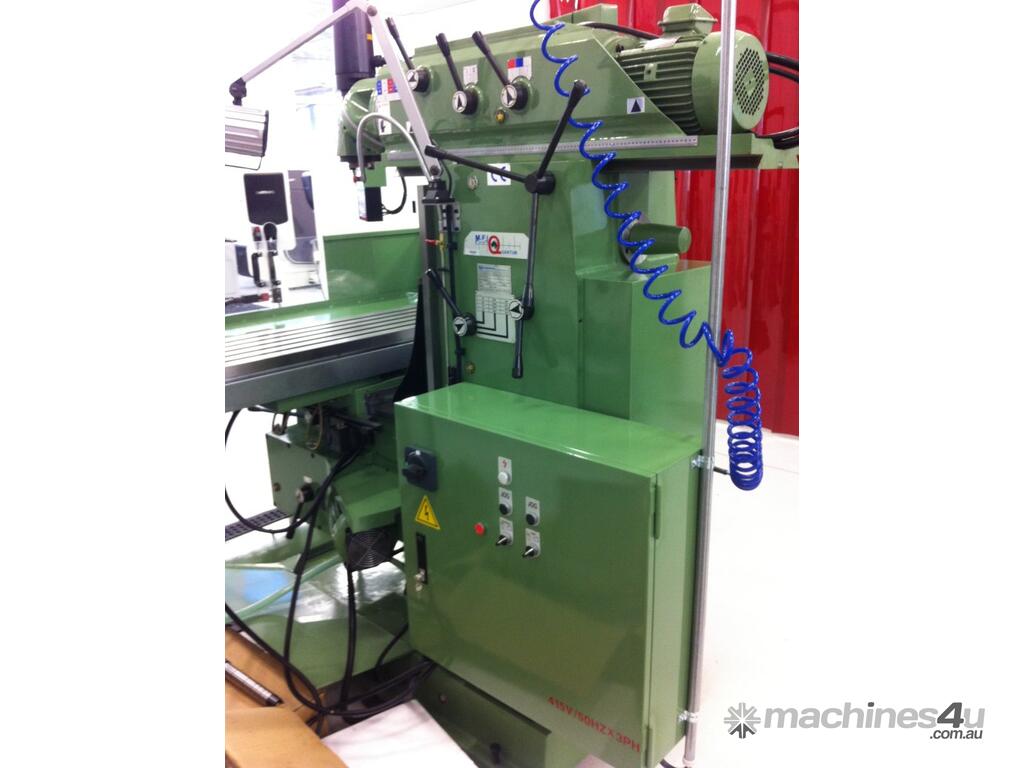

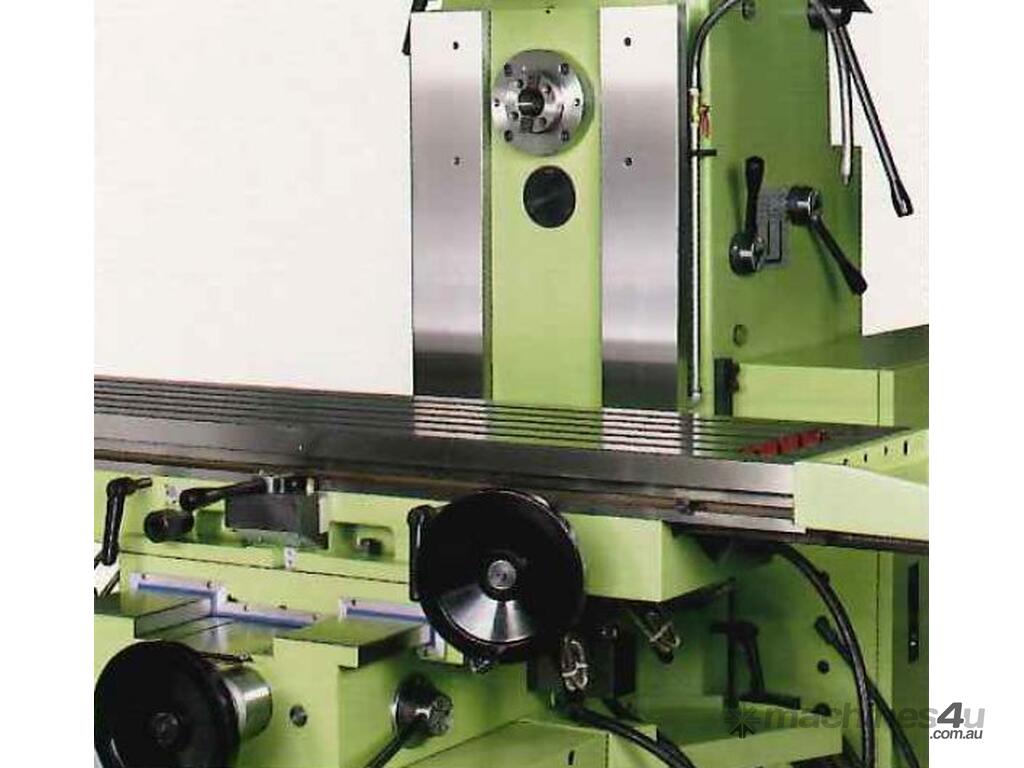

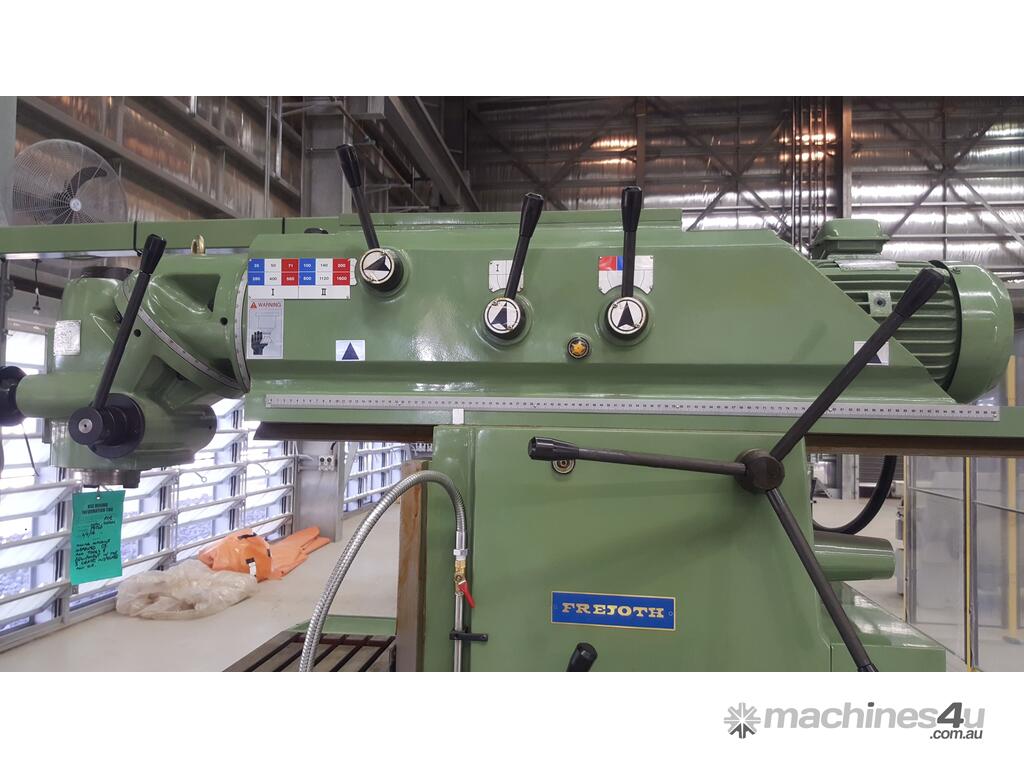

CNC MACHINERY SALES AUSTRALIA PRESENTS - QUANTUM Taiwanese Heavy Duty Universal Milling Machines are available in five configurations with ISO 40 or ISO 50 spindle tapers.
TABLE
Table area 1500mm x 350mm (optional 1850mm x 350mm)
TRAVERSE
Automatic longitudinal travel 1150mm (opt. 1480mm)
Automatic cross travel 400mm
Automatic vertical travel 500mm
Available distance from spindle to overarm 155mm
SPINDLE (HORIZONTAL)
Housing of the taper spindle ISO#40 or ISO#50
Diameter of the main shaft nose 88.88-128.57mm
Milling arbor diameter 27mm
Number of speeds of spindle 50HZ 40-1800rpm (12 steps)
FEEDS
Longitudinal and cross feeds 10-1208
Vertical feed 5-604
RAPID TRAVERSE
Rapid traverse for longitudinal and cross 1208mm/min
Rapid traverse for vertical 604mm/min
MOTORS
Main motor 7.5HP (optional 10hp)
Feed motor 2 HP
Motor for cooling pump 1/8HP
MOTORIZED OVERARM
Housing of the taper spindle ISO#40 / ISO#50
Number of speeds 12
Speed range 35-1600rpm for 2500UM & 2500M
Power 5.5HP
We would be happy to provide a detailed quotation tailored to your needs.
Delivery, commissioning, training and ongoing support Australia wide.
Since 1989, CNC Machinery Sales Australia's commitment has extended beyond the sale. We prioritize seamless service and support to all of our clients, large and small. Our in-house service engineers and network of industry professionals ensure swift response to any machine issue at any location across Australia.
Go to the CNC Machinery Sales showroom on Machines4u to see the rest of our range, send us a message about the product you are interested in, or give CNC Machinery Sales a call, we are happy to answer any of your questions and provide professional advice.
*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
