Quadro Heavy Duty Roll Form with Board & Battan profile

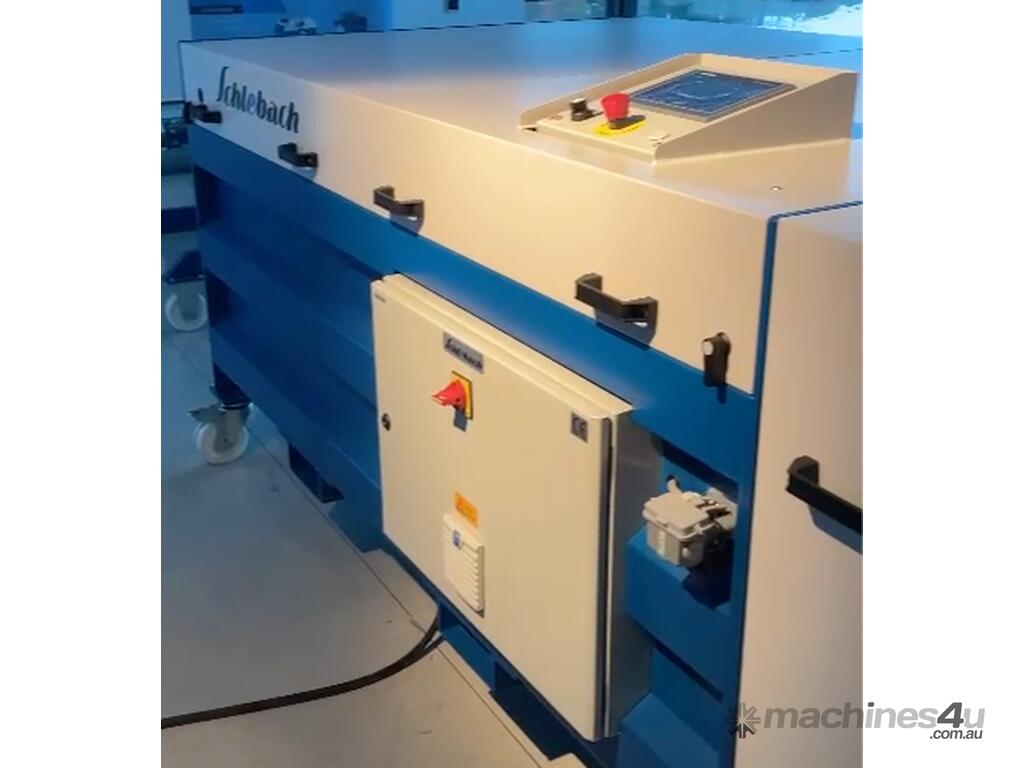

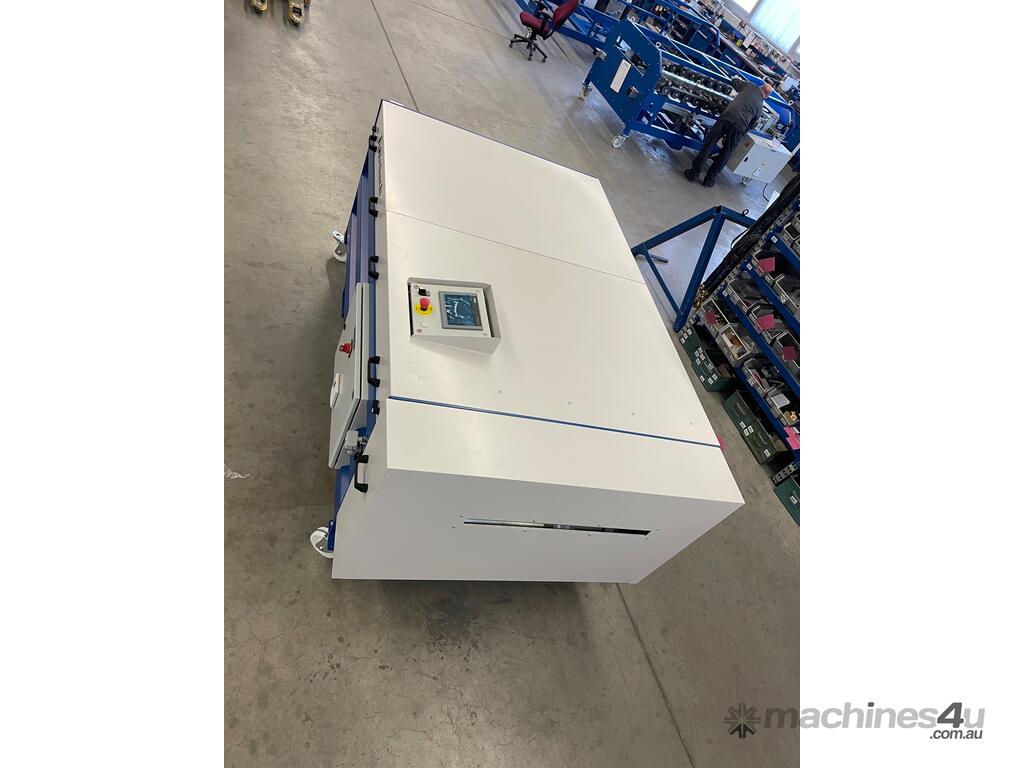

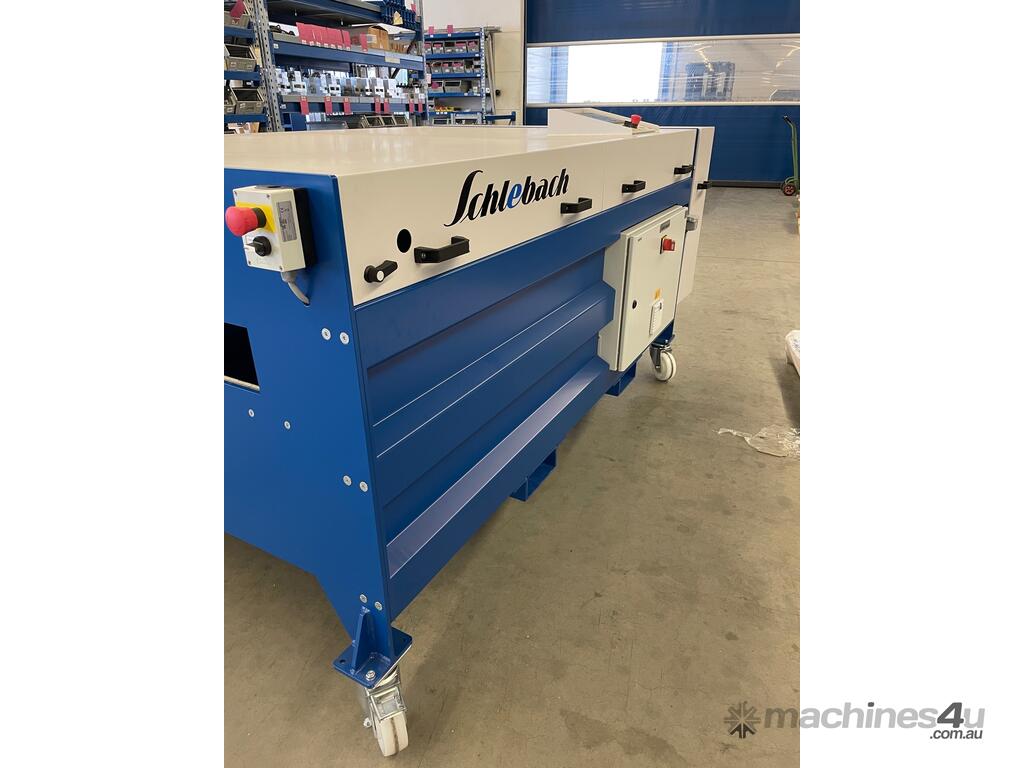

Schlebach Quadro "Heavy Duty Series" Board & Batten Profiling System

The machine is the youngest member in a well know family of machines.
It’s placed below the Quadro basic with existing features with an affordable pricing.
The biggest difference to the basic Quadro is that we have a special machine for just one profile, since the market needs for this particular profile are so huge that we decided to create this specialist for just one profile.

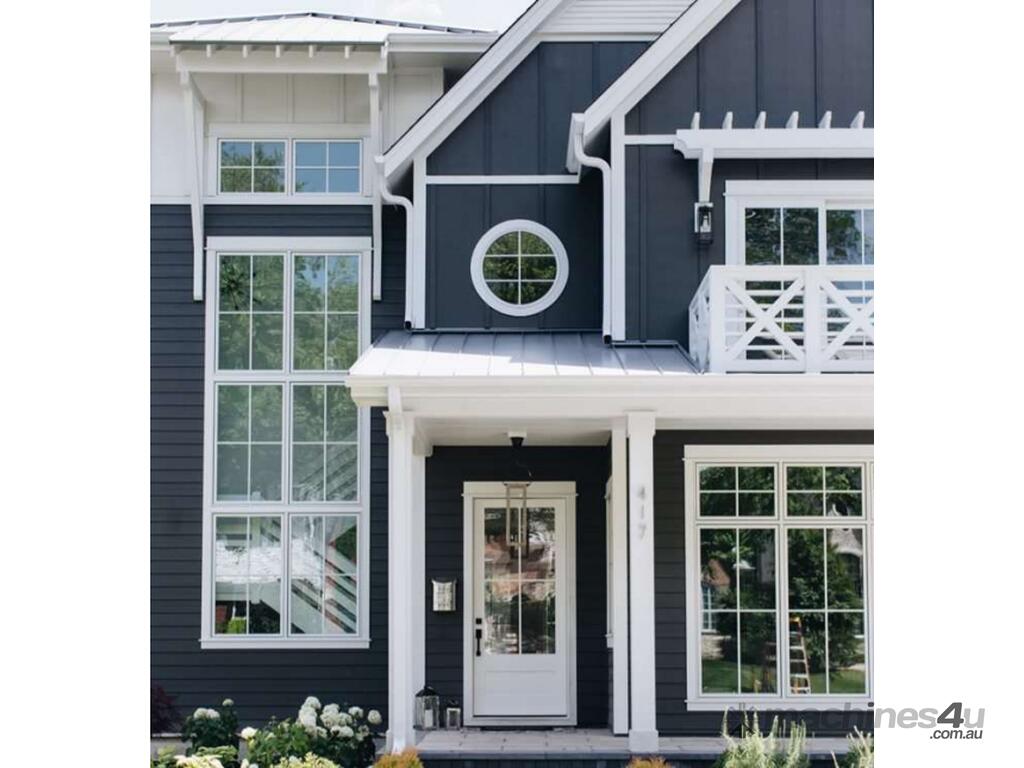

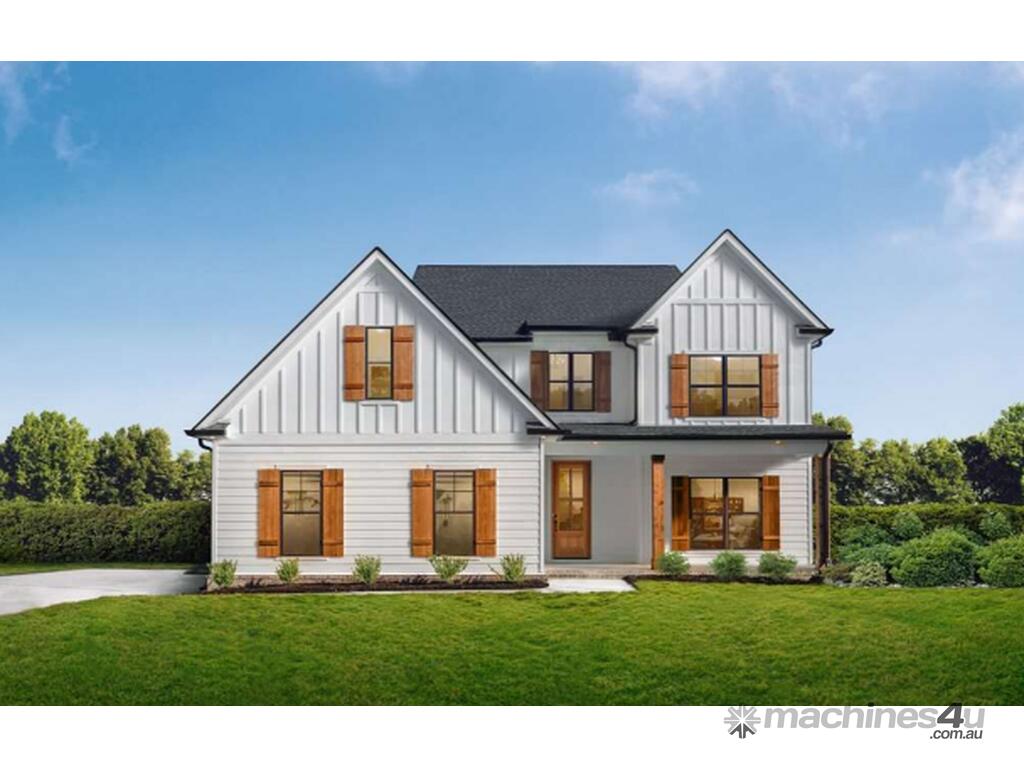

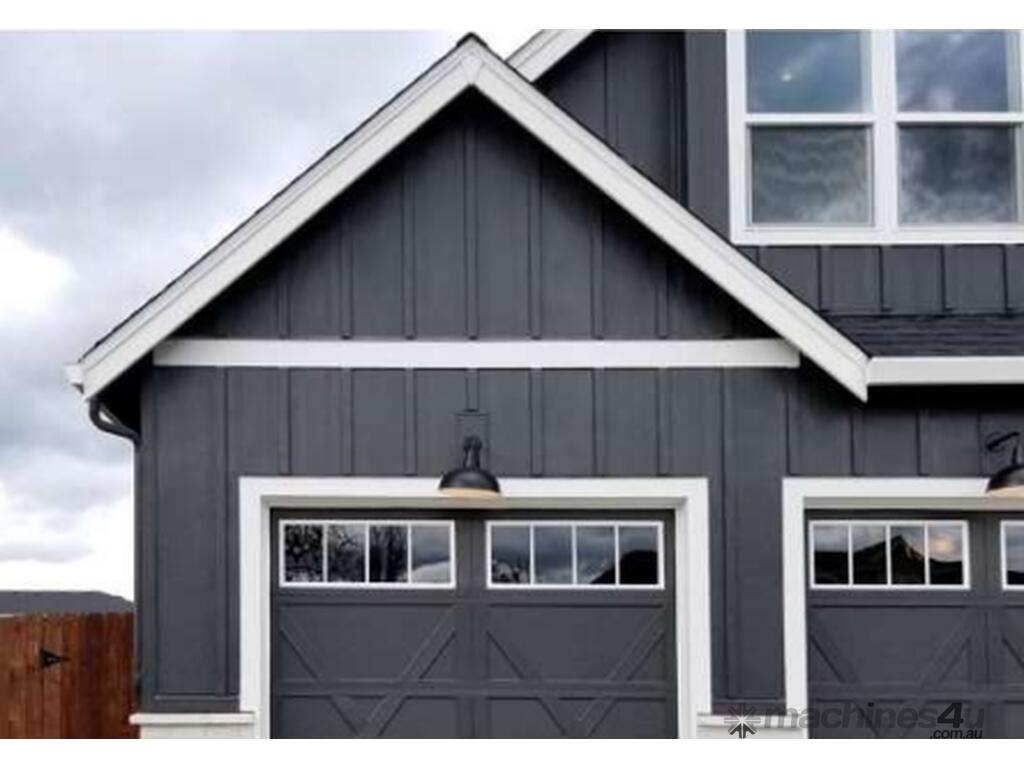

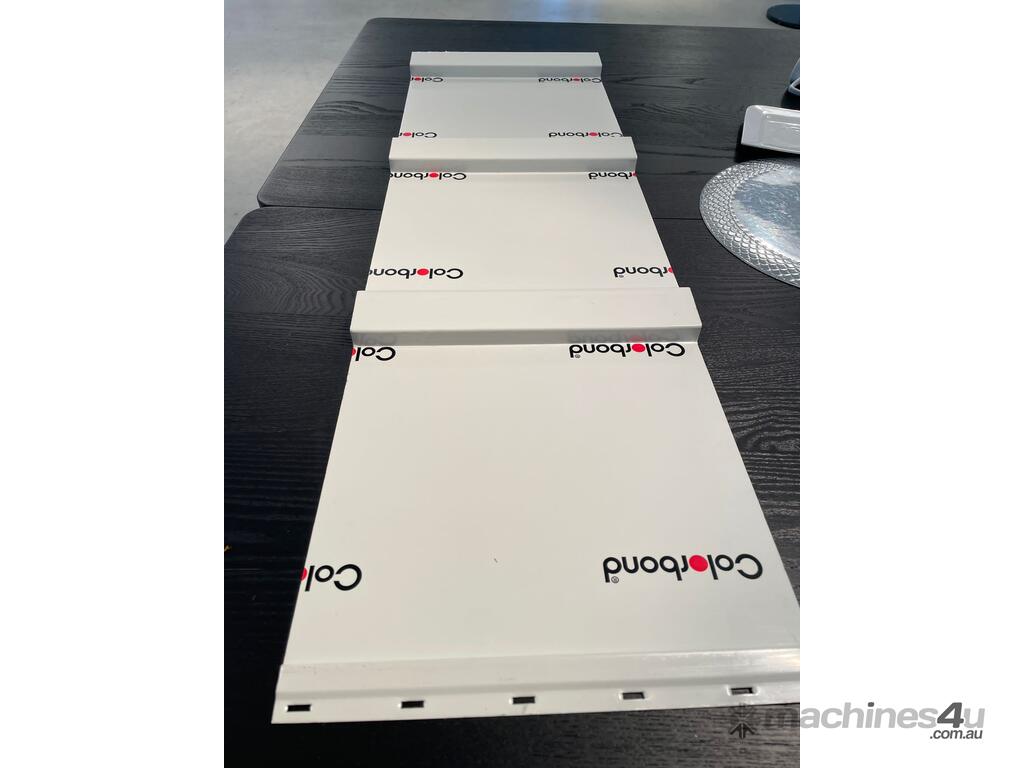

Some pictures show the use of a B&B profile on a facade.

The new Quadro Heavy Duty is the specialist when it comes to facades and cladding application.
- Based on a regular size 10-step Quadro cassette, it was removed of its flexibility in two ways:
- The cassette can’t be rotated anymore, one-sided assembly only.
- The sturdy bolt-down offers a much higher rigidity and thus improves the quality of the resulting profile.
- The machine comes with hydraulic outlet cutting for minimum length, precision cut pieces.
- The inlet was relieved of any cutting in length or width at the inlet to allow for a much more compact size.
- Offering Quadro profile quality on a smaller footprint, the size of the machine is right between the Twin and the Quadro itself.

- The small footprint allows transport on standard cargo bed of a full-size passenger truck.
- The hydraulic shear in the outlet of the machines allows the production of short panels with a high cutting quality.
-
As a result, the machine itself is shy of 10ft long & can be folded down to just a tad above 7ft for transport.
Tipping the scale at 2500lbs, hauling this specialist around is an easy task for smaller vehicles in transport & technicians on
site.

Features
Quadro "heavy duty" series
• Robust, versatile and multifunctional

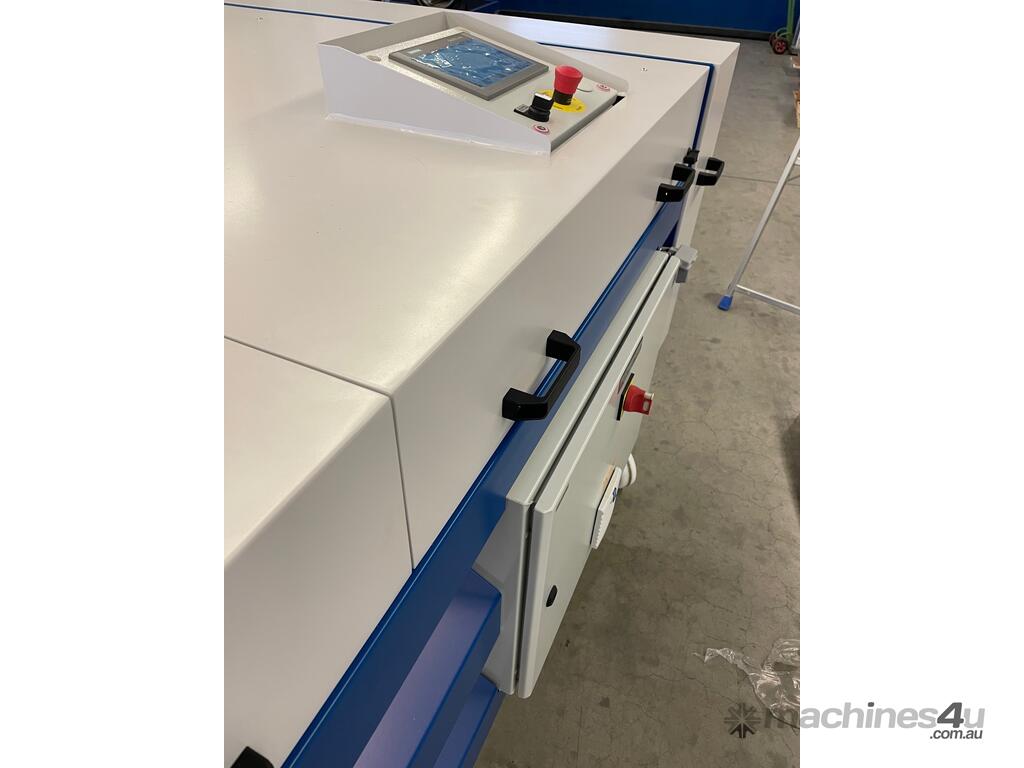

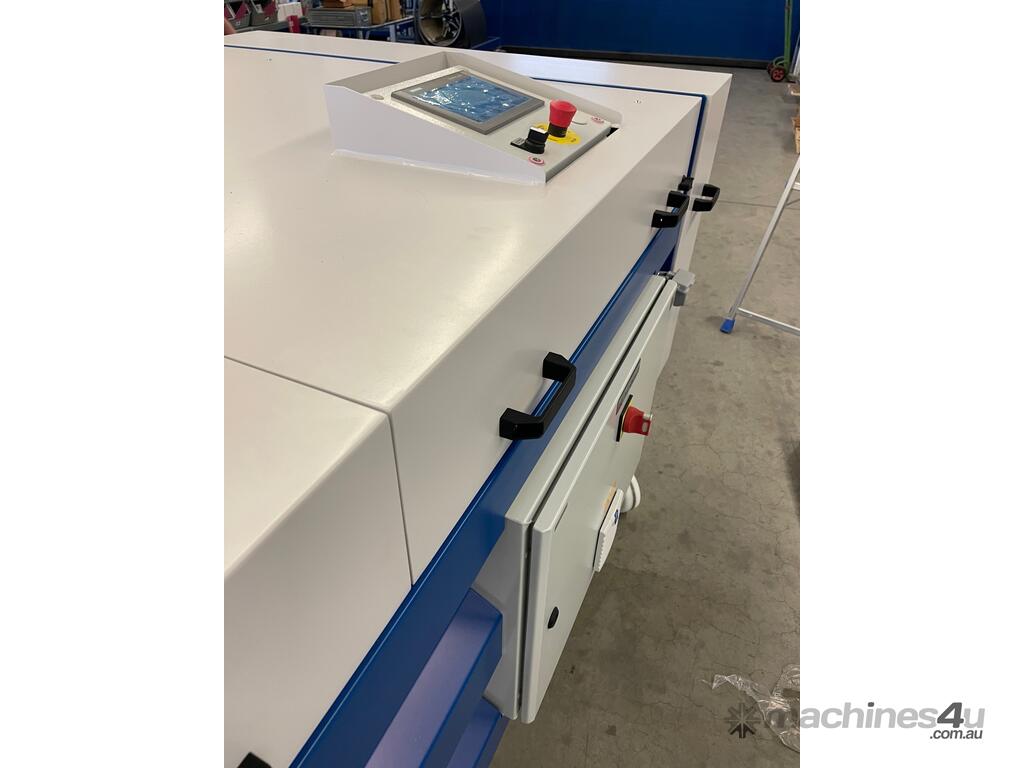

• User-friendly PLC control with touch panel
• Stepless width adjustment 320 - 720mm
• Low length tolerance of approx. 1-2 mm
• Feed speed 14 m/min

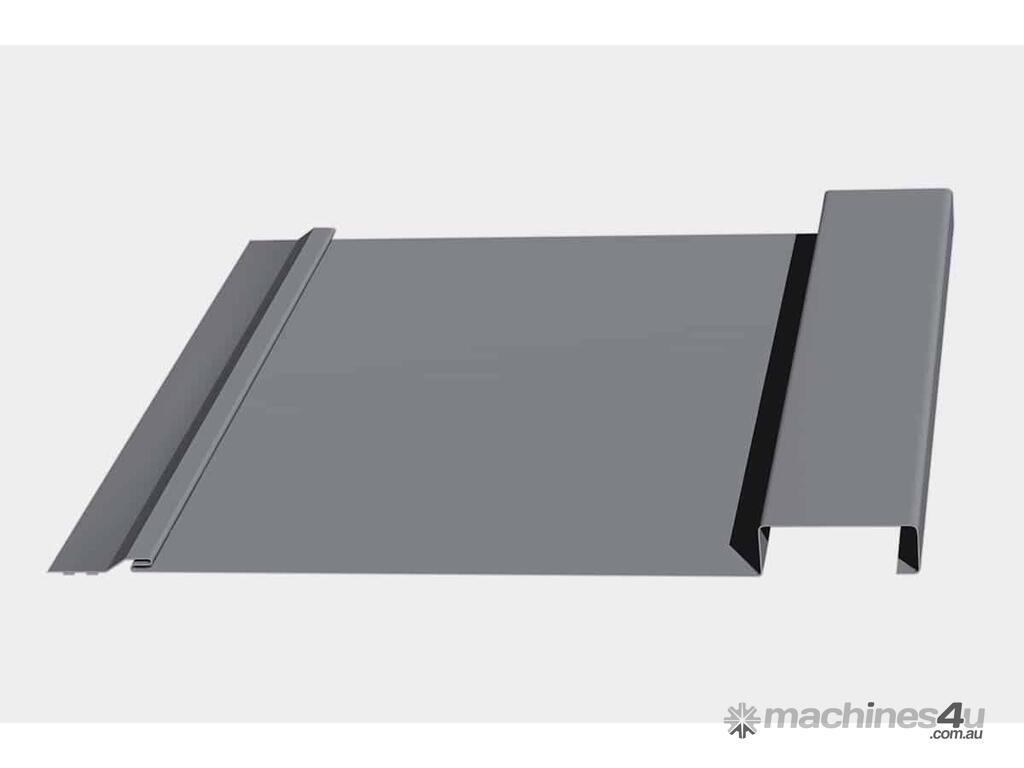

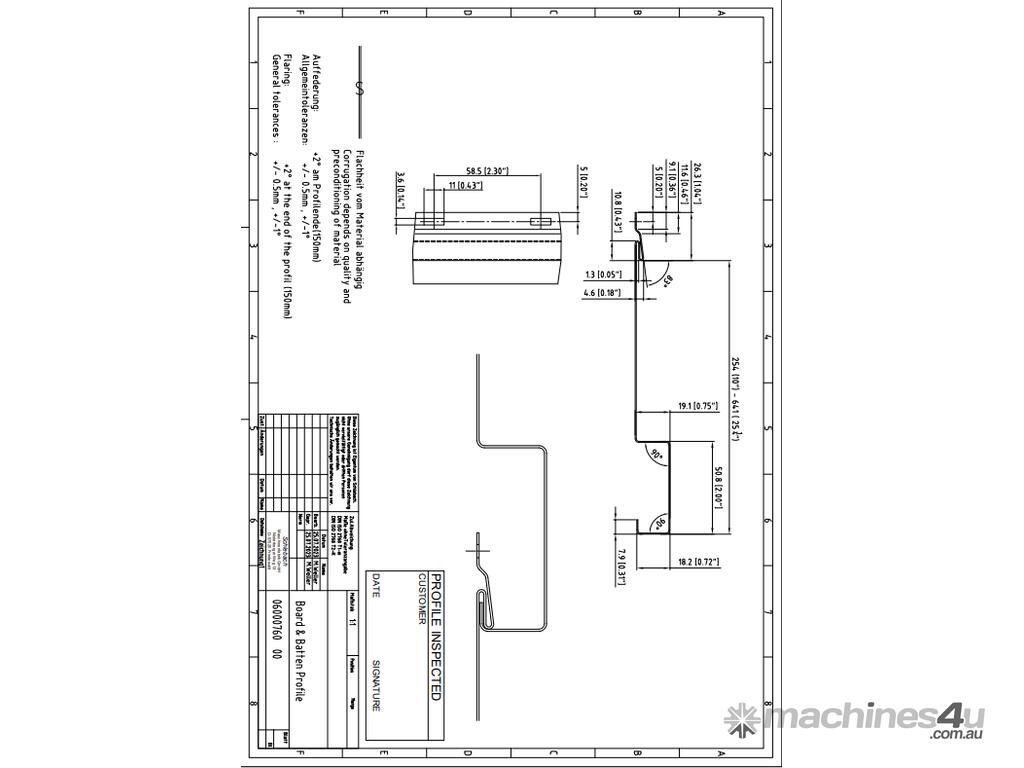

• Board & Batten profile (other profiles possible)
• Hydraulic separation for particularly precise cuts

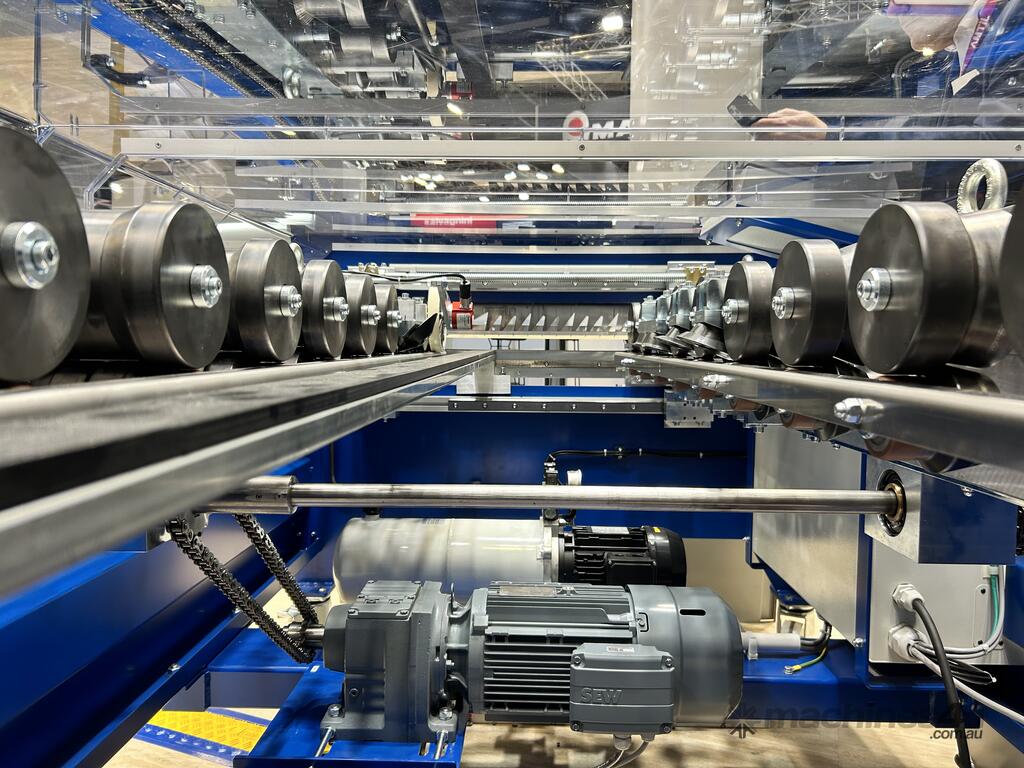

• High profile quality thanks to a large number of forming stations
• With one-sided passage also for conical shares
• Can be adapted to many areas of application with a wide range of
accessories/additional modules
• Shortest share length approx. 100 mm / depending on material and profile
• Optional separating devices for share lengths from approx. 100 mm
• Forklift shoes for safe transportation

Quadro TP
• Compact machine from the Quadro series
• Fixed equipment with 10 forming stations
• Cassette bolted to the frame for particularly high profile quality
• LM – electronic length measurement, in units of 1 mm
• PLC-control for full automatic work
• GS - hydraulic driven post cut guillotine shear

Supply voltage: 400 V / 50 Hz / 3 Ph.
Drive System: Gear Motor - 2.2 kW
Hydraulic System: Gear Motor 3.0kW
Working speed: Standard: 14 m/min
Inlet height: 900 mm
Infeed width: 300 - 800mm
Shortest share length: 200mm (depending on material and profile)
Length tolerance approx.: 1 - 2mm Steel (320 N/mm2): 0.55 - 0.70mm
Processable materials (depending on profile)
Non-ferrous metals: 0.6 - 0.8mm or 0.8 - 1.0mm (optional, must be specified when ordering)
Non-ferrous metals: 1.0 - 1.2mm (only for façade profiles)
Stainless steel: max. 0.5mm

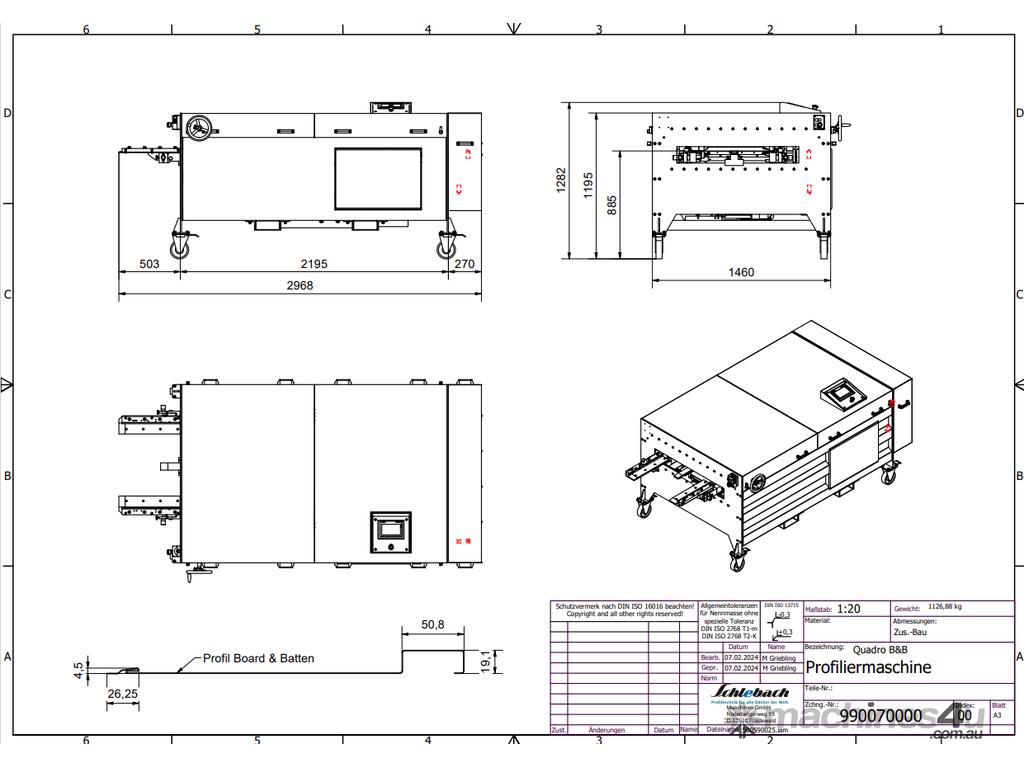

Dimensions (L x W x H): 2970mm x 1,460mm x 1,285mm
Weight approx.: 1,150kg (incl. cassettes)
