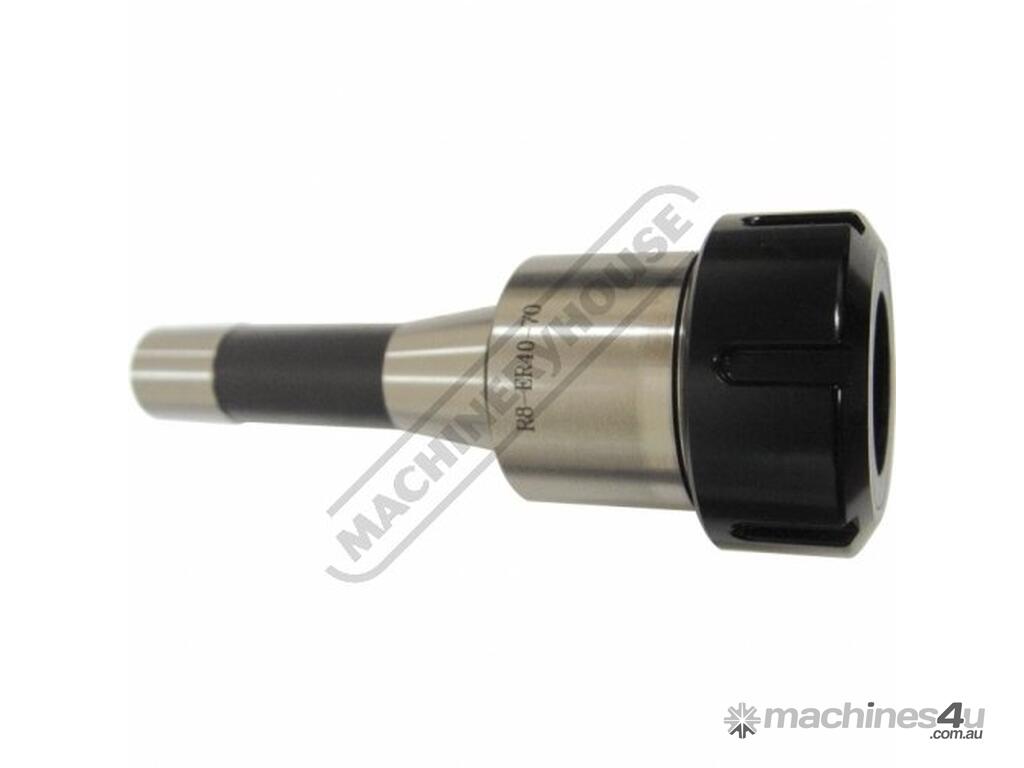

R8 x ER40 Collet Chuck R8 x ER40 Ø3-Ø26mm

TOOLMASTER R8 x ER40 Collet Chuck R8 x ER40 Ø3-Ø26mm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C138

All ER collet chucks meet the specifications of machine tool builders (DIN 2080 taper Shank Grade AT-3 - 85% taper contact)
Maintain a high level of accuracy.

Features:
Precision Ground
Ball Bearing Nut
Rated to 10000rpm


Specifications:
ORDER CODE: C138
Collet Type: ER40
Maximum Capacity (mm): 26
Taper (J): R8
Draw Bar (G): 7/16" x 20UNF
L (mm): 70
ØD (mm): 63
Nett Weight (kg): 1.0
