RAS XL Center - Folding center for roof and wall profiles

Innovation at its best!

Based on the remarkable XXL-Center technology, RAS introduces a folding innovation for roofing and architectural profiles. With 3200 mm ) folding length at 1.5 mm mild steel capacity, the XL-Center offers technical excellence.

By folding the part up and down the new model reduces material handling to a minimum.

With programmable tapered gripper positions for conical parts, the XL-Center defines a new class.

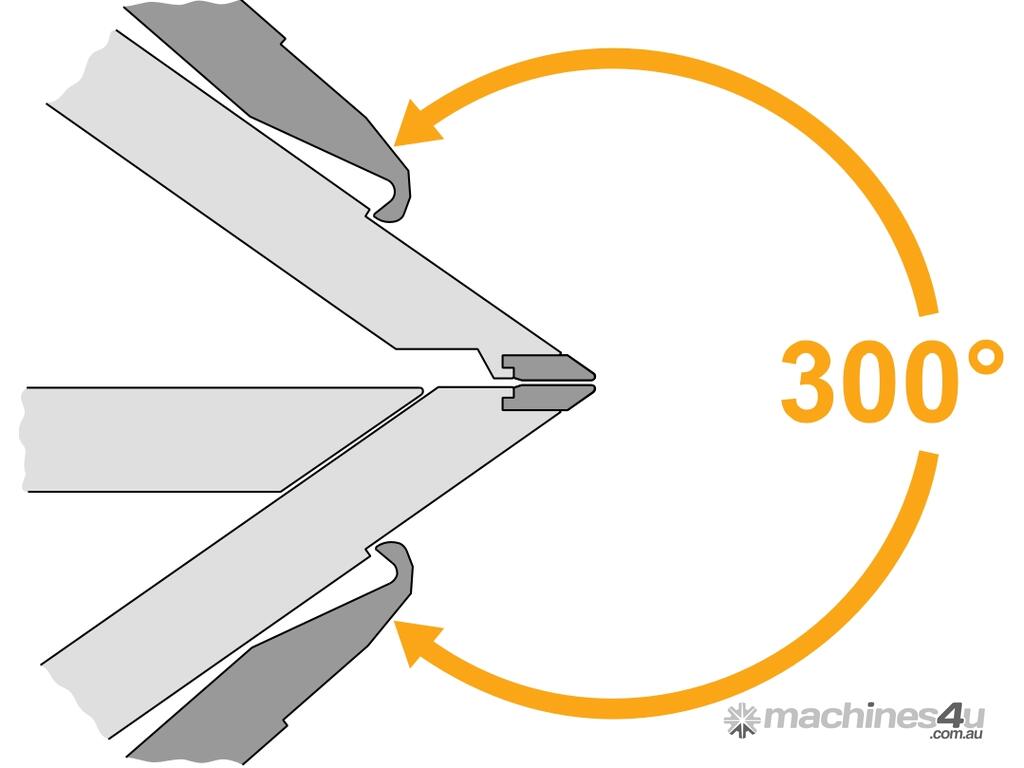

The 300 degrees free space in front of the beams allows for maximum part design flexibility.

The five servo-regulated motors offer unparalleled folding speed. The XL-Center is complete with an all-new graphic PC control.

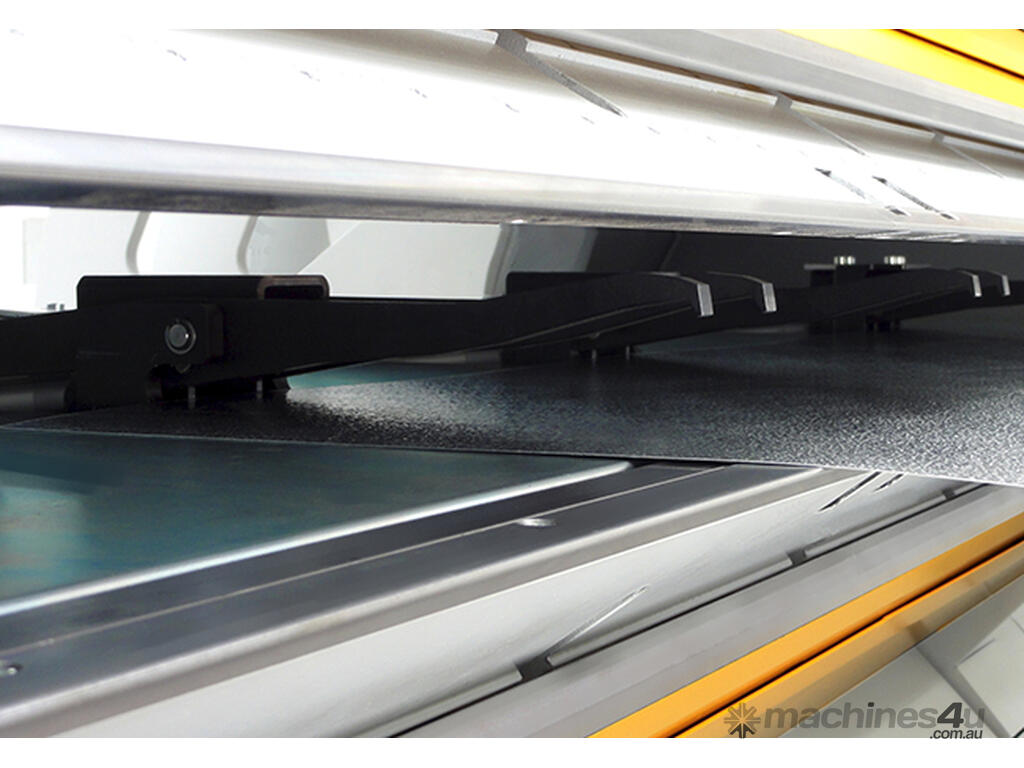

The stop grippers

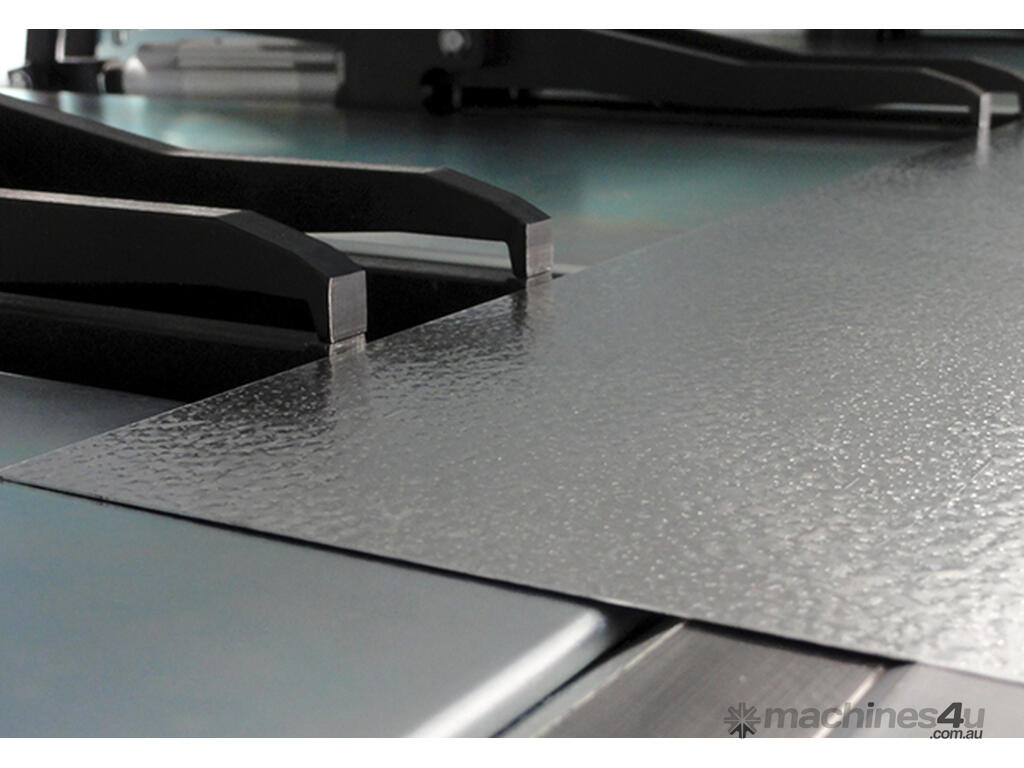

The flexible stop grippers position, open and close automatically.

On large blanks the operator positions the workpiece to the stops located inside the grippers. On small blanks the grippers will be closed and used as stoppers.

After the blank is inserted and in position, the upper beam closes and clamps the workpiece. The grippers open and automatically re-grip the part at the far end without any involvement of the operator. Finger pockets allow the grippers to come as close as 6 mm to the bend line.

XL-Center Highlights
Affordable machine for bending roof & wall profiles
Bending up and down
Material handling reduced to a minimum

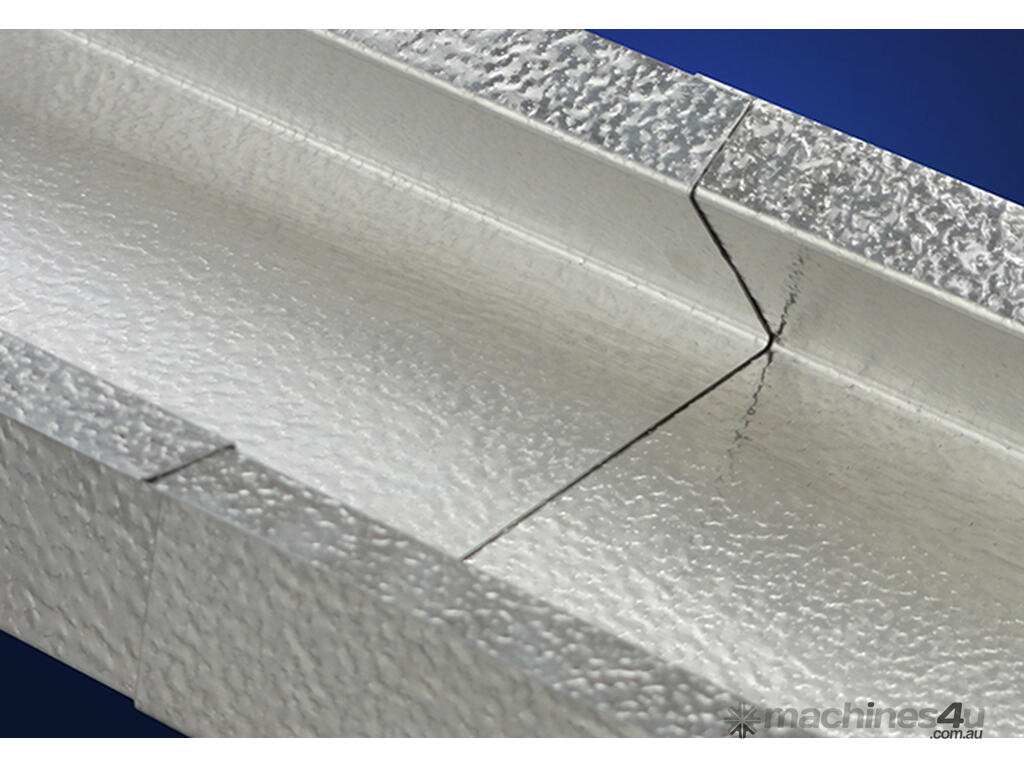

Bending tapered profiles underline the extra class of the XL center
300 degrees free space allows for maximum part design flexibility.
Unparalleled folding speed due to five servo-regulated motors
Easy operation due to automatic 1-click part programming
No bending expertise required

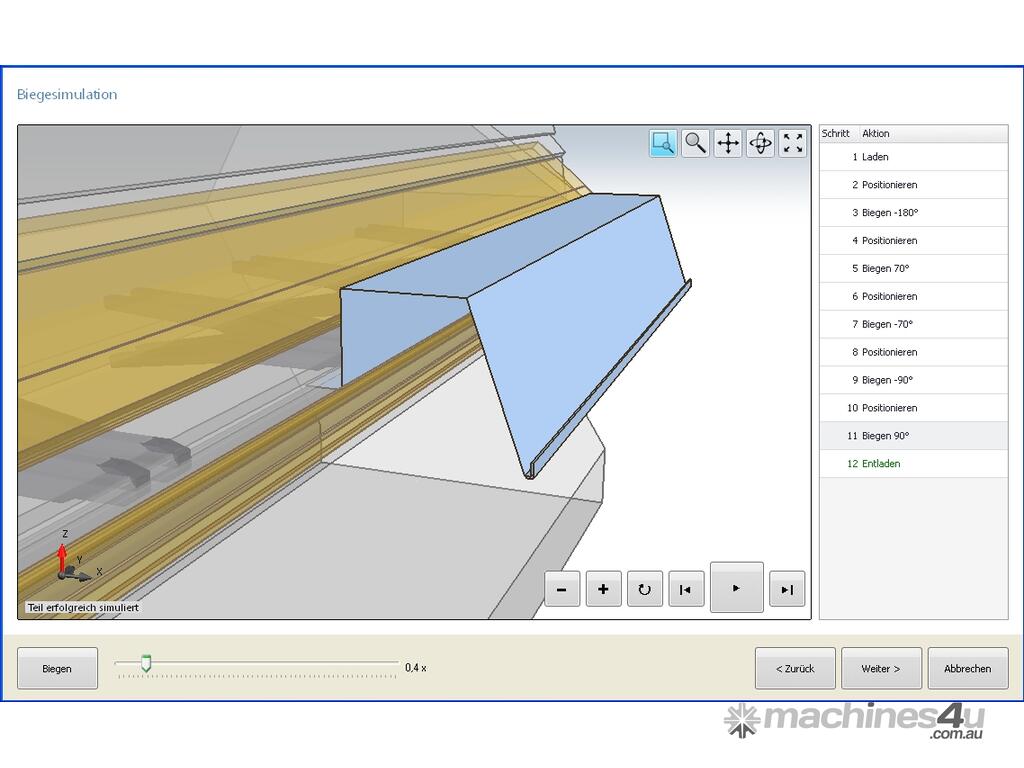

Folding simulation in 2D or 3D

For more information visit our and download the brochure.
