UNIMIG WELDERS RAZOR TIG 220 TIG DC 5-year warranty 10 Amp Plug
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W1636
This professional-grade DC TIG welder gives you incredible results from start to finish on every weld.
HD Backlit Interface
This next generation interface panel is bright and easy to read in any environment.
Power Factor Correction (PFC)
PFC gives you maximum electrical efficiency. It automatically compensates for any voltage fluctuation, and PFC is also designed to be generator friendly.
10A Plug
A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.
High-Frequency TIG
Maximise your results from start to finish. A high-frequency torch can start an arc without contacting the workpiece, reducing the risk of contaminating the tungsten or the weld. It also means you get access to the entire TIG weld cycle, including pre- and post-gas and up and down slope parameters.
Pulse TIG
Minimise the heat input without compromising on any of the penetration. Alternating between a peak and base current reduces the amount of heat input and focuses the arc, perfect for sheet metals and out-of-position welding.
Foot Control Ready
The perfect accessory, easily adjust your amperage to suit every weld as you go without disrupting your torch movement.
Smart Fan
Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.
Advanced MMA Features
This machine features Anti-Stick technology, as well as adjustable Arc Force and Hot Start functionality. These features are designed for improving weld quality and ease of use.
Features:
Get the full DC TIG welding cycling including all the pulse functions
With new PFC components this machine can be run on a 10A plug
Connect a foot pedal to the machine for extra versatility and convenience
A 5-year warranty to reflect our confidence in this machine

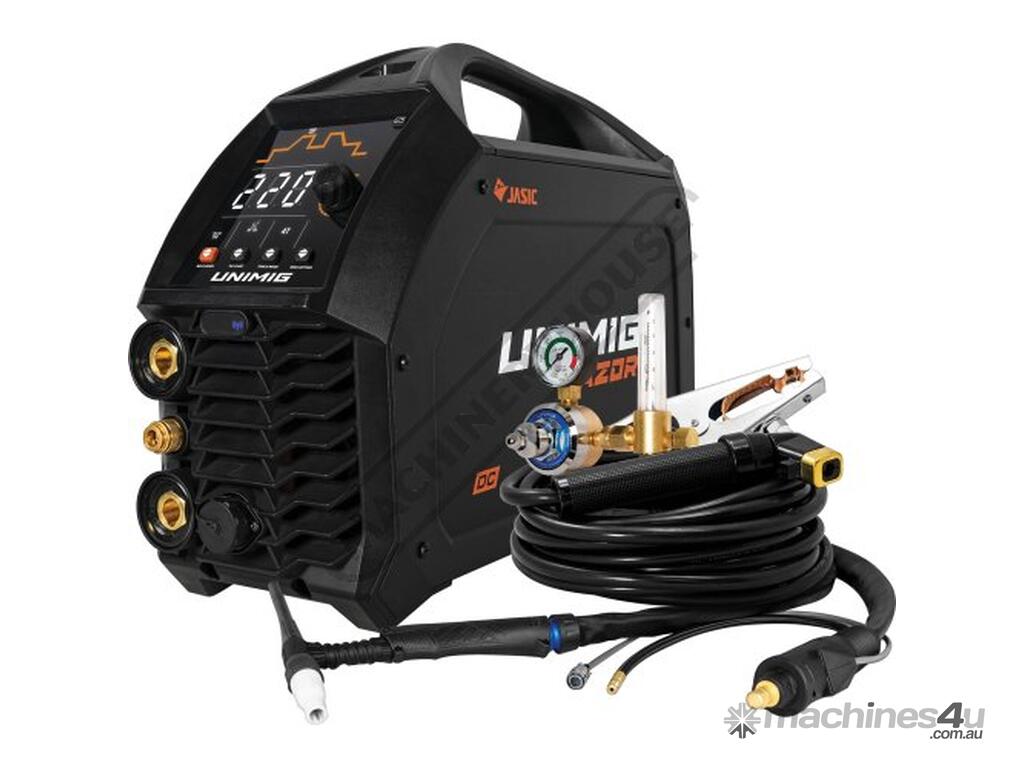

Includes:
- RAZOR TIG 220 DC Welder
- 4m T2 TIG Torch
- 4m Twist Lock Electrode Holder
- 4m 300 Amp Earth Clamp & Lead
- Argon Flowmeter Regulator
- 1.8m Gas Hose with fittings
- Operating Manua
Specifications:
ORDER CODE: W1636
Type: TIG WELDER
MODEL: RAZOR TIG 220
Part Number: U12003K
Voltage / Amperage (V / amp): 240 / 10
Recommended Plug (amp): 10
Input Frequency (Hz) (Hz): ~
Input Current (amp): ~
Ieff Current (amp): 9.8
Power Rating (kVA): ~
Rated Output Current (amp / V): ~
Rated Output Current (amp / V): ~
Range of Output Current (amp): 5 - 220 TIG
Range of Output Current (amp): 20-160A STICK
Range of Output Current (amp): ~
Arc Force (amp): ~
No Load Voltage (V): 68
Pre-Flow (S) (sec): ~
Clean Width (%) (%): ~
Slope-Down Time (S) (sec): ~
Post-Flow Time (sec): ~
Base Current (%): ~
Pulse Frequency (Hz): ~
Pulse Duty Cycle (%): ~
Duty Cycle 40 Deg C - TIG (% amp): 20 220
Duty Cycle 40 Deg C - MMA (% amp): 15 160
Duty Cycle 40 Deg C - Plasma (% amp): ~
Plasma Severance Cut Capacity Carbon Steel (mm): ~
Plasma Production Cut Capacity Carbon Steel (mm): ~
Plasma Production Cut Capacity Aluminium (mm): ~
Protection Class: IP23S
Remote Control (Yes / ~): ~
Recommended Generator (kVA): 9.0
Efficency (%): ~
Power Factor: ~
Insulation Class: H
Dimensions (mm): 310 x 150 x 460
Nett Weight (kg): 8.9
